24VDC Inverter Fan
24VDC operation with 0.79A current draw for inverter cooling applications.
1 / 3
Ebmpapst

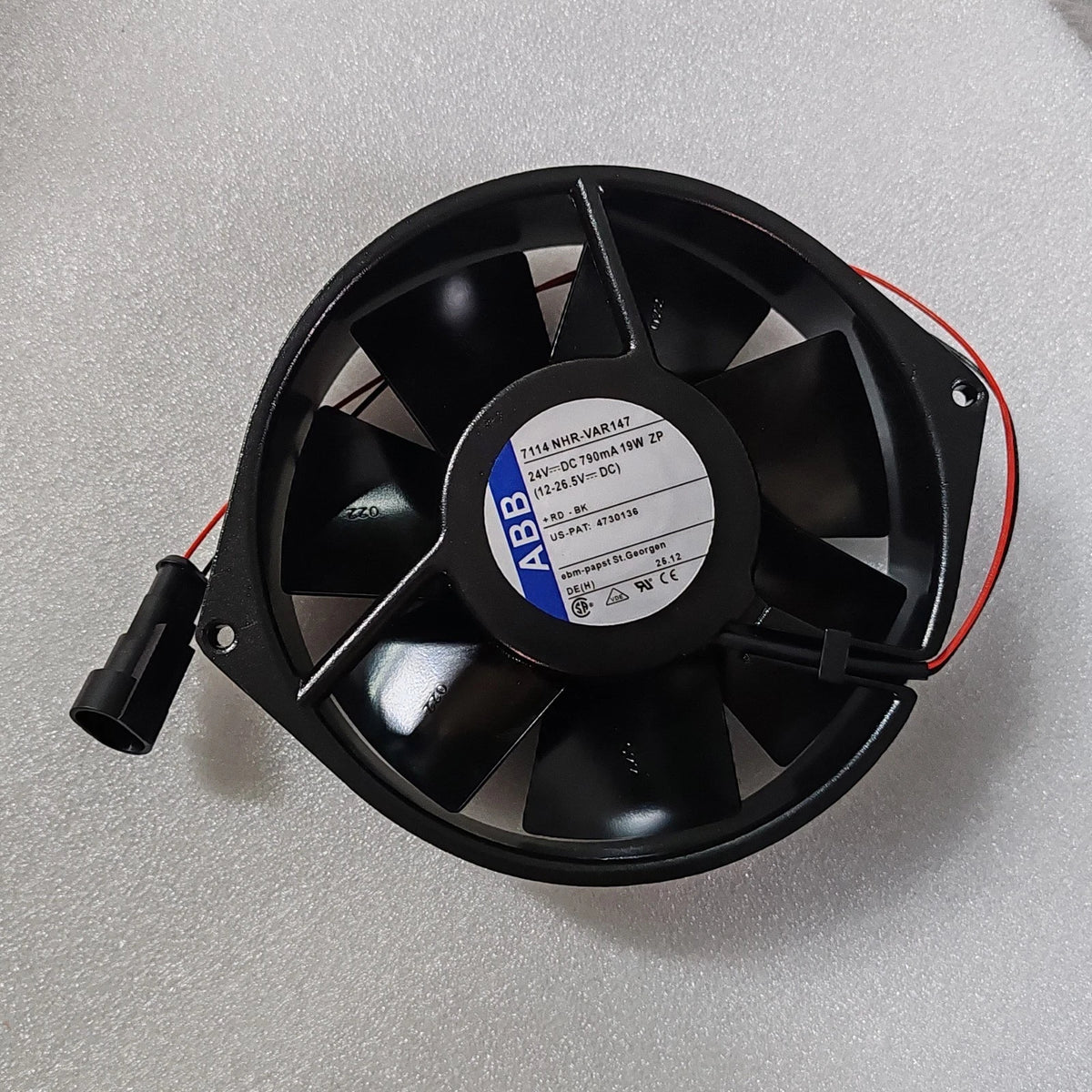

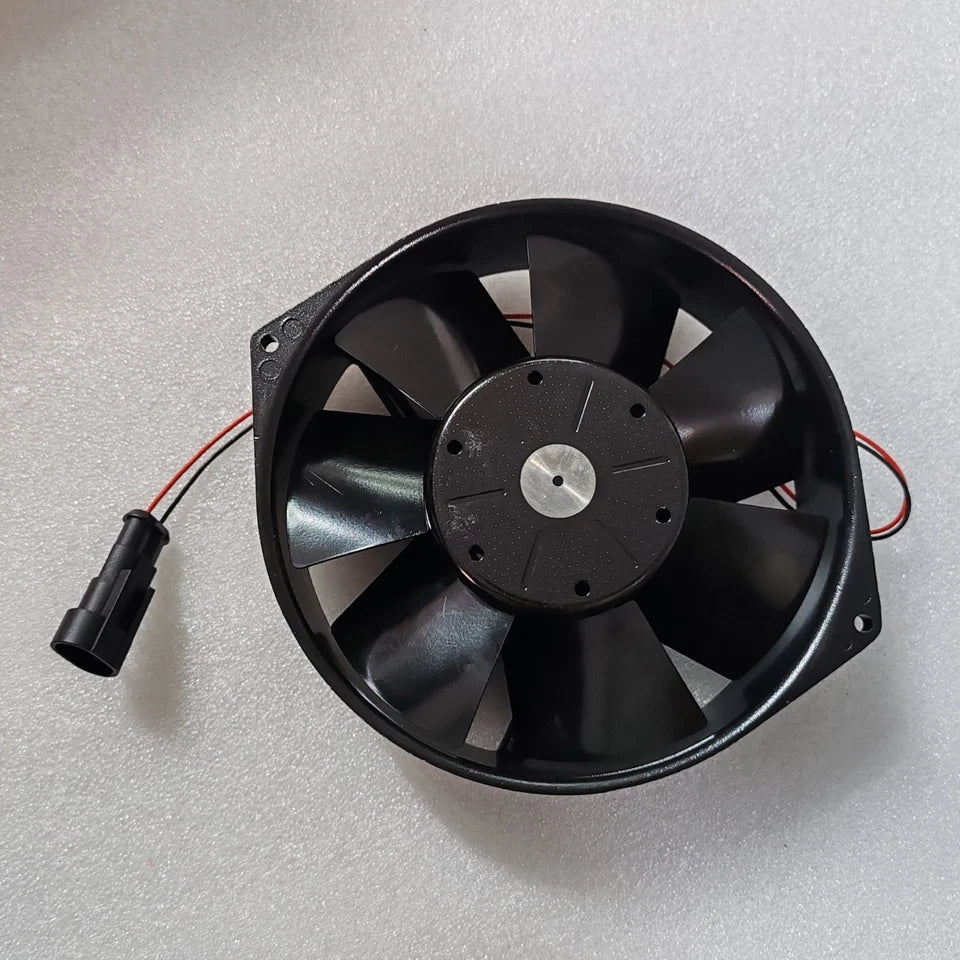

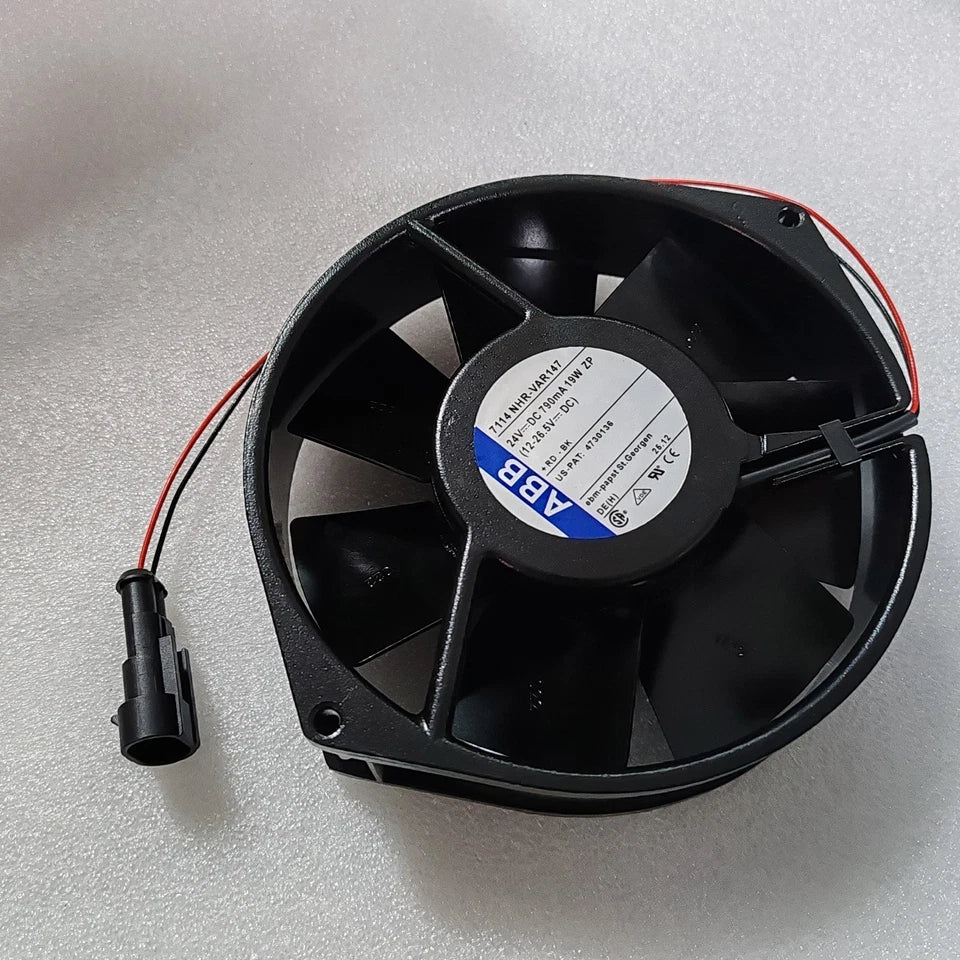

Ebmpapst 7114NHR-VAR147 Axial Fan 24VDC 38W 3300 rpm
PRODUCT PRICE
USD
$121.25
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 7114NHR-VAR147 |
| Product Category | Axial Fan |
| Nominal Voltage | 24 VDC |
| Current | 0.79 A |
| Power Consumption | 19 W |
| Speed | 3350 rpm |
| Dimensions | 172 x 150 x 38 mm |
| Maximum Air Flow | 360 m³/h |
| Protection Rating | IP20 |
| Frequency | 50/60 Hz |
Key Features
172 x 150 x 38 mm Frame
Large rectangular frame format for high-volume air movement in equipment cabinets.
3350 rpm Speed
Rated speed of 3350 rpm delivers up to 360 m³/h maximum free-air flow.
19 W Power Consumption
Power consumption is 19 W at the rated operating point.
IP20 Protection
IP20 protection rating is specified for controlled-environment installation.
Applications
- Inverter and drive cooling
- Industrial control cabinet thermal management
- Power electronics forced-air cooling
- Large enclosure ventilation
- Equipment cooling in controlled environments
- Air-moving applications requiring a 172 x 150 mm fan frame
Purchase Information
We support online purchase of the Ebmpapst 7114NHR-VAR147 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 7114NHR-VAR147? It is a 24VDC axial fan with a 172 x 150 x 38 mm frame, identified for inverter fan applications.
What is the nominal voltage and current? The nominal voltage is 24 VDC and the current draw is 0.79 A.
What is the speed and air flow? The speed is 3350 rpm and the maximum free-air flow is 360 m³/h.
What is the power consumption? Power consumption is 19 W.
What is the protection rating? The protection rating is IP20.
What are typical applications? It is used for inverter and drive cooling, control cabinet thermal management, and power electronics cooling.
Need help confirming a model?
Send us your part number and technical requirements.
