60 mm DC Axial Fan
Compact 60 x 60 x 25 mm axial fan suitable for space-restricted cooling applications.
1 / 4
Ebmpapst

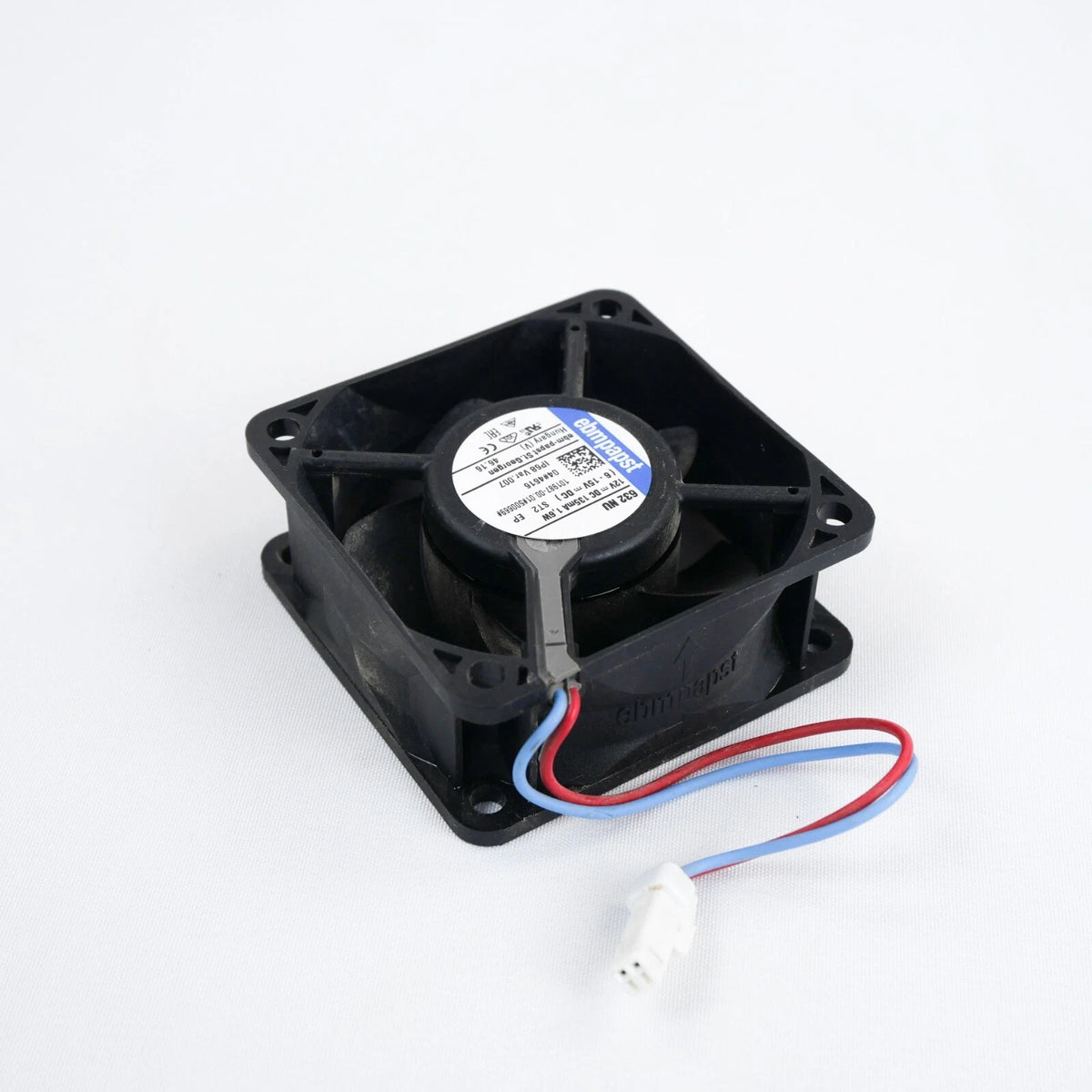

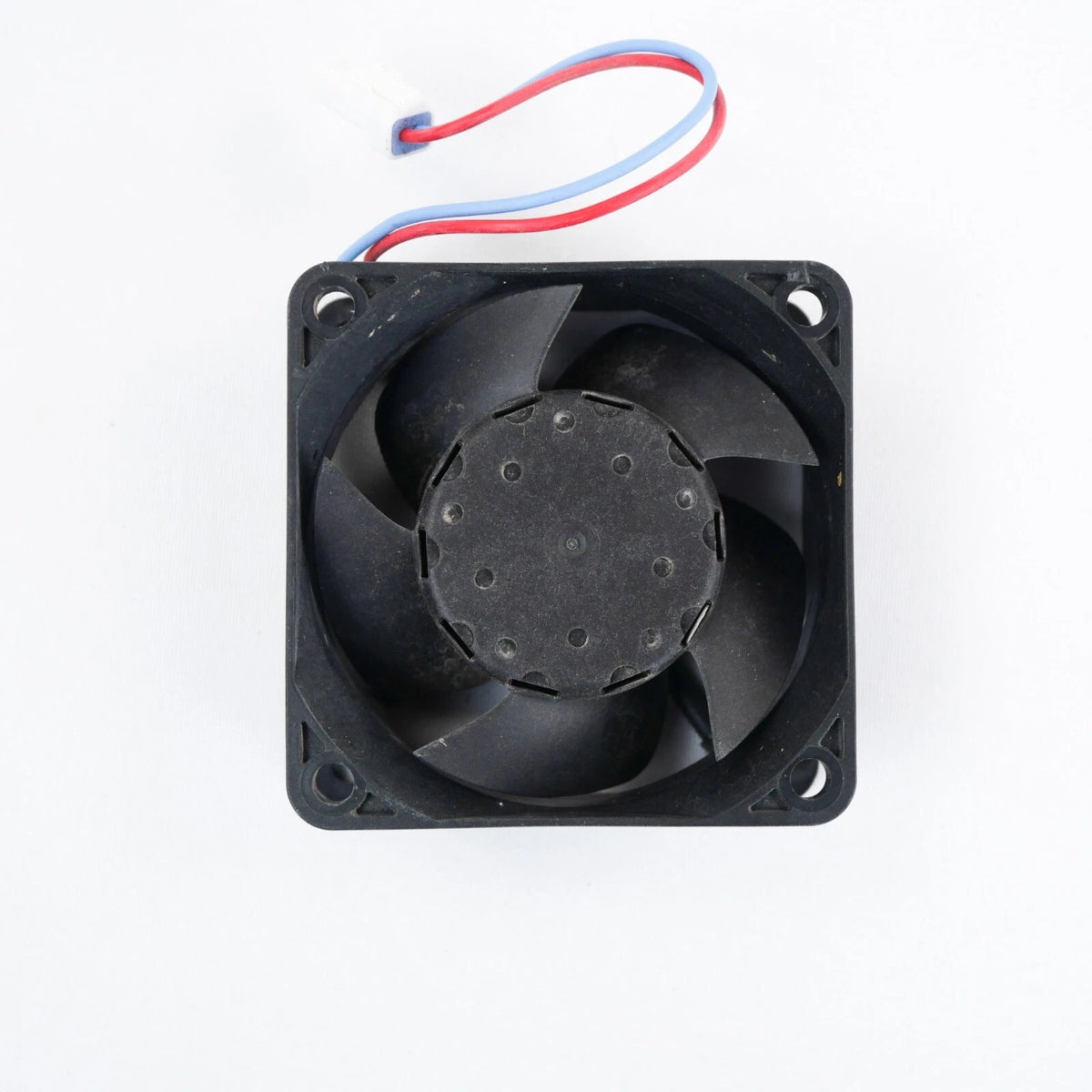

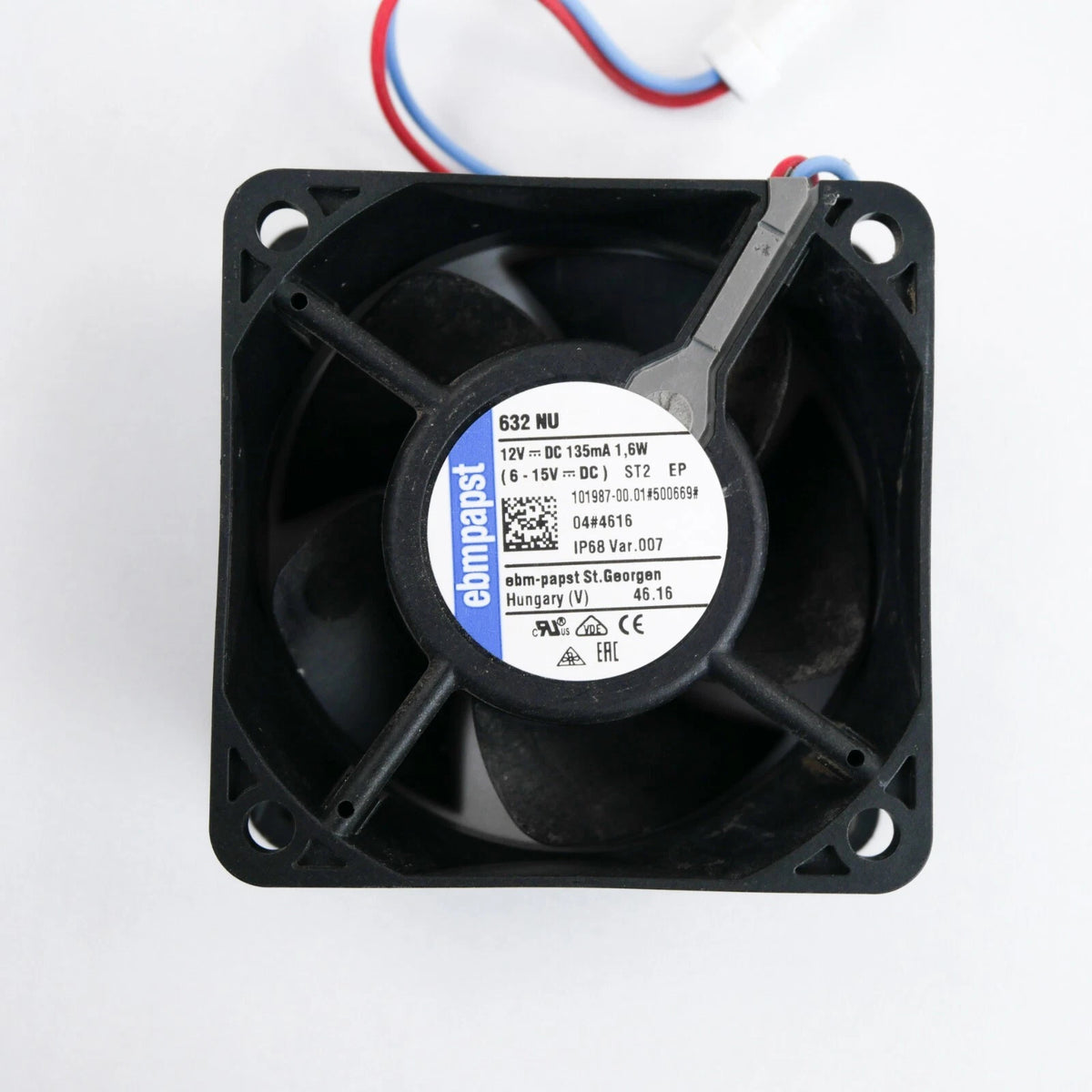

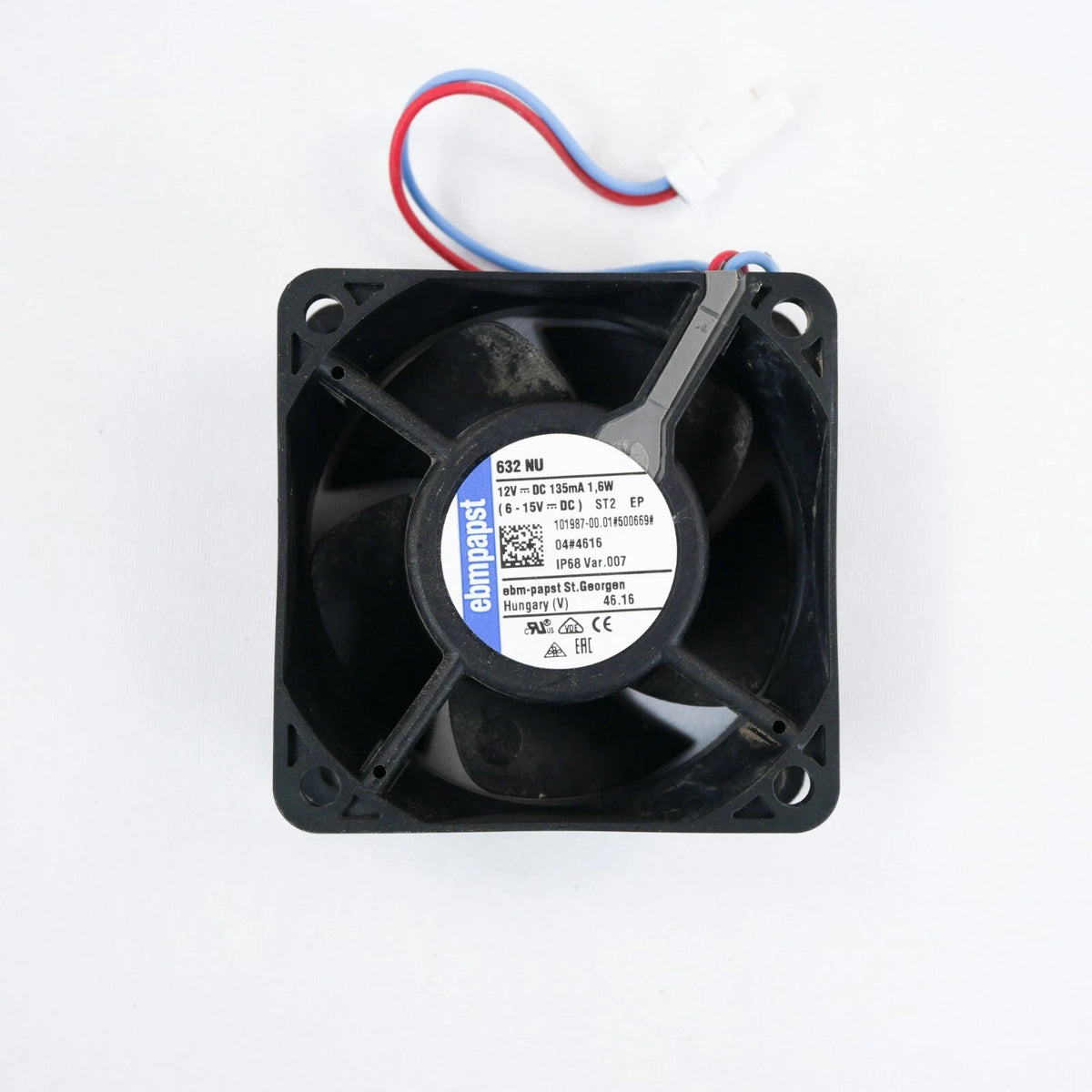

Ebmpapst 632NU Axial Fan
PRODUCT PRICE
USD
$32.01
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 632NU |
| Product Category | Axial Fan |
| Product Family | 630 |
| Nominal Voltage | 12 VDC |
| Power Consumption | 1.8 W |
| Speed | 5900 RPM |
| Air Flow | 23.5 CFM (40 m³/h) |
| Frame Dimensions | 60 x 60 x 25 mm |
| Noise Level | 34 dBA |
| Bearing Type | Ball Bearing |
| Protection Rating | IP68 |
Key Features
IP68 Protection
Rated IP68 for dust-tight and water-immersion protection, making it suitable for demanding environmental conditions.
High-Speed Operation
Runs at 5900 RPM with 23.5 CFM air flow and 1.8 W power consumption.
Ball Bearing Construction
Ball bearings support continuous rotation in fixed cooling installations.
Low Noise Output
The fan is specified at 34 dBA, appropriate for noise-sensitive compact equipment.
Applications
- Compact electronic enclosure cooling
- Outdoor or wet-environment equipment ventilation
- Telecom cabinet thermal management
- Instrumentation forced-air cooling
- Power supply heat dissipation
- Industrial control equipment cooling
Purchase Information
We support online purchase of the Ebmpapst 632NU Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 632NU? It is a 60 mm DC axial fan from the 630 series, designed for compact cooling applications requiring environmental protection.
What voltage does the 632NU use? The 632NU operates on 12 VDC.
What is the air flow and speed? The fan delivers 23.5 CFM (approximately 40 m³/h) at 5900 RPM.
What is the power consumption? Published specifications list 1.8 W power consumption.
What is the protection rating? The 632NU is rated IP68 for dust-tight and water-immersion protection.
What are the dimensions? The fan measures 60 x 60 x 25 mm.
What is the noise level? The documented noise level is 34 dBA.
What bearing type is used? It uses ball bearings.
