24VDC 60mm Axial Fan
24VDC nominal voltage with an 18 to 26VDC range in a 60 x 60 x 25 mm frame.
1 / 1
Ebmpapst

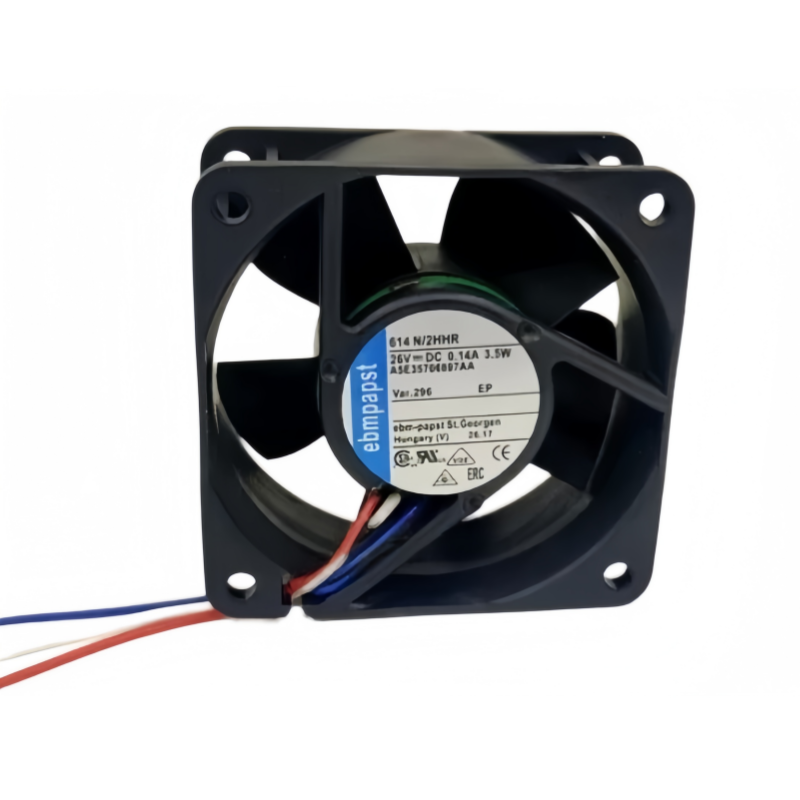

Ebmpapst 614N/2HHR Axial Fan 24VDC 3.6W 3600 rpm
PRODUCT PRICE
USD
$25.68
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 614N/2HHR |
| Product Category | Axial Fan |
| Nominal Voltage | 24 VDC |
| Voltage Range | 18 to 26 VDC |
| Power Consumption | 3 W |
| Current | 0.12 A |
| Speed | 5600 rpm |
| Dimensions | 60 x 60 x 25 mm |
| Air Flow | 54 m³/h |
| Bearing Type | Ball Bearing |
Key Features
5600 rpm Speed
Rated speed of 5600 rpm for compact forced-air cooling.
54 m³/h Air Flow
Delivers 54 m³/h air flow from a 60mm frame.
3 W Power Consumption
Power consumption is 3 W with a current draw of 0.12 A.
Ball Bearing Construction
Ball bearing design is specified for continuous-duty operation.
Applications
- Compact electronic enclosure cooling
- Control cabinet ventilation
- Power supply thermal management
- Small equipment forced-air cooling
- Telecom and network device cooling
- Instrumentation cooling in space-constrained installations
Purchase Information
We support online purchase of the Ebmpapst 614N/2HHR Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 614N/2HHR? The 614N/2HHR is a 24VDC axial fan with a 60 x 60 x 25 mm frame.
What is the nominal voltage? The nominal voltage is 24 VDC, with a range of 18 to 26 VDC.
What is the speed and air flow? The speed is 5600 rpm and the air flow is 54 m³/h.
What is the power consumption? Power consumption is 3 W with a current draw of 0.12 A.
What bearing type is used? The fan uses a ball bearing.
What are typical applications? It is used for compact electronic enclosure cooling, control cabinet ventilation, and power supply thermal management.
Need help confirming a model?
Send us your part number and technical requirements.
