High-Speed DC Axial Fan
60 mm DC axial fan operating at 11700 RPM, delivering 41.1 CFM for concentrated forced-air cooling.
1 / 1
Ebmpapst

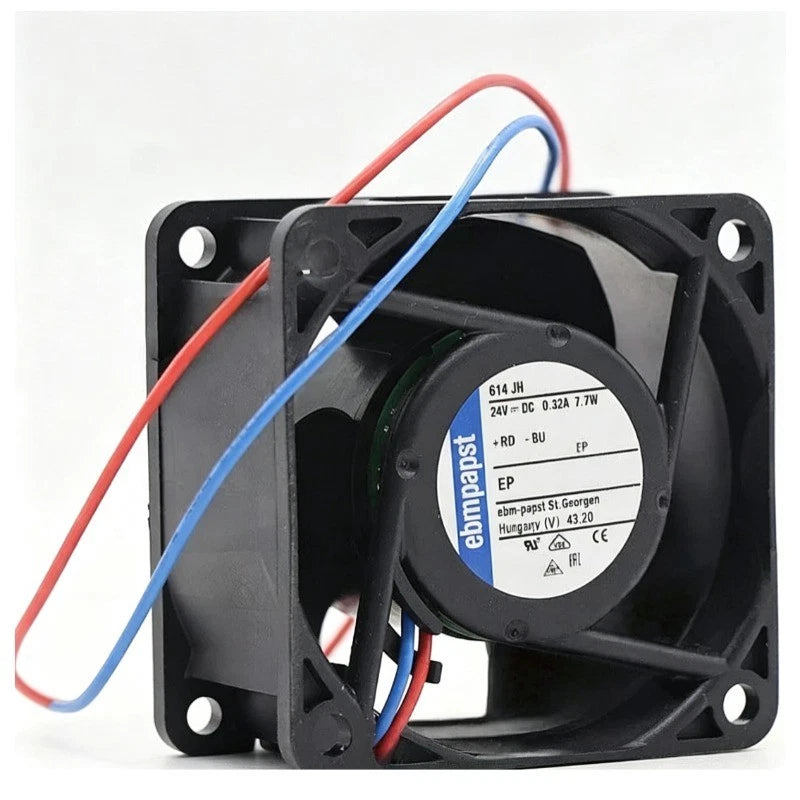

Ebmpapst 614JH Axial Fan
PRODUCT PRICE
USD
$39.83
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 614JH |
| Product Category | Axial Fan |
| Product Family | 610 J |
| Nominal Voltage | 24 VDC |
| Voltage Range | 14-26.4 VDC |
| Power Consumption | 7.7 W |
| Speed | 11700 RPM |
| Air Flow | 41.1 CFM (70 m³/h) |
| Frame Dimensions | 60 x 60 x 32 mm |
| Noise Level | 53 dBA |
| Bearing Type | Ball Bearing |
| Operating Temperature | Up to +70°C |
Key Features
24 VDC Wide Voltage Range
Nominal 24 VDC input with an operating range of 14-26.4 VDC, accommodating supply fluctuations in DC-powered systems.
7.7 W Power Draw
Published power consumption is 7.7 W at rated speed, with 53 dBA noise output.
Ball Bearing Construction
Ball bearings support continuous high-speed rotation in fixed industrial cooling installations.
Compact 60 mm Frame
32 mm deep frame fits into space-limited enclosures while providing high static pressure capability.
Applications
- Compact electronic enclosure cooling
- Power converter thermal management
- Telecom equipment ventilation
- Instrumentation forced-air cooling
- DC-powered control panel cooling
- Heat sink airflow enhancement
Purchase Information
We support online purchase of the Ebmpapst 614JH Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 614JH? It is a 60 mm DC axial fan in the 610 J series, designed for high-speed cooling in compact electronic and electrical equipment.
What voltage does the 614JH require? It operates on 24 VDC nominal, with a voltage range of 14-26.4 VDC.
What is the speed and airflow? The fan runs at 11700 RPM and delivers 41.1 CFM (approximately 70 m³/h).
What is the power consumption? Published specifications list 7.7 W power consumption.
What is the noise level? The 614JH is specified at 53 dBA.
What are the dimensions? The fan measures 60 x 60 x 32 mm.
What is the maximum operating temperature? Published data identifies a maximum operating temperature of +70°C.
What bearing type is used? It uses ball bearings.
