24VDC Brushless Motor
DC brushless axial fan operating at 24VDC with integrated electronic commutation.
1 / 1
Ebmpapst

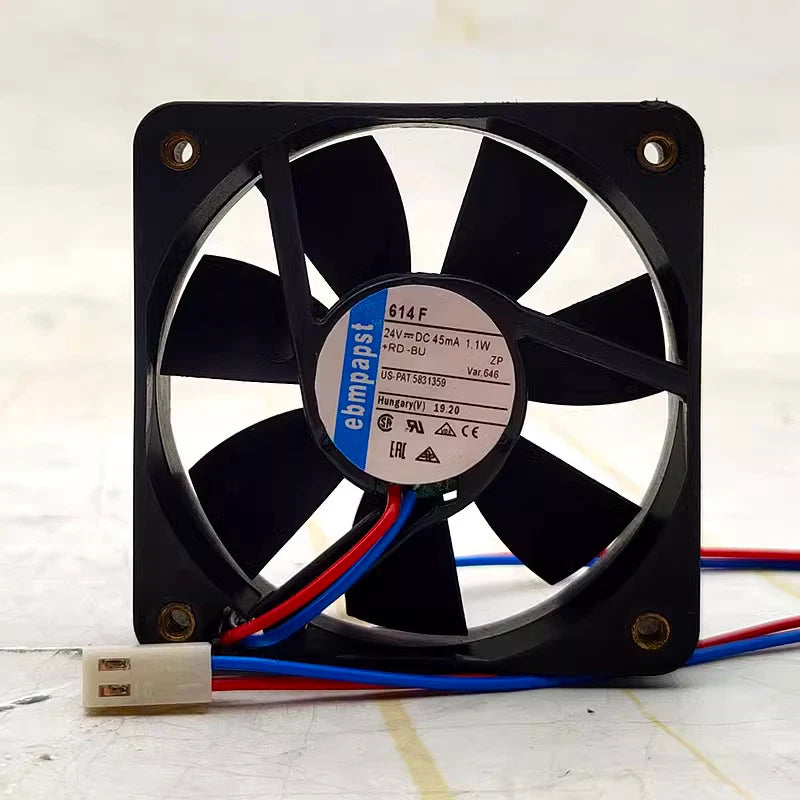

Ebmpapst 614F Axial Fan 24VDC 60x60x25mm 2.2W
PRODUCT PRICE
USD
$13.35
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 614F |
| Product Category | Axial Fan |
| Fan Type | DC Brushless Axial Fan |
| Nominal Voltage | 24 VDC |
| Power Consumption | 1.1 W |
| Maximum Current | 46 mA |
| Air Flow | 29 m³/h (17.1 CFM) |
| Speed | 3900 rpm |
| Noise Level | 27 dB(A) |
| Frame Size | 60 x 60 mm |
| Depth | 25.4 mm |
| Bearing Type | Sleeve Bearing |
| Protection Rating | IP20 |
| Termination | 2 Lead Wires |
| Series | 600 F |
Key Features
60 x 60 x 25 mm Frame
Compact 60mm square frame with a 25.4mm depth for tight electronic enclosures.
1.1W Low Power Consumption
Documented power consumption of 1.1W with a maximum current of 46mA.
3900 rpm and 29 m³/h
Delivers 29 m³/h air flow at 3900 rpm for local hotspot cooling.
Sleeve Bearing Construction
Sleeve bearing design for quieter low-speed operation in low-heat applications.
Applications
- Electronic enclosure cooling
- Control panel thermal management
- Compact power supply cooling
- Instrumentation airflow
- Small equipment ventilation
- DC-powered cooling systems
Purchase Information
We support online purchase of the Ebmpapst 614F Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 614F? It is a 24VDC brushless axial fan with a 60 x 60 x 25 mm frame, 1.1W power consumption, and 29 m³/h air flow.
What is the supply voltage? The nominal voltage is 24 VDC.
What is the power consumption? The documented power consumption is 1.1 W with a maximum current of 46 mA.
What is the air flow? The air flow is 29 m³/h (17.1 CFM).
What is the speed? The documented speed is 3900 rpm.
What is the noise level? The noise level is 27 dB(A).
What are the dimensions? The fan measures 60 x 60 mm with a 25.4 mm depth.
What bearing type is used? The 614F uses a sleeve bearing.
What is the protection rating? The protection rating is IP20.
