12VDC Compact Axial Fan
Operates on a 12VDC nominal voltage with an operational voltage range of 8 to 15VDC for use in low-voltage DC cooling systems.
1 / 4
Ebmpapst

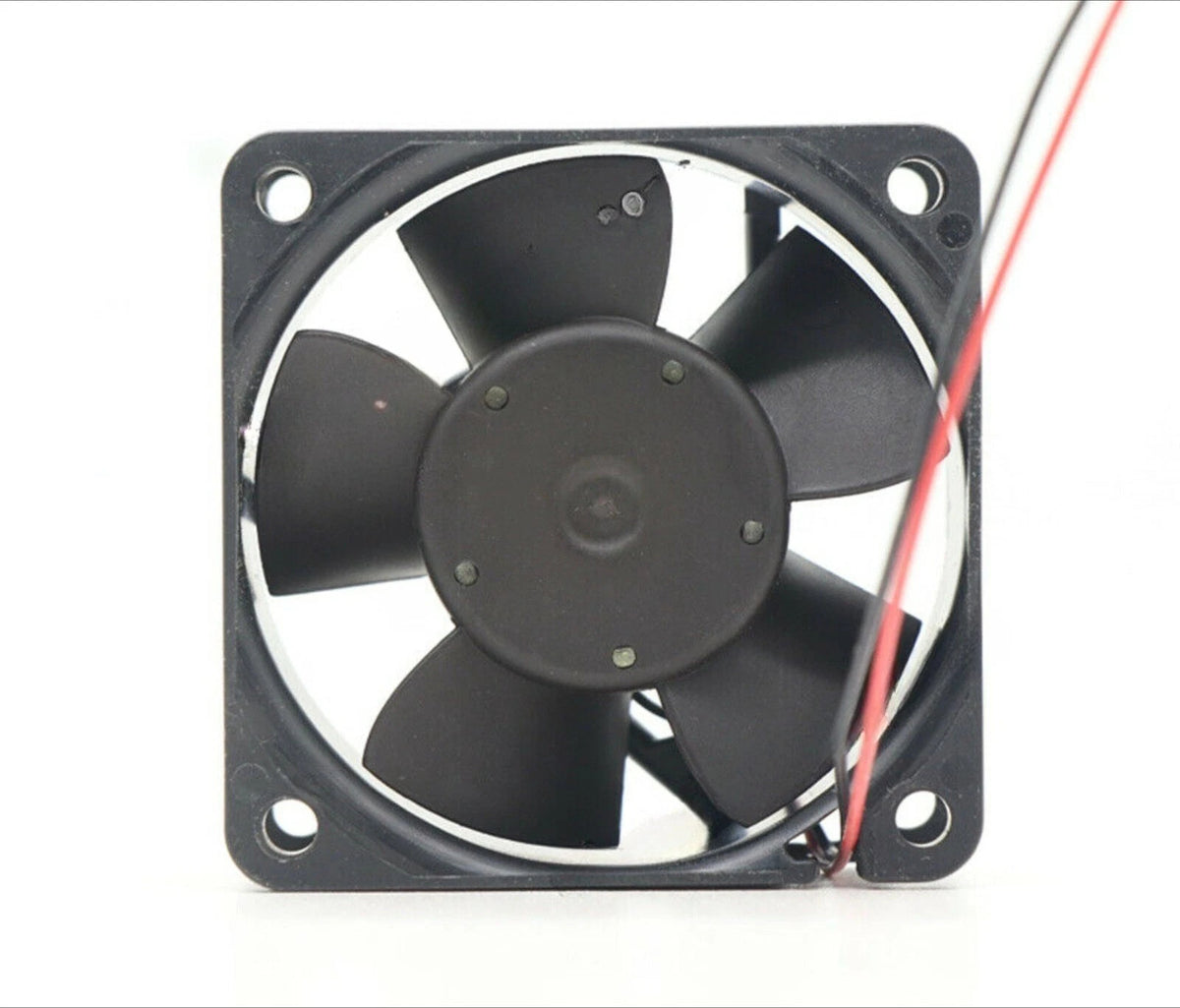

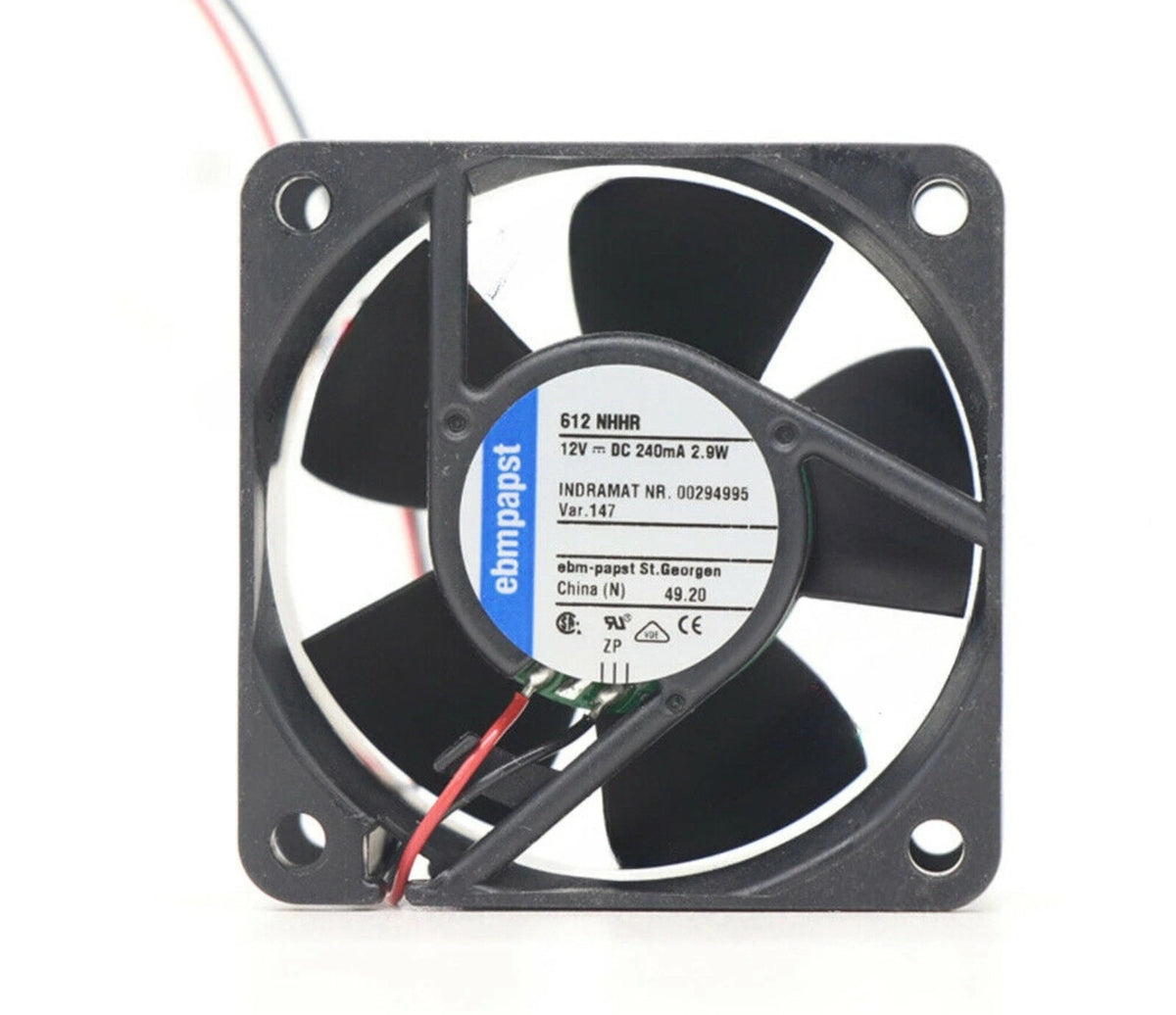

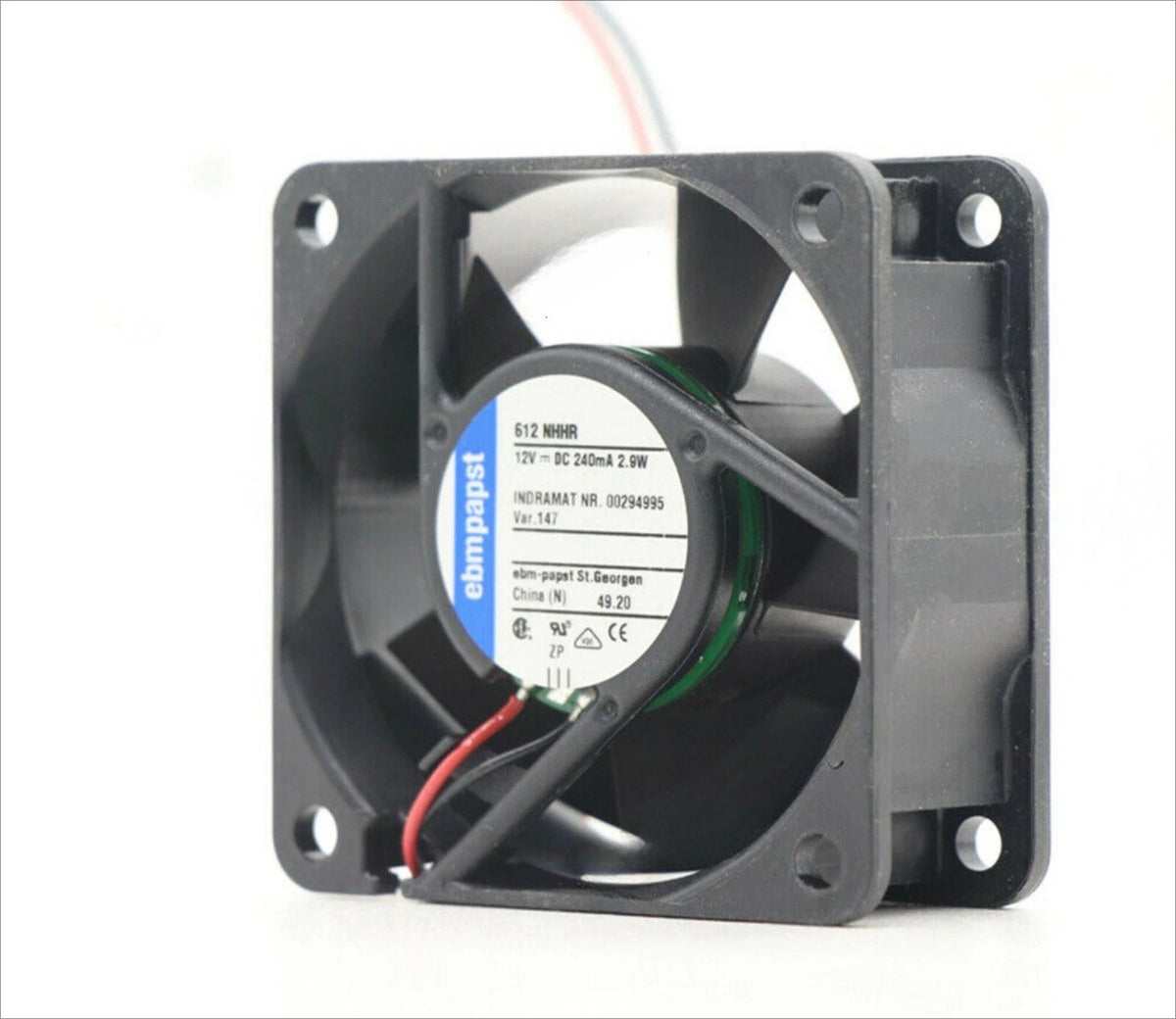

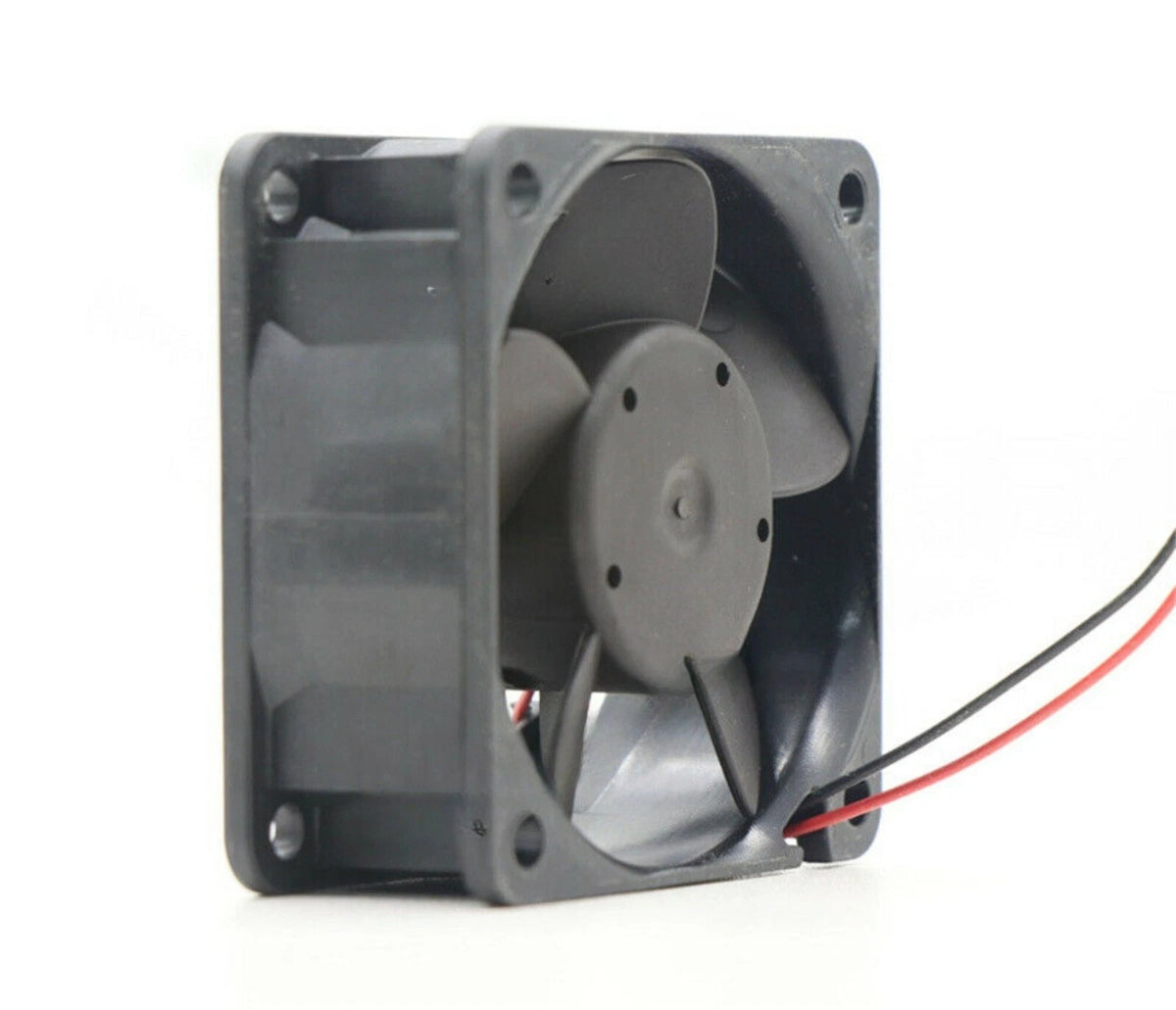

Ebmpapst 612NHHR Axial Fan 12VDC 2.6W 4300 rpm
PRODUCT PRICE
USD
$25.95
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 612NHHR |
| Product Category | Axial Fan |
| Nominal Voltage | 12 VDC |
| Voltage Range | 8 to 15 VDC |
| Power Consumption | 2.9 W |
| Speed | 6800 rpm |
| Dimensions | 60 x 60 x 25 mm |
| Maximum Air Flow | 54 m³/h |
| Operating Temperature Range | -20°C to +70°C |
| Bearing Type | Ball Bearing |
Key Features
6800 rpm Speed
Rated speed of 6800 rpm supports forced-air cooling in space-constrained 60mm fan mounting applications.
54 m³/h Air Flow
Delivers a maximum air flow rate of 54 m³/h through a 60 x 60 x 25 mm frame.
2.9 W Power Input
Power consumption is specified at 2.9 W for low-power DC cooling circuits.
Ball Bearing Construction
Ball bearing design supports continuous-duty axial fan operation across the specified ambient temperature range.
Applications
- Compact electronic enclosure cooling
- Control cabinet forced-air ventilation
- Power supply thermal management
- Industrial instrumentation cooling
- Telecom and network equipment cooling
- Small-form-factor machinery ventilation
Purchase Information
We support online purchase of the Ebmpapst 612NHHR Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 612NHHR? The Ebmpapst 612NHHR is a 12VDC axial compact fan with a 60 x 60 x 25 mm frame.
What is the nominal voltage of the 612NHHR? The nominal voltage is 12 VDC, with an operating voltage range of 8 to 15 VDC.
What is the speed of the 612NHHR? The rated speed is 6800 rpm.
What is the maximum air flow of the 612NHHR? The maximum air flow is 54 m³/h.
What is the power consumption of the 612NHHR? Power consumption is 2.9 W.
What is the operating temperature range of the 612NHHR? The operating temperature range is -20°C to +70°C.
What bearing type does the 612NHHR use? The fan uses a ball bearing design.
What are typical applications for the 612NHHR? Typical applications include compact electronic enclosure cooling, control cabinet ventilation, and power supply thermal management.
