230 VAC Axial Fan
Operates on a 230 VAC, 50 Hz supply for standard industrial cooling installations.
1 / 1
Ebmpapst

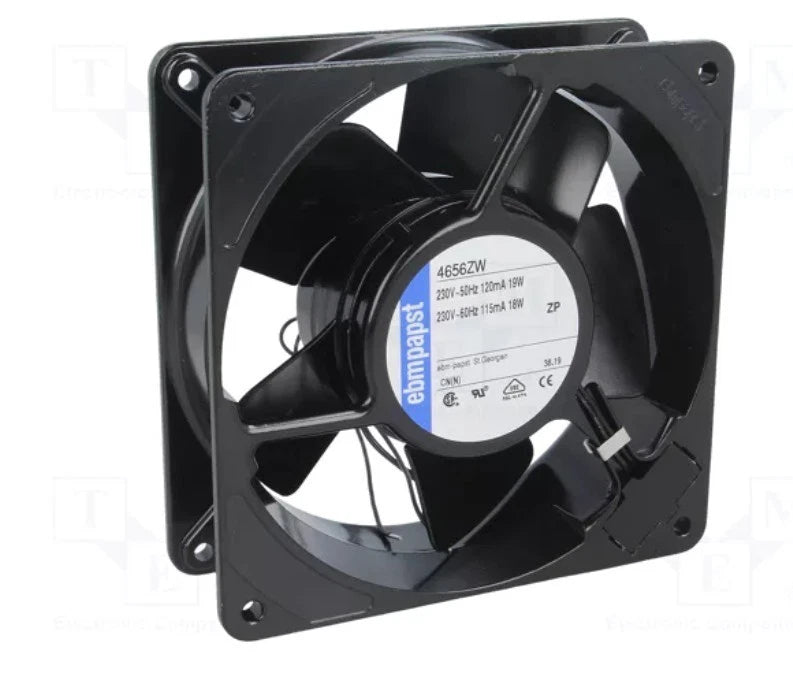

Ebmpapst 4656ZW Axial Fan
PRODUCT PRICE
USD
$53.09
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 4656ZW |
| Product Category | Axial Fan |
| Rated Voltage | 230 VAC |
| Frequency | 50 Hz |
| Power Consumption | 19 W |
| Dimensions | 119 x 119 x 38 mm |
| Speed | 2650 RPM |
| Air Flow | 94.2 CFM (2.7 m³/min) |
| Noise Level | 40 dB(A) |
| Bearing Type | Ball Bearing |
| Operating Temperature | -40°C to +75°C |
| Mounting | Flange |
| Termination | Lead Wires |
| Material | Metal |
Key Features
119 mm Compact Frame
Fits into 119 x 119 mm mounting spaces with a 38 mm depth, suitable for compact equipment.
2650 RPM with 94.2 CFM Airflow
Provides 94.2 CFM (2.7 m³/min) of airflow at 2650 RPM for localized cooling.
19 W Power Consumption
Consumes 19 W while delivering air movement for continuous-duty thermal management.
Ball Bearing Construction
Uses ball bearings to support the rotating assembly during extended operation.
Wide Operating Temperature
Rated for operation from -40°C to +75°C, accommodating diverse industrial environments.
Applications
- Electronic equipment cooling
- Industrial enclosure ventilation
- Power supply thermal management
- Control cabinet air circulation
- Compact machinery cooling
- General axial air movement in industrial systems
- HVAC auxiliary cooling
Purchase Information
We support online purchase of the Ebmpapst 4656ZW Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 4656ZW? The 4656ZW is a 230 VAC axial fan with a 119 x 119 x 38 mm frame, intended for cooling and ventilation.
What is the rated voltage? The rated voltage is 230 VAC at 50 Hz.
What is the power consumption? The power consumption is 19 W.
What is the airflow? The airflow is 94.2 CFM (2.7 m³/min).
What is the fan speed? The speed is 2650 RPM.
What is the noise level? The noise level is 40 dB(A).
What are the dimensions? The fan measures 119 x 119 x 38 mm.
What is the operating temperature range? The operating temperature range is -40°C to +75°C.
What type of bearing is used? The fan uses ball bearings.
How is the fan mounted? The fan is flange-mounted and terminated with lead wires.
What should be checked before ordering? Confirm the 230 VAC supply, the 119 x 119 mm mounting interface, airflow and noise requirements, wiring connections, and the ambient temperature of the installation location.
Need help confirming a model?
Send us your part number and technical requirements.
