230 VAC Mains Operation
The 4656NU operates directly from a 230 VAC supply at 50 Hz.
1 / 1
Ebmpapst

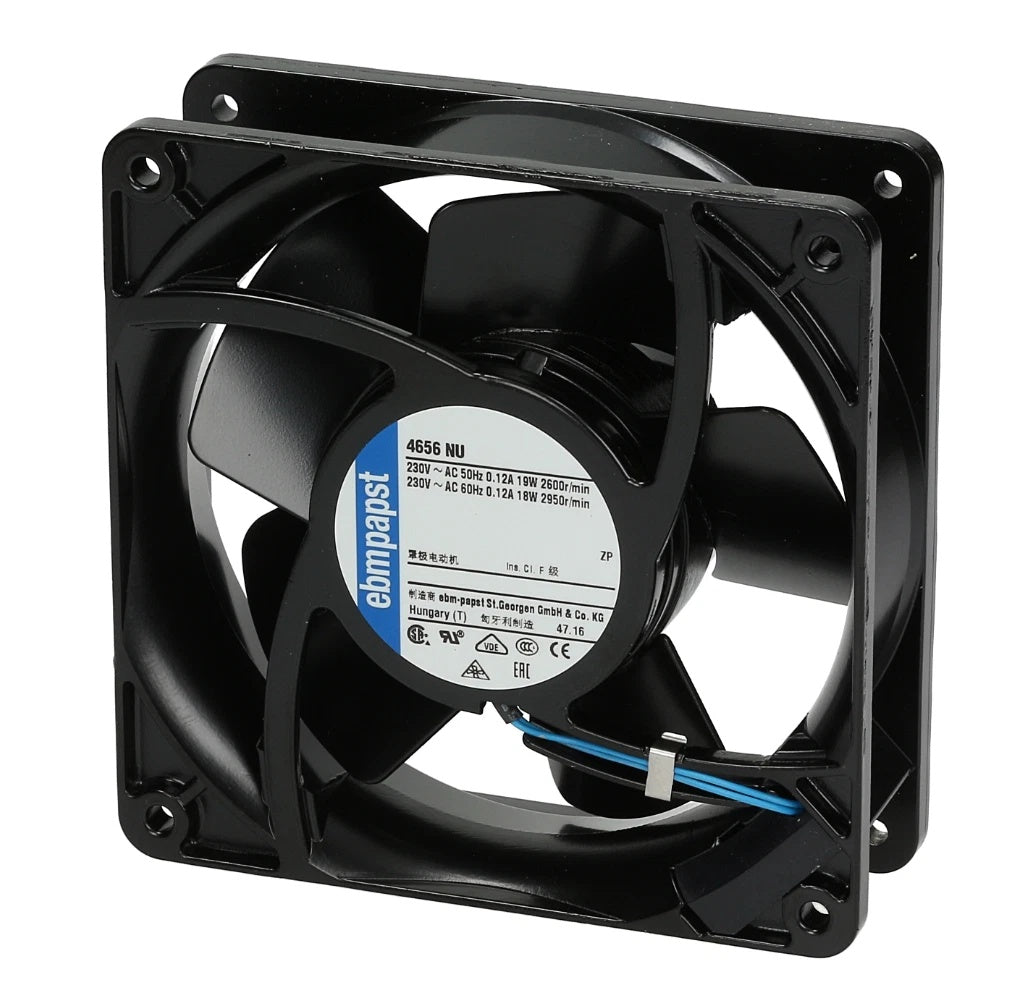

Ebmpapst 4656NU Axial Fan 230VAC 119x119x38mm 19W
PRODUCT PRICE
USD
$66.68
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 4656NU |
| Product Category | Axial Fan |
| Nominal Voltage | 230 VAC |
| Frequency | 50 Hz |
| Power Consumption | 19 W |
| Current | 840 mA (max) |
| Speed | 2650 RPM |
| Air Flow | 160 m³/h (94.1 CFM) |
| Noise Level | 47 dBA |
| Bearing Type | Ball Bearing |
| Dimensions | 119 x 119 x 38 mm |
| Protection Rating | IP54 |
Key Features
IP54 Protection
Product data identifies an IP54 ingress protection rating for this 119 x 119 x 38 mm axial fan.
2650 RPM Speed
The fan rotates at 2650 RPM, delivering an air flow of 160 m³/h (94.1 CFM).
Ball Bearing Design
Ball bearings are specified in published distributor and manufacturer information.
19 W Power Input
The rated power consumption is 19 W, with a maximum current of 840 mA.
Applications
- Industrial control cabinet ventilation
- Electrical enclosure cooling
- HVAC equipment airflow
- Power electronics thermal management
- AC-powered panel cooling
- Machine ventilation with dust and splash exposure
- General industrial axial fan replacement
- 230 VAC cooling systems
Purchase Information
We support online purchase of the Ebmpapst 4656NU Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 4656NU? The 4656NU is an AC axial fan in the Ebmpapst 4000 N series with a 119 x 119 x 38 mm frame.
What voltage does the 4656NU require? The fan operates on 230 VAC at 50 Hz.
What is the power consumption of the 4656NU? The rated power consumption is 19 W, with a maximum current of 840 mA.
What is the speed of the 4656NU? The speed is 2650 RPM.
What is the air flow of the 4656NU? Air flow is rated at 160 m³/h (94.1 CFM).
What is the noise level of the 4656NU? The sound pressure level is listed as 47 dBA.
What bearing type does the 4656NU use? The fan uses a ball bearing.
What is the protection rating of the 4656NU? Published data identifies an IP54 protection rating.
What are the dimensions of the 4656NU? The fan measures 119 x 119 x 38 mm.
What frequency does the 4656NU operate at? Published data specifies 50 Hz operation.
What should be checked before ordering the 4656NU? Confirm the 230 VAC 50 Hz supply, IP54 environmental requirement, 160 m³/h airflow, and the 119 x 119 x 38 mm mounting dimensions against the application.
