119 mm DC Axial Fan
Standard 119 x 119 x 25 mm axial fan for cooling larger electronic enclosures and industrial control panels.
1 / 4
Ebmpapst

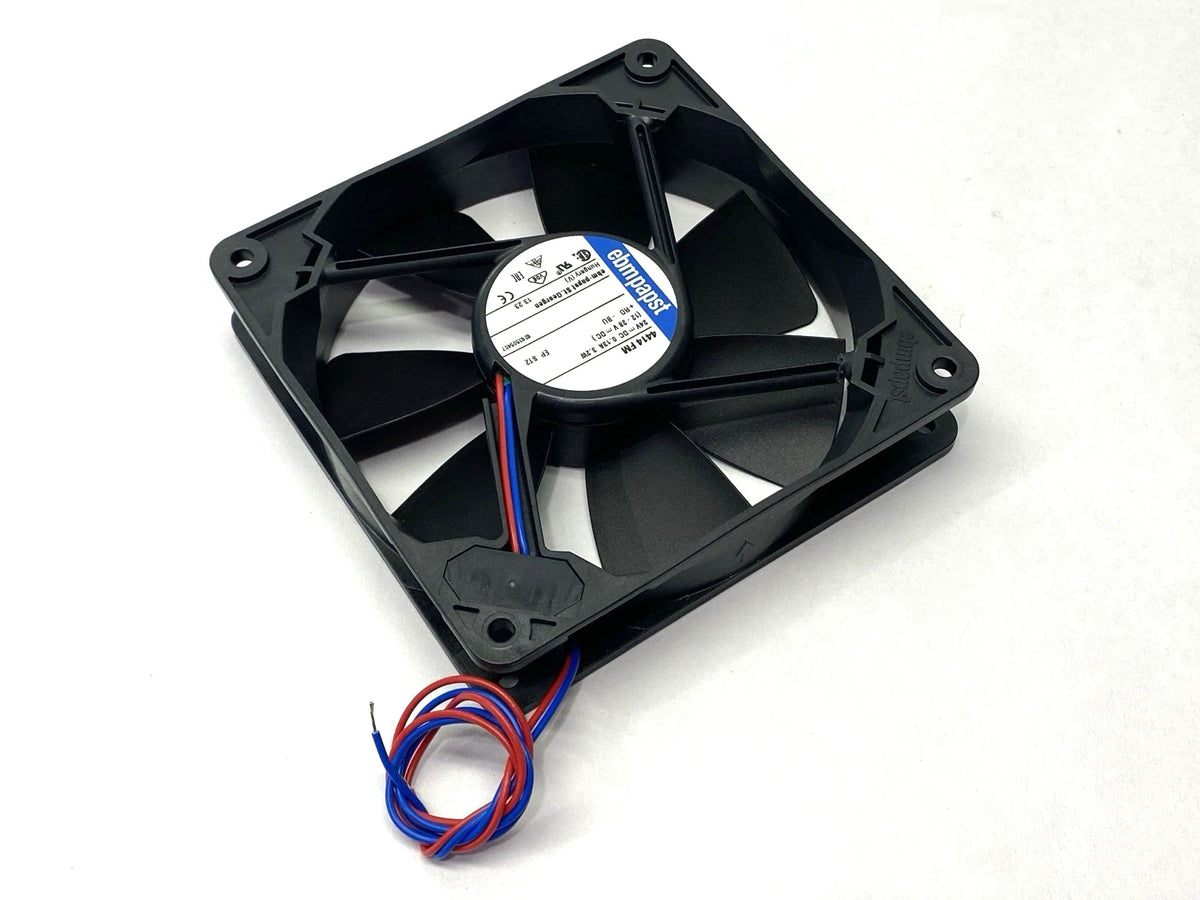

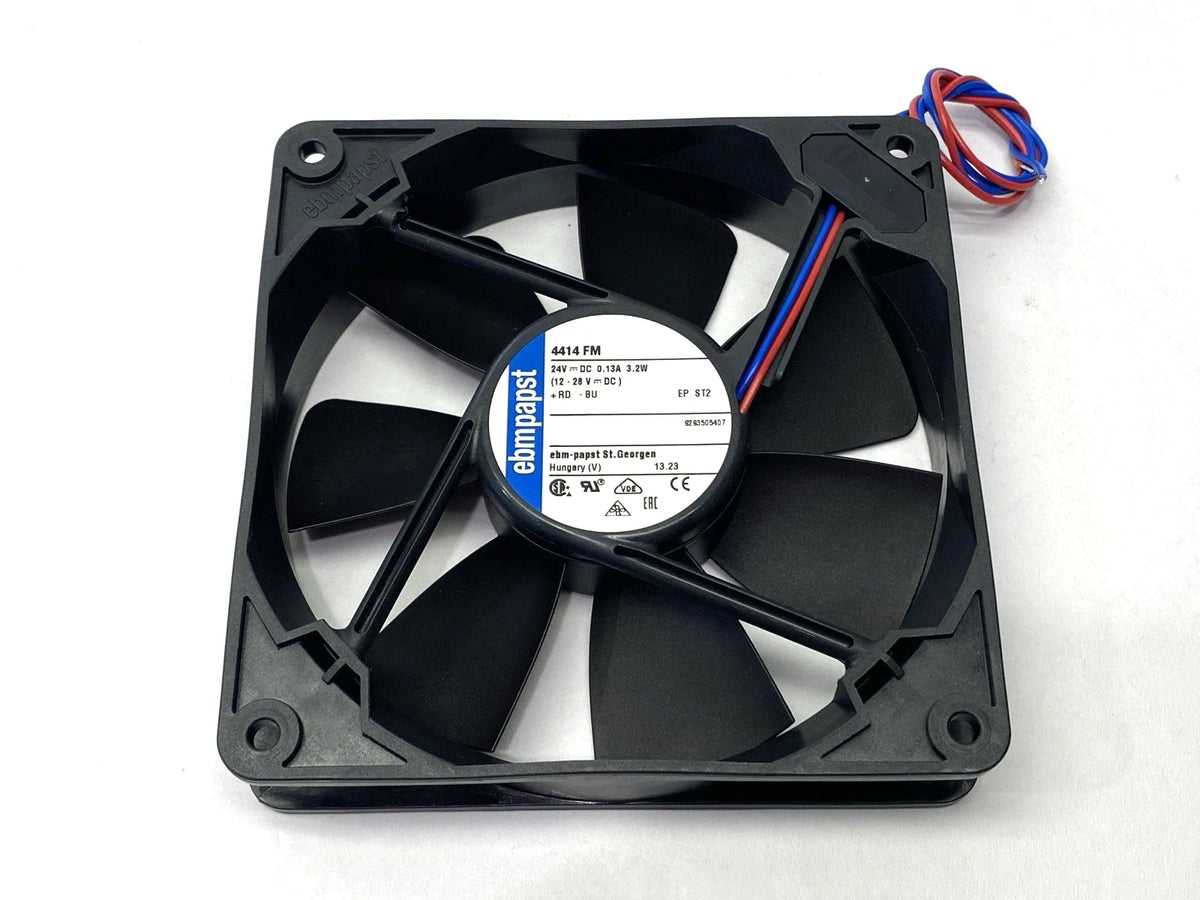

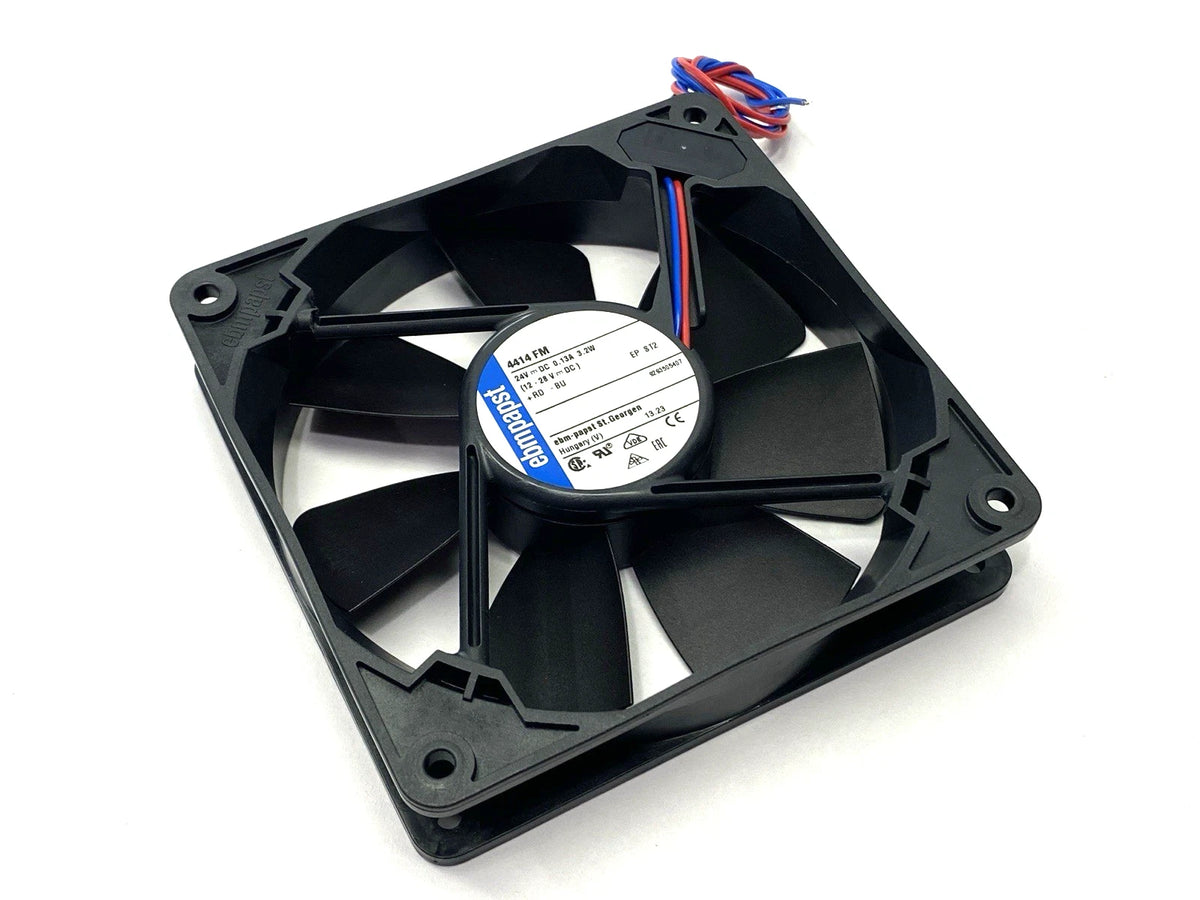

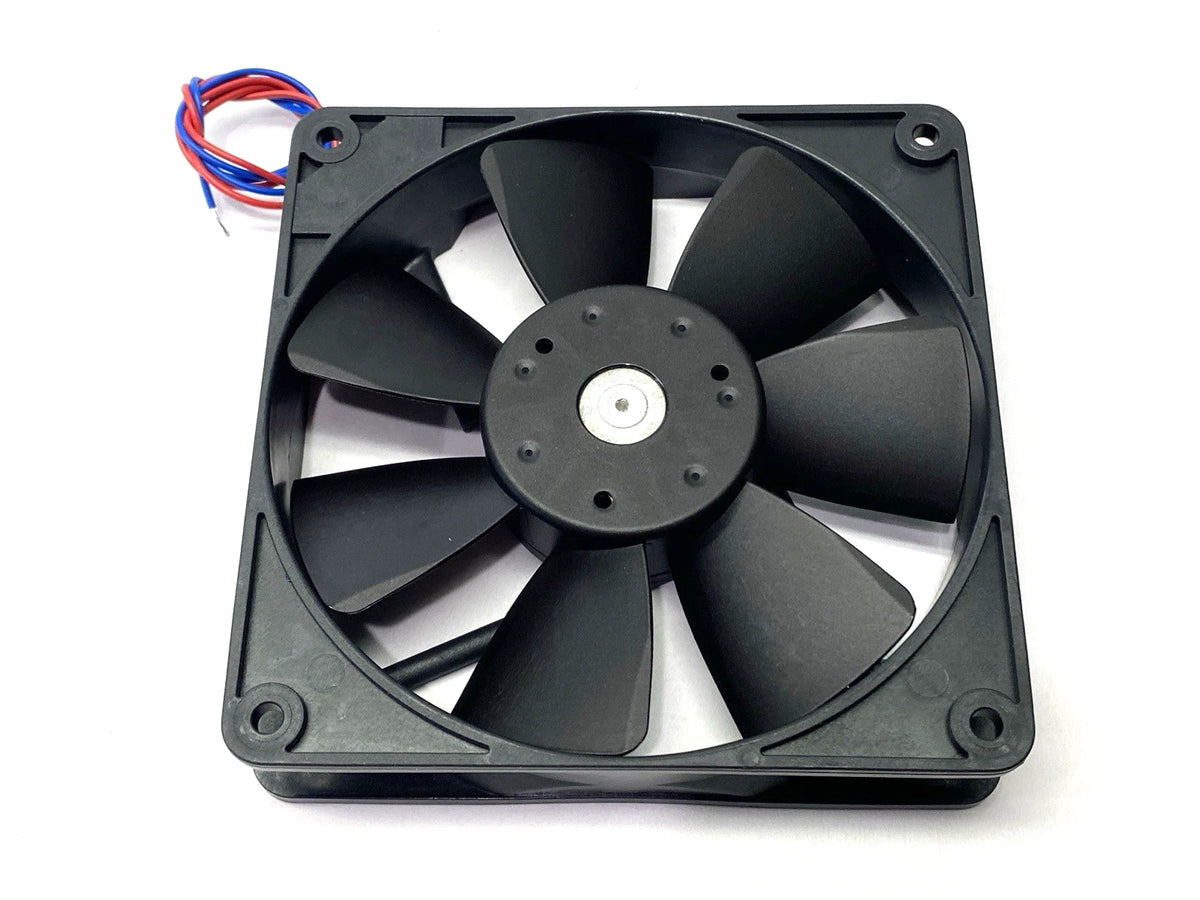

Ebmpapst 4414FM Axial Fan
PRODUCT PRICE
USD
$26.70
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 4414FM |
| Product Category | Axial Fan |
| Product Family | 4400 F |
| Nominal Voltage | 24 VDC |
| Voltage Range | 12-28 VDC |
| Power Consumption | 3.2 W |
| Speed | 2400 RPM |
| Air Flow | 82.4 CFM (140 m³/h) |
| Frame Dimensions | 119 x 119 x 25 mm |
| Noise Level | 38 dBA |
| Bearing Type | Ball Bearing |
Key Features
Wide Voltage Range
Operates on 24 VDC nominal with a 12-28 VDC range, accommodating supply variation in DC systems.
2400 RPM Performance
Delivers 82.4 CFM (approximately 140 m³/h) at 2400 RPM with 3.2 W power consumption.
Ball Bearing Construction
Ball bearings provide rotational support for continuous cooling duty in fixed installations.
38 dBA Noise Level
Moderate acoustic output suitable for general industrial equipment cooling.
Applications
- Electronic enclosure cooling
- Control cabinet ventilation
- Power supply thermal management
- Industrial equipment airflow
- Drive and inverter cooling
- Data and telecom equipment cooling
Purchase Information
We support online purchase of the Ebmpapst 4414FM Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 4414FM? It is a 119 mm DC axial fan from the 4400 F series, used for cooling electronic and electrical equipment.
What voltage does the 4414FM use? It operates on 24 VDC nominal, with a 12-28 VDC range.
What is the speed and airflow? The fan runs at 2400 RPM and delivers 82.4 CFM (approximately 140 m³/h).
What is the power consumption? Published specifications list 3.2 W power consumption.
What is the noise level? The 4414FM is specified at 38 dBA.
What are the dimensions? The fan measures 119 x 119 x 25 mm.
What bearing type is used? It uses ball bearings.
What should be checked before ordering? Verify the 24 VDC supply, 119 mm mounting space, airflow requirement, and acoustic constraints for the intended enclosure.
