12 VDC High-Speed Operation
Operates from a 12 VDC nominal supply (7 to 14.5 VDC range) and reaches 5000 RPM for high-airflow cooling.
1 / 1
Ebmpapst

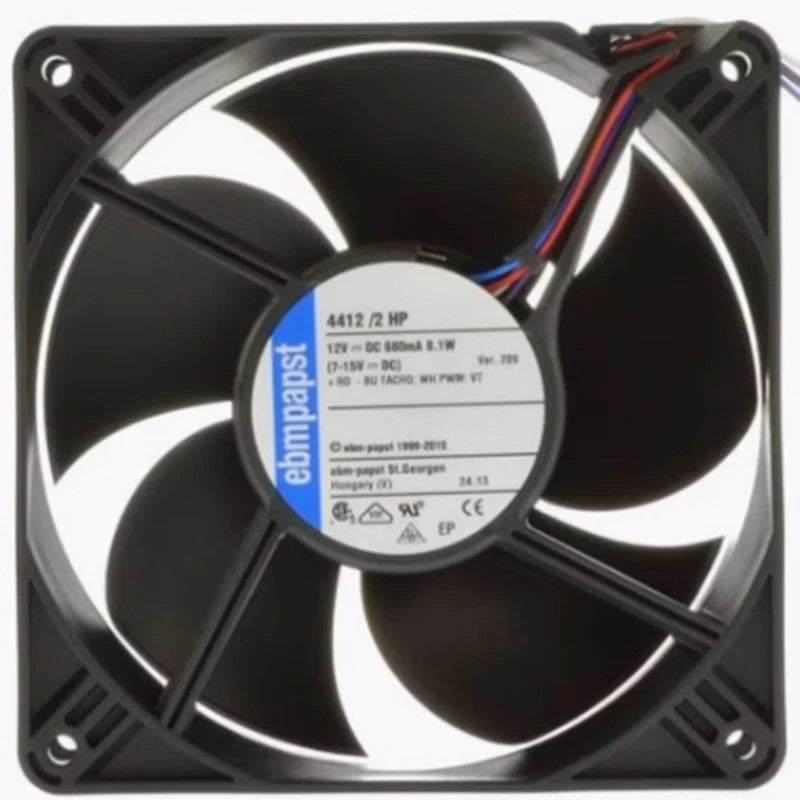

Ebmpapst 4412/2HP Axial Fan
PRODUCT PRICE
USD
$61.96
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 4412/2HP |
| Product Category | Axial Fan |
| Rated Voltage | 12 VDC |
| Voltage Range | 7 - 14.5 VDC |
| Power Consumption | 13 W |
| Dimensions | 119 x 119 x 38 mm |
| Speed | 5000 RPM |
| Air Flow | 285.0 m³/h (167.7 CFM) |
| Noise Level | 55 dB(A) |
| Bearing Type | Ball Bearing |
| Operating Temperature | -20°C to +70°C |
| Motor Type | Electronically Commutated External Rotor Motor |
| Protection | Reverse Polarity and Blocked Rotor Protection |
| Termination | 4 Lead Wires (AWG24, TR64) |
| Impeller Material | Glass Fiber Reinforced Plastic PA |
| Housing Material | Glass Fiber Reinforced Plastic PBT |
| Weight | 270 g |
| Control Features | Tacho Output, PWM Control Input |
Key Features
285 m³/h Airflow
Delivers up to 285.0 m³/h (167.7 CFM) of airflow for space-constrained thermal management.
PWM Control and Tacho Output
Includes a PWM control input and tacho output for speed regulation and rotational monitoring in compatible systems.
13 W Power Consumption
Consumes 13 W while providing high-speed axial air movement.
Ball Bearing Construction
Ball bearings support the 5000 RPM rotor assembly during continuous operation.
Reverse Polarity and Blocked Rotor Protection
Integrated protection helps guard the motor against reverse polarity connection and blocked-rotor conditions.
Applications
- High-density electronics cooling
- Power supply and inverter thermal management
- Industrial control cabinet ventilation
- Telecommunications equipment cooling
- Compact machinery air circulation
- DC-powered cooling assemblies requiring speed control
- Enclosures with PWM-controlled fan requirements
Purchase Information
We support online purchase of the Ebmpapst 4412/2HP Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 4412/2HP? The 4412/2HP is a 12 VDC axial fan with a 119 x 119 x 38 mm frame, designed for high-speed cooling applications.
What is the rated voltage of the 4412/2HP? The rated voltage is 12 VDC, with an operating voltage range of 7 to 14.5 VDC.
What is the power consumption? The power consumption is 13 W.
What is the speed of the fan? The fan operates at 5000 RPM.
What is the airflow capacity? The airflow is 285.0 m³/h (167.7 CFM).
Does the 4412/2HP support speed control? Yes, it includes a PWM control input and a tacho output for speed regulation and monitoring.
What is the noise level? The sound pressure level is 55 dB(A).
What is the operating temperature range? The operating temperature range is -20°C to +70°C.
What type of bearing and motor does it use? It uses ball bearings and an electronically commutated external rotor motor.
What are the dimensions? The fan measures 119 x 119 x 38 mm and weighs 270 g.
What should be checked before ordering? Confirm the 12 VDC supply, PWM and tacho signal compatibility, the 119 x 119 mm mounting space, airflow and static pressure requirements, and the operating temperature of the installation environment.
