24 VDC Operation
The 4184NXH operates on a nominal 24 VDC supply with an operating voltage range of 12 to 29 VDC.
1 / 3
Ebmpapst

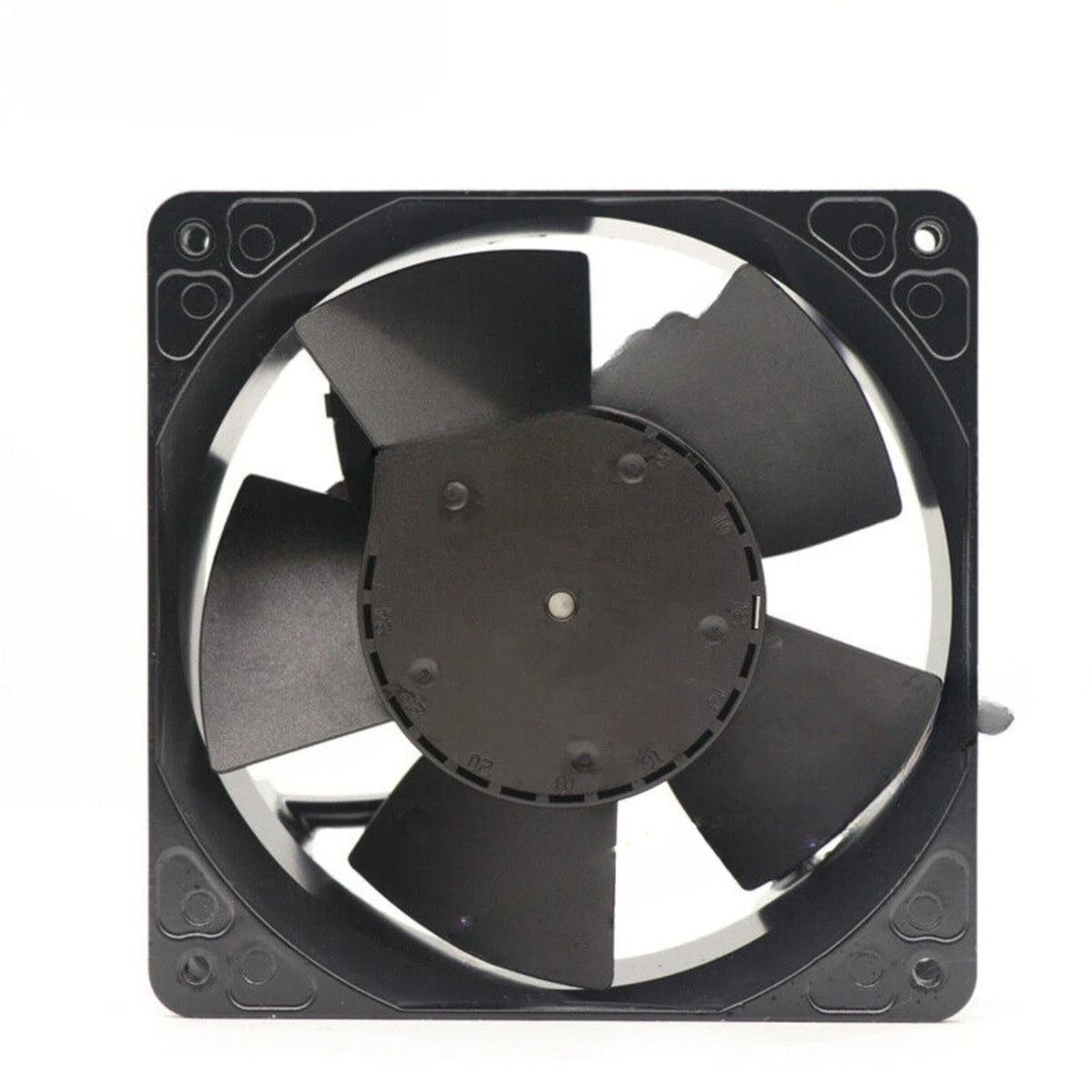

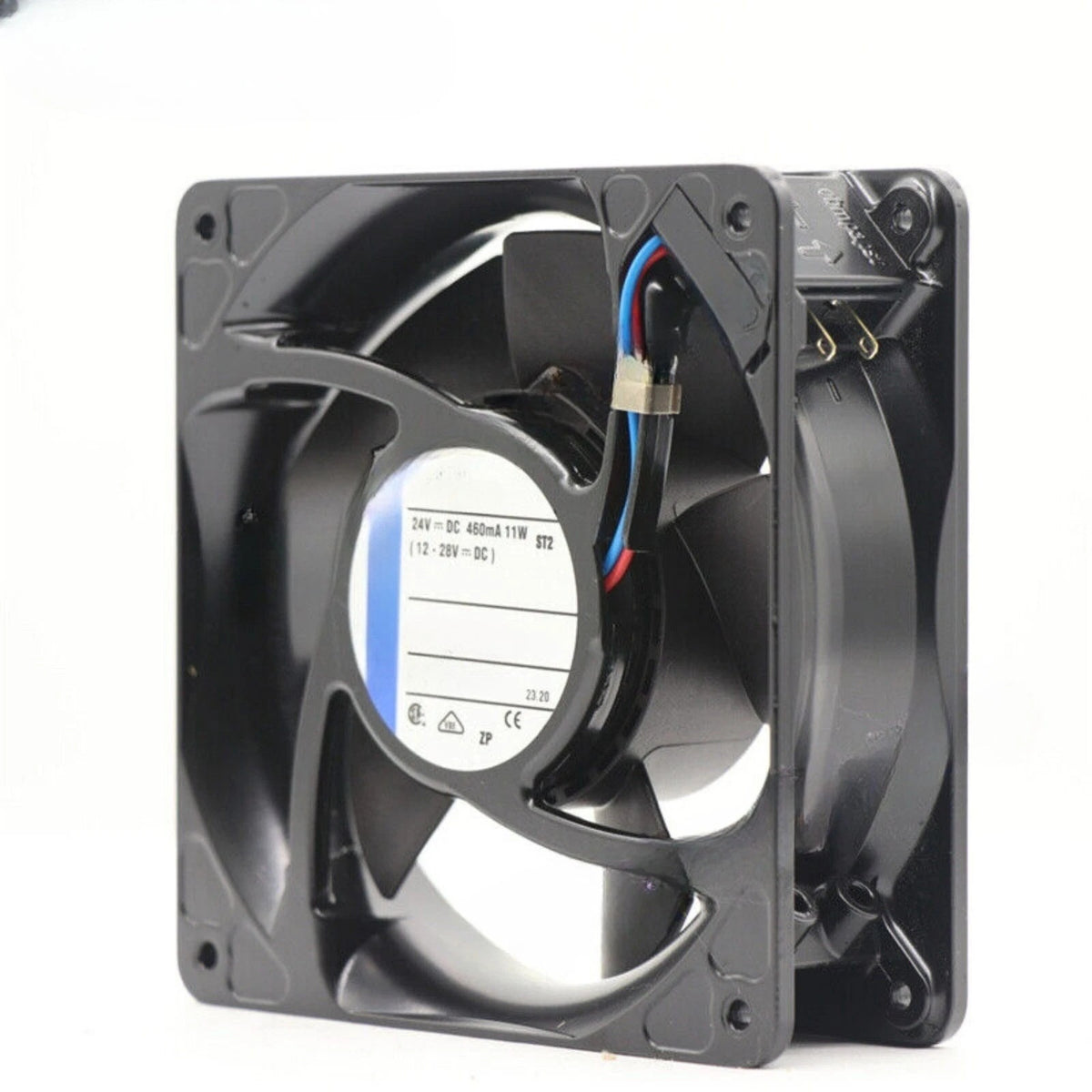

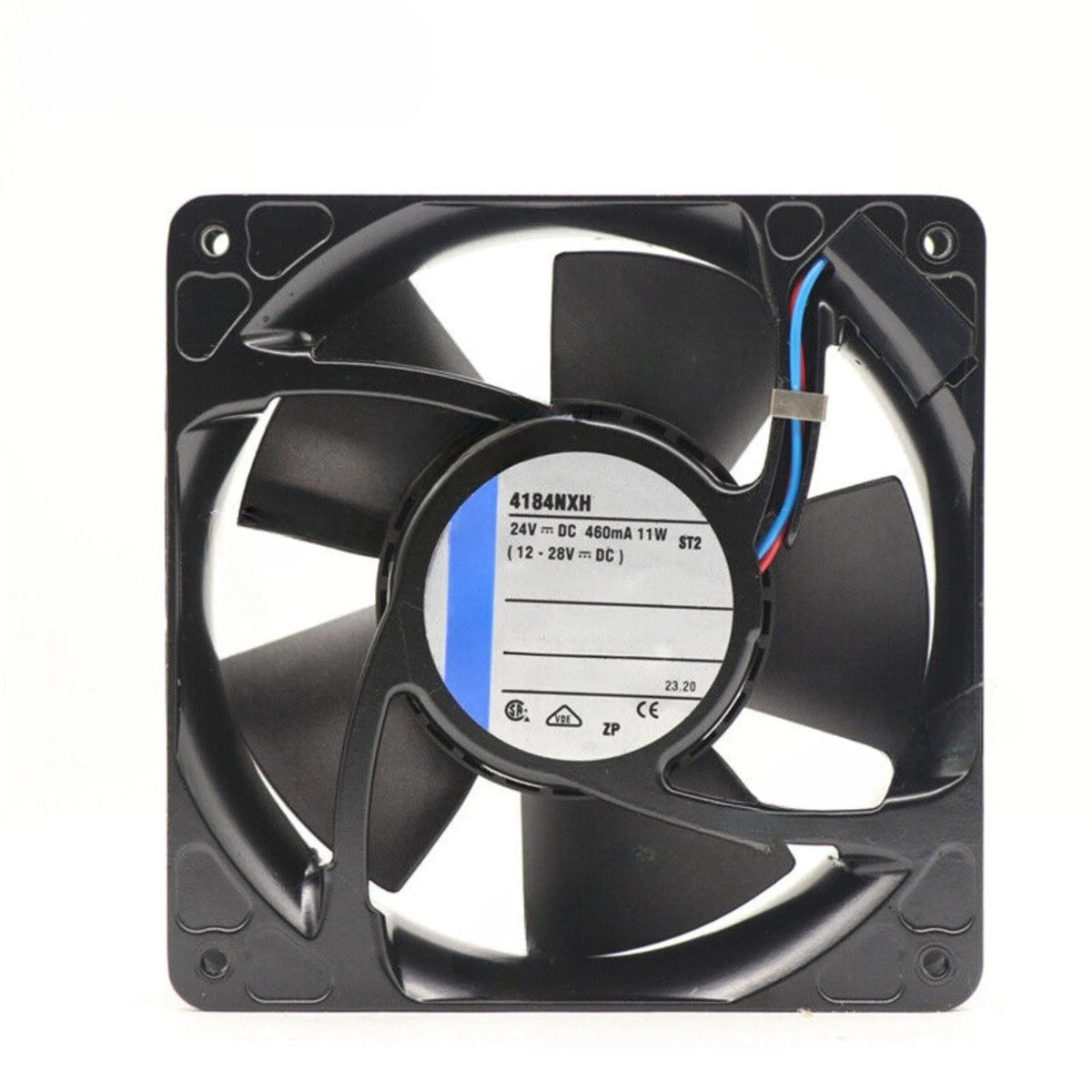

Ebmpapst 4184NXH Axial Fan 24VDC 119x119x38mm 5.5W
PRODUCT PRICE
USD
$29.32
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 4184NXH |
| Product Category | Axial Fan |
| Nominal Voltage | 24 VDC |
| Voltage Range | 12-29 VDC |
| Power Consumption | 11 W |
| Speed | 4400 RPM |
| Air Flow | 237 m³/h (139.5 CFM) |
| Noise Level | 57 dBA |
| Bearing Type | Ball Bearing |
| Dimensions | 119 x 119 x 38 mm |
| Protection Rating | IP20 |
| Termination | 2.8 x 0.5 mm Terminals |
Key Features
4400 RPM Speed
Rotational speed is rated at 4400 RPM, supporting airflow delivery of 237 m³/h (139.5 CFM).
Ball Bearing Construction
The fan uses a ball bearing design, as identified in distributor and manufacturer data.
IP20 Protection
Published specifications list an IP20 ingress protection rating for the 119 x 119 x 38 mm frame.
Terminal Connection
Electrical connection is provided through 2.8 x 0.5 mm terminals, per product data.
Applications
- Industrial enclosure cooling
- Control cabinet thermal management
- Power supply cooling
- Heat sink forced-air cooling
- Industrial automation panel ventilation
- Compact equipment airflow
- General axial cooling in machinery
- 24 VDC thermal management systems
Purchase Information
We support online purchase of the Ebmpapst 4184NXH Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 4184NXH? The 4184NXH is an axial fan in the Ebmpapst 4100 N series with a 119 x 119 x 38 mm frame.
What voltage does the 4184NXH require? The nominal voltage is 24 VDC, with an operating voltage range of 12 to 29 VDC.
What is the power consumption of the 4184NXH? Published data identifies a power consumption of 11 W.
What is the speed of the 4184NXH? The rated speed is 4400 RPM.
What is the air flow of the 4184NXH? Air flow is rated at 237 m³/h (139.5 CFM).
What is the noise level of the 4184NXH? The sound pressure level is listed as 57 dBA.
What bearing type does the 4184NXH use? The fan uses a ball bearing.
What is the protection rating of the 4184NXH? The ingress protection rating is IP20.
What are the dimensions of the 4184NXH? The fan measures 119 x 119 x 38 mm.
How does the 4184NXH connect electrically? Electrical connection is made via 2.8 x 0.5 mm terminals.
What should be checked before ordering the 4184NXH? Verify the 24 VDC supply, required airflow of 237 m³/h, IP20 rating, terminal type, and the 119 x 119 x 38 mm mounting envelope against the installation.
