Compact 40 x 40 x 10 mm Frame

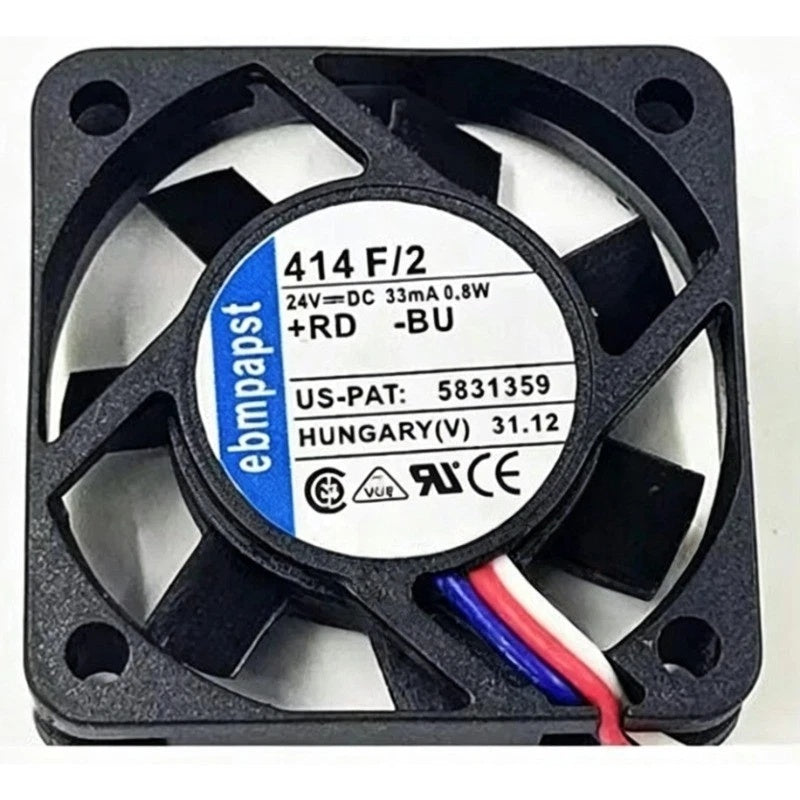

The 414 F/2 is a miniature axial fan with a 40 x 40 x 10 mm frame, identified in the Ebmpapst 400 F series.
1 / 1
Ebmpapst
Ebmpapst 414 F/2 Axial Fan 24VDC 40x40x10mm 1.4W
PRODUCT PRICE
USD
$23.17
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 414 F/2 |
| Product Category | Axial Fan |
| Nominal Voltage | 24 VDC |
| Voltage Range | 20-28 VDC |
| Power Consumption | 0.8 W |
| Speed | 5400 RPM |
| Air Flow | 8 m³/h |
| Noise Level | 22.1 dBA |
| Bearing Type | Sleeve Bearing |
| Dimensions | 40 x 40 x 10 mm |
| Operating Temperature | -20°C to +70°C |
| Weight | 17 g |
Key Features
Low Power Consumption
Power consumption is 0.8 W on a 24 VDC supply, with an operating voltage range of 20 to 28 VDC.
Sleeve Bearing
The fan uses a sleeve bearing construction according to published product data.
5400 RPM Speed
The rated speed is 5400 RPM, delivering an air flow of 8 m³/h.
Low Noise Level
The sound pressure level is specified as 22.1 dBA.
Applications
- Compact electronics cooling
- Small enclosure ventilation
- Power supply spot cooling
- Instrumentation thermal management
- Miniature fan replacement
- 24 VDC low-power airflow
- Space-constrained cooling
- General small-frame axial cooling
Purchase Information
We support online purchase of the Ebmpapst 414 F/2 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 414 F/2? The 414 F/2 is a compact DC axial fan with a 40 x 40 x 10 mm frame in the Ebmpapst 400 F series.
What voltage does the 414 F/2 require? The nominal voltage is 24 VDC, with an operating range of 20 to 28 VDC.
What is the power consumption of the 414 F/2? The power consumption is 0.8 W.
What is the speed of the 414 F/2? The rated speed is 5400 RPM.
What is the air flow of the 414 F/2? Air flow is rated at 8 m³/h.
What is the noise level of the 414 F/2? The sound pressure level is specified as 22.1 dBA.
What bearing type does the 414 F/2 use? The fan uses a sleeve bearing.
What are the dimensions of the 414 F/2? The fan measures 40 x 40 x 10 mm.
What is the operating temperature range of the 414 F/2? The operating temperature range is -20°C to +70°C.
What is the weight of the 414 F/2? The fan weighs approximately 17 g.
What should be checked before ordering the 414 F/2? Confirm the 24 VDC supply within the 20-28 VDC range, 0.8 W power budget, 8 m³/h airflow requirement, sleeve bearing suitability, and the 40 x 40 x 10 mm mounting space.
