24 VDC Compact Axial Fan
Operates on 24 VDC with a 40 x 40 x 20 mm frame for space-constrained cooling.
1 / 3
Ebmpapst

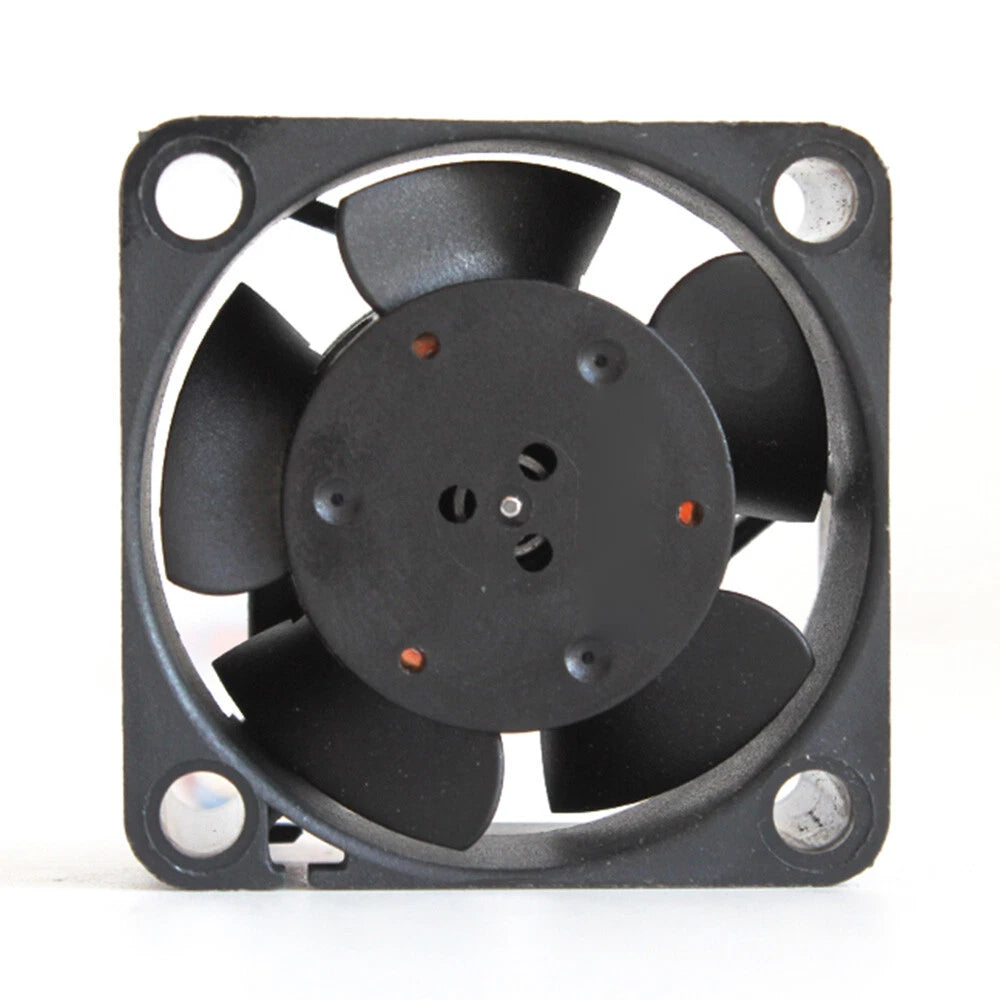

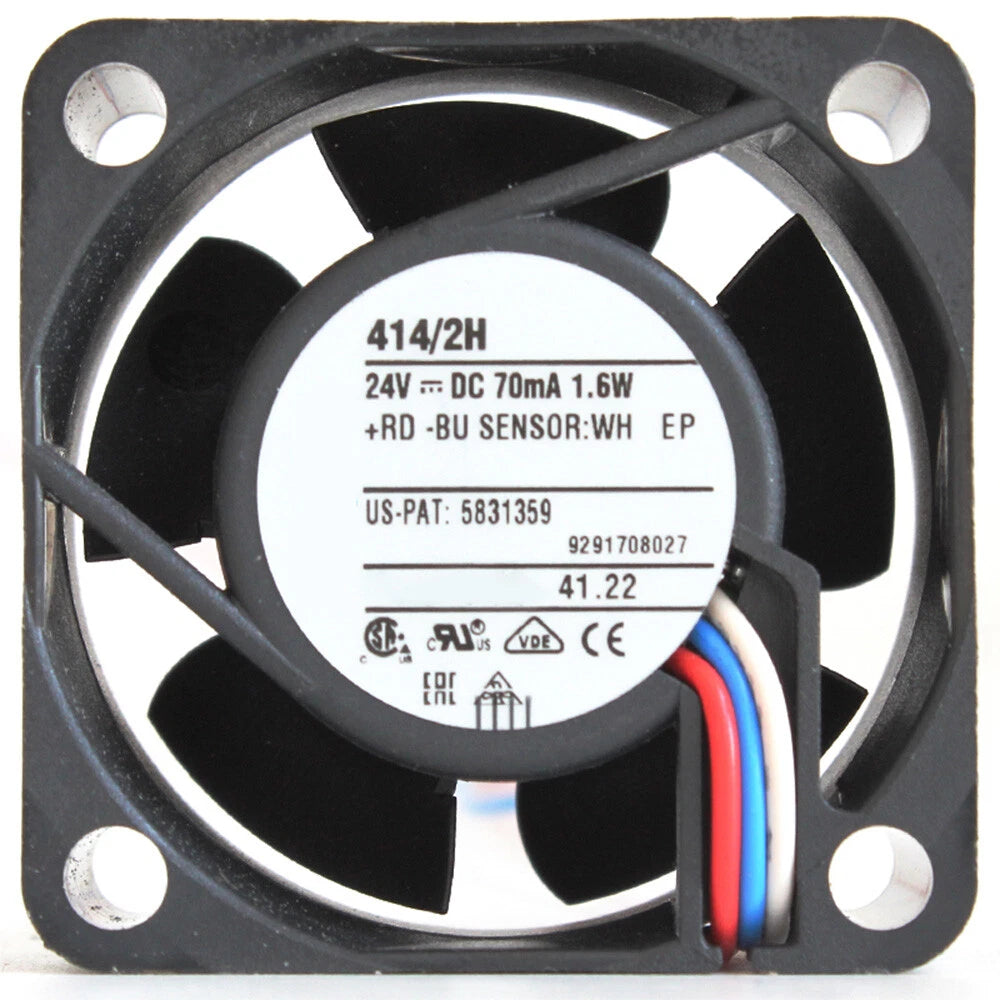

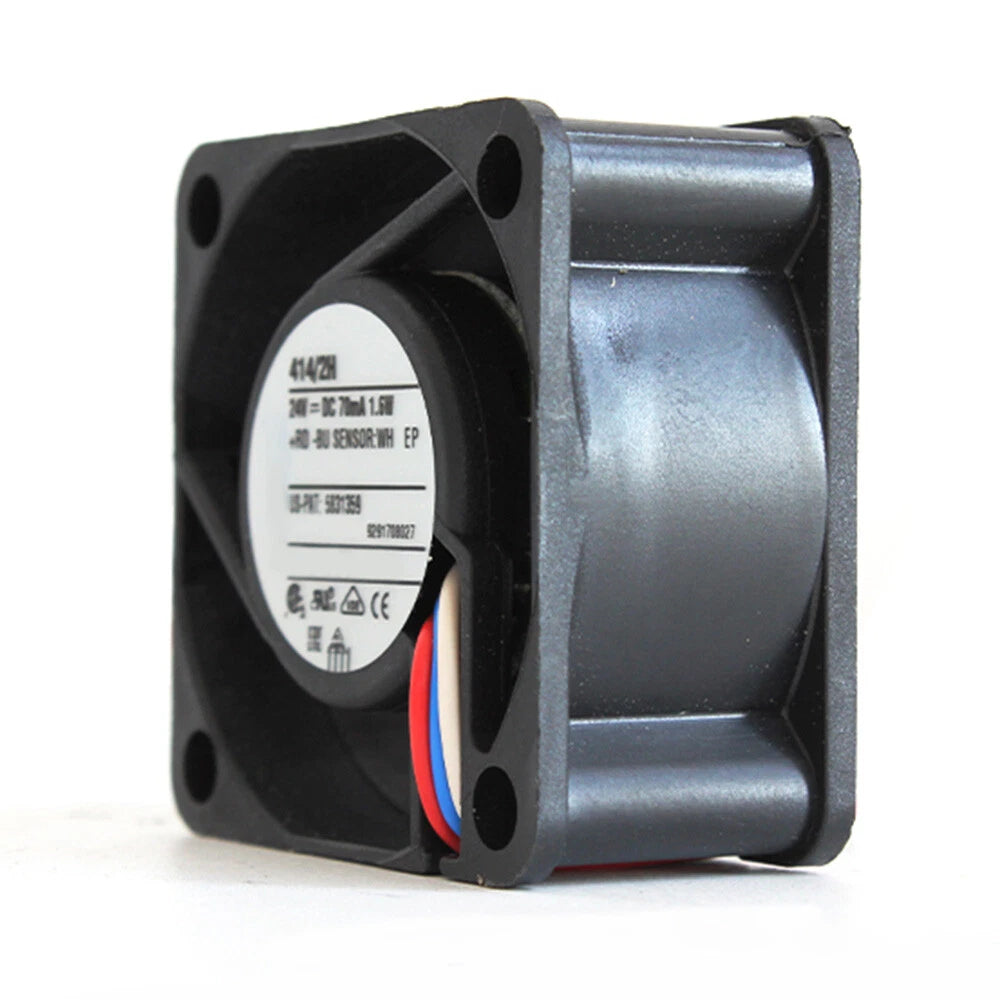

Ebmpapst 414/2H Axial Fan 24VDC 40x40x10mm 1.4W
PRODUCT PRICE
USD
$33.83
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 414/2H |
| Product Category | Axial Fan |
| Nominal Voltage | 24 VDC |
| Dimensions | 40 x 40 x 20 mm |
| Power Consumption | 1.7 W |
| Speed | 8100 RPM |
| Air Flow | 13.5 m³/h |
| Noise Level | 29 dBA |
| Bearing Type | Sleeve Bearing |
| Operating Voltage Range | 20 to 26.5 VDC |
Key Features
8100 RPM Speed
High rotational speed of 8100 RPM for its compact size, delivering 13.5 m³/h air flow.
Sleeve Bearing
Equipped with a sleeve bearing and rated at 29 dBA noise level.
Wide Voltage Range
Operating voltage range of 20 to 26.5 VDC supports stable operation in DC systems.
Applications
- Compact electronic enclosure cooling
- DC-powered control panels
- Small equipment thermal management
- Instrumentation ventilation
- Space-limited axial cooling
- Industrial electronics cooling
Purchase Information
We support online purchase of the Ebmpapst 414/2H Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 414/2H? It is a 24 VDC axial fan with a 40 x 40 x 20 mm frame.
What is the nominal voltage? The nominal voltage is 24 VDC, with an operating range of 20 to 26.5 VDC.
What is the power consumption? The power consumption is 1.7 W.
What is the speed? The speed is 8100 RPM.
What is the air flow? The air flow is 13.5 m³/h.
What is the noise level? The noise level is 29 dBA.
What type of bearing does it use? It uses a sleeve bearing.
Need help confirming a model?
Send us your part number and technical requirements.
