High-Speed 13000 RPM
The 3214J/2H4P is rated for 13000 RPM, producing an air flow of 280 m³/h (165 CFM) in a 92 x 92 x 38 mm frame.
1 / 2
Ebmpapst

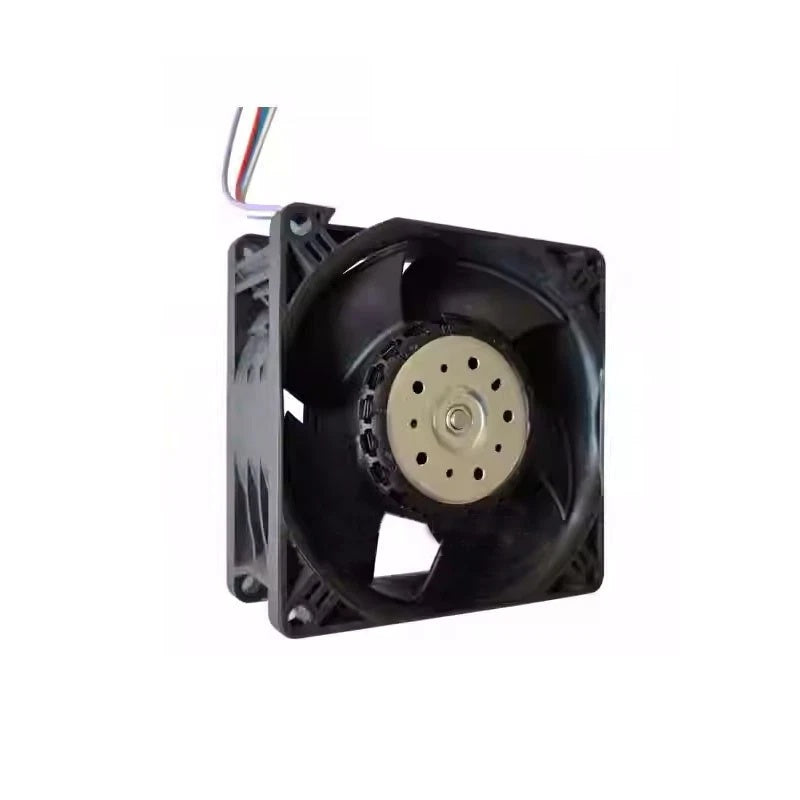

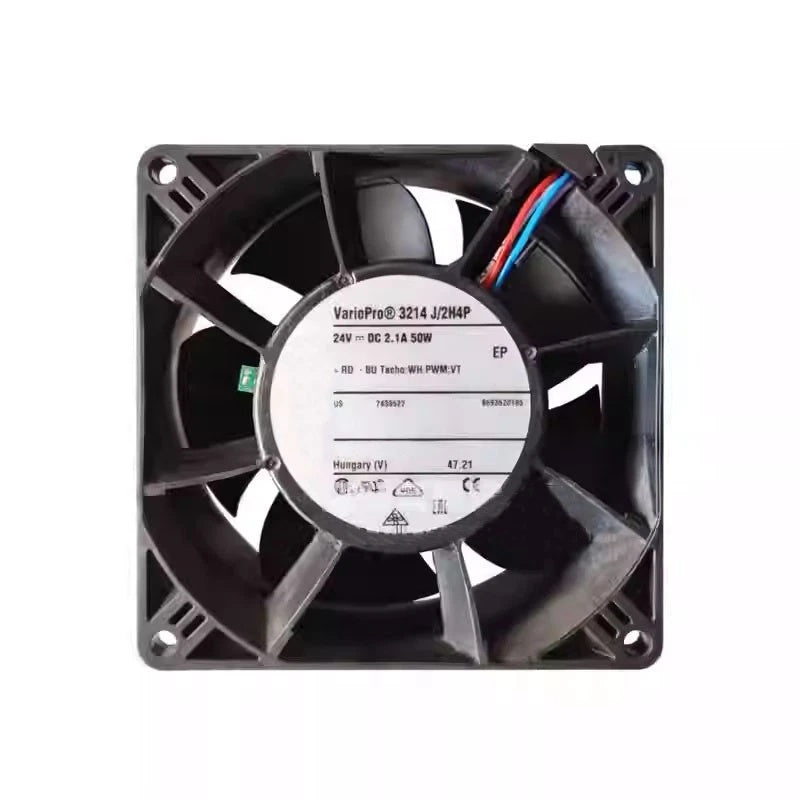

Ebmpapst 3214J/2H4P Axial Fan 24VDC 92x92x38mm 6.5W
PRODUCT PRICE
USD
$154.70
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | 3214J/2H4P |
| Product Category | Axial Fan |
| Nominal Voltage | 24 VDC |
| Power Consumption | 50 W |
| Speed | 13000 RPM |
| Air Flow | 280 m³/h (165 CFM) |
| Noise Level | 73 dBA |
| Bearing Type | Ball Bearing |
| Dimensions | 92 x 92 x 38 mm |
| Protection Rating | IP20 |
| Termination | 4 Wire Leads (PWM) |
Key Features
PWM Control Connection
A 4-wire lead configuration supports PWM speed control according to product data.
24 VDC Power
The fan operates on a nominal 24 VDC supply and consumes 50 W at rated conditions.
Ball Bearing
Ball bearings are specified for the 3214J/2H4P in distributor documentation.
IP20 Rated
Published specifications list IP20 protection for this high-speed axial fan.
Applications
- High-density electronics cooling
- Server and telecom rack ventilation
- Power supply forced-air cooling
- Industrial inverter cooling
- Compact equipment thermal management
- PWM-controlled fan systems
- High-airflow 24 VDC cooling
- Heat sink augmentation
Purchase Information
We support online purchase of the Ebmpapst 3214J/2H4P Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst 3214J/2H4P? The 3214J/2H4P is a high-speed DC axial fan in the Ebmpapst 3200J series with a 92 x 92 x 38 mm frame.
What voltage does the 3214J/2H4P require? The nominal operating voltage is 24 VDC.
What is the power consumption of the 3214J/2H4P? The rated power consumption is 50 W.
What is the speed of the 3214J/2H4P? The rated speed is 13000 RPM.
What is the air flow of the 3214J/2H4P? Air flow is rated at 280 m³/h (165 CFM).
What is the noise level of the 3214J/2H4P? The sound pressure level is listed as 73 dBA.
What bearing type does the 3214J/2H4P use? The fan uses a ball bearing.
What is the protection rating of the 3214J/2H4P? The ingress protection rating is IP20.
What are the dimensions of the 3214J/2H4P? The fan measures 92 x 92 x 38 mm.
How does the 3214J/2H4P connect? The fan is supplied with 4 wire leads, and product data identifies PWM capability.
What should be checked before ordering the 3214J/2H4P? Verify the 24 VDC supply, PWM control requirement, 50 W power budget, 280 m³/h airflow, 73 dBA acoustic level, and the 92 x 92 x 38 mm mounting envelope.
Need help confirming a model?
Send us your part number and technical requirements.
