250 kHz Operating Frequency
The IVH-18GM-V1 read/write head operates at a documented frequency of 250 kHz for System IV identification applications.

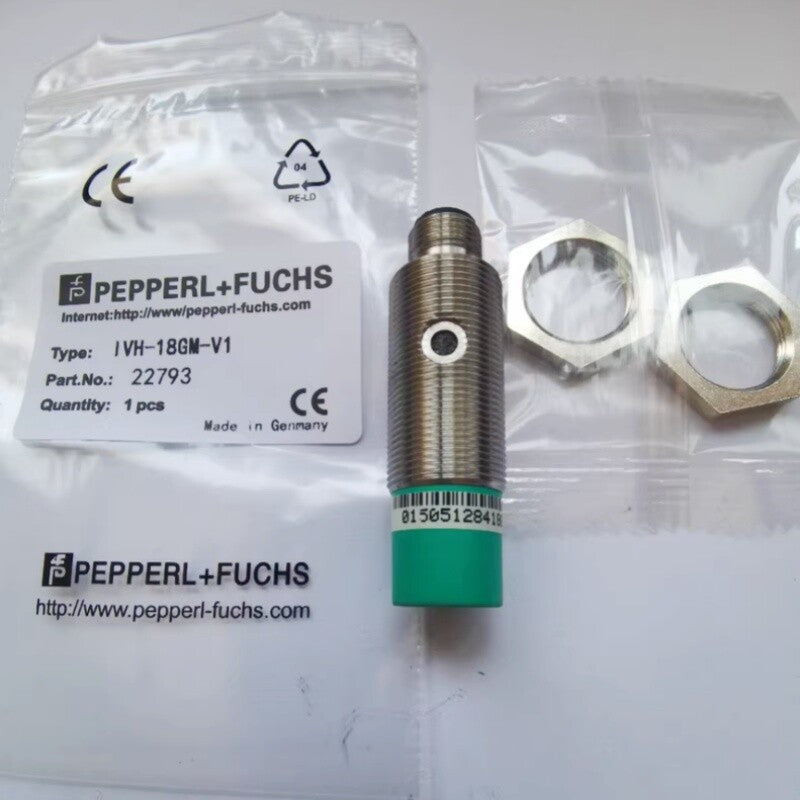

Pepperl+Fuchs IVH-18GM-V1 Read/Write Head 250 kHz 42 mm IP67
Available in stock (200)
Regular price
$578.00
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Pepperl+Fuchs |
| Model Number | IVH-18GM-V1 |
| Product Category | Read/Write Head |
| Identification System | System IV |
| Operating Frequency | 250 kHz |
| Transfer Rate | 7.8 kBit/s |
| Maximum Operating Distance | 42 mm |
| Power Consumption | 1.1 W |
| Thread | M18 x 1 |
| Connection | V1 Plug Connection, M12 x 1 |
| Indicators | Green/Yellow Dual LED |
| Degree of Protection | IP67 according to EN 60529 |
| Housing Material | PBT / Stainless Steel |
| Installation in Metal | Non-Flush, Overshoot at Least 10 mm |
| Minimum Distance Between Two Heads | 300 mm |
Key Features
42 mm Maximum Operating Distance
The documented maximum operating distance between the read/write head and applicable data carrier is 42 mm.
7.8 kBit/s Transfer Rate
The documented data transfer rate for the IVH-18GM-V1 is 7.8 kBit/s.
M18 x 1 Threaded Housing
The compact cylindrical read/write head uses an M18 x 1 threaded housing for mechanical installation.
M12 x 1 Connection
The electrical interface uses a V1 plug connection with an M12 x 1 connector.
IP67 Protection
The read/write head has a documented degree of protection of IP67 according to EN 60529.
Applications
- Industrial identification systems
- RFID read and write applications
- Automated workpiece identification
- Production line identification
- Material tracking systems
- Machine automation identification
- Manufacturing process tracking
- Industrial data carrier detection
Purchase Information
We support online purchase of the Pepperl+Fuchs IVH-18GM-V1 Read/Write Head. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Pepperl+Fuchs IVH-18GM-V1?
Pepperl+Fuchs IVH-18GM-V1 is a System IV read/write head used for industrial identification and data-carrier communication.
What operating frequency does IVH-18GM-V1 use?
The documented operating frequency is 250 kHz.
What is the transfer rate of IVH-18GM-V1?
The documented transfer rate is 7.8 kBit/s.
What is the maximum operating distance?
The documented maximum operating distance is 42 mm.
What connection does IVH-18GM-V1 use?
The read/write head uses a V1 plug connection with an M12 x 1 connector.
What thread size does IVH-18GM-V1 have?
The read/write head has an M18 x 1 threaded cylindrical housing.
What is the power consumption?
The documented power consumption is 1.1 W.
What do the LEDs indicate?
The dual LED uses green to indicate power-on status and yellow to indicate detection of a data carrier.
What is the protection rating of IVH-18GM-V1?
The documented degree of protection is IP67 according to EN 60529.
What is the operating temperature range?
The documented ambient temperature range is -25°C to +70°C.
What applications can IVH-18GM-V1 be considered for?
It can be considered for industrial identification, production tracking, workpiece identification and related data-carrier read/write applications after the system requirements have been checked.
What should be checked before ordering IVH-18GM-V1?
Check the complete model number, 250 kHz operating frequency, required operating distance, M18 x 1 mounting arrangement, M12 x 1 connection, installation clearances and identification-system requirements against the existing equipment documentation before purchasing.
