13.56 MHz RFID Operation
The IQH1-18GM-V1 operates at 13.56 MHz for HF RFID read and write applications.
1 / 12
Pepperl+Fuchs

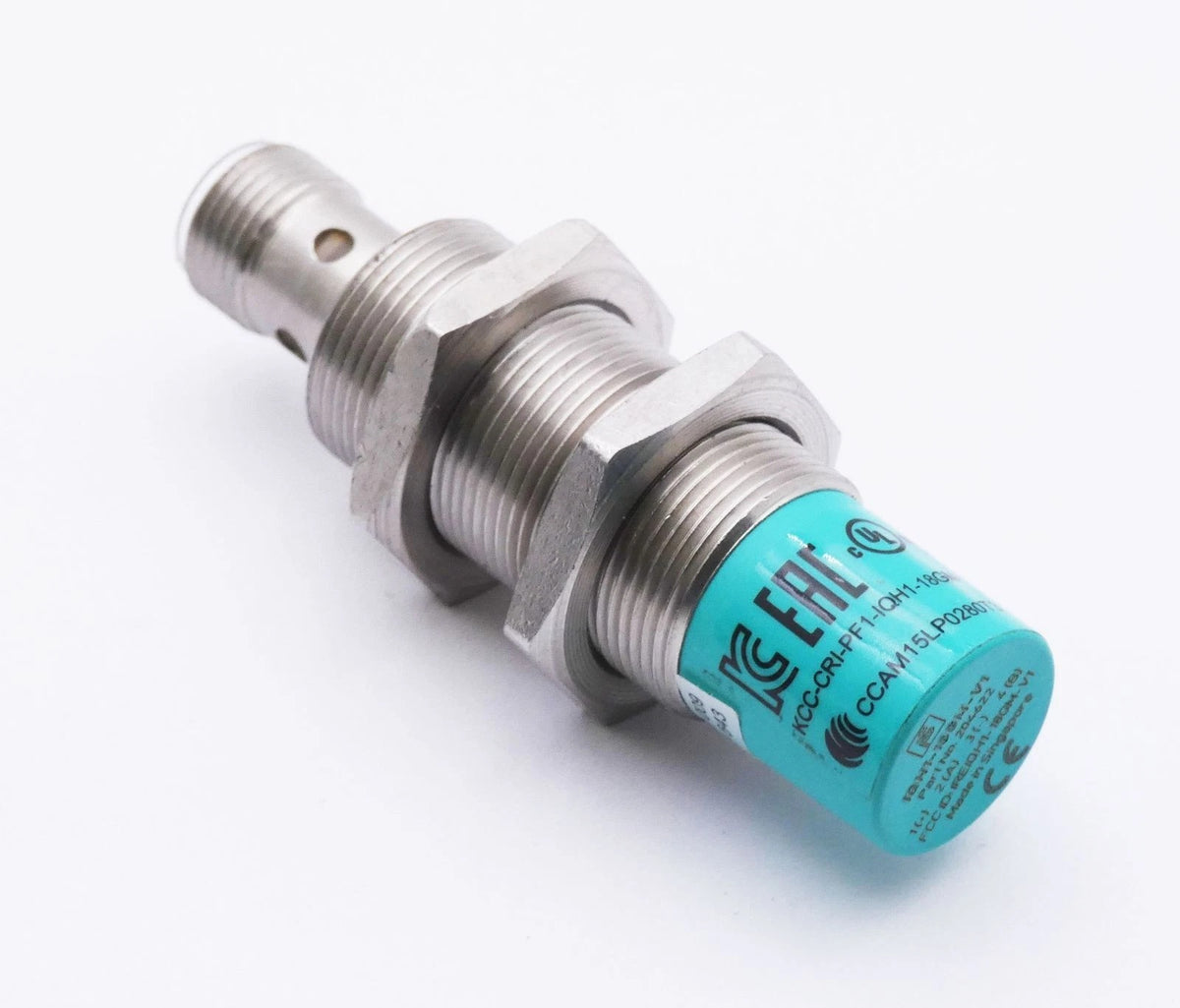

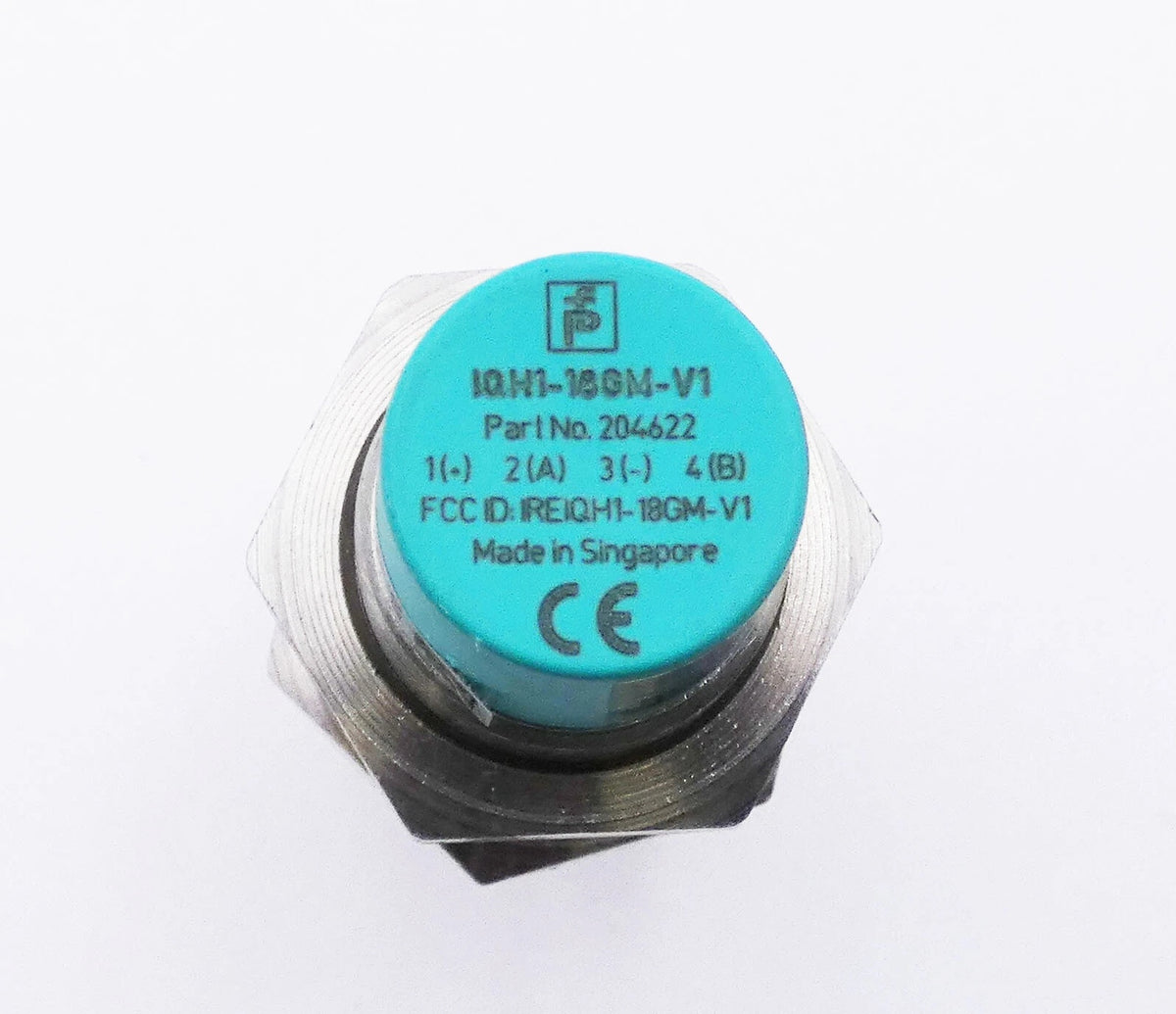

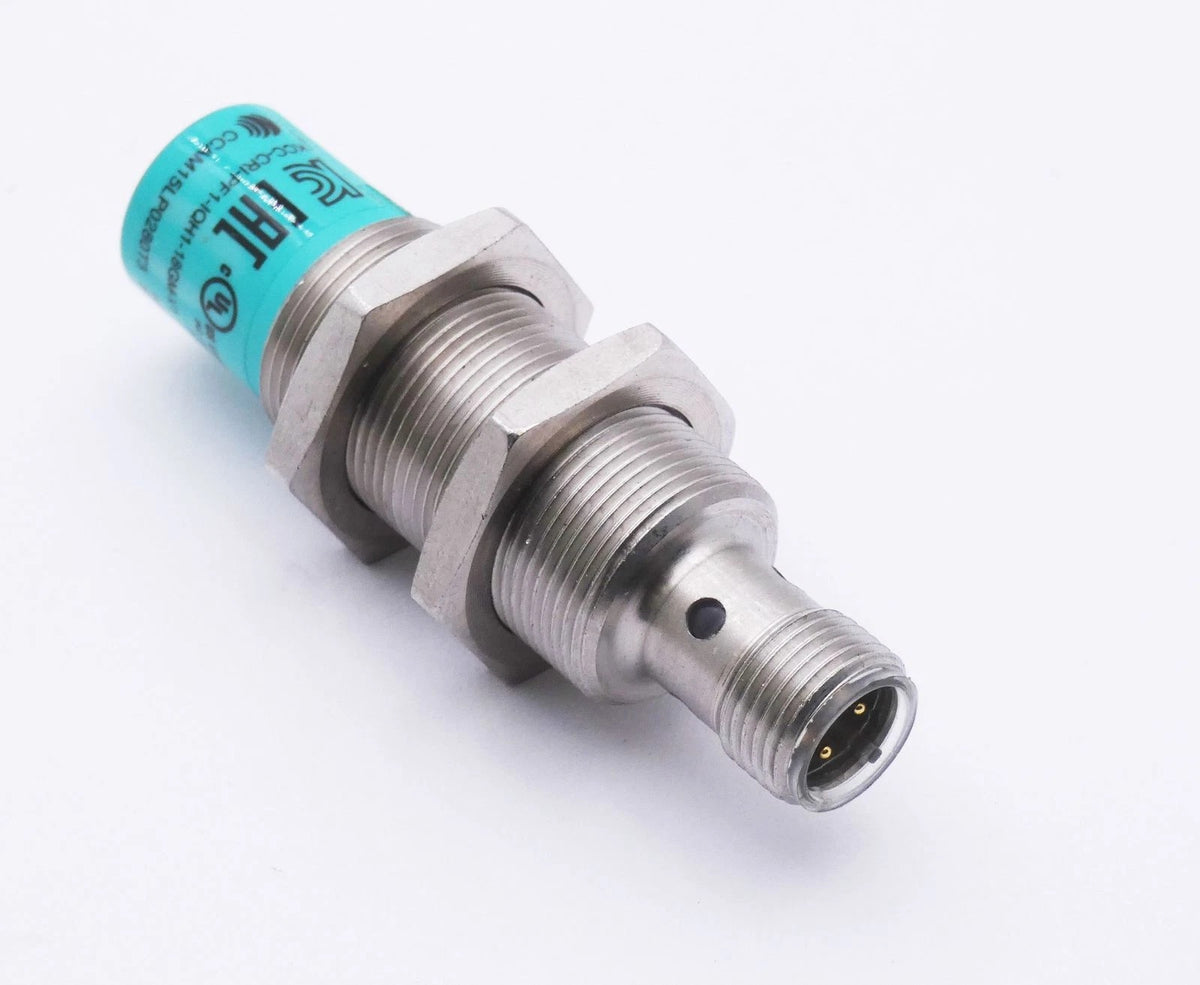

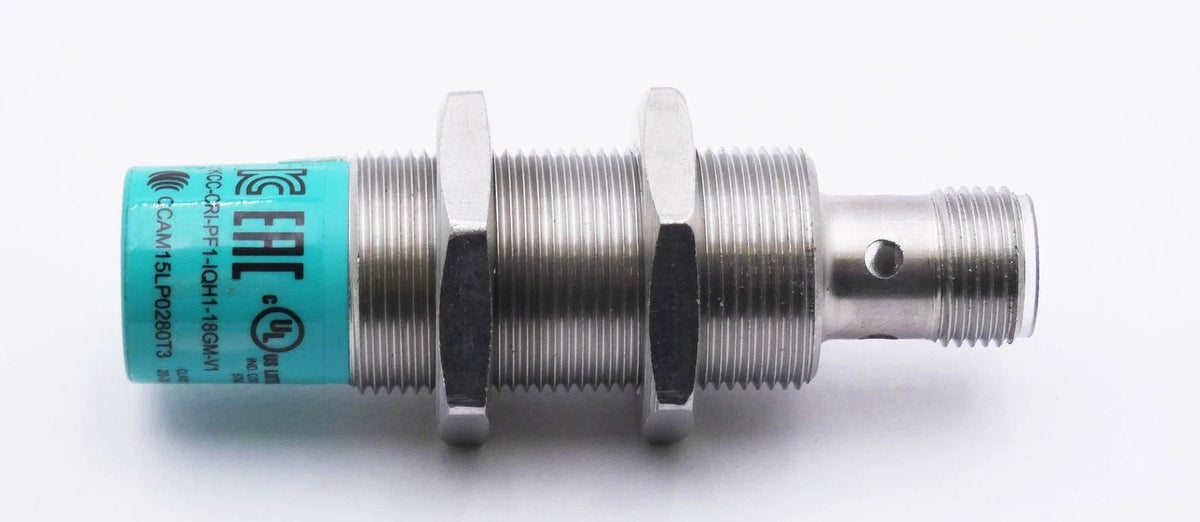

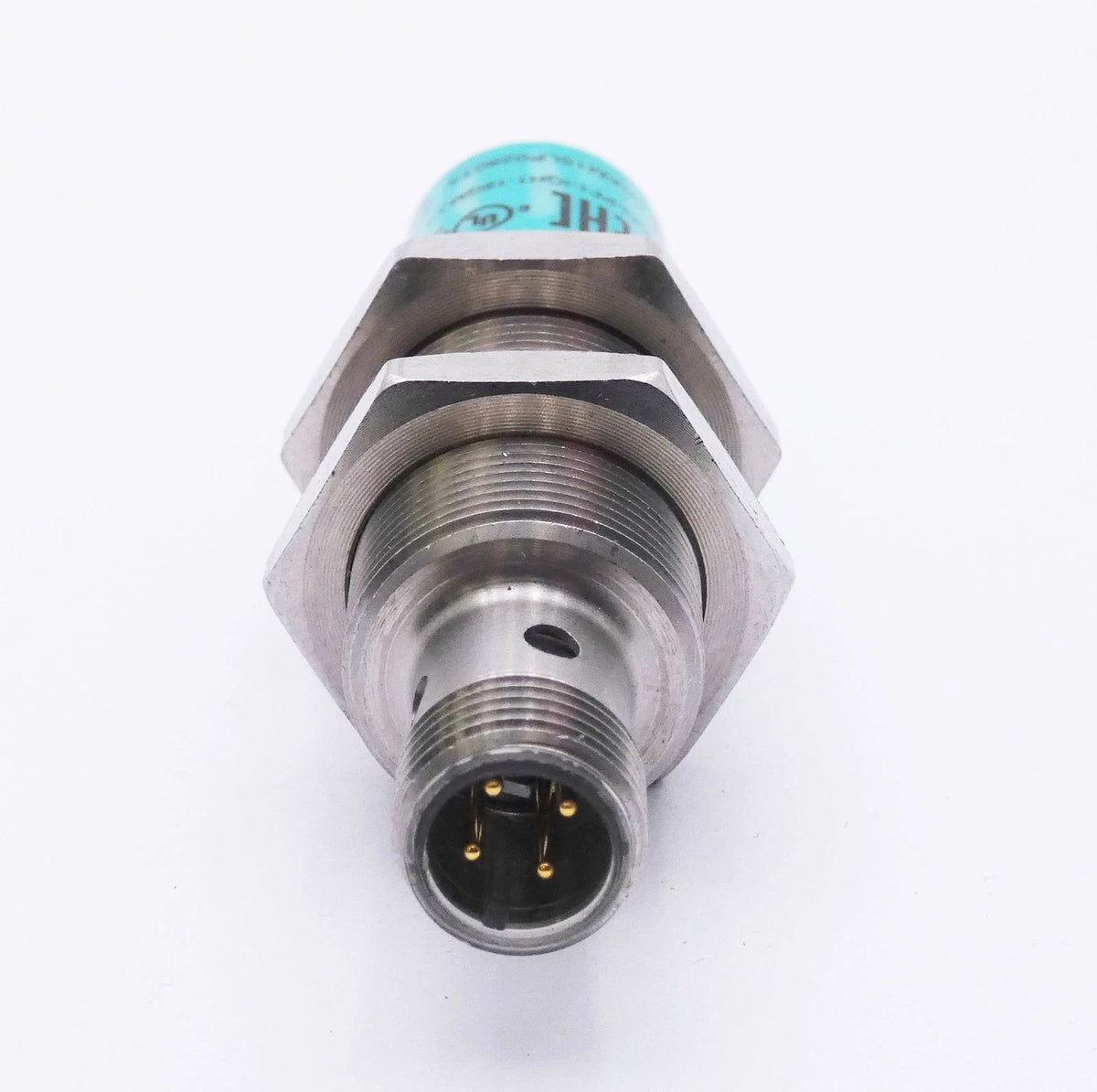

Pepperl+Fuchs IQH1-18GM-V1 RFID Read/Write Head 13.56 MHz 50 mm IP67
PRODUCT PRICE
USD
$251.38
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Pepperl+Fuchs |
| Model Number | IQH1-18GM-V1 |
| Product Category | RFID Read/Write Head |
| Identification System | IDENTControl |
| Operating Frequency | 13.56 MHz |
| RFID Standard | ISO 15693 |
| Transfer Rate | 26 kBit/s |
| Read Distance | 0-50 mm |
| Write Distance | 0-50 mm |
| Thread | M18 x 1 |
| Connection | V1 Plug, M12 x 1 |
| Indicators | Green/Yellow Multihole LED |
| Degree of Protection | IP67 |
| Housing Material | PBT / Stainless Steel |
| Installation | Non-Flush |
| Dimensions | 18 mm Diameter x 66 mm Length |
| Mass | Approx. 40 g |
Key Features
ISO 15693
The read/write head is documented for ISO 15693 RFID data carriers and suitable FRAM transponders.
50 mm Read/Write Distance
The documented read and write distance is from 0 to 50 mm, depending on the applicable data carrier and installation conditions.
26 kBit/s Transfer Rate
The documented RFID communication transfer rate is 26 kBit/s.
M18 x 1 Housing
The cylindrical read/write head uses an M18 x 1 threaded housing and a V1 M12 x 1 plug connection.
IP67 Protection
The documented degree of protection for the IQH1-18GM-V1 is IP67.
Applications
- Industrial RFID identification
- Workpiece identification systems
- Production line tracking
- Material flow identification
- Automated manufacturing identification
- Data carrier read and write applications
- Machine automation tracking
- Industrial process identification
Purchase Information
We support online purchase of the Pepperl+Fuchs IQH1-18GM-V1 RFID Read/Write Head. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Pepperl+Fuchs IQH1-18GM-V1?
Pepperl+Fuchs IQH1-18GM-V1 is an HF RFID read/write head for connection to an IDENTControl evaluation unit, operating at 13.56 MHz and conforming to ISO 15693.
What operating frequency does IQH1-18GM-V1 use?
The documented operating frequency is 13.56 MHz.
What RFID standard does IQH1-18GM-V1 support?
The read/write head conforms to ISO 15693.
What is the transfer rate of IQH1-18GM-V1?
The documented transfer rate is 26 kBit/s.
What is the read distance?
The documented read distance is 0-50 mm.
What is the write distance?
The documented write distance is 0-50 mm.
What connection does IQH1-18GM-V1 use?
The read/write head uses a V1 plug connection with an M12 x 1 connector.
What thread size does IQH1-18GM-V1 use?
The cylindrical housing uses an M18 x 1 thread.
What is the protection rating of IQH1-18GM-V1?
The documented degree of protection is IP67.
What is the operating temperature range?
The documented ambient operating temperature range is -25°C to +70°C.
What applications can IQH1-18GM-V1 be considered for?
It can be considered for industrial RFID identification, workpiece tracking, material-flow identification and related read/write applications after the RFID architecture and data-carrier requirements have been checked.
What should be checked before ordering IQH1-18GM-V1?
Check the complete model number, 13.56 MHz operating frequency, ISO 15693 requirement, required read/write distance, M18 x 1 installation, M12 x 1 connection and IDENTControl system requirements against the existing equipment documentation before purchasing.
