5 to 15 mm Measurement Range
The IA15-30GM-I3 provides a documented inductive analog measurement range from 5 to 15 mm.
1 / 12
Pepperl+Fuchs

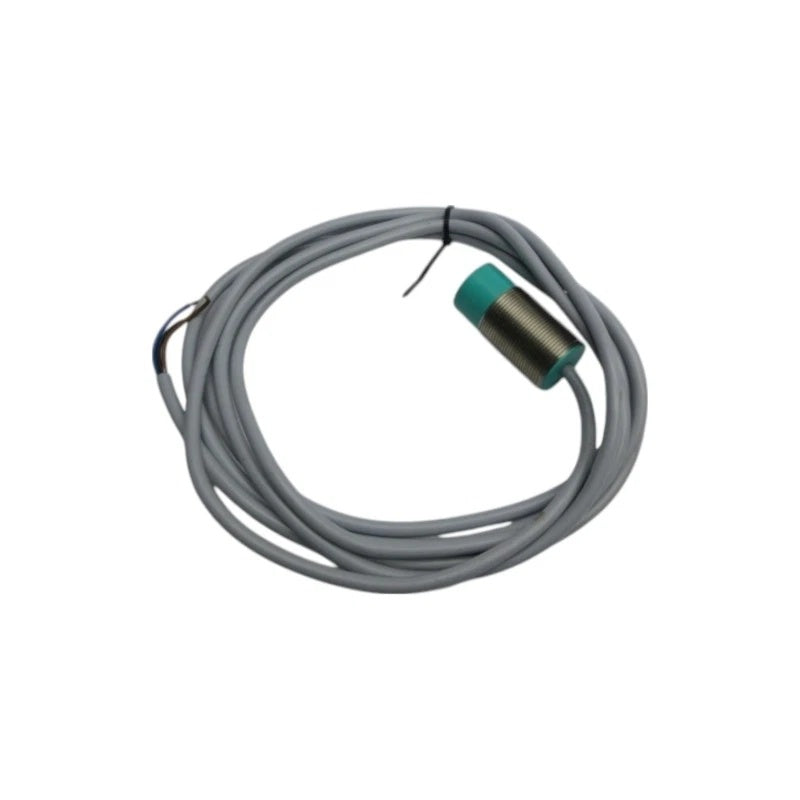

Pepperl+Fuchs IA15-30GM-I3 Inductive Analog Sensor 5-15mm 0-20mA 15-30VDC
PRODUCT PRICE
USD
$155.36
0 pcs / pack
Available to order
Request a QuoteBulk Orders, Part Number Assistance, or Alternative Payment Options? Contact Our Team!
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
💳 Need a Different Payment Method?Add your items to cart and contact our team before checkout. We'll help you explore available payment arrangements.
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Pepperl+Fuchs |
| Model Number | IA15-30GM-I3 |
| Product Category | Inductive Analog Sensor |
| Switching Element Function | Analog Current Output |
| Installation | Non-flush |
| Output Polarity | DC |
| Measurement Range | 5 to 15 mm |
| Operating Voltage | 15 to 30 VDC |
| Repeat Accuracy | 0 to 15 µm |
| No-load Supply Current | ≤10 mA |
| Analog Output | 0 to 20 mA |
| Linearity Error | ≤±10% of Full-scale Value |
| Load Resistance | ≤500 Ω |
Key Features
0 to 20 mA Analog Output
The sensor provides a 0 to 20 mA analog current output for continuous position or distance measurement within its specified range.
15 to 30 VDC Operation
The documented operating voltage range is 15 to 30 VDC.
Non-flush Installation

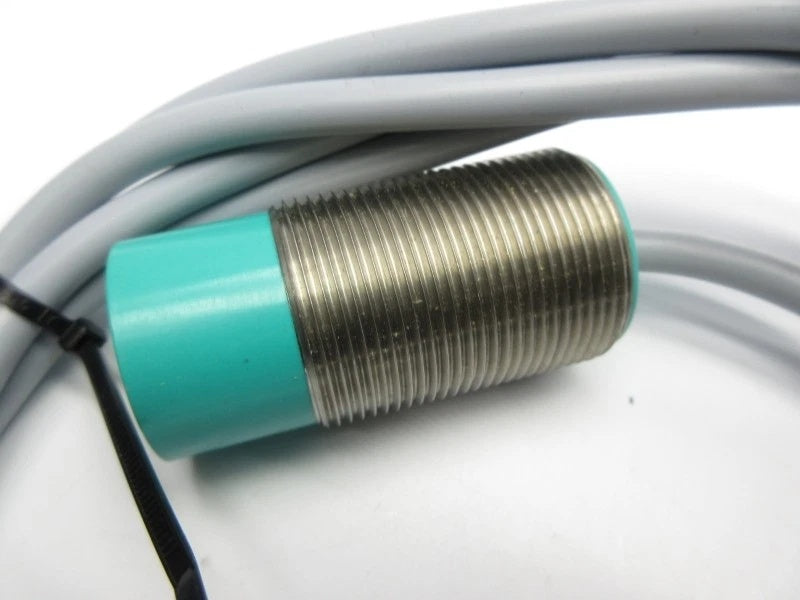

The IA15-30GM-I3 is specified for non-flush mounting and uses an M30 × 1.5 cylindrical threaded housing.
Up to 500 Ω Load
The analog output supports a documented load resistance of up to 500 Ω.
IP67 Protection
The nickel-plated brass housing and PBT sensing face are specified with an IP67 enclosure protection rating.
Applications
- Metal target distance measurement
- Machine position monitoring
- Industrial displacement measurement
- Automation equipment feedback
- Production equipment positioning
- Material handling systems
- Machine tool monitoring
- Continuous metal target detection
Purchase Information
We support online purchase of the Pepperl+Fuchs IA15-30GM-I3 Inductive Analog Sensor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Pepperl+Fuchs IA15-30GM-I3?
Pepperl+Fuchs IA15-30GM-I3 is an inductive analog sensor with a 5 to 15 mm measurement range and 0 to 20 mA analog current output.
What is the measurement range?
The documented measurement range is 5 to 15 mm.
What analog output does IA15-30GM-I3 provide?
The sensor provides a 0 to 20 mA analog current output.
What is the operating voltage?
The documented operating voltage range is 15 to 30 VDC.
Is IA15-30GM-I3 flush mountable?
No. The model is specified for non-flush installation.
What is the maximum load resistance?
The documented load resistance is up to 500 Ω.
What is the repeat accuracy?
The documented repeat accuracy is 0 to 15 µm.
What housing does IA15-30GM-I3 use?

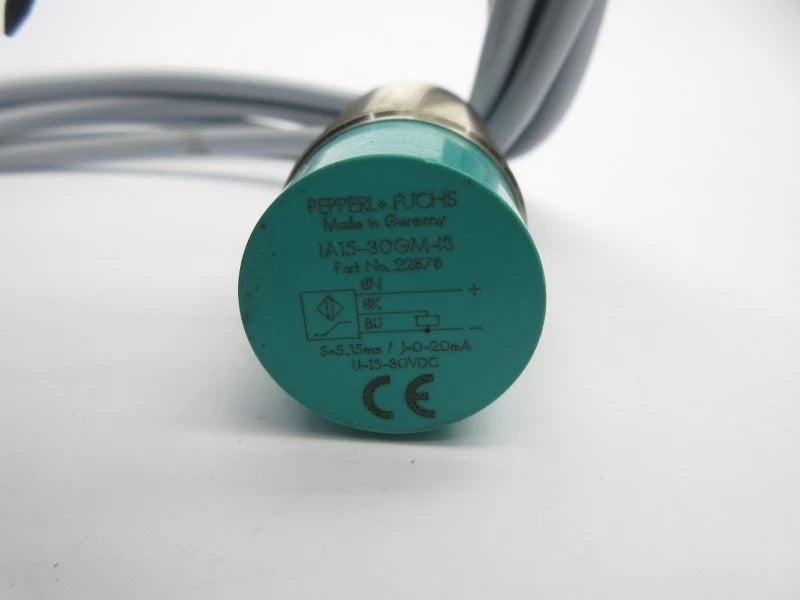

The sensor uses a 30 mm nickel-plated brass cylindrical housing with an M30 × 1.5 thread and PBT sensing face.
How is IA15-30GM-I3 connected?

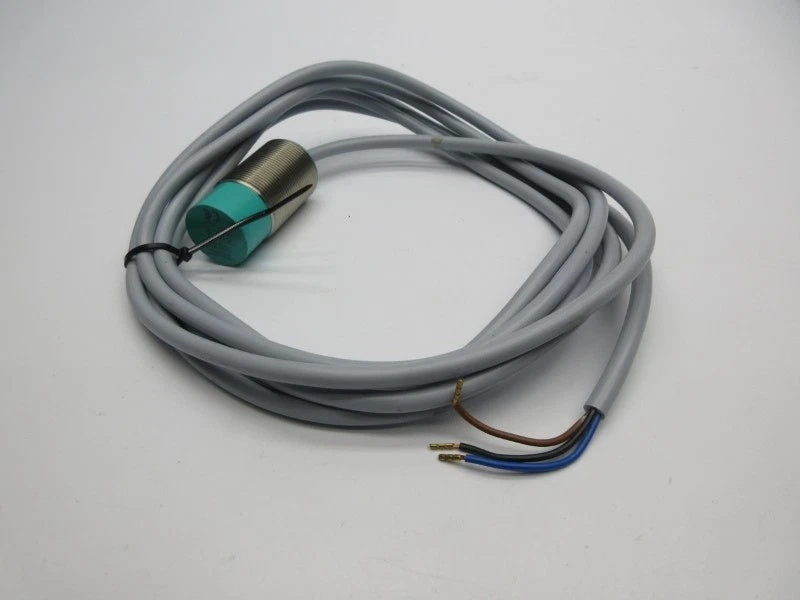

The model uses a PVC cable with a documented length of 2 m and conductor cross-section of 0.5 mm².
What is the protection rating?
The documented enclosure protection rating is IP67.
What is the operating temperature range?
The documented ambient operating temperature range is -10 to 70°C.
What should be checked before ordering IA15-30GM-I3?
Check the complete IA15-30GM-I3 model number, 5 to 15 mm measurement range, 0 to 20 mA analog output, 15 to 30 VDC supply, non-flush M30 mounting, cable connection and required load conditions before purchasing.
