6 A Current Rating
The CCMR-6 corresponds to Littelfuse catalog number CCMR006 with a documented 6 A current rating.

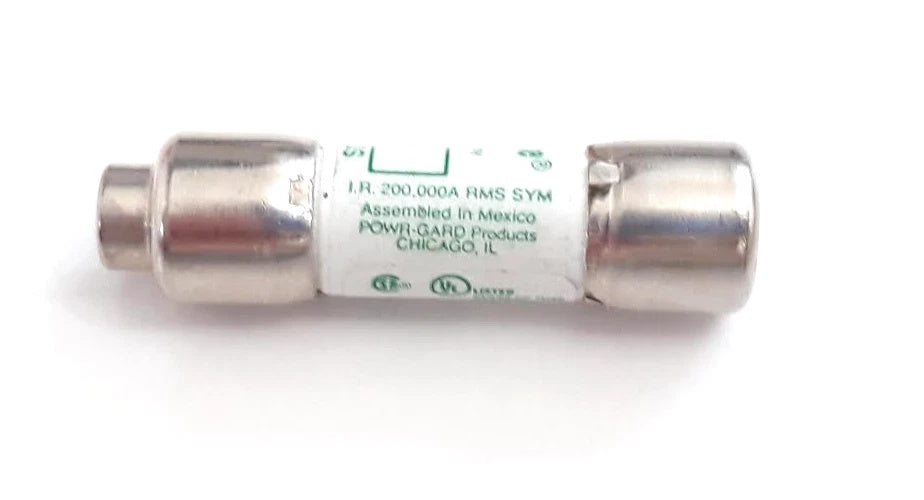

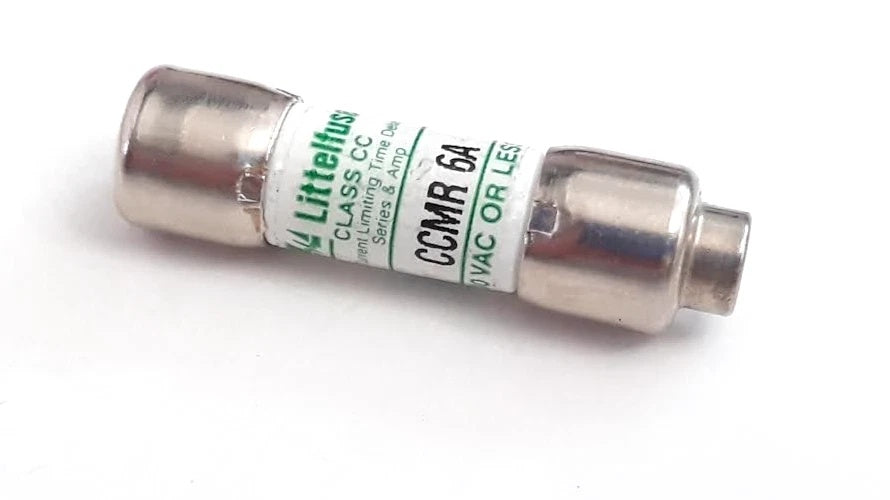

Littelfuse CCMR-6 Time-Delay Fuse 6A 600VAC 300VDC Class CC
Available in stock (2000)
Regular price
$6.19
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Littelfuse |
| Model Number | CCMR-6 |
| Product Category | Time-Delay Fuse |
| Series | CCMR |
| Fuse Class | Class CC |
| Fuse Type | Dual-Element Time-Delay |
| Current Rating | 6 A |
| AC Voltage Rating | 600 VAC |
| DC Voltage Rating | 300 VDC |
| AC Interrupting Rating | 200 kA RMS Symmetrical |
| DC Interrupting Rating | 20 kA |
| Catalog Number | CCMR006 |
| Product Marking | CCMR 6A |
| Diameter | 0.41 in (10.3 mm) |
| Overall Length | 1.50 in (38.1 mm) |
| Applicable Standard | UL 248-4 Class CC |
| Approvals | UL Listed, CSA Certified |
| Environmental | RoHS Compliant |
| Country of Origin | Mexico |
Key Features
600 VAC Class CC Fuse
The CCMR-6 belongs to the Class CC portion of the CCMR series and is rated for AC circuits up to 600 VAC.
300 VDC Rating
Littelfuse specifies a 300 VDC rating for CCMR fuses from 2/10 A through 10 A.
Dual-Element Time-Delay
The CCMR series uses dual-element time-delay protection designed to accommodate surge currents associated with small horsepower motors.
High Interrupting Capacity
The CCMR series has a 200 kA RMS symmetrical AC interrupting rating and a 20 kA DC interrupting rating.
Compact Cartridge Format
The CCMR 0 to 30 A format measures approximately 0.41 inch in diameter and 1.50 inches in overall length.
Applications
- Motor branch circuit protection
- Small motor circuit protection
- Contactor protection
- Heating circuit protection
- Industrial control circuits
- Motor control panels
- Machine control equipment
- General industrial circuit protection
Purchase Information
We support online purchase of the Littelfuse CCMR-6 Time-Delay Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Littelfuse CCMR-6?
Littelfuse CCMR-6 is a CCMR series Class CC dual-element time-delay fuse with a 6 A current rating.
What is the current rating of CCMR-6?
The documented current rating is 6 A.
What is the AC voltage rating?
The CCMR-6 is rated for operation up to 600 VAC.
What is the DC voltage rating?
Littelfuse specifies 300 VDC for the CCMR 2/10 A through 10 A range, which includes CCMR-6.
Is CCMR-6 a time-delay fuse?
Yes. The CCMR series uses dual-element time-delay protection designed to accommodate surge currents associated with small horsepower motors.
What fuse class is CCMR-6?
The CCMR-6 is within the Class CC range covered by UL 248-4.
What is the AC interrupting rating?
The documented AC interrupting rating is 200 kA RMS symmetrical. Littelfuse also lists a 300 kA self-certified rating for the CCMR series.
What is the DC interrupting rating?
The documented DC interrupting rating is 20 kA.
What are the dimensions of CCMR-6?
The CCMR 0 to 30 A cartridge format measures approximately 0.41 inch (10.3 mm) in diameter and 1.50 inches (38.1 mm) in overall length.
What is the Littelfuse catalog number for CCMR-6?
Littelfuse lists CCMR006 as the catalog number and CCMR 6A as the product marking.
What applications are listed for the CCMR series?
Littelfuse lists motor and motor branch circuit protection, contactor protection, heating and general industrial protection as applications.
What should be checked before ordering CCMR-6?
Check the complete CCMR-6 model designation, 6 A current rating, required 600 VAC or 300 VDC circuit rating, Class CC requirements, interrupting rating, dimensions and fuseholder specifications before purchasing.
