Eaton Bussmann

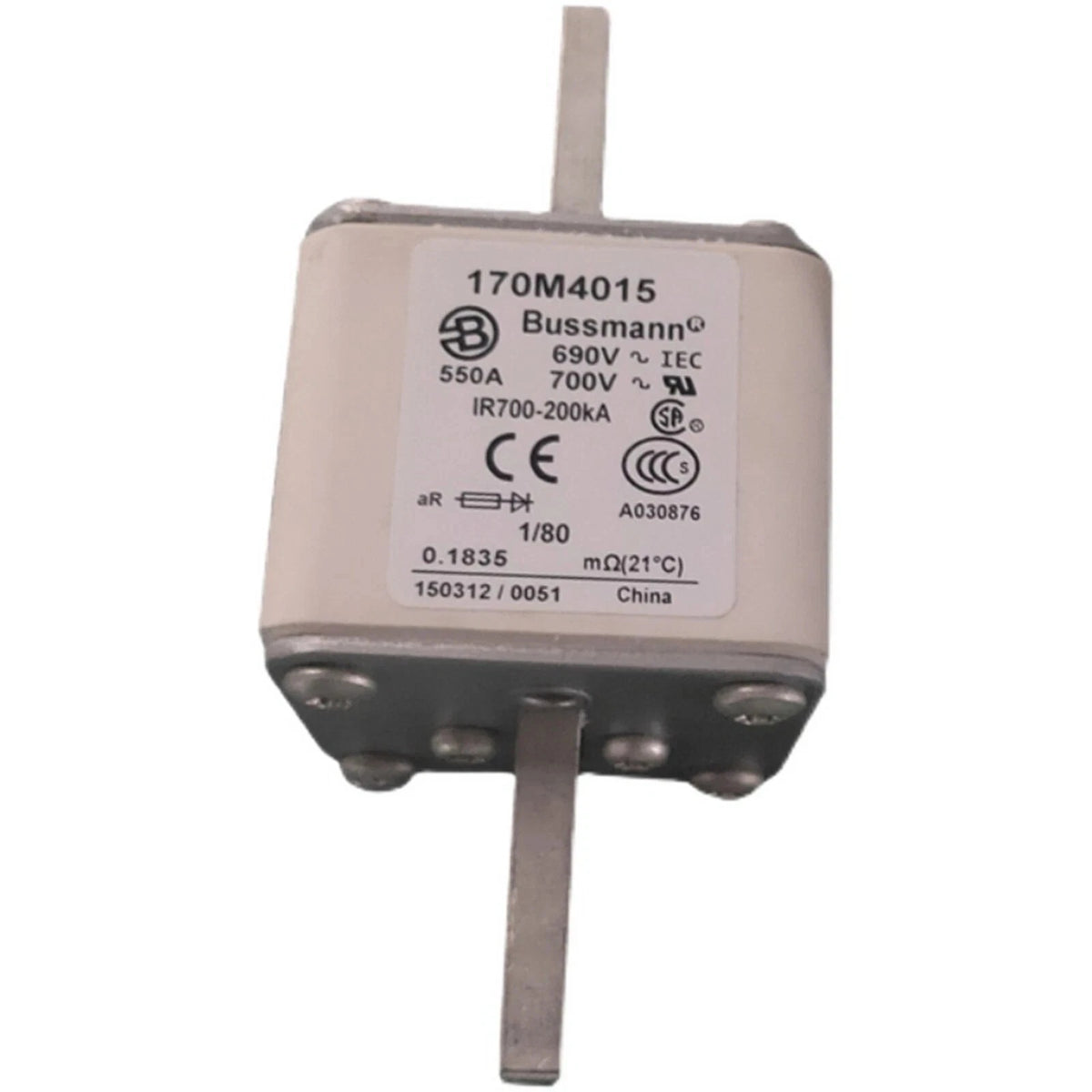

Bussmann 170M4015 Fuse

PRODUCT PRICE USD

$44.09

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	170M4015
Product Category	Fuse
Fuse Type	High Speed Square Body Fuse
Utilization Category	aR (Semiconductor Protection)
Rated Current	550 A
Rated Voltage AC	690 V
Breaking Capacity	200 kA
Fuse Size / Standard	1 / DIN 43 653
Mounting	Stud / Bolt Down
Connection	Blade End x Blade End
Fuse Indicator	Top Fuse Status Indicator
Power Dissipation	75 W
Compliances	CE Marked, RoHS Compliant

Key Features

High Speed aR Protection

The 170M4015 is a high speed square body fuse with an aR utilization category, intended for semiconductor protection in power conversion equipment.

690 V AC Rating

Rated for 690 V AC applications according to IEC standards, with a breaking capacity of 200 kA for high fault current interruption.

Square Body Construction

Square body blade fuse design with bolt-down mounting and blade-end connections, suitable for high-current industrial circuits.

Fuse Status Indicator

Equipped with a top fuse status indicator to support visual identification of fuse operation in the field.

DIN 43 653 Size 1

Manufactured to the DIN 43 653 size 1 dimensional standard for compatibility with corresponding fuse holders and mounting arrangements.

Applications

Semiconductor protection in power converters
DC link and AC drive circuit protection
UPS and rectifier equipment
Industrial power supply protection
High-current rectifier fuse applications
Power electronics equipment protection

Purchase Information

We support online purchase of the Bussmann 170M4015 Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann 170M4015? The 170M4015 is a Bussmann series high speed square body fuse designed for semiconductor protection, with a 690 V AC rating and an aR utilization category.

What is the rated current of the 170M4015? The rated current is 550 A according to Eaton Bussmann product data.

What is the voltage rating? The rated voltage is 690 V AC (IEC).

What is the breaking capacity? The breaking capacity is 200 kA.

What is the utilization category? The fuse is classified as aR, intended for accompanied semiconductor protection.

Does it have a fuse indicator? Yes, it includes a top fuse status indicator.

What is the mounting style? The fuse uses stud / bolt-down mounting with blade end x blade end connections.

What DIN size does it follow? It follows the DIN 43 653 size 1 standard.

What are the typical applications? It is commonly used for semiconductor protection in power converters, rectifiers, UPS systems, and other industrial power electronics equipment.
