1 / 1

Eaton Bussmann

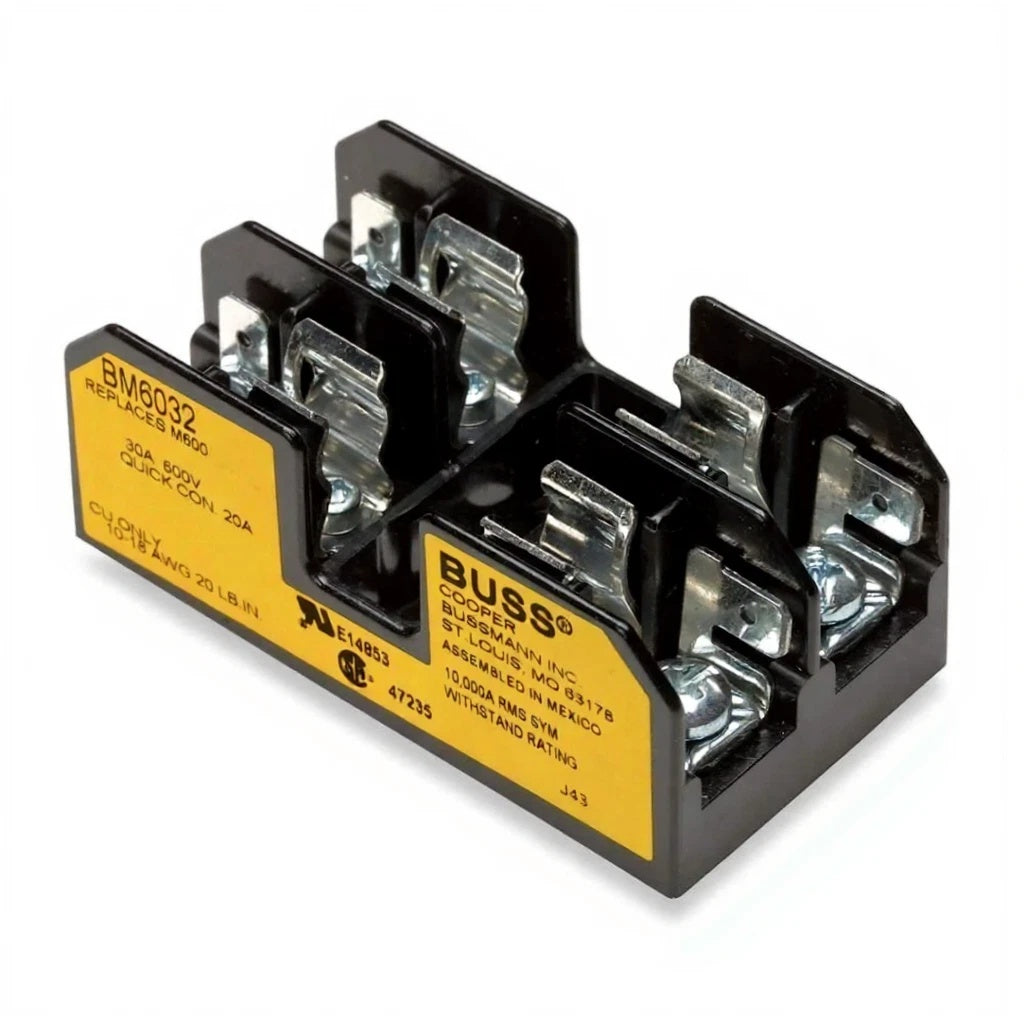

Bussmann BM6032SQ Fuse Holder 2-Pole

PRODUCT PRICE USD

$13.20

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

Payments

Available payment methods

Bank transfer

Shop with confidence

30-Day Risk-Free Returns & Exchanges

Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.

View Our Return Policy

Service Guarantee

Shipping

Free standard shipping within the U.S

Shipping details

Estimated delivery

Expected to arrive within 2–15 days

Delivery details

Enjoy greater discounts on bulk orders

Please contact our team for bulk purchases

Contact our team

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	Bussmann
Model Number	BM6032SQ
Product Category	Fuse Holder
Holder Type	Midget Fuse Block
Number of Poles	2
Amperage Rating	30 A
Voltage Rating	600 V AC / 600 V DC
Fuse Size	10 x 38 mm (13/32 x 1-1/2 in)
Short Circuit Current Rating	200 kA
Terminal Type	Screw with Quick Connect
Mounting	DIN Rail
Housing Material	Thermoplastic, UL 94V0
Agency Approvals	UL Recognized, CSA Certified

Key Features

2-Pole Midget Fuse Block

Two-pole fuse block for 10 x 38 mm midget fuses, suitable for supplemental overcurrent protection in control circuits.

600 V AC / DC Rating

Rated for 600 V AC and 600 V DC applications, covering a broad range of industrial control and instrumentation circuits.

200 kA Short-Circuit Rating

Supports a 200 kA short-circuit current rating for high fault current protection in compatible systems.

Screw with Quick Connect Terminals

Screw terminals with quick-connect capability simplify wiring and maintenance in panel installations.

DIN Rail Mounting

Designed for DIN rail mounting with Edison DIN-rail adapters, supporting efficient panel assembly.

Applications

Industrial control circuit protection
Midget fuse branch circuits
Instrumentation and signal circuits
Panel builder and OEM control panels
DIN rail fuse block installations
Supplemental overcurrent protection

Purchase Information

We support online purchase of the Bussmann BM6032SQ Fuse Holder. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the Bussmann BM6032SQ? It is a Bussmann BM series midget fuse block with two poles, rated at 30 A and 600 V AC/DC for 10 x 38 mm fuses.

How many poles does it have? It is a two-pole fuse block.

What is the amperage rating? The amperage rating is 30 A.

What is the voltage rating? The voltage rating is 600 V AC and 600 V DC.

What fuse size does it accept? It accepts 10 x 38 mm (13/32 x 1-1/2 in) midget fuses.

What is the short-circuit current rating? The short-circuit current rating is 200 kA.

What terminal type does it use? It uses screw terminals with quick-connect capability.

How is it mounted? It is designed for DIN rail mounting using Edison DIN-rail adapters.

What agency approvals does it carry? It is UL Recognized and CSA Certified.
