5 A Current Rating
The CCMR-5 corresponds to the 5 A configuration in the Littelfuse CCMR fuse series.

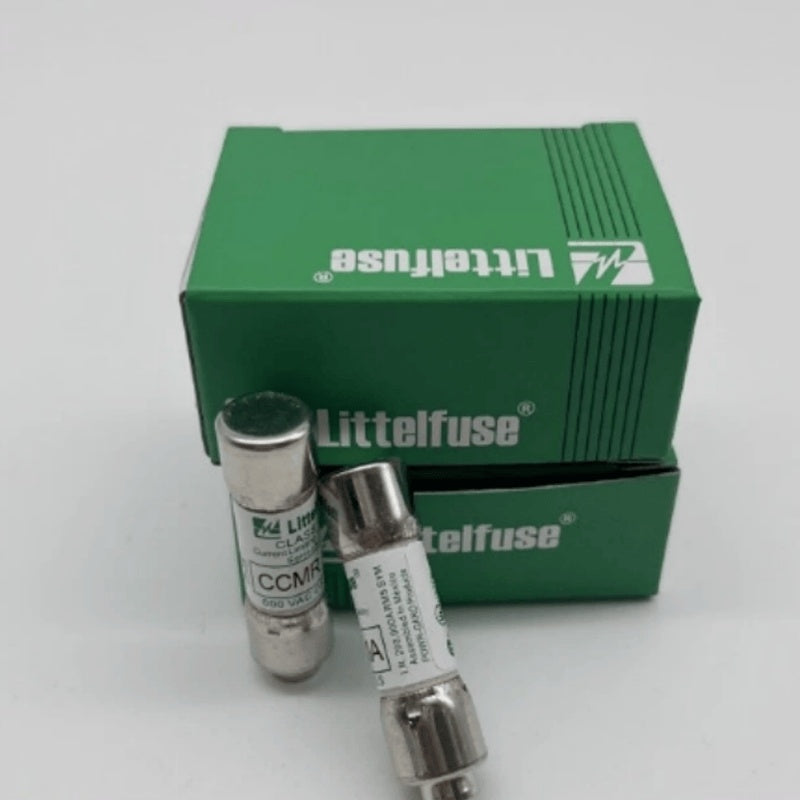

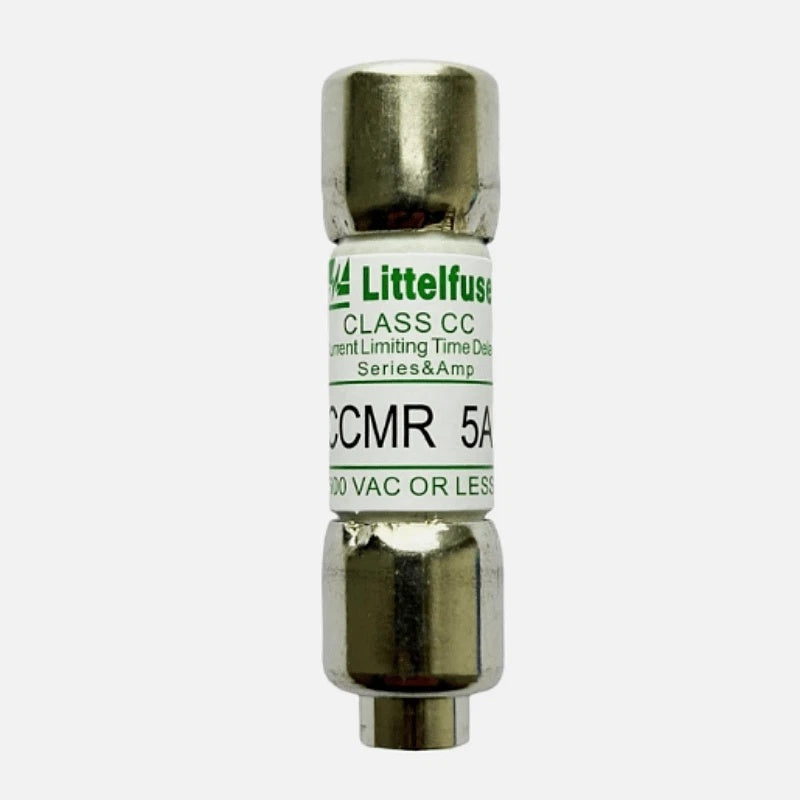

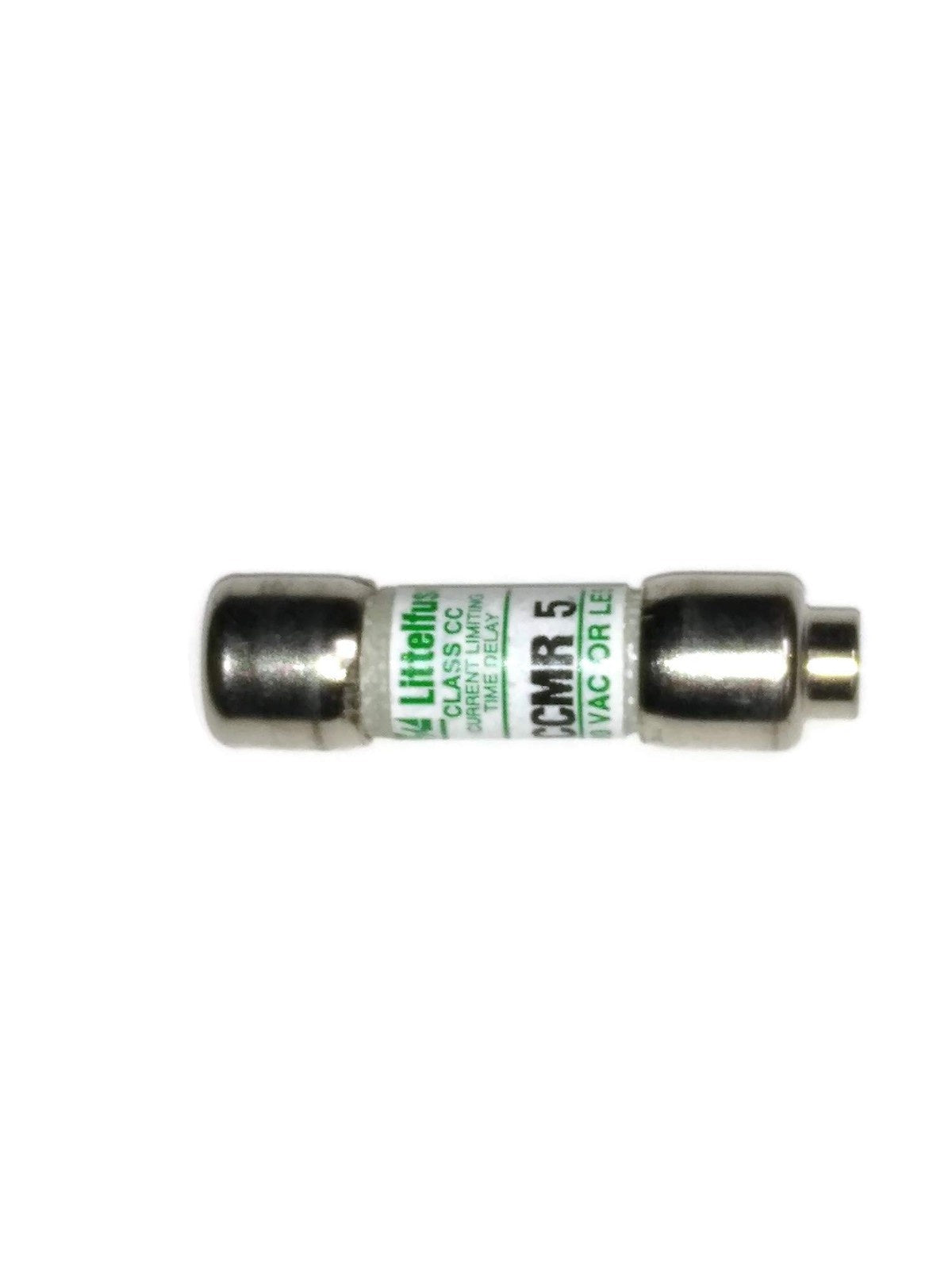

Littelfuse CCMR-5 Class CC Fuse 5A 600VAC 300VDC Time-Delay
Available in stock (1000)
Regular price
$6.19
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Littelfuse |
| Model Number | CCMR-5 |
| Product Category | Class CC Fuse |
| Series | CCMR |
| Fuse Type | Dual-Element Time-Delay Fuse |
| Current Rating | 5 A |
| AC Voltage Rating | 600 VAC |
| DC Voltage Rating | 300 VDC |
| Fuse Class | Class CC |
| AC Interrupting Rating | 200 kA RMS Symmetrical |
| AC Self-Certified Interrupting Rating | 300 kA |
| DC Interrupting Rating | 20 kA |
| Catalog Number | CCMR005 |
| Product Marking | CCMR 5A |
| Dimensions | 10.3 × 38.1 mm |
| Applicable Standard | UL 248-4 Class CC |
| UL Listing | UL Listed, File E81895 |
| CSA Certification | CSA Certified, File LR29862 |
| Environmental Compliance | RoHS Compliant |
Key Features
600 VAC and 300 VDC
The 5 A CCMR configuration is rated for circuits up to 600 VAC and 300 VDC.
Dual-Element Time-Delay
The CCMR series combines dual-element construction with time-delay characteristics for motor and industrial circuit protection.
Class CC Construction
The 5 A configuration is a UL 248-4 Class CC fuse with a compact 10.3 × 38.1 mm format.
Current-Limiting Design
The CCMR series is designed to limit short-circuit current and reduce the heating and magnetic effects associated with fault currents.
200 kA AC Interrupting Rating
The documented AC interrupting rating is 200 kA RMS symmetrical, with a 20 kA self-certified DC interrupting rating.
Applications
- Motor protection
- Motor branch circuit protection
- Contactor protection
- Heating circuit protection
- Industrial control circuits
- General industrial protection
Purchase Information
We support online purchase of the Littelfuse CCMR-5 Class CC Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Littelfuse CCMR-5?
Littelfuse CCMR-5 is the 5 A configuration of the CCMR dual-element time-delay Class CC fuse series.
What is the Littelfuse catalog number for the 5 A CCMR fuse?
The documented catalog number is CCMR005 and the product marking is CCMR 5A.
What is the current rating of CCMR-5?
The documented current rating is 5 A.
What is the AC voltage rating of CCMR-5?
The documented AC voltage rating is 600 VAC.
What is the DC voltage rating of CCMR-5?
The 5 A CCMR configuration is rated at 300 VDC.
Is CCMR-5 a time-delay fuse?
Yes. The CCMR series uses dual-element time-delay construction.
What is the AC interrupting rating?
The documented AC interrupting rating is 200 kA RMS symmetrical, with a 300 kA Littelfuse self-certified rating.
What is the DC interrupting rating?
The documented DC interrupting rating is 20 kA Littelfuse self-certified.
What are the dimensions of the CCMR-5?
The 0-30 A CCMR Class CC format measures approximately 10.3 mm in diameter and 38.1 mm in length.
What standard applies to CCMR-5?
The 5 A CCMR configuration is covered by UL 248-4 for Class CC fuses.
What applications are specified for the CCMR series?
Littelfuse specifies motor and motor branch circuit protection, contactor protection, heating applications and general industrial protection.
What should be checked before ordering CCMR-5?
Check the CCMR-5 model requirement, 5 A current rating, 600 VAC or 300 VDC circuit rating, Class CC format, 10.3 × 38.1 mm dimensions and required circuit protection characteristics before purchasing.
