2 A Current Rating
The CCMR-2 has a documented current rating of 2 A within the Littelfuse CCMR Class CC fuse series.

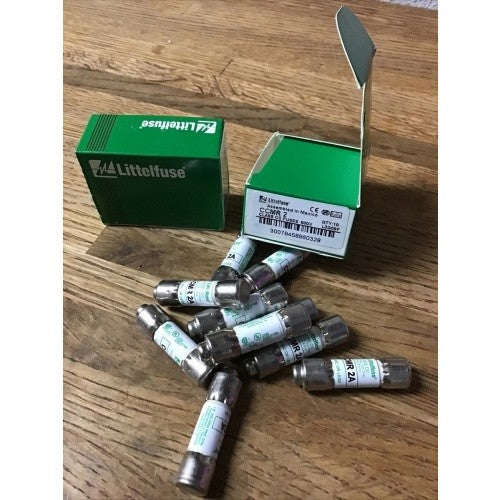

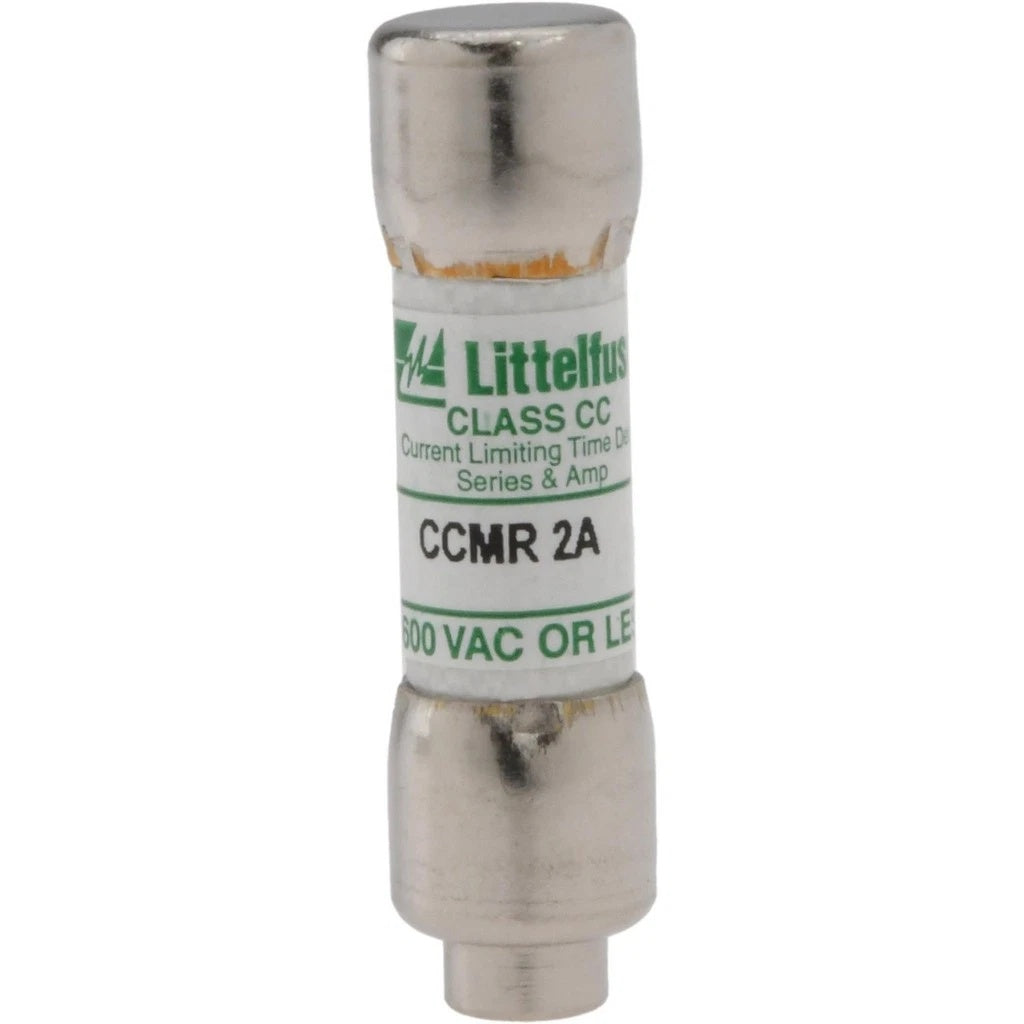

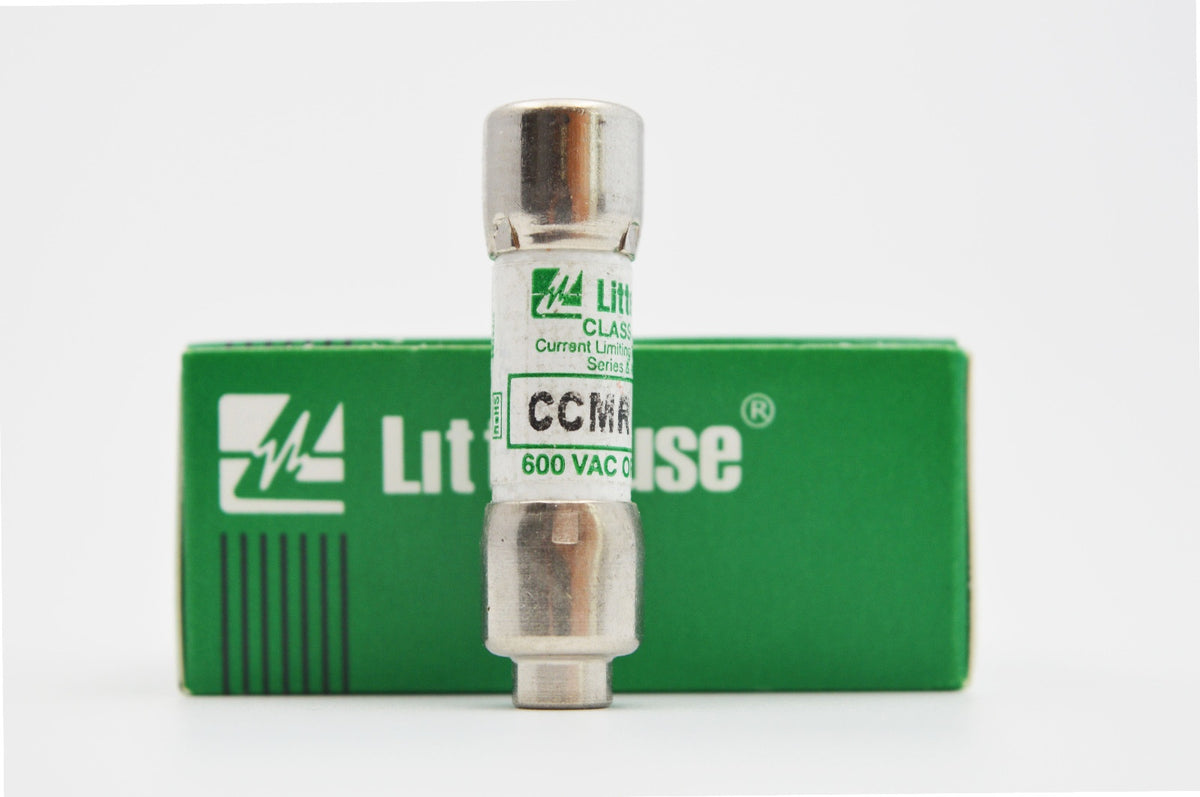

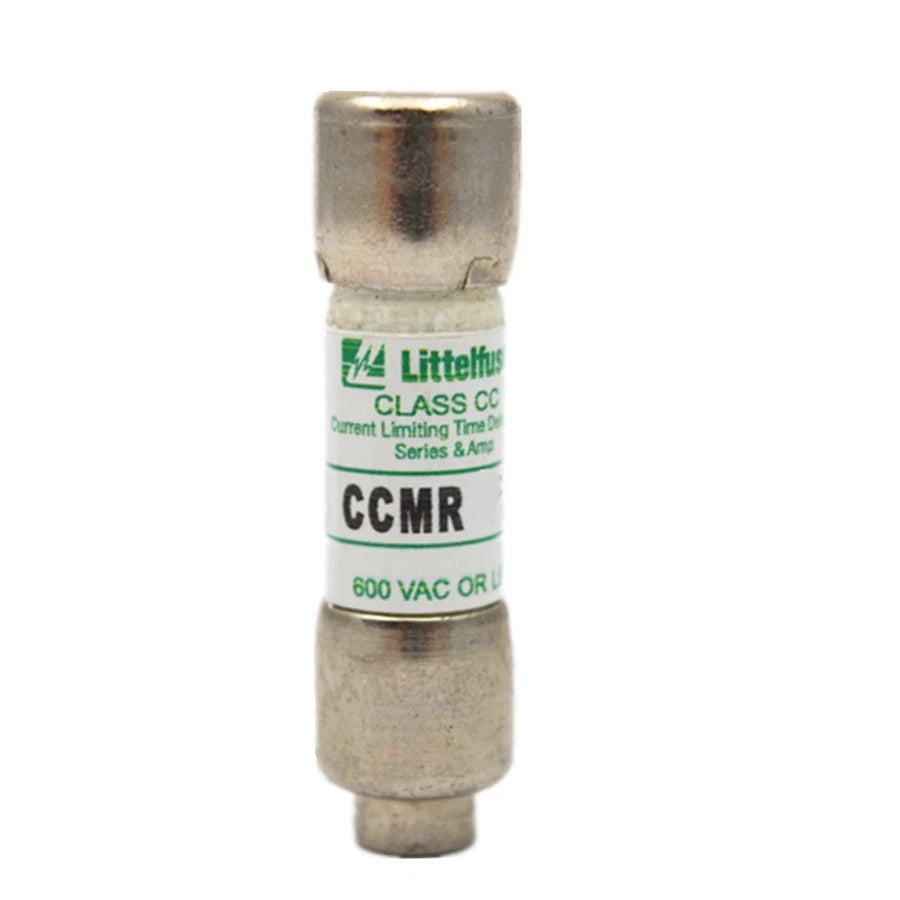

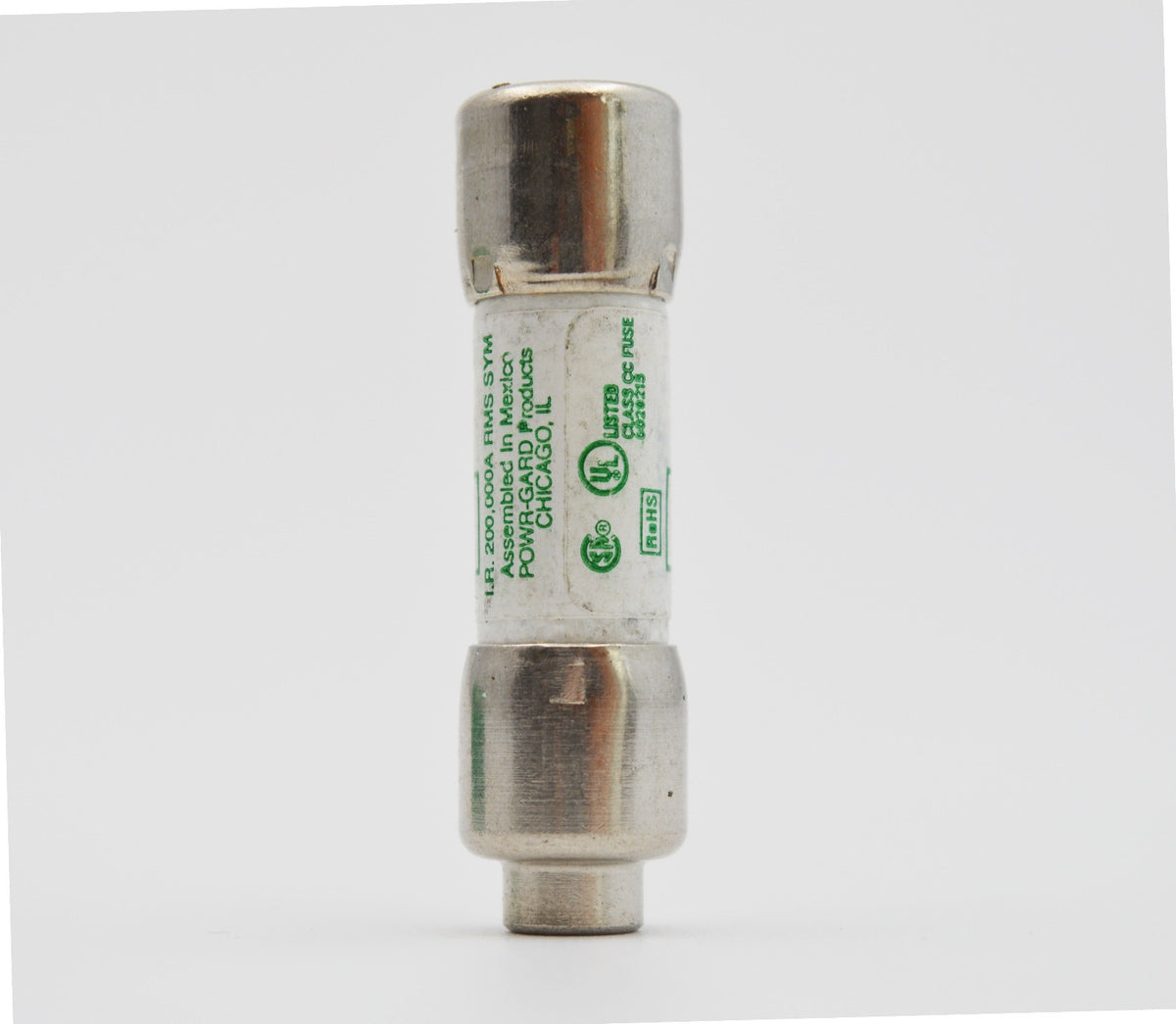

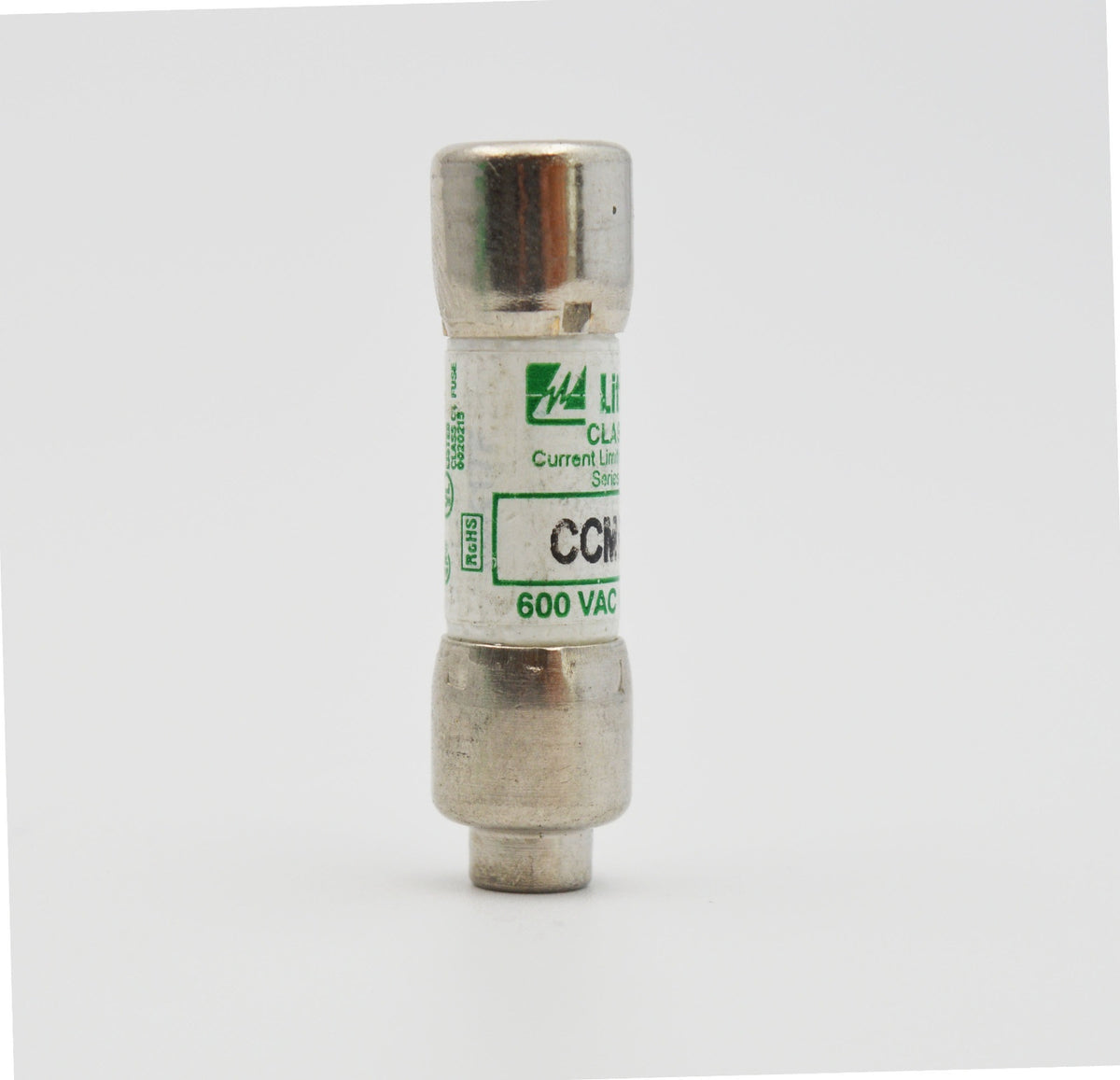

Littelfuse CCMR-2 Class CC Fuse 2A 600VAC 300VDC Time-Delay
Available in stock (1000)
Regular price
$6.19
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Littelfuse |
| Model Number | CCMR-2 |
| Product Category | Class CC Fuse |
| Series | CCMR |
| Fuse Type | Dual-Element Time-Delay Fuse |
| Current Rating | 2 A |
| AC Voltage Rating | 600 VAC |
| DC Voltage Rating | 300 VDC |
| Fuse Class | Class CC |
| AC Interrupting Rating | 200 kA RMS Symmetrical |
| AC Self-Certified Interrupting Rating | 300 kA |
| DC Interrupting Rating | 20 kA |
| Dimensions | 10.3 × 38.1 mm |
| Applicable Standard | UL 248-4 Class CC |
| UL Listing | UL Listed, File E81895 |
| CSA Certification | CSA Certified, File LR29862 |
| Environmental Compliance | RoHS Compliant |
Key Features
600 VAC and 300 VDC
The 2 A CCMR configuration is rated for circuits up to 600 VAC and 300 VDC.
Dual-Element Time-Delay
The CCMR series combines dual-element construction with time-delay characteristics for motor and industrial circuit protection.
Class CC Format
The CCMR-2 uses the compact Class CC format with dimensions of approximately 10.3 × 38.1 mm.
Current-Limiting Construction
The CCMR series provides current-limiting protection for circuits requiring Class CC fuse characteristics.
High Interrupting Ratings
The documented ratings include 200 kA RMS symmetrical AC interrupting capacity and 20 kA DC interrupting capacity.
Applications
- Motor protection
- Motor branch circuits
- Contactor protection
- Heating circuits
- Industrial control circuits
- Class CC branch circuits
Purchase Information
We support online purchase of the Littelfuse CCMR-2 Class CC Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Littelfuse CCMR-2?
Littelfuse CCMR-2 is a 2 A dual-element time-delay Class CC fuse from the CCMR series.
What is the current rating of CCMR-2?
The documented current rating is 2 A.
What is the AC voltage rating of CCMR-2?
The documented AC voltage rating is 600 VAC.
What is the DC voltage rating of CCMR-2?
The documented DC voltage rating is 300 VDC.
Is CCMR-2 a time-delay fuse?
Yes. The CCMR series uses dual-element time-delay construction.
What fuse class is CCMR-2?
The CCMR-2 is a Class CC fuse covered by UL 248-4.
What is the AC interrupting rating?
The documented AC interrupting rating is 200 kA RMS symmetrical, with a 300 kA self-certified rating.
What is the DC interrupting rating?
The documented DC interrupting rating is 20 kA.
What are the dimensions of CCMR-2?
The CCMR Class CC fuse format measures approximately 10.3 mm in diameter and 38.1 mm in length.
What applications are specified for the CCMR series?
The CCMR series is used for motor protection, motor branch circuits, contactor protection, heating circuits and general industrial circuit protection.
Is CCMR-2 suitable for Class CC fuse circuits?
CCMR-2 is a Class CC fuse; verify the required current rating, voltage rating and equipment protection requirements for the specific circuit before selection.
What should be checked before ordering CCMR-2?
Check the CCMR-2 model requirement, 2 A current rating, required 600 VAC or 300 VDC rating, Class CC format, 10.3 × 38.1 mm dimensions and circuit protection requirements before purchasing.
