15 A Class CC Rating
The CCMR-15 is the 15 A configuration in the Littelfuse CCMR Class CC fuse series.

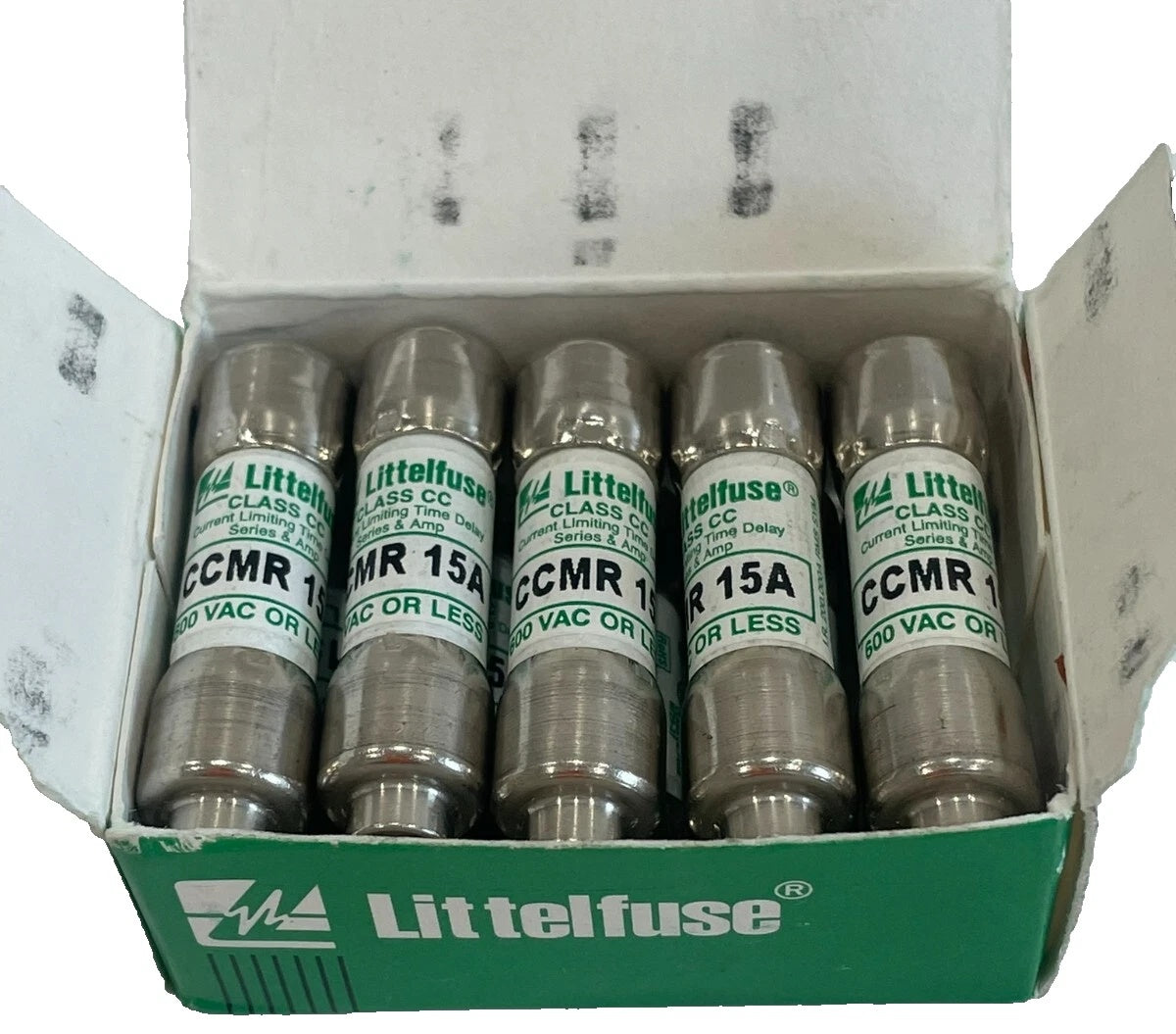

Littelfuse CCMR-15 Class CC Fuse 15A 600VAC 500VDC Time-Delay
Available in stock (1000)
Regular price
$6.19
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Littelfuse |
| Model Number | CCMR-15 |
| Product Category | Class CC Fuse |
| Series | CCMR |
| Fuse Type | Dual-Element Time-Delay Fuse |
| Current Rating | 15 A |
| AC Voltage Rating | 600 VAC |
| DC Voltage Rating | 500 VDC |
| AC Interrupting Rating | 200 kA RMS Symmetrical |
| DC Interrupting Rating | 20 kA |
| Fuse Class | Class CC |
| Dimensions | 10.3 × 38.1 mm |
| Catalog Number | CCMR015 |
| Product Marking | CCMR 15A |
| Applicable Standard | UL 248-4 Class CC |
| Certifications | UL Listed E81895; CSA Certified LR29862 |
| Environmental Compliance | RoHS Compliant |
Key Features
600 VAC and 500 VDC
The CCMR-15 has documented voltage ratings of 600 VAC and 500 VDC.
Dual-Element Time-Delay
The CCMR series uses dual-element time-delay construction for circuits where temporary inrush currents can occur.
High Interrupting Ratings
The documented interrupting ratings are 200 kA RMS symmetrical for AC circuits and 20 kA for DC circuits.
Compact Class CC Format
The CCMR-15 uses the compact 10.3 × 38.1 mm Class CC fuse format.
UL 248-4 Class CC
The CCMR-15 is listed to UL 248-4 Class CC requirements and is also CSA certified.
Applications
- Motor branch circuit protection
- Feeder circuit protection
- Contactor protection
- Industrial heating circuits
- Industrial control panels
- General industrial circuit protection
Purchase Information
We support online purchase of the Littelfuse CCMR-15 Class CC Fuse. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Littelfuse CCMR-15?
Littelfuse CCMR-15 is a 15 A dual-element time-delay Class CC fuse from the CCMR series.
What is the current rating of CCMR-15?
The documented current rating is 15 A.
What is the AC voltage rating?
The documented AC voltage rating is 600 VAC.
What is the DC voltage rating?
The documented DC voltage rating is 500 VDC.
What is the AC interrupting rating?
The documented AC interrupting rating is 200 kA RMS symmetrical.
What is the DC interrupting rating?
The documented DC interrupting rating is 20 kA.
Is CCMR-15 a time-delay fuse?
Yes. The CCMR series uses dual-element time-delay construction.
What fuse class is CCMR-15?
The CCMR-15 is a Class CC fuse under UL 248-4.
What are the dimensions of CCMR-15?
The documented dimensions are approximately 10.3 mm in diameter and 38.1 mm in length.
What is the catalog number for CCMR-15?
The Littelfuse catalog number is CCMR015, with product marking CCMR 15A.
What applications are associated with CCMR fuses?
Documented applications include feeder and branch circuit protection, motor protection, contactor protection, heating circuits and general industrial circuit protection.
What should be checked before ordering CCMR-15?
Check the CCMR-15 model requirement, 15 A current rating, 600 VAC or 500 VDC voltage requirement, Class CC format, 10.3 × 38.1 mm dimensions and required interrupting rating before purchasing.
