5/2-Way Monostable Function
The VUVS-LK20-M52-AD-G18-1C1-S uses a 5/2-way monostable valve function with pneumatic spring reset for directional pneumatic control.

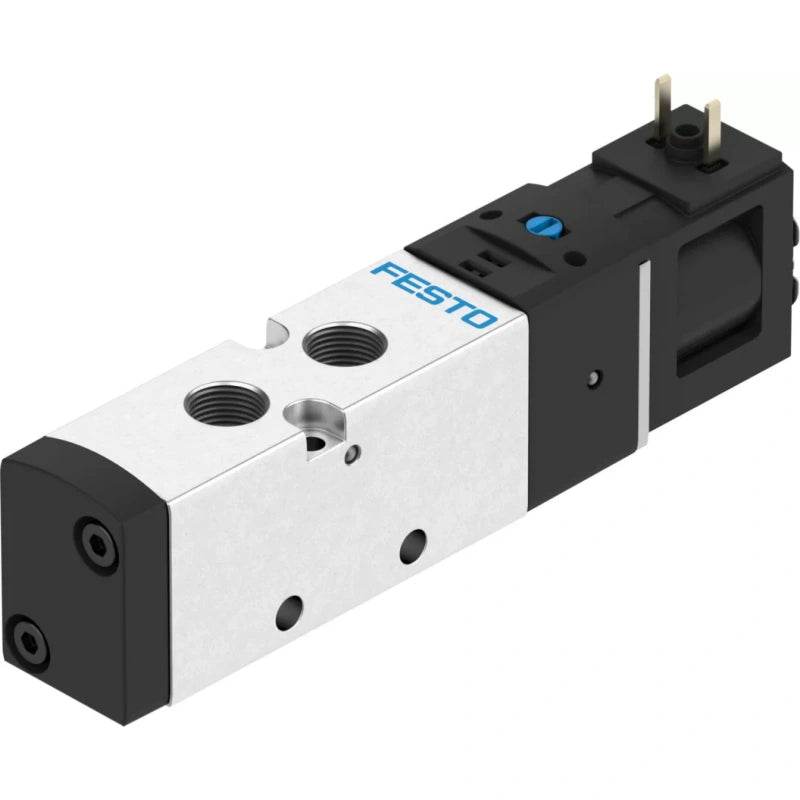

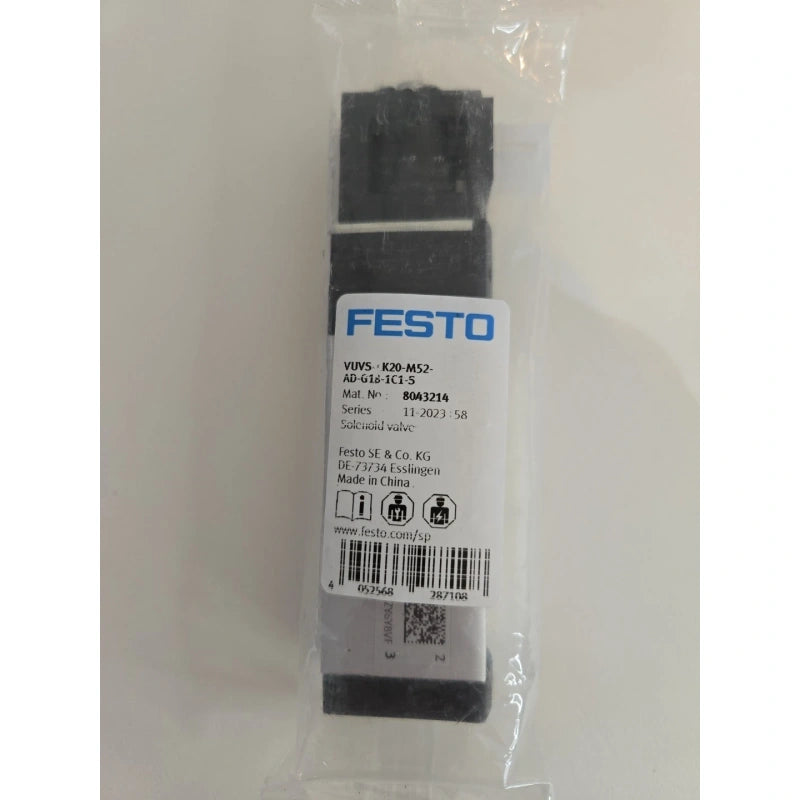

FESTO VUVS-LK20-M52-AD-G18-1C1-S Solenoid Valve 24VDC G1/8 550L/min
Available in stock (400)
Regular price
$30.44
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Festo |
| Model Number | VUVS-LK20-M52-AD-G18-1C1-S |
| Product Category | Solenoid Valve |
| Part Number | 8043214 |
| Valve Function | 5/2-Way, Monostable |
| Operating Voltage | 24 VDC |
| Pneumatic Working Port | G1/8 |
| Standard Nominal Flow Rate | 550 l/min |
| Operating Pressure | 1.5-8 bar |
| Valve Size | 21 mm |
| Type of Reset | Pneumatic Spring |
| Type of Piloting | Pilot-Controlled |
| Pilot Air Supply | Internal |
| Manual Override | Detenting, Non-Detenting |
| Degree of Protection | IP65 with Plug Socket |
| Coil Power | 2.4 W |
| Operating Medium | Compressed Air to ISO 8573-1:2010 [7:4:4] |
Key Features
24 VDC Operation
The valve operates at 24 VDC with a documented coil power of 2.4 W, important parameters when checking electrical compatibility.
G1/8 Pneumatic Ports
The valve uses G1/8 pneumatic connections, a key specification when matching the unit with fittings, tubing and pneumatic circuits.
550 l/min Nominal Flow
The documented standard nominal flow rate is 550 l/min, normalized according to DIN 1343.
1.5-8 bar Pressure Range
The documented operating pressure range is 1.5 to 8 bar for use within compatible compressed-air systems.
Pilot-Controlled Operation
The valve is pilot-controlled with internal pilot air supply and provides detenting and non-detenting manual override for commissioning and maintenance.
Applications
- Pneumatic cylinder control
- Directional compressed-air control
- Industrial machine automation
- Automated assembly equipment
- Material handling systems
- Pneumatic control circuits
- Machine sequencing applications
- Industrial actuator control
Purchase Information
We support online purchase of the Festo VUVS-LK20-M52-AD-G18-1C1-S Solenoid Valve. For bulk purchasing or additional product requirements, contact our team with the complete model number and required quantity. We can provide quantity quotations, estimated delivery information and available transportation options.
Frequently Asked Questions
What is Festo VUVS-LK20-M52-AD-G18-1C1-S?
It is a 24 VDC VUVS series solenoid valve with a 5/2-way monostable function, G1/8 pneumatic connections and 550 l/min standard nominal flow rate.
What is the part number?
The Festo part number is 8043214.
What valve function does it use?
The documented valve function is 5/2-way, monostable.
What operating voltage does it use?
The documented operating voltage is 24 VDC.
What pneumatic connection is specified?
The documented pneumatic connections for ports 1 through 5 are G1/8.
What is the standard nominal flow rate?
The documented standard nominal flow rate is 550 l/min.
What operating pressure is specified?
The documented operating pressure range is 1.5 to 8 bar.
How does the valve reset?
The documented reset method is a pneumatic spring.
What type of piloting does it use?
The valve is pilot-controlled with an internal pilot air supply.
Does it have a manual override?
Yes. The documented manual override options are detenting and non-detenting.
What degree of protection is specified?
The documented degree of protection is IP65 with the plug socket according to IEC 60529.
What should be checked before ordering?
Verify the complete VUVS-LK20-M52-AD-G18-1C1-S model number, 24 VDC voltage, 5/2-way monostable function, G1/8 pneumatic connections, 550 l/min nominal flow, 1.5-8 bar operating pressure and Type C electrical connection requirements before ordering.
