3/2-Way Valve Function
The VUVS-LK20-M32C-AD-G18-1C1-S uses a 3/2-way normally closed monostable valve configuration for directional compressed-air control.
1 / 8
Festo

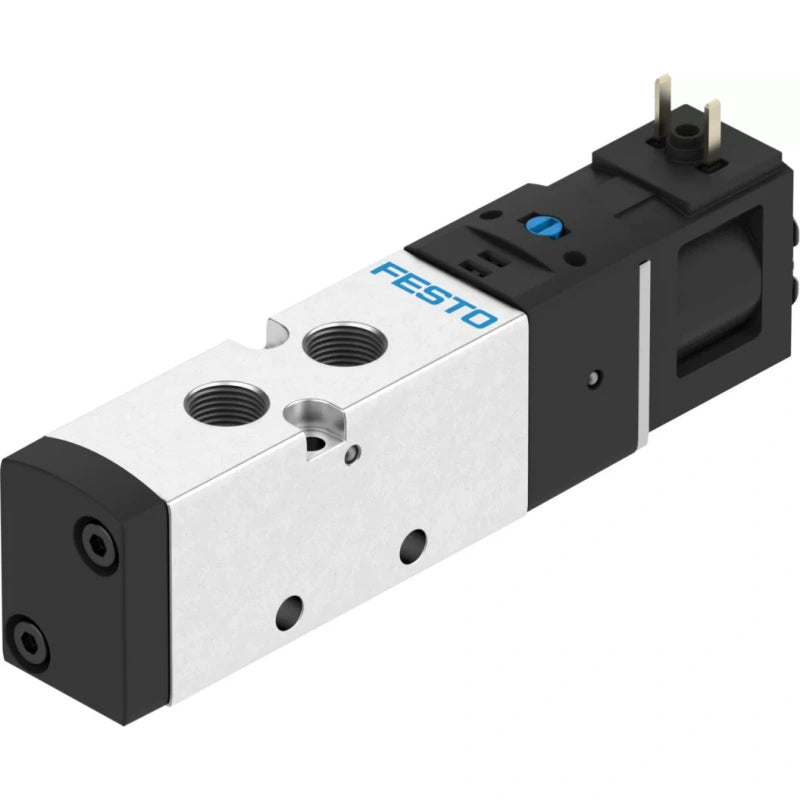

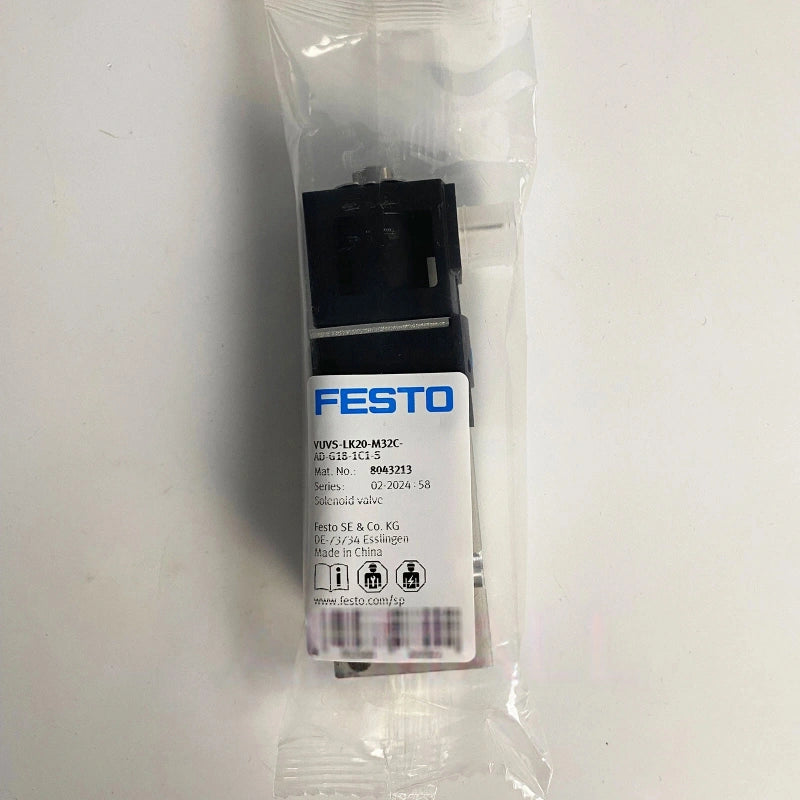

FESTO VUVS-LK20-M32C-AD-G18-1C1-S Solenoid Valve 24VDC G1/8 3/2-Way
PRODUCT PRICE
USD
$41.24
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Festo |
| Model Number | VUVS-LK20-M32C-AD-G18-1C1-S |
| Product Category | Solenoid Valve |
| Valve Function | 3/2-Way, Normally Closed, Monostable |
| Operating Voltage | 24 VDC |
| Pneumatic Working Port | G1/8 |
| Valve Size | 21 mm |
| Type of Reset | Pneumatic Spring |
| Type of Piloting | Pilot-Controlled |
| Pilot Air Supply | Internal |
| Manual Override | Detenting, Non-Detenting |
| Degree of Protection | IP65 with Plug Socket |
| Operating Medium | Compressed Air |
Key Features
24 VDC Operation
The 24 VDC electrical configuration is a key compatibility parameter when integrating the valve into industrial automation and pneumatic control circuits.
G1/8 Pneumatic Connection
The G1/8 pneumatic working port should be verified when matching the valve with fittings, tubing and pneumatic actuator circuits.
21 mm Valve Size
The 21 mm valve size identifies the mechanical configuration within the VUVS family and should be checked during installation or replacement planning.
Pneumatic Spring Reset
The monostable valve configuration uses pneumatic spring reset to return the valve to its defined switching position.
Pilot-Controlled Operation
The valve uses pilot-controlled operation with internal pilot air supply and includes manual override for commissioning and maintenance procedures.
Applications
- Pneumatic actuator control
- Directional compressed-air control
- Industrial machine automation
- Automated assembly equipment
- Material handling systems
- Pneumatic control circuits
- Machine sequencing applications
- Maintenance and replacement projects
Purchase Information
We support online purchase of the Festo VUVS-LK20-M32C-AD-G18-1C1-S Solenoid Valve. For bulk purchasing or additional product requirements, contact our team with the complete model number and required quantity. We can provide quantity quotations, estimated delivery information and available transportation options.
Frequently Asked Questions
What is Festo VUVS-LK20-M32C-AD-G18-1C1-S?
It is a VUVS series solenoid valve with a 3/2-way normally closed monostable function, 24 VDC electrical configuration and G1/8 pneumatic working port.
What valve function does it use?
The valve uses a 3/2-way normally closed monostable configuration.
What operating voltage does it use?
The electrical configuration is 24 VDC.
What pneumatic working port is specified?
The pneumatic working port is G1/8.
What valve size is specified?
The valve size is 21 mm.
How does the valve reset?
The monostable configuration uses a pneumatic spring reset.
What type of piloting does it use?
The valve uses pilot-controlled operation with an internal pilot air supply.
Does it have a manual override?
The configuration includes detenting and non-detenting manual override.
What degree of protection is specified?
The electrical configuration provides IP65 protection when used with the applicable plug socket.
What operating medium is used?
The valve is intended for compressed-air pneumatic applications.
What should be checked before ordering?
Verify the complete VUVS-LK20-M32C-AD-G18-1C1-S model number, 3/2-way normally closed function, 24 VDC electrical configuration, G1/8 pneumatic working port, 21 mm valve size and electrical connection configuration before ordering.
