5/2-Way Monostable Function
The valve uses a 5/2-way monostable function with pneumatic spring reset.

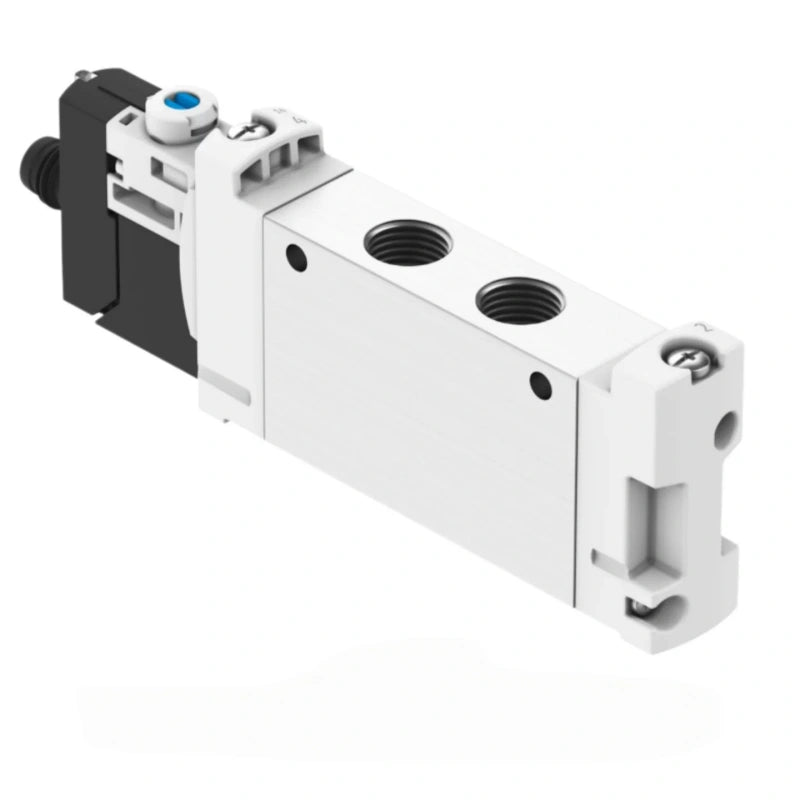

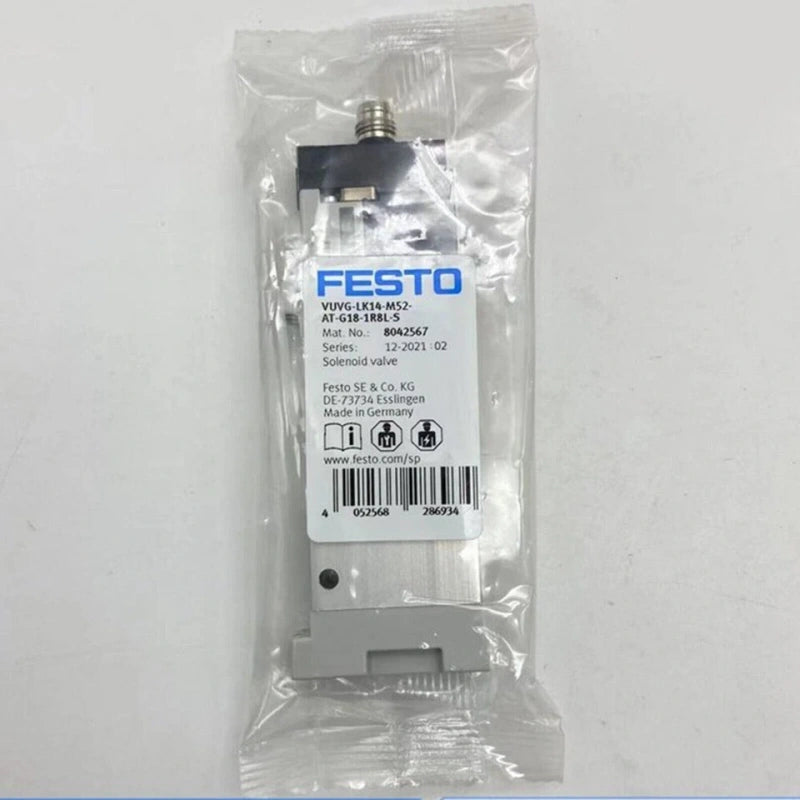

FESTO VUVG-LK14-M52-AT-G18-1R8L-S Solenoid Valve 24VDC G1/8 660L/min
Available in stock (400)
Regular price
$37.21
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Festo |
| Model Number | VUVG-LK14-M52-AT-G18-1R8L-S |
| Product Category | Solenoid Valve |
| Part Number | 8042567 |
| Valve Function | 5/2-Way, Monostable |
| Operating Voltage | 24 VDC |
| Pneumatic Working Port | G1/8 |
| Standard Nominal Flow Rate | 660 l/min |
| Operating Pressure | 2.5-7 bar |
| Valve Size | 14 mm |
| Type of Reset | Pneumatic Spring |
| Type of Piloting | Pilot-Controlled |
| Pilot Air Supply | Internal |
| Manual Override | Detenting, Non-Detenting |
| Degree of Protection | IP65 |
| Coil Power | 0.8 W |
| Operating Medium | Compressed Air to ISO 8573-1:2010 [7:4:4] |
Key Features
24 VDC Operation
The documented operating voltage is 24 VDC with a coil power of 0.8 W.
G1/8 Pneumatic Port
The documented pneumatic working port is G1/8 for connection within the pneumatic circuit.
660 l/min Nominal Flow
The documented standard nominal flow rate is 660 l/min.
2.5-7 bar Pressure Range
The documented operating pressure range is 2.5 to 7 bar.
Pilot-Controlled Operation
The valve is pilot-controlled with internal pilot air supply and detenting or non-detenting manual override.
Applications
- Pneumatic cylinder control
- Directional compressed-air control
- Industrial machine automation
- Automated assembly equipment
- Material handling systems
- Pneumatic control circuits
- Machine sequencing applications
- Industrial actuator control
Purchase Information
We support online purchase of the Festo VUVG-LK14-M52-AT-G18-1R8L-S Solenoid Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Festo VUVG-LK14-M52-AT-G18-1R8L-S?
Festo VUVG-LK14-M52-AT-G18-1R8L-S is a 24 VDC solenoid valve with a 5/2-way monostable function, G1/8 pneumatic working port and 660 l/min standard nominal flow rate.
What is the part number for VUVG-LK14-M52-AT-G18-1R8L-S?
The documented Festo part number is 8042567.
What valve function does VUVG-LK14-M52-AT-G18-1R8L-S use?
The documented valve function is 5/2-way, monostable.
What operating voltage does the valve use?
The documented operating voltage is 24 VDC.
What pneumatic working port is specified?
The documented pneumatic working port is G1/8.
What is the standard nominal flow rate?
The documented standard nominal flow rate is 660 l/min.
What operating pressure is specified?
The documented operating pressure range is 2.5 to 7 bar.
How does the valve reset?
The documented reset method is a pneumatic spring.
What type of piloting does the valve use?
The valve is pilot-controlled and uses an internal pilot air supply.
Does the valve have a manual override?
The documented manual override options are detenting and non-detenting.
What degree of protection is specified?
The documented degree of protection is IP65.
What should be checked before ordering VUVG-LK14-M52-AT-G18-1R8L-S?
Check the complete model number, 5/2-way monostable function, 24 VDC operating voltage, G1/8 pneumatic working port, 660 l/min flow rate, 2.5-7 bar operating pressure and pneumatic system requirements before ordering.
