5/2-Way Monostable Function
The VUVG-LK10-M52-AT-M5-1H2L-S uses a 5/2-way monostable valve function with pneumatic spring reset.
1 / 8
Festo

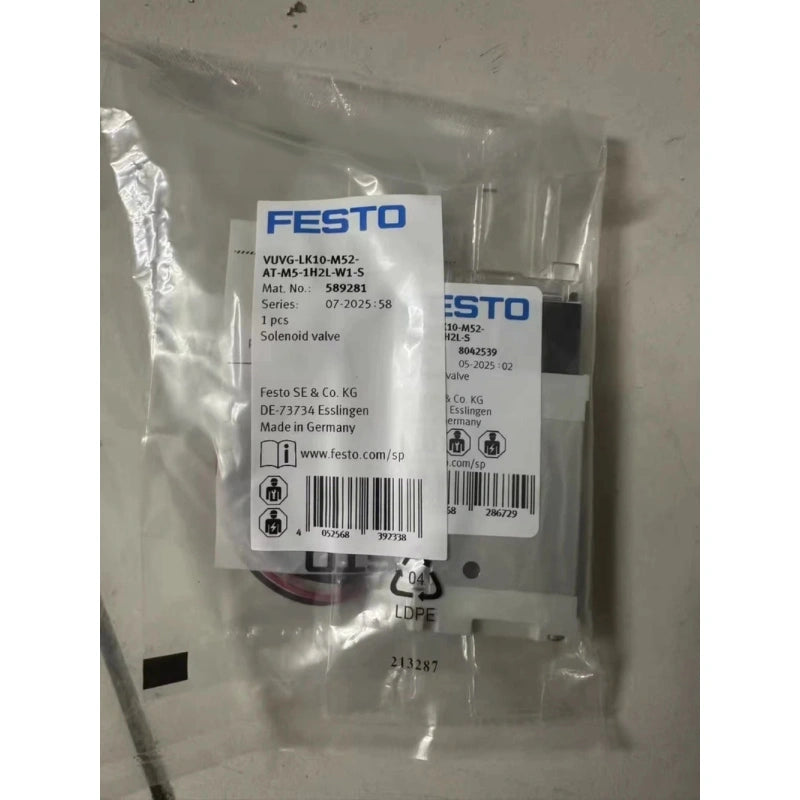

FESTO VUVG-LK10-M52-AT-M5-1H2L-S Solenoid Valve 24VDC M5 195L/min
PRODUCT PRICE
USD
$25.22
0 pcs / pack
Available to order
Request a QuoteBulk Orders, Part Number Assistance, or Alternative Payment Options? Contact Our Team!
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
💳 Need a Different Payment Method?Add your items to cart and contact our team before checkout. We'll help you explore available payment arrangements.
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Festo |
| Model Number | VUVG-LK10-M52-AT-M5-1H2L-S |
| Product Category | Solenoid Valve |
| Part Number | 8042539 |
| Valve Function | 5/2-Way, Monostable |
| Operating Voltage | 24 VDC |
| Pneumatic Working Port | M5 |
| Standard Nominal Flow Rate | 195 l/min |
| Operating Pressure | 2.5-7 bar |
| Valve Size | 10 mm |
| Type of Reset | Pneumatic Spring |
| Type of Piloting | Pilot-Controlled |
| Pilot Air Supply | Internal |
| Manual Override | Detenting, Non-Detenting |
| Degree of Protection | IP40 |
| Coil Power | 0.8 W |
| Operating Medium | Compressed Air to ISO 8573-1:2010 [7:4:4] |
Key Features
24 VDC Operation
The documented operating voltage is 24 VDC with a coil power rating of 0.8 W.
M5 Pneumatic Ports
The valve uses M5 pneumatic working ports for connection to the pneumatic circuit.
195 l/min Nominal Flow
The documented standard nominal flow rate is 195 l/min.
2.5-7 bar Pressure Range
The documented operating pressure range is 2.5 to 7 bar.
Pilot-Controlled Operation
The valve is pilot-controlled with internal pilot air supply and provides detenting and non-detenting manual override.
Applications
- Pneumatic cylinder control
- Directional compressed-air control
- Industrial machine automation
- Automated assembly equipment
- Material handling systems
- Pneumatic control circuits
- Machine sequencing applications
- Industrial actuator control
Purchase Information
We support online purchase of the Festo VUVG-LK10-M52-AT-M5-1H2L-S Solenoid Valve. For bulk purchasing or additional product requirements, contact our team with the required model and quantity. We can provide quotation, estimated delivery information and available transportation options.
Frequently Asked Questions
What is Festo VUVG-LK10-M52-AT-M5-1H2L-S?
It is a 24 VDC pilot-controlled solenoid valve with a 5/2-way monostable function, M5 pneumatic working ports and a 195 l/min standard nominal flow rate.
What is the part number?
The documented Festo part number is 8042539.
What valve function does it use?
The documented valve function is 5/2-way, monostable.
What operating voltage does it use?
The documented operating voltage is 24 VDC.
What pneumatic working port is specified?
The documented pneumatic working port is M5.
What is the standard nominal flow rate?
The documented standard nominal flow rate is 195 l/min.
What operating pressure is specified?
The documented operating pressure range is 2.5 to 7 bar.
How does the valve reset?
The documented reset method is a pneumatic spring.
What type of piloting does it use?
The valve is pilot-controlled with an internal pilot air supply.
Does it have a manual override?
Yes. The documented manual override options are detenting and non-detenting.
What degree of protection is specified?
The documented degree of protection for this 1H2L-S configuration is IP40.
What should be checked before ordering?
Verify the complete VUVG-LK10-M52-AT-M5-1H2L-S model number, 24 VDC voltage, 5/2-way monostable function, M5 ports, 195 l/min nominal flow, 2.5-7 bar pressure range and electrical connection configuration before ordering.
