2x3/2-Way Valve Function
The VUVG-L18-T32C-AT-G14-1R8L uses a 2x3/2-way monostable closed valve function for pneumatic directional control.

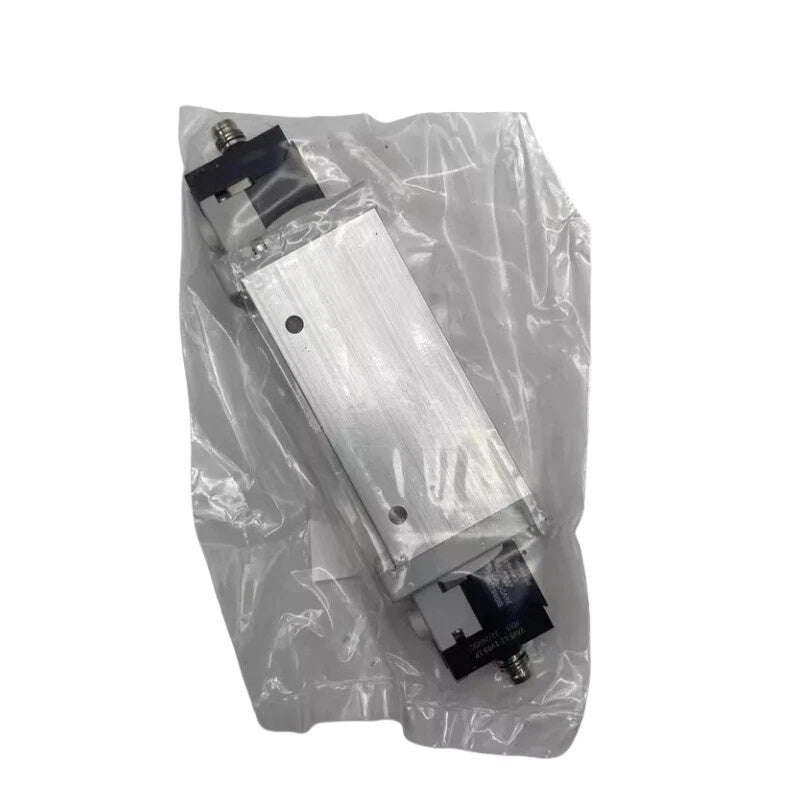

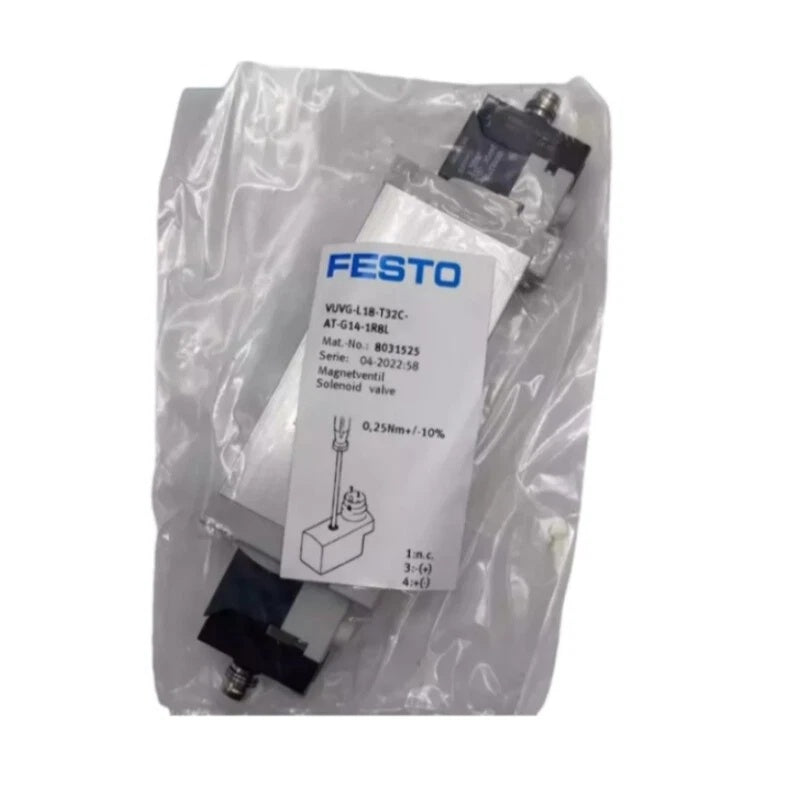

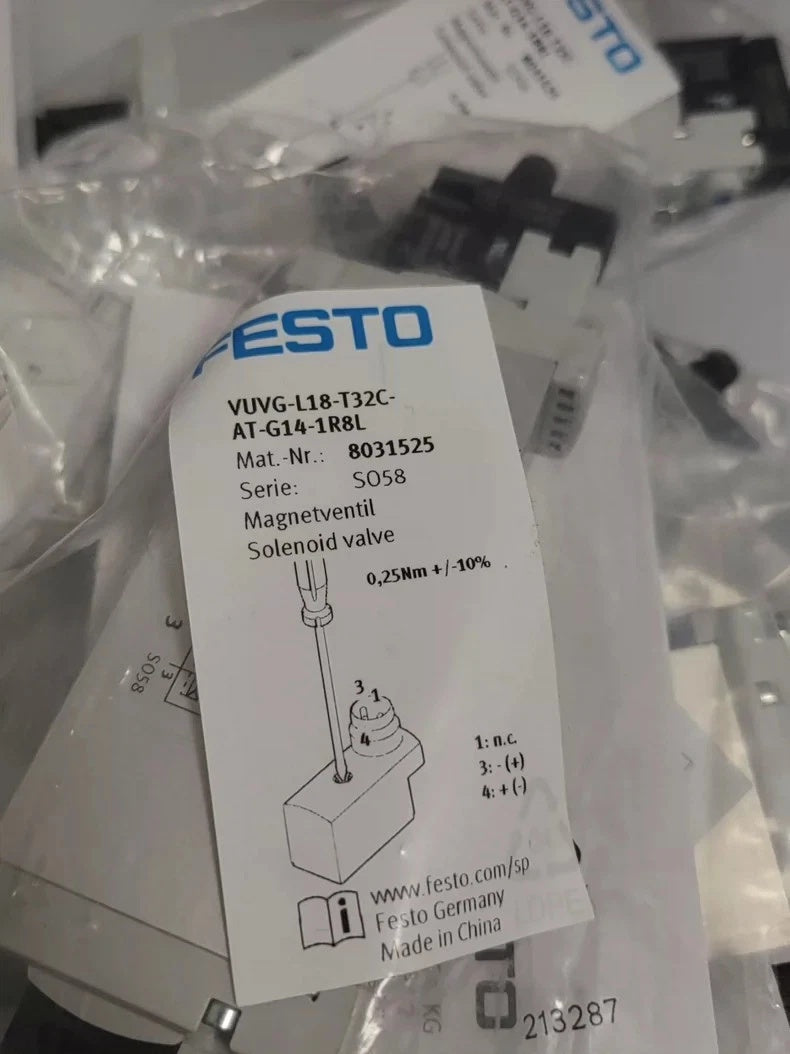

FESTO VUVG-L18-T32C-AT-G14-1R8L Control Valve 24V DC G1/4 880 l/min
Available in stock (403)
Regular price
$75.45
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | VUVG-L18-T32C-AT-G14-1R8L |
| Product Category | Control Valve |
| Part Number | 8031525 |
| Valve Function | 2x3/2-way, monostable, closed |
| Type of Actuation | Electrical |
| Valve Size | 18 mm |
| Standard Nominal Flow Rate | 880 l/min |
| Pneumatic Working Port | G1/4 |
| Operating Voltage | 24 V DC |
| Operating Pressure | 1.5-8 bar |
| Design | Piston gate valve |
| Reset Method | Pneumatic spring |
| Degree of Protection | IP65 with plug socket |
| Nominal Size | 5.7 mm |
| Exhaust-Air Function | With flow control option |
| Sealing Principle | Soft |
| Mounting Position | Any |
| Manual Override | Detenting, non-detenting, covered |
| Type of Piloting | Pilot actuated |
| Pilot Air Supply | Internal |
| Pilot Pressure | 1.5-8 bar |
| Switching Time Off | 27 ms |
| Switching Time On | 13 ms |
| Duty Cycle | 100% |
| Coil Data | 24 V DC, 1.0 W |
| Permissible Voltage Fluctuation | ±10% |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Product Weight | 164 g |
| Electrical Connection | 3-pin M8x1 A-coded plug |
| Mounting Type | Manifold rail or through-hole |
| Pneumatic Ports 1-5 | G1/4 |
| Housing Material | Wrought aluminium alloy |
| Seal Material | HNBR, NBR |
Key Features
24 V DC Electrical Actuation
The valve operates with 24 V DC electrical actuation and documented characteristic coil data of 1.0 W.
880 l/min Nominal Flow
The standard nominal flow rate is 880 l/min, standardized according to DIN 1343.
G1/4 Pneumatic Ports
The pneumatic working ports use G1/4 connections for integration into suitable compressed-air control circuits.
Internal Pilot Air Supply
The valve is pilot actuated with an internal pilot air supply and a documented pilot pressure range of 1.5 to 8 bar.
M8 Electrical Connection
The electrical interface uses a 3-pin M8x1 A-coded plug connection according to EN 61076-2-104.
Applications
- Pneumatic directional control systems
- Automated assembly machinery
- Pneumatic actuator control
- Material handling equipment
- Packaging and processing machinery
- Production automation systems
- Machine compressed-air circuits
- General industrial pneumatic applications
Purchase Information
We support online purchase of the FESTO VUVG-L18-T32C-AT-G14-1R8L Control Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO VUVG-L18-T32C-AT-G14-1R8L?
It is an electrically actuated pneumatic control valve with a 2x3/2-way monostable closed valve function.
What is the FESTO part number?
The documented part number is 8031525.
What is the valve function?
The valve function is 2x3/2-way, monostable and closed.
What operating voltage does it use?
The documented operating voltage is 24 V DC.
What is the standard nominal flow rate?
The standard nominal flow rate is 880 l/min.
What pneumatic connection size is used?
The pneumatic working ports use G1/4 connections.
What is the operating pressure range?
The documented operating pressure range is 1.5 to 8 bar.
How is the valve reset?
The valve uses a pneumatic spring reset.
What type of piloting is used?
The valve is pilot actuated and uses an internal pilot air supply.
What electrical connection does it use?
The documented electrical connection is a 3-pin M8x1 A-coded plug.
Can VUVG-L18-T32C-AT-G14-1R8L replace another VUVG valve?
It can be considered after the complete model number and technical requirements have been checked, including valve function, operating voltage, port size, pressure range, flow rate and electrical connection.
What should be checked before ordering?
The electrical, pneumatic, mechanical and installation requirements should be checked before ordering, including the complete model number, 24 V DC supply, 2x3/2-way valve function, G1/4 connections and 1.5-8 bar operating pressure.
