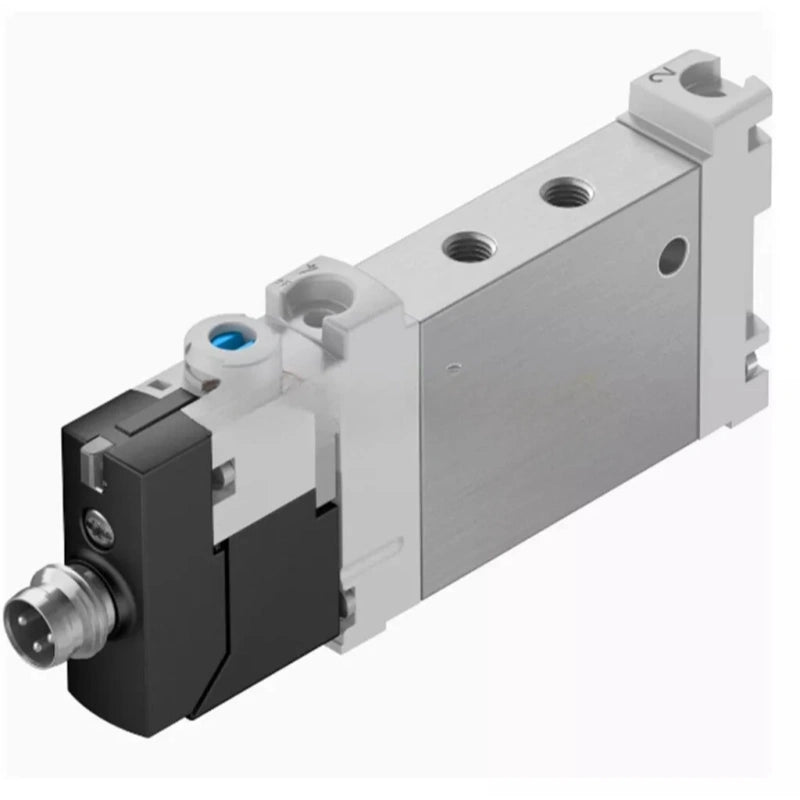

5/2-Way Monostable Function
The valve uses a 5/2-way monostable function with pneumatic spring reset.
1 / 8
Festo

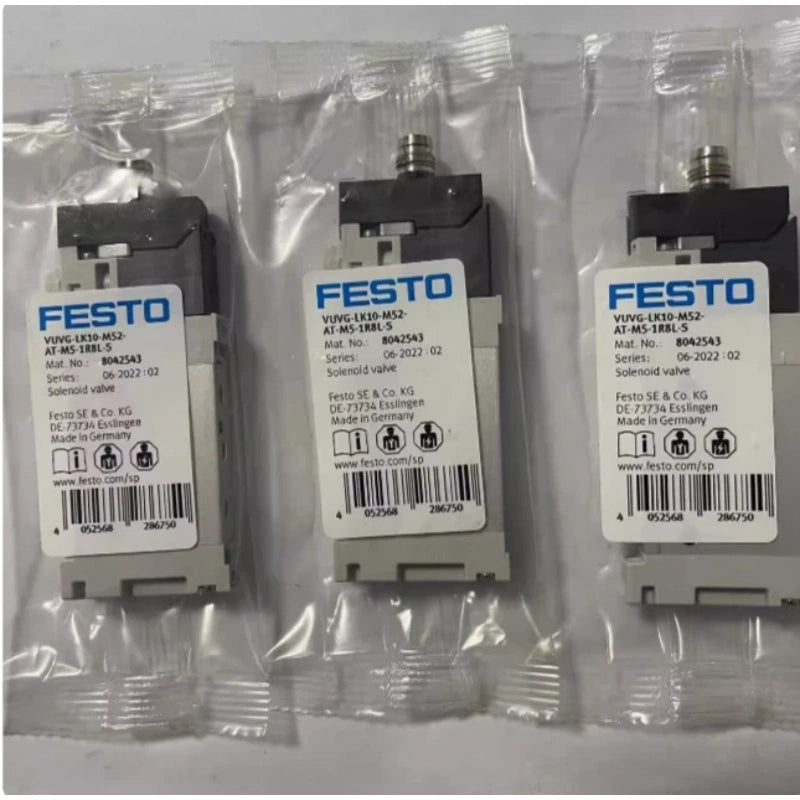

FESTO VUVG-LK10-M52-AT-M5-1R8L-S Solenoid Valve 24VDC 5/2 195L/min
PRODUCT PRICE
USD
$59.15
0 pcs / pack
Available to order
Request a QuoteBulk Orders, Part Number Assistance, or Alternative Payment Options? Contact Our Team!
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
💳 Need a Different Payment Method?Add your items to cart and contact our team before checkout. We'll help you explore available payment arrangements.
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Festo |
| Model Number | VUVG-LK10-M52-AT-M5-1R8L-S |
| Product Category | Solenoid Valve |
| Part Number | 8042543 |
| Valve Function | 5/2-Way, Monostable |
| Operating Voltage | 24 VDC |
| Pneumatic Working Port | M5 |
| Standard Nominal Flow Rate | 195 l/min |
| Operating Pressure | 2.5-7 bar |
| Valve Size | 10 mm |
| Type of Reset | Pneumatic Spring |
| Type of Piloting | Pilot Actuated |
| Pilot Air Supply | Internal |
| Manual Override | Detenting, Non-Detenting |
| Degree of Protection | IP65 |
| Coil Power | 0.8 W |
| Operating Medium | Compressed Air to ISO 8573-1:2010 [7:4:4] |
Key Features
24 VDC Operation
The documented operating voltage is 24 VDC with a coil power of 0.8 W.
195 l/min Nominal Flow
The standard nominal flow rate is 195 l/min under the documented test conditions.
M5 Pneumatic Working Port
The pneumatic working port is M5 for connection within the pneumatic circuit.
2.5-7 bar Pressure Range
The documented operating pressure range is 2.5 to 7 bar.
Pilot-Actuated Control
The valve is pilot actuated with an internal pilot air supply and includes manual override functionality.
Applications
- Pneumatic cylinder control
- Directional compressed-air control
- Industrial machine automation
- Automated assembly equipment
- Material handling systems
- Pneumatic control circuits
- Machine sequencing applications
- Industrial actuator control
Purchase Information
We support online purchase of the Festo VUVG-LK10-M52-AT-M5-1R8L-S Solenoid Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Festo VUVG-LK10-M52-AT-M5-1R8L-S?
It is a 24 VDC solenoid valve with a 5/2-way monostable valve function, M5 pneumatic working port and 195 l/min standard nominal flow rate.
What is the part number for VUVG-LK10-M52-AT-M5-1R8L-S?
The Festo part number is 8042543.
What valve function does VUVG-LK10-M52-AT-M5-1R8L-S use?
The documented valve function is 5/2-way, monostable.
What operating voltage does the valve use?
The documented operating voltage is 24 VDC.
What pneumatic working port is specified?
The documented pneumatic working port is M5.
What is the standard nominal flow rate?
The documented standard nominal flow rate is 195 l/min.
What operating pressure is specified?
The documented operating pressure range is 2.5 to 7 bar.
How does the valve reset?
The documented reset method is a pneumatic spring.
What type of piloting does the valve use?
The valve is pilot actuated and uses an internal pilot air supply.
Does the valve have a manual override?
The documented manual override options are detenting and non-detenting.
What degree of protection is specified?
The documented degree of protection is IP65.
What should be checked before ordering VUVG-LK10-M52-AT-M5-1R8L-S?
Check the complete model number, 5/2-way monostable function, 24 VDC operating voltage, M5 pneumatic working port, 195 l/min flow rate, 2.5-7 bar operating pressure and pneumatic system requirements before ordering.
Need help confirming a model?
Send us your part number and technical requirements.
