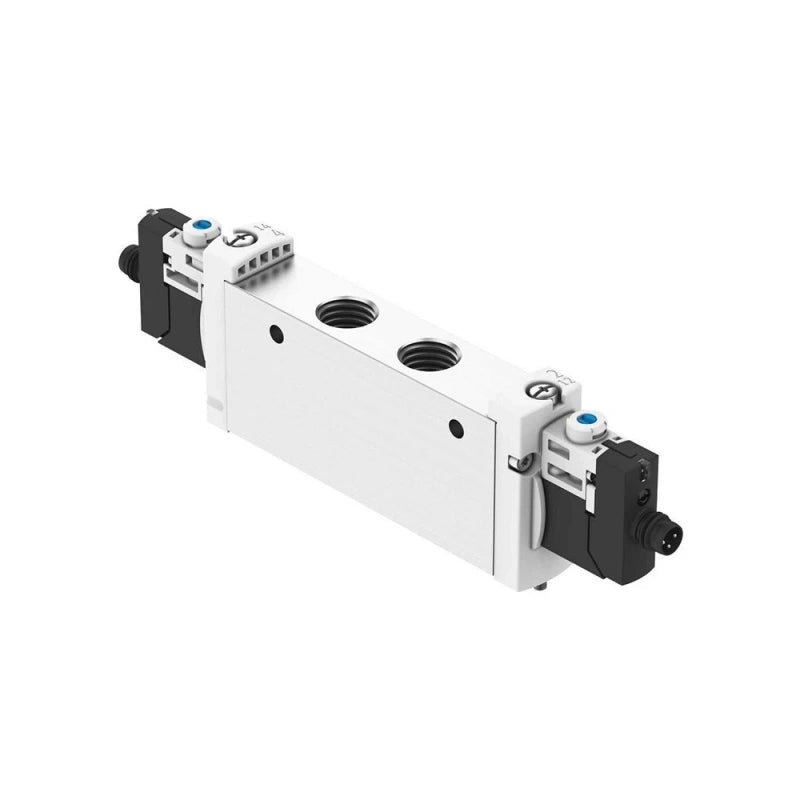

FESTO VUVG-BK14-M52-AT-F-1R8L-S Solenoid Valve 24VDC 5/2-Way

FESTO VUVG-BK14-M52-AT-F-1R8L-S Solenoid Valve 24VDC 5/2-Way

Fast Quote
Global Shipping
Bulk Order Support

Available in stock (400)

$51.17

Shipping calculated at checkout.

Bulk Purchase Inquiry

In Stock
Free Returns And Exchanges Within 30 days
Bulk purchases are eligible for price discounts.

Brand	Festo
Model Number	VUVG-BK14-M52-AT-F-1R8L-S
Product Category	Solenoid Valve
Valve Function	5/2-Way, Monostable
Operating Voltage	24 VDC
Pneumatic Working Port	Flange
Valve Size	14 mm
Type of Reset	Pneumatic Spring
Type of Piloting	Pilot Actuated
Pilot Air Supply	Internal
Manual Override	Detenting, Non-Detenting
Degree of Protection	IP65
Operating Medium	Compressed Air

Key Features

5/2-Way Monostable Function

The VUVG-BK14-M52-AT-F-1R8L-S uses a 5/2-way monostable valve configuration for directional pneumatic control.

24 VDC Operation

The 24 VDC electrical configuration supports integration with compatible industrial automation and pneumatic control systems.

Flange Pneumatic Connection

The flange pneumatic working connection is intended for integration with a compatible valve manifold or sub-base configuration.

14 mm Valve Size

The 14 mm valve size is an important configuration parameter when selecting compatible VUVG manifold and pneumatic components.

Pilot-Actuated Control

The valve uses pilot actuation with internal pilot air supply and pneumatic spring reset.

Manual Override

Detenting and non-detenting manual override supports commissioning, testing and maintenance procedures.

Applications

Pneumatic cylinder control
Valve manifold systems
Directional compressed-air control
Industrial machine automation
Automated assembly equipment
Material handling systems
Pneumatic control circuits
Industrial actuator control

Purchase Information

We support online purchase of the Festo VUVG-BK14-M52-AT-F-1R8L-S Solenoid Valve. For bulk purchasing or additional product requirements, contact our team with the complete model number and required quantity. We can provide quantity quotations, estimated delivery information and available transportation options.

Frequently Asked Questions

What is Festo VUVG-BK14-M52-AT-F-1R8L-S?
It is a VUVG series solenoid valve with a 5/2-way monostable function, 24 VDC electrical configuration and flange pneumatic connection.

What valve function does it use?
The valve uses a 5/2-way monostable function.

What operating voltage does it use?
The electrical configuration is 24 VDC.

What pneumatic working connection is specified?
The pneumatic working connection uses a flange configuration for compatible manifold or sub-base mounting.

What valve size is specified?
The valve size is 14 mm.

How does the valve reset?
The valve uses a pneumatic spring reset.

What type of piloting does it use?
The valve is pilot actuated with an internal pilot air supply.

Does the valve have a manual override?
The configuration includes detenting and non-detenting manual override.

What operating medium is used?
The valve is intended for compressed-air pneumatic applications.

What should be checked before ordering?
Verify the complete VUVG-BK14-M52-AT-F-1R8L-S model number, 5/2-way monostable function, 24 VDC electrical configuration, flange pneumatic connection, 14 mm valve size and compatible manifold or sub-base requirements before ordering.
