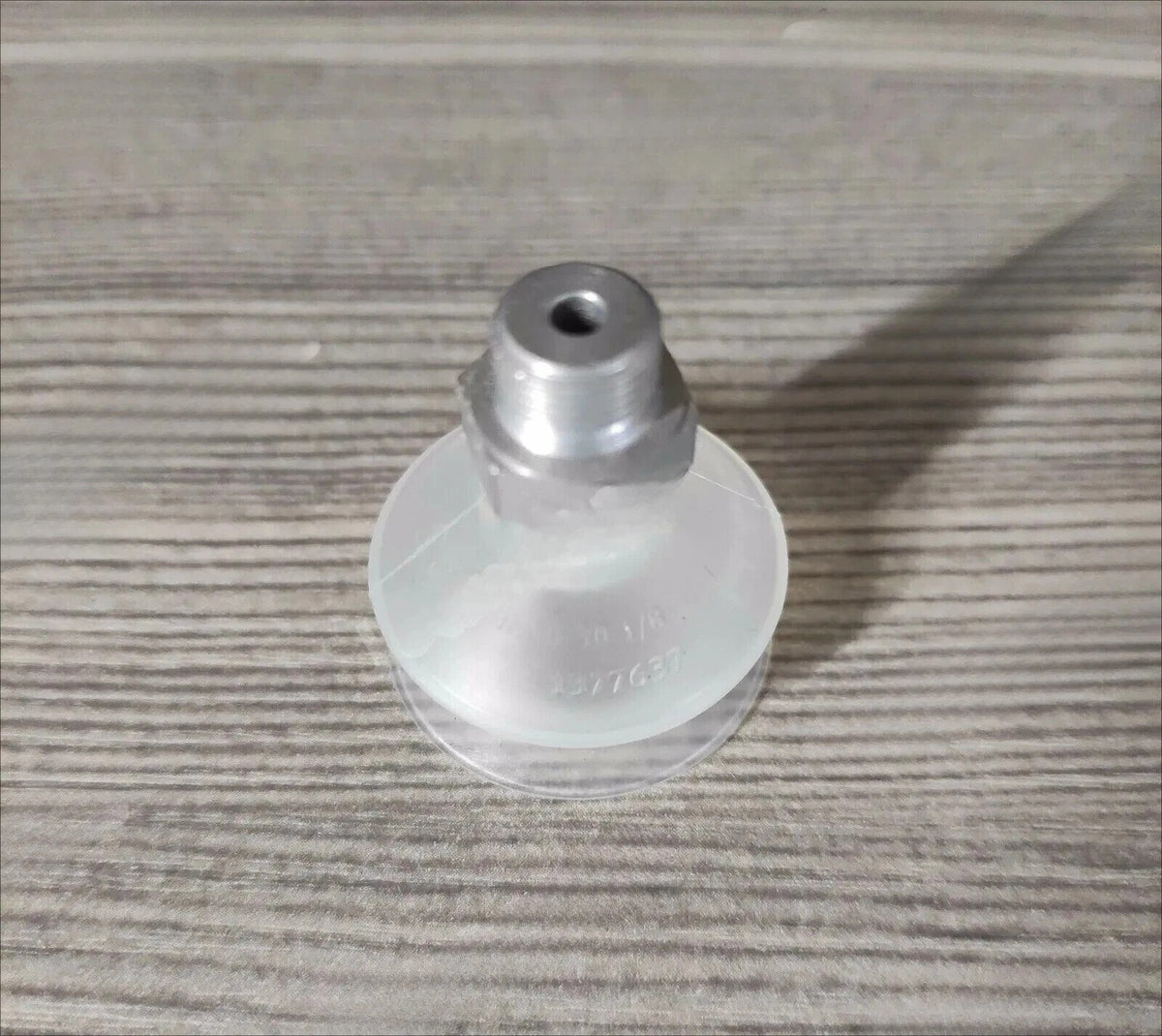

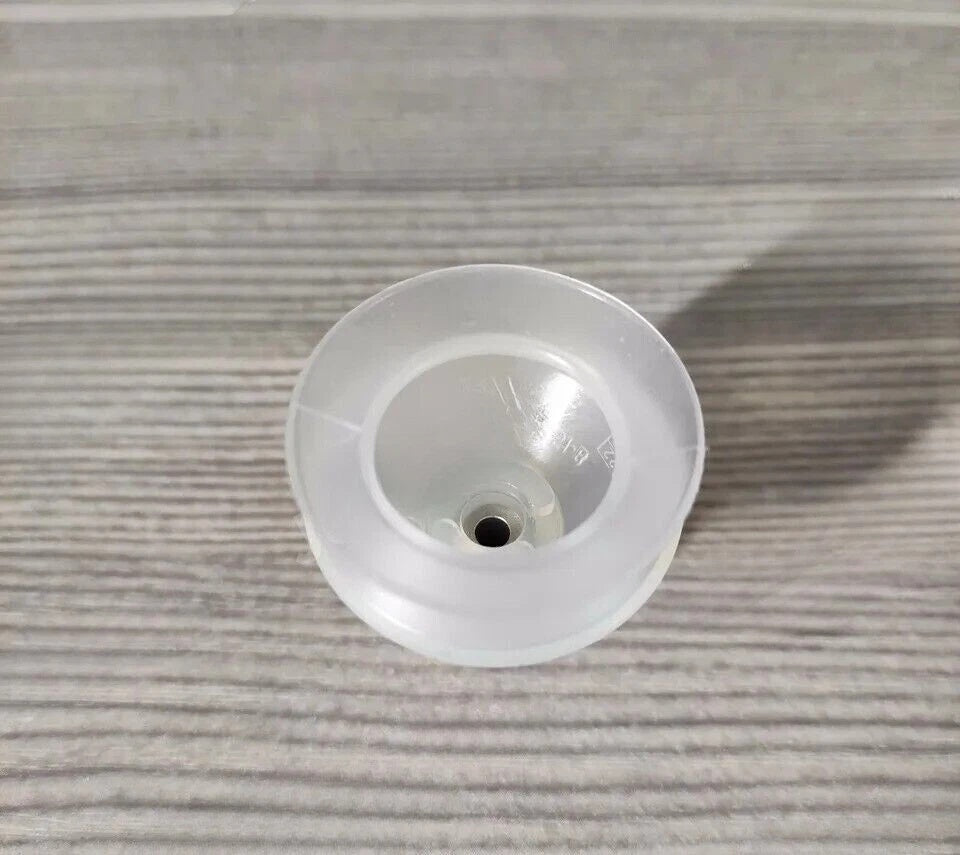

30 mm Bellows Suction Cup
The VASB-30-1/8-SI-B uses a 30 mm round bellows suction cup with 1.5 convolutions for vacuum handling applications.
FESTO VASB-30-1/8-SI-B Vacuum Suction Cup 30mm G1/8 25N
Available in stock (400)
Regular price
$11.32
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | VASB-30-1/8-SI-B |
| Product Category | Vacuum Suction Cup |
| Part Number | 1377637 |
| Nominal Width | 3 mm |
| Suction Cup Diameter | 30 mm |
| Effective Suction Cup Diameter | 21.3 mm |
| Suction Cup Volume | 6.18 cm³ |
| Suction Cup Height Compensation | 13.9 mm |
| Suction Cup Shape | Round bellows, 1.5 convolutions |
| Connection Position | Top |
| Mounting Position | Any |
| Operating Pressure | -0.95 to 0 bar |
| Nominal Operating Pressure | -0.7 bar |
| Holding Force at Nominal Operating Pressure | 25 N |
| Operating Medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Ambient Temperature | -40°C to +200°C |
| Vacuum Connection | G1/8 |
| Type of Mounting | Via vacuum connection |
| Suction Cup Material | VMQ silicone |
| Shore Hardness | 60 ±5 |
| Color | Transparent |
| Product Weight | 7 g |
| Material of Screwed Plug | Wrought aluminum alloy |
Key Features
25 N Holding Force
The documented holding force is 25 N at the nominal operating pressure of -0.7 bar.
G1/8 Vacuum Connection
The suction cup uses a top-positioned G1/8 vacuum connection for integration into suitable vacuum handling systems.
13.9 mm Height Compensation
The documented suction cup height compensation is 13.9 mm, supporting contact with workpiece surfaces during vacuum gripping.
VMQ Silicone Cup
The suction cup is manufactured from VMQ silicone with a documented Shore hardness of 60 ±5.
Wide Temperature Range
The documented ambient temperature range is -40°C to +200°C for operating environments within the specified product limits.
Applications
- Vacuum workpiece handling
- Pick-and-place automation
- Packaging machinery
- Automated assembly equipment
- Material transfer systems
- Sheet and component handling
- Industrial gripping systems
- Vacuum lifting applications
Purchase Information
We support online purchase of the FESTO VASB-30-1/8-SI-B Vacuum Suction Cup. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO VASB-30-1/8-SI-B?
It is a vacuum suction cup with a round bellows design and 1.5 convolutions for vacuum gripping and handling applications.
What is the FESTO part number?
The documented part number is 1377637.
What is the suction cup diameter?
The suction cup diameter is 30 mm.
What is the effective suction cup diameter?
The documented effective suction cup diameter is 21.3 mm.
What vacuum connection does VASB-30-1/8-SI-B use?
The specified vacuum connection is G1/8 and is positioned at the top.
What is the nominal operating pressure?
The documented nominal operating pressure is -0.7 bar.
What is the holding force?
The documented holding force at nominal operating pressure is 25 N.
What material is the suction cup made from?
The suction cup is made from VMQ silicone.
What is the ambient temperature range?
The documented ambient temperature range is -40°C to +200°C.
What is the suction cup height compensation?
The documented height compensation is 13.9 mm.
Can VASB-30-1/8-SI-B replace another vacuum suction cup?
It can be considered after the complete model number, suction cup diameter, material, vacuum connection, operating pressure, holding-force requirement and mounting arrangement have been checked.
What should be checked before ordering?
The mechanical and installation requirements should be checked before ordering, including the complete model number, 30 mm cup diameter, G1/8 connection, VMQ silicone material, vacuum pressure requirements and required holding force.
