PNP NC Switching Output
The SMT-8M-A-PO-24V-E-7,5-OE uses a PNP switching output with an NC contact function, making the exact output configuration an important electrical compatibility check.

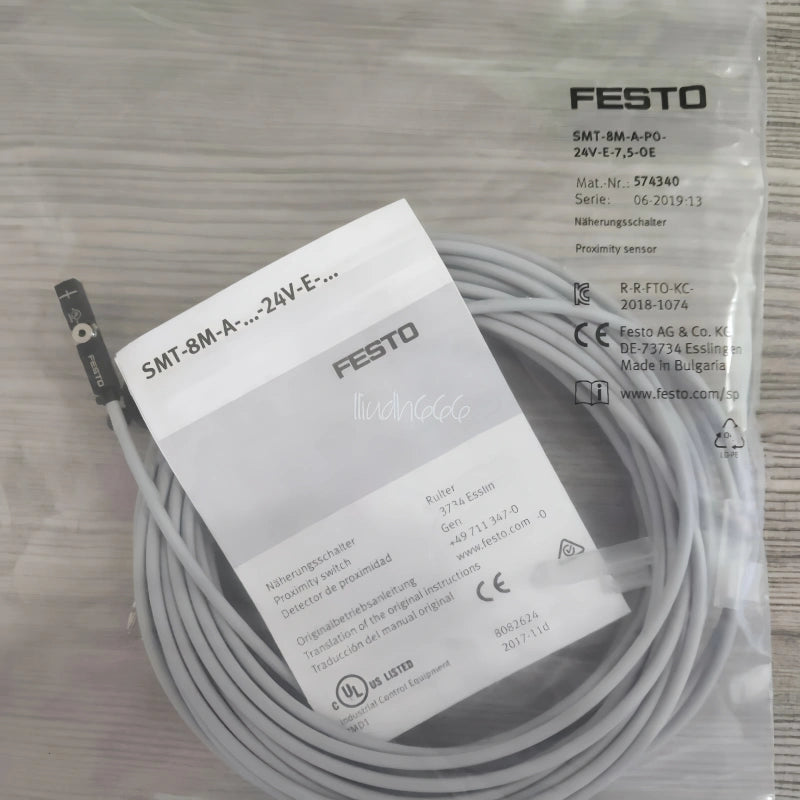

FESTO SMT-8M-A-PO-24V-E-7,5-OE Proximity Sensor PNP NC 24VDC 7.5m Cable
Available in stock (400)
Regular price
$23.49
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Festo |
| Model Number | SMT-8M-A-PO-24V-E-7,5-OE |
| Product Category | Proximity Sensor |
| Part Number | 574340 |
| Design | For T-Slot |
| Measured Variable | Position |
| Measuring Principle | Magneto-Resistive |
| Rated Operating Voltage | 24 VDC |
| Switching Output | PNP |
| Switching Element Function | NC Contact |
| Repetition Accuracy | 0.2 mm |
| Electrical Connection | 3-Wire Cable, Open End |
| Cable Length | 7.5 m |
| Mounting Type | Insertable in T-Slot from Above |
| Degree of Protection | IP65 / IP68 / IP69K |
| Ambient Temperature | -40°C to +85°C |
| Switching Status Indication | Yellow LED |
Key Features
24 VDC Rated Voltage
The specified rated operating voltage is 24 VDC, with a DC operating voltage range of 5 to 30 V for compatible control circuits.
7.5 m Open-End Cable
This sensor uses a three-wire cable with an open-end connection and a specified cable length of 7.5 m for integration into compatible electrical control systems.
T-Slot Sensor Design
The sensor is designed for compatible T-slots and can be inserted into the slot from above for position detection on suitable pneumatic actuators.
0.2 mm Repetition Accuracy
The specified repetition accuracy is 0.2 mm, providing a key reference for repeatable position detection in compatible pneumatic applications.
IP65 / IP68 / IP69K Protection
The specified protection ratings provide an important environmental reference when selecting the sensor for industrial machine and automation installations.
Applications
- Pneumatic cylinder position detection
- Pneumatic actuator monitoring
- T-slot sensor applications
- Industrial machine automation
- Position feedback systems
- Pneumatic control systems
- Factory automation equipment
- Equipment maintenance
Purchase Information
We support online purchase of the Festo SMT-8M-A-PO-24V-E-7,5-OE Proximity Sensor. Before ordering, verify the complete model number, part number 574340, PNP NC switching configuration, 24 VDC electrical requirements, 7.5 m open-end cable and T-slot compatibility. For bulk purchasing, contact our team with the required quantity for quantity quotations, estimated delivery information and available transportation options.
Frequently Asked Questions
What is Festo SMT-8M-A-PO-24V-E-7,5-OE?
It is a magneto-resistive proximity sensor designed for position detection in compatible T-slot pneumatic actuator applications.
What is the Festo part number?
The part number is 574340.
Is SMT-8M-A-PO-24V-E-7,5-OE PNP or NPN?
This specific variant uses a PNP switching output.
What is the switching element function?
The specified switching element function is an NC contact.
What is the rated operating voltage?
The rated operating voltage is 24 VDC.
What electrical connection does it use?
It uses a three-wire cable with an open-end connection.
How long is the cable?
The specified cable length is 7.5 m.
What is the repetition accuracy?
The specified repetition accuracy is 0.2 mm.
What are the protection ratings?
The specified degree of protection is IP65, IP68 and IP69K.
What is the ambient temperature range?
The specified ambient temperature range is -40°C to +85°C.
What should be checked before ordering?
Verify model SMT-8M-A-PO-24V-E-7,5-OE, part number 574340, PNP NC output, 24 VDC requirements, 7.5 m open-end cable and T-slot compatibility before ordering.
