R1/4 Male Thread
The QSL-1/4-8 features an R1/4 male threaded connection for installation on compatible pneumatic components and compressed-air ports.

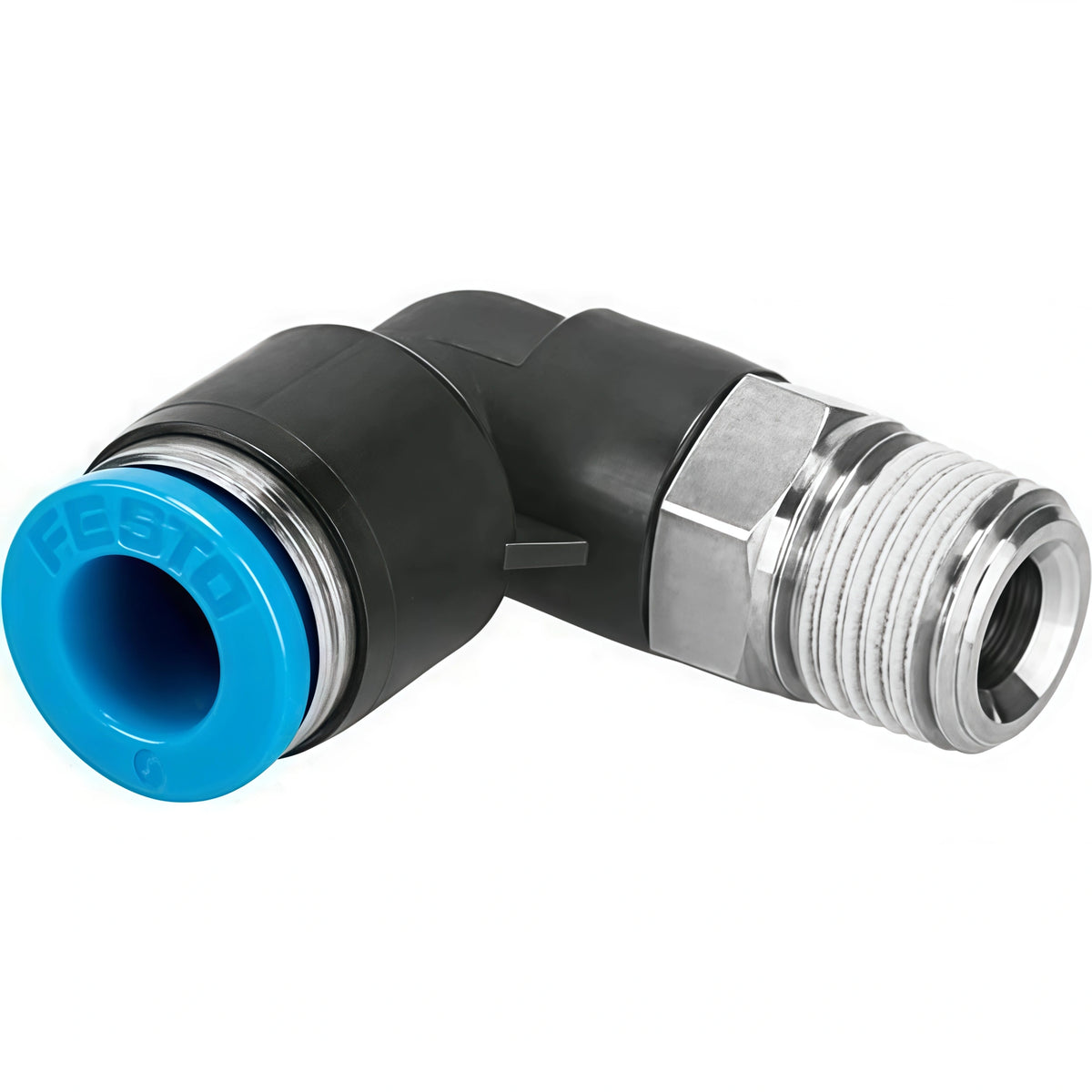

FESTO QSL-1/4-8 Push-In L-Fitting R1/4 8mm Pneumatic Connector
Available in stock (400)
Regular price
$8.32
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Festo |
| Model Number | QSL-1/4-8 |
| Product Category | Push-In L-Fitting |
| Part Number | 153049 |
| Pneumatic Connection 1 | R1/4 Male Thread |
| Pneumatic Connection 2 | For 8 mm OD Tubing |
| Tube Outside Diameter | 8 mm |
| Nominal Size | 6.7 mm |
| Design | L-Shape Push-In Fitting |
| Operating Pressure | -0.95 to 6 bar |
| Ambient Temperature | -10°C to +80°C |
| Operating Medium | Compressed Air |
| Housing Material | PBT |
| Screwed Plug Material | Nickel-Plated Brass |
Key Features
8 mm Push-In Connection
The push-in connection is designed for pneumatic tubing with an 8 mm outside diameter, providing a practical tube-to-thread connection.
L-Shape Fitting Design
The L-shaped configuration provides a 90-degree connection arrangement for pneumatic installations where tubing routing and installation space are important considerations.
6.7 mm Nominal Size
The specified nominal size is 6.7 mm, providing an important dimensional reference when selecting the fitting for a pneumatic circuit.
-0.95 to 6 bar Pressure Range
The specified operating pressure across the complete temperature range is -0.95 to 6 bar for compatible pneumatic applications.
PBT Housing
The fitting combines a PBT housing with a nickel-plated brass screwed plug for its pneumatic connection configuration.
Applications
- Pneumatic tubing connections
- Solenoid valve connections
- Pneumatic cylinder circuits
- Compressed-air distribution
- Industrial machine automation
- Pneumatic control systems
- Space-conscious tubing routing
- Equipment maintenance
Purchase Information
We support online purchase of the Festo QSL-1/4-8 Push-In L-Fitting. For bulk purchasing or additional product requirements, contact our team with the complete model number and required quantity. We can provide quantity quotations, estimated delivery information and available transportation options.
Frequently Asked Questions
What is Festo QSL-1/4-8?
It is an L-shaped pneumatic push-in fitting designed to connect 8 mm OD tubing to an R1/4 male threaded pneumatic port.
What is the Festo part number?
The part number for QSL-1/4-8 is 153049.
What threaded connection does QSL-1/4-8 use?
Pneumatic Connection 1 is an R1/4 male thread.
What tube size does QSL-1/4-8 accept?
Pneumatic Connection 2 is designed for tubing with an 8 mm outside diameter.
What is the nominal size?
The specified nominal size is 6.7 mm.
Is QSL-1/4-8 a straight fitting?
No. QSL-1/4-8 uses an L-shaped configuration for 90-degree pneumatic tubing connections.
What is the operating pressure range?
The specified operating pressure across the complete temperature range is -0.95 to 6 bar.
What is the ambient temperature range?
The specified ambient temperature range is -10°C to +80°C.
What materials are used?
The housing is PBT and the screwed plug is nickel-plated brass.
What should be checked before ordering?
Verify the complete QSL-1/4-8 model number, part number 153049, R1/4 male thread, 8 mm tube outside diameter, L-shaped design and required operating conditions before ordering.
