R1/8 Male Thread
The QS-1/8-8 features an R1/8 male threaded connection for installation on compatible pneumatic components and compressed-air ports.

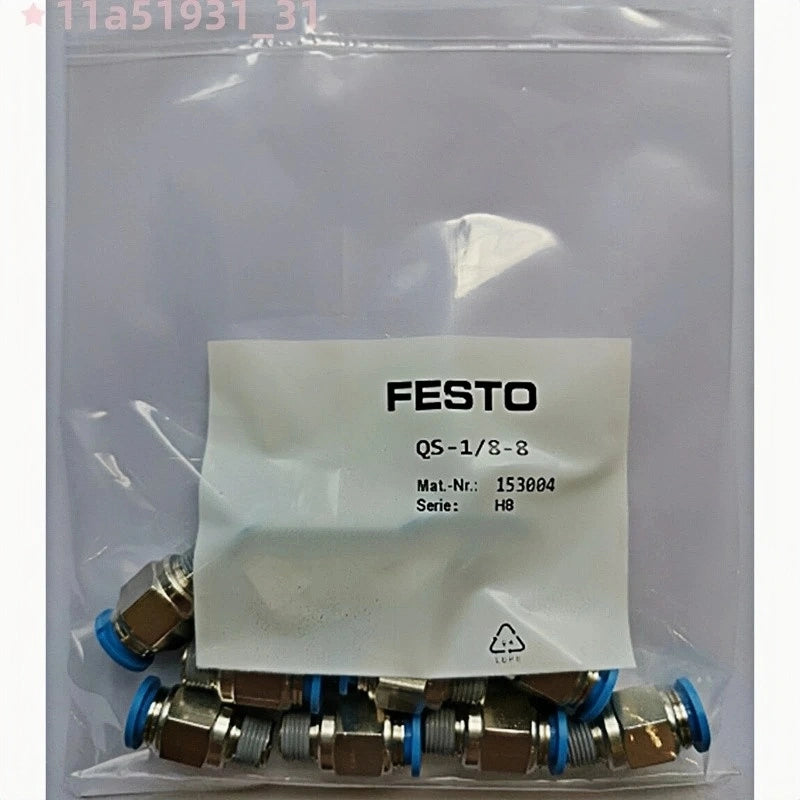

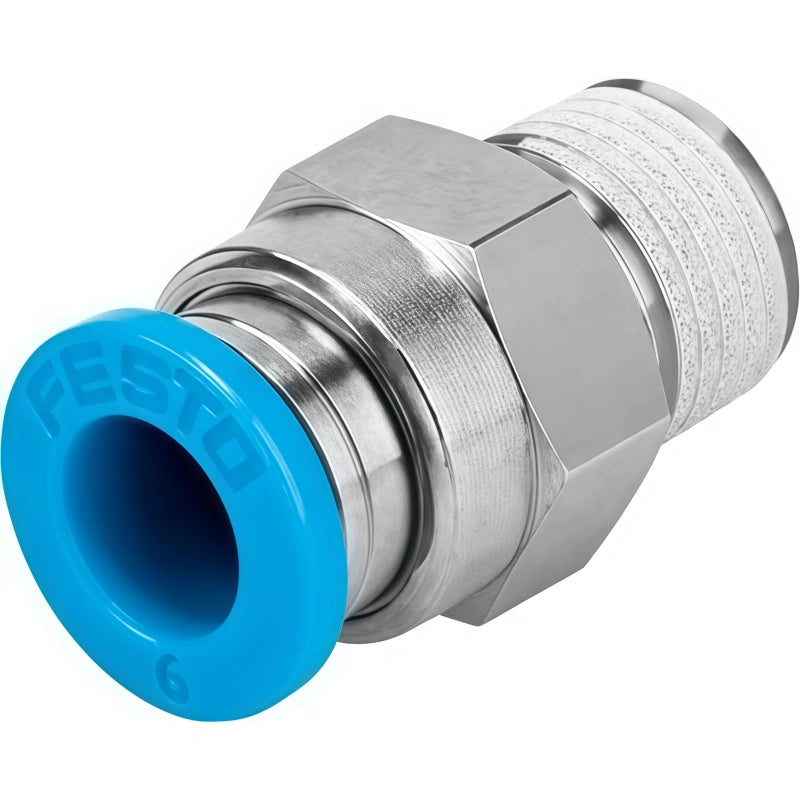

FESTO QS-1/8-8 Push-In Fitting R1/8 8mm Pneumatic Connector
Available in stock (400)
Regular price
$9.37
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Festo |
| Model Number | QS-1/8-8 |
| Product Category | Push-In Fitting |
| Part Number | 153004 |
| Pneumatic Connection 1 | R1/8 Male Thread |
| Pneumatic Connection 2 | For 8 mm OD Tubing |
| Tube Outside Diameter | 8 mm |
| Nominal Size | 6 mm |
| Design | Straight Push-In Fitting |
| Operating Pressure | -0.95 to 6 bar |
| Ambient Temperature | -10°C to +80°C |
| Operating Medium | Compressed Air |
| Housing Material | Nickel-Plated Brass |
Key Features
8 mm Push-In Connection
The push-in connection is designed for pneumatic tubing with an 8 mm outside diameter, providing a direct tube-to-thread connection.
6 mm Nominal Size
The specified nominal size is 6 mm, an important parameter when selecting the fitting for compatible pneumatic circuits.
Straight Push-In Design
The straight fitting configuration provides a direct connection between compatible pneumatic tubing and an R1/8 threaded port.
-0.95 to 6 bar Pressure Range
The specified operating pressure across the complete temperature range is -0.95 to 6 bar.
Nickel-Plated Brass Housing
The fitting uses a nickel-plated brass housing for use in compatible industrial pneumatic installations.
Applications
- Pneumatic tubing connections
- Solenoid valve connections
- Pneumatic cylinder circuits
- Compressed-air distribution
- Industrial machine automation
- Pneumatic control systems
- Equipment maintenance
- Pneumatic installation projects
Purchase Information
We support online purchase of the Festo QS-1/8-8 Push-In Fitting. For bulk purchasing or additional product requirements, contact our team with the complete model number and required quantity. We can provide quantity quotations, estimated delivery information and available transportation options.
Frequently Asked Questions
What is Festo QS-1/8-8?
It is a straight pneumatic push-in fitting designed to connect 8 mm OD tubing to an R1/8 male threaded connection.
What is the Festo part number?
The part number for QS-1/8-8 is 153004.
What threaded connection does QS-1/8-8 use?
Pneumatic Connection 1 is an R1/8 male thread.
What tube size does QS-1/8-8 accept?
Pneumatic Connection 2 is designed for tubing with an 8 mm outside diameter.
What is the nominal size?
The specified nominal size is 6 mm.
What is the operating pressure range?
The specified operating pressure across the complete temperature range is -0.95 to 6 bar.
What is the ambient temperature range?
The specified ambient temperature range is -10°C to +80°C.
What is the housing material?
The fitting uses a nickel-plated brass housing.
What operating medium is specified?
The fitting is designed for compatible compressed-air pneumatic applications.
What should be checked before ordering?
Verify the complete QS-1/8-8 model number, part number 153004, R1/8 male thread, 8 mm tube outside diameter, 6 mm nominal size and required operating conditions before ordering.
