110 V AC Coil
The MSFW-110-50/60 operates at 110 V AC and is designed for 50/60 Hz electrical supplies.

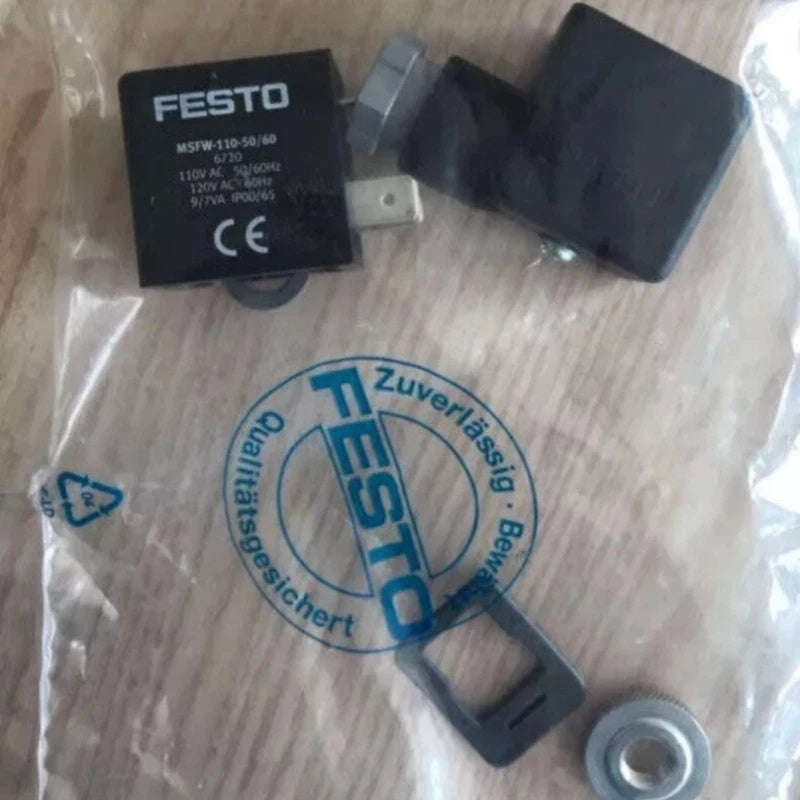

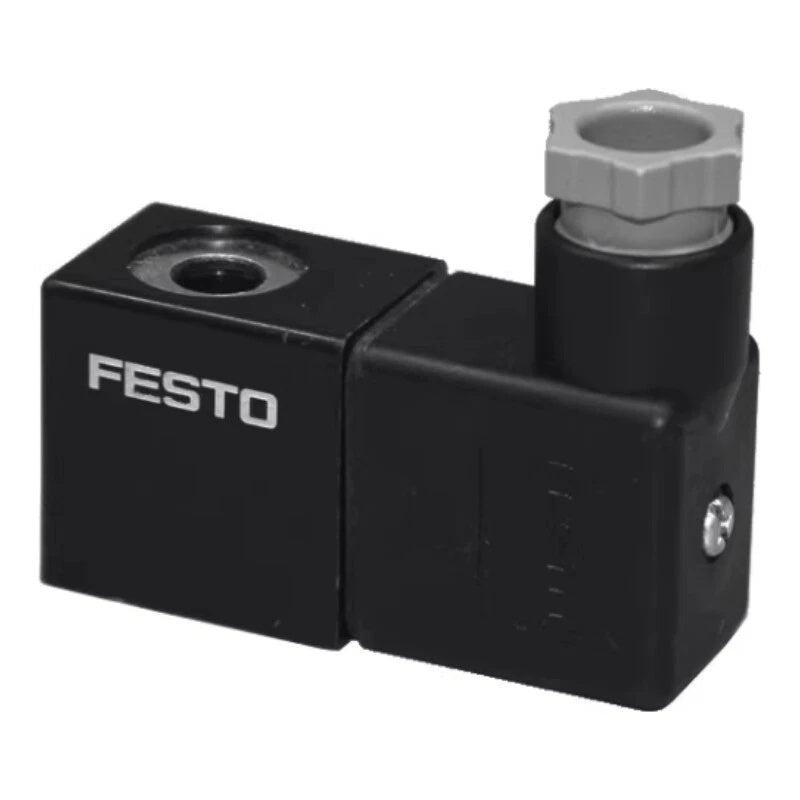

FESTO MSFW-110-50/60 Solenoid Coil 110V AC 50/60Hz IP65
Available in stock (400)
Regular price
$9.97
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | MSFW-110-50/60 |
| Product Category | Solenoid Coil |
| Part Number | 6720 |
| Series | MSF |
| Operating Voltage | 110 V AC |
| Frequency | 50/60 Hz |
| Pick-up Power | 9.0 VA |
| Holding Power | 7.0 VA |
| Minimum Pick-up Time | 10 ms |
| Duty Cycle | 100% |
| Power Factor | 0.7 |
| Permissible Frequency Fluctuation | ±5% |
| Permissible Voltage Fluctuation | ±10% |
| Degree of Protection | IP65 |
| Electrical Connection | 3-pin plug pins, Festo standard connection pattern for MSSD-F |
| Mounting | Via knurled nut |
| Mounting Position | Any |
| Switching Position Indicator | No |
| Maximum Socket Tightening Torque | 0.4 Nm |
| Product Weight | 55 g |
| PWIS Conformity | VDMA24364-C1-L |
| Material | Duroplast, copper and steel |
| Winding Material | Copper |
| Material Compliance | RoHS compliant |
Key Features
9 VA Pick-up Power
The documented coil characteristics specify 9.0 VA pick-up power and 7.0 VA holding power.
100% Duty Cycle
The solenoid coil is specified for a 100% duty cycle under the documented operating conditions.
IP65 Protection
The documented IP65 degree of protection supports installation in suitable industrial pneumatic valve applications.
3-Pin Connection
The electrical interface uses 3-pin plug pins with the Festo standard connection pattern for MSSD-F.
Knurled Nut Mounting
The coil is mechanically mounted via a knurled nut and can be installed in any mounting position.
Applications
- Pneumatic solenoid valve actuation
- Industrial automation systems
- Pneumatic machine control circuits
- Packaging machinery
- Assembly equipment
- Material handling systems
- Process equipment pneumatic controls
- Machine maintenance applications
Purchase Information
We support online purchase of the FESTO MSFW-110-50/60 Solenoid Coil. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO MSFW-110-50/60?
It is an MSF series solenoid coil for suitable pneumatic valve applications.
Is MSFW-110-50/60 a battery?
No. FESTO identifies MSFW-110-50/60 as a solenoid coil, part number 6720.
What is the operating voltage?
The documented operating voltage is 110 V AC.
What frequency does the coil support?
The documented supply frequency is 50/60 Hz, with a permissible frequency fluctuation of ±5%.
What are the pick-up and holding power ratings?
The documented pick-up power is 9.0 VA and the holding power is 7.0 VA.
What is the duty cycle?
The documented duty cycle is 100%.
What is the degree of protection?
The documented degree of protection is IP65.
What electrical connection does it use?
It uses 3-pin plug pins with a connection pattern according to the Festo standard for MSSD-F.
What is the permitted ambient temperature?
The documented ambient temperature range is -5°C to +40°C.
How is MSFW-110-50/60 mounted?
The coil is mounted via a knurled nut, and the mounting position can be any orientation.
Can MSFW-110-50/60 replace another solenoid coil?
It can be considered after the complete model number and technical requirements have been checked. Voltage, frequency, electrical connection, mounting and valve requirements should be verified against existing system requirements.
What should be checked before ordering?
The complete model number, 110 V AC supply, 50/60 Hz frequency, 3-pin electrical interface, mounting arrangement and applicable valve requirements should be checked before ordering.
