110 VAC Solenoid Operation
The Festo MSFW-110-50/60 is an AC solenoid coil designed for compatible electrically actuated pneumatic valves operating with a nominal 110 VAC supply at 50 or 60 Hz.
1 / 2
Festo

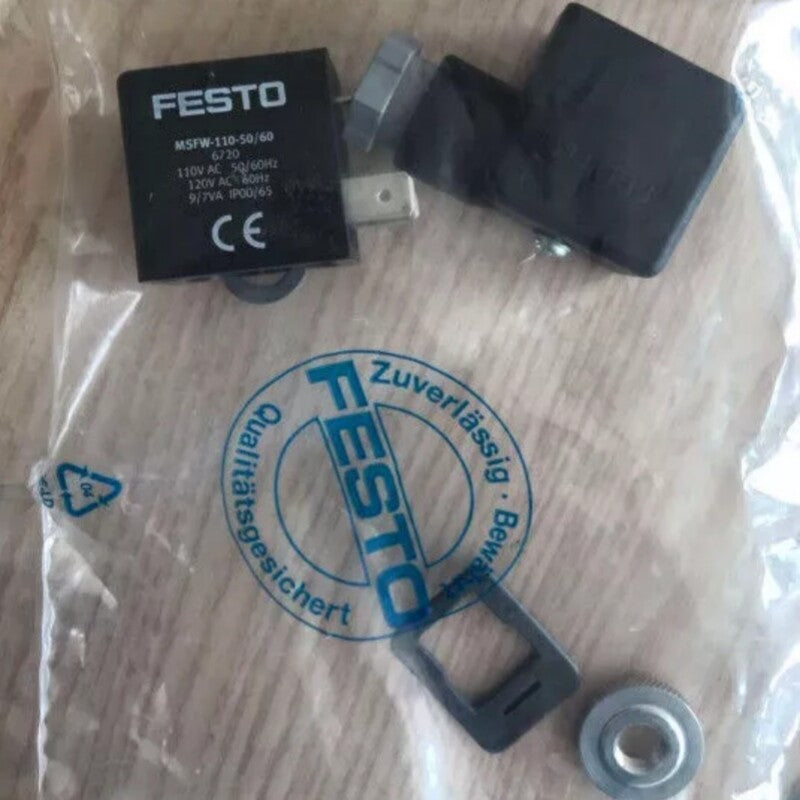

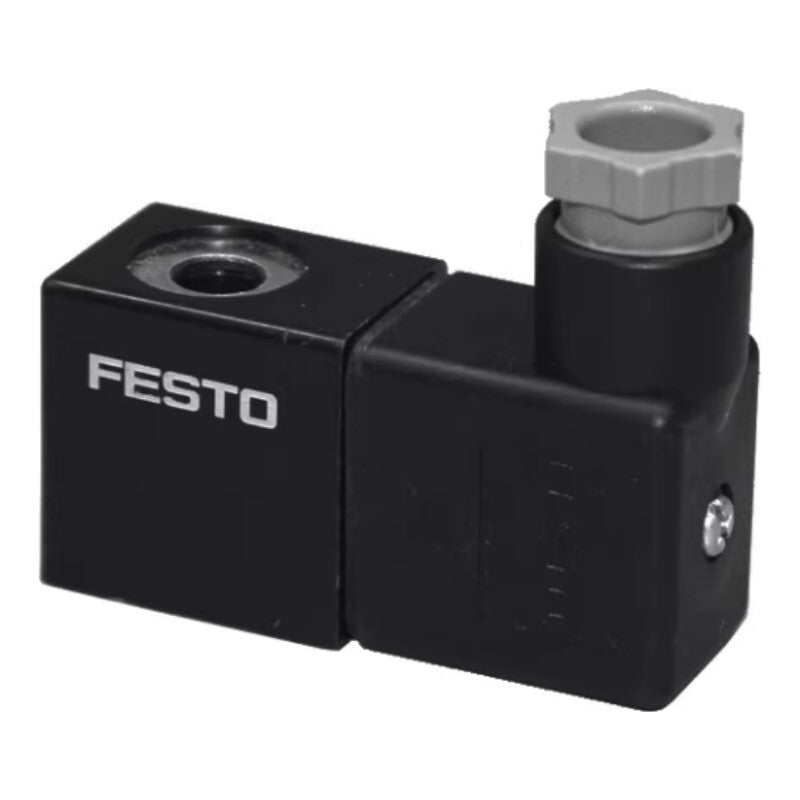

Festo MSFW-110-50/60 6720 Solenoid Valve Coil
PRODUCT PRICE
USD
$18.59
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Festo |
| Model Number | MSFW-110-50/60 |
| Product Category | Solenoid Coil |
| Manufacturer Part Number | 6720 |
| Product Series | MSFW |
| GTIN | 4052568019884 |
| Nominal Operating Voltage | 110 VAC |
| Operating Frequency | 50/60 Hz |
| Initial Power | 9.0 VA |
| Holding Power | 7.0 VA |
| Permissible Voltage Fluctuation | ±10% |
| Permissible Frequency Fluctuation | ±5% |
| Duty Cycle | 100% |
| Minimum Pick-Up Time | 10 ms |
| Power Factor | 0.7 |
| Electrical Connection | 3-Pin Plug Flags, Festo Standard for MSSD-F |
| Mounting Method | Knurled Nut |
| Mounting Position | Any |
| Degree of Protection | IP65 |
| Ambient Operating Temperature | -5 to +40°C |
| Maximum Socket Tightening Torque | 0.4 Nm |
| Switching Position Indicator | No |
| Product Weight | 55 g |
| Coil Body Materials | Duroplast, Copper and Steel |
| Winding Material | Copper |
| RoHS Compliance | Compliant |
| CE Marking | According to EU Low Voltage Directive |
| UKCA Marking | According to Applicable UK Electrical Equipment Regulations |
| LABS / PWIS Conformity | VDMA24364-C1-L |
| Manufacturer Technical Reference | Festo MSFW-110-50/60 Datasheet, Part Number 6720 |
Key Features
9 VA Initial and 7 VA Holding Power
Festo specifies an initial apparent power of 9.0 VA and holding apparent power of 7.0 VA. These ratings support correct electrical sizing for compatible solenoid valve control circuits.
100% Duty Cycle
The coil is specified for a 100% duty cycle under its rated operating conditions, allowing continuous energization within the manufacturer's electrical and ambient temperature limits.
IP65 Protection
The MSFW-110-50/60 has an IP65 protection rating when the appropriate electrical connection and installation requirements are met.
Festo MSSD-F Connection Pattern
The coil uses a three-pin plug connection arranged according to the Festo standard for MSSD-F. Confirm the compatible socket and wiring configuration before installation.
Knurled Nut Mounting
The solenoid coil is secured using a knurled nut and supports any mounting position. Festo specifies a maximum socket tightening torque of 0.4 Nm.
Applications
- Compatible Festo pneumatic solenoid valves
- Industrial pneumatic valve maintenance
- Compressed air directional control systems
- Factory automation pneumatic actuators
- Industrial machinery valve control circuits
- Packaging equipment pneumatic systems
- Automated assembly line valve servicing
- Replacement of matching 110 VAC Festo solenoid coils
Purchase Information
We support online purchase of the Festo MSFW-110-50/60 Solenoid Coil. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Festo MSFW-110-50/60?
It is a Festo solenoid coil with manufacturer part number 6720, designed for 110 VAC operation at 50/60 Hz with compatible pneumatic solenoid valves.
What is the rated operating voltage?
The nominal operating voltage is 110 VAC, with a permitted voltage fluctuation of ±10%.
Does this coil support both 50 Hz and 60 Hz power?
Yes. Festo specifies 50/60 Hz operation with a permitted frequency fluctuation of ±5%.
What is the initial power consumption?
The specified initial apparent power is 9.0 VA.
What is the holding power?
The holding apparent power is 7.0 VA after the solenoid has been energized.
Can the coil remain continuously energized?
Yes. Festo specifies a 100% duty cycle, provided that the electrical supply, ambient temperature and installation conditions remain within the manufacturer's ratings.
What is the protection rating?
The manufacturer specifies IP65 protection. The correct mating electrical connection and installation are required to maintain the applicable protection level.
What electrical connector does the coil use?
It has three plug flags with a connection pattern according to the Festo standard for MSSD-F.
What is the operating temperature range?
The specified ambient operating temperature is -5 to +40°C.
Is the Festo MSFW-110-50/60 a complete solenoid valve?
No. This part is the electrical solenoid coil. A complete pneumatic valve and any required mating electrical connector are separate components.
Can MSFW-110-50/60 be replaced with MSFW-110-50/60-DS?
Do not assume direct interchangeability. The DS variant has a different electrical connection specification. Confirm the valve interface, connector arrangement, electrical ratings and mounting requirements.
What should be checked before ordering?
Confirm the complete model MSFW-110-50/60, Festo part number 6720, 110 VAC supply, 50/60 Hz frequency, 9 VA initial power, 7 VA holding power, three-pin MSSD-F connection pattern, knurled nut mounting and compatibility with the intended pneumatic valve.
