Dual Coil Ratings
The MSFG-24/42-50/60 is specified with coil data for 24 V DC operation and 42 V AC operation at 50/60 Hz.

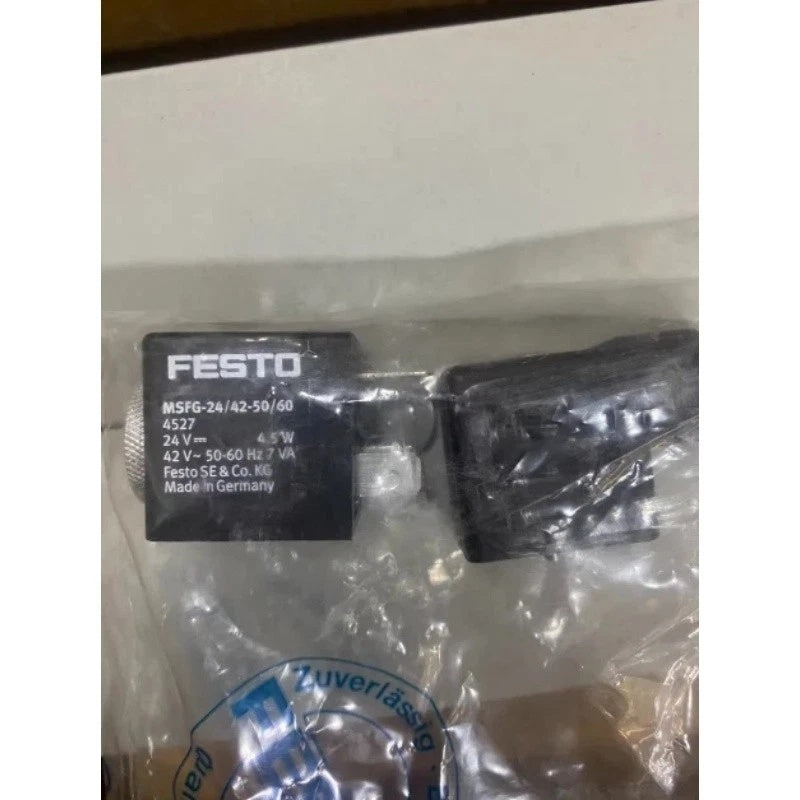

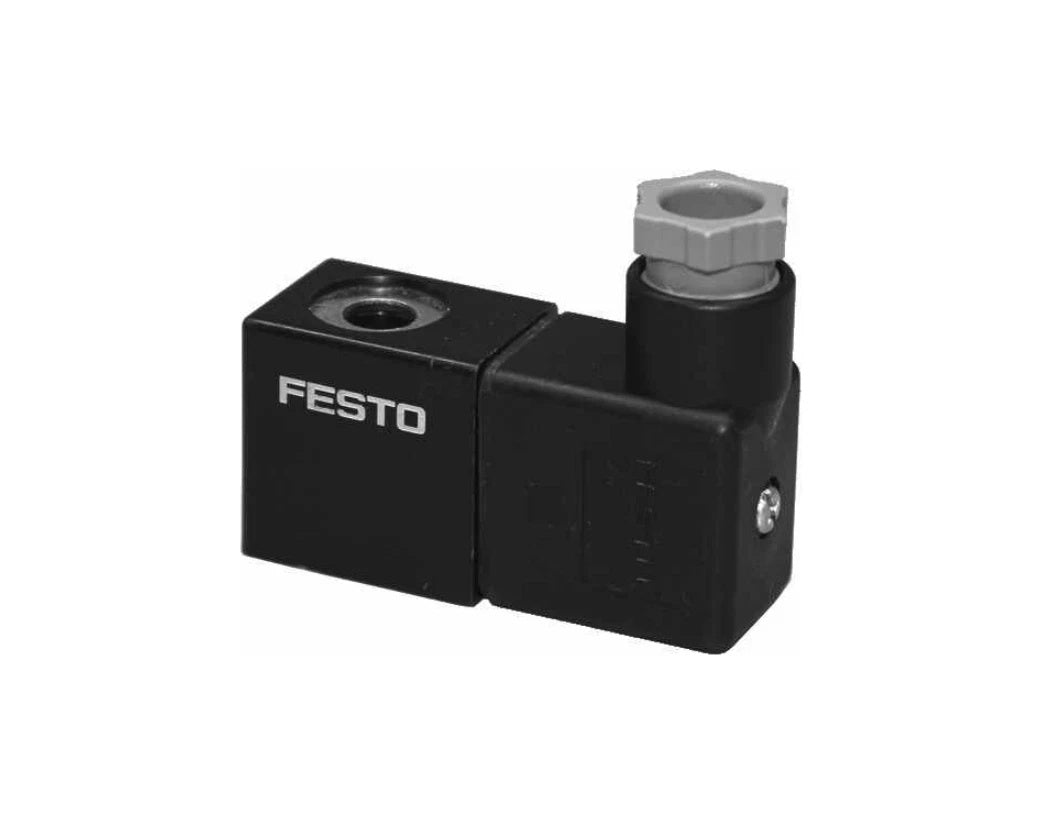

FESTO MSFG-24/42-50/60 Solenoid Coil 24V DC 42V AC 50/60Hz IP65
Available in stock (400)
Regular price
$6.79
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | MSFG-24/42-50/60 |
| Product Category | Solenoid Coil |
| Part Number | 4527 |
| Coil Data | 24 V DC: 4.5 W; 42 V AC: 50/60 Hz, pick-up power 9.0 VA, holding power 7.0 VA |
| Minimum Pick-Up Time | 10 ms |
| Duty Cycle | 100% |
| Power Factor | 0.7 |
| Permissible Frequency Fluctuation | ±5% |
| Permissible Voltage Fluctuation | ±10% |
| Degree of Protection | IP65 |
| Ambient Temperature | -5°C to +40°C |
| Maximum Tightening Torque for Socket | 0.4 Nm |
| Product Weight | 55 g |
| Electrical Connection | 3-pin plug pins, Festo connection pattern for MSSD-F |
| Mounting Type | Via knurled nut |
| Mounting Position | Any |
| Switching Position Indicator | No |
| PWIS Conformity | VDMA24364-C1-L |
| Winding Material | Copper |
| Material Compliance | RoHS compliant |
Key Features
100% Duty Cycle
The documented duty cycle is 100%, supporting continuous energization within the specified operating conditions.
IP65 Protection
The solenoid coil has a documented IP65 degree of protection when installed in accordance with the specified connection and mounting requirements.
10 ms Pick-Up Time
The documented minimum pick-up time is 10 ms for electrical actuation applications.
3-Pin Electrical Interface
The coil uses a 3-pin plug-pin electrical connection with a connection pattern according to the Festo standard for MSSD-F.
Knurled-Nut Mounting
The MSFG-24/42-50/60 is mechanically secured via a knurled nut and can be installed in any documented mounting position.
Applications
- Pneumatic solenoid valve actuation
- Industrial compressed-air control systems
- Automated assembly machinery
- Packaging and processing equipment
- Material handling systems
- Machine automation installations
- Electrical control of pneumatic valve functions
- Festo valve applications using the specified MSFG coil interface
Purchase Information
We support online purchase of the FESTO MSFG-24/42-50/60 Solenoid Coil. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO MSFG-24/42-50/60?
It is a solenoid coil used for electrical actuation in suitable FESTO pneumatic valve applications.
What is the FESTO part number?
The documented part number is 4527.
What voltage ratings are specified?
The documented coil data specifies 24 V DC and 42 V AC at 50/60 Hz.
What is the power consumption at 24 V DC?
The documented coil power at 24 V DC is 4.5 W.
What are the AC power values?
At 42 V AC and 50/60 Hz, the documented pick-up power is 9.0 VA and the holding power is 7.0 VA.
What is the duty cycle?
The documented duty cycle is 100%.
What is the degree of protection?
The documented degree of protection is IP65.
What electrical connection does the coil use?
The coil uses a 3-pin plug-pin connection with a connection pattern according to the Festo standard for MSSD-F.
What is the ambient temperature range?
The documented ambient temperature range is -5°C to +40°C.
How is the coil mounted?
The documented mounting method is via a knurled nut.
Can MSFG-24/42-50/60 replace another solenoid coil?
It can be considered after the complete model number and technical requirements have been checked. Voltage, frequency, electrical connection, mounting and valve requirements should be verified against the existing system requirements.
What should be checked before ordering?
The electrical, mechanical and installation requirements should be checked before ordering, including the complete model number, required voltage and frequency, 3-pin connection pattern, mounting arrangement and corresponding valve requirements.
