G1/2 Pneumatic Connection
The MSB6-1/2:C3J4-WP uses G1/2 pneumatic connections, providing an important interface specification when integrating the service unit combination into a compressed-air system.

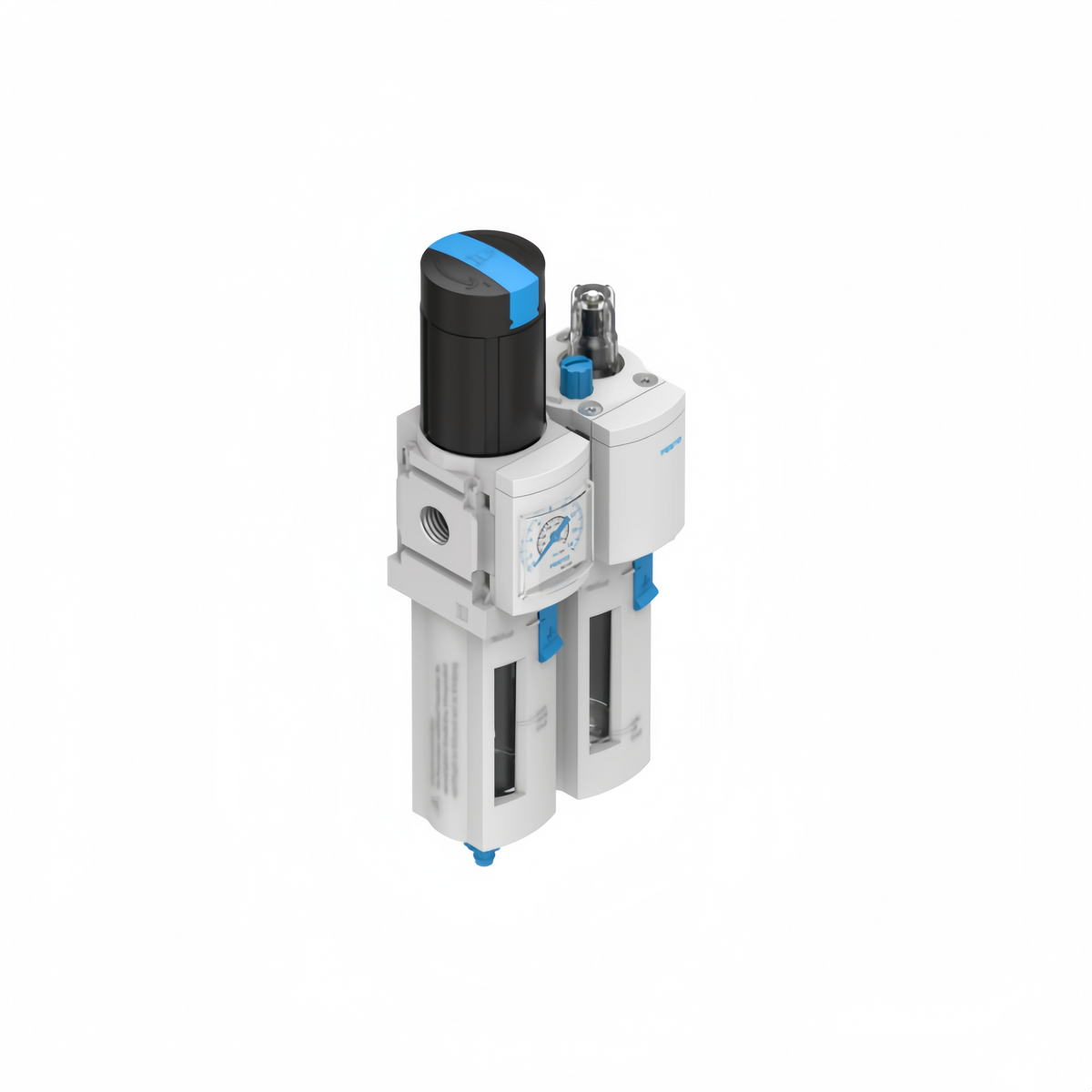

FESTO MSB6-1/2:C3J4-WP Service Unit Combination G1/2 5µm 4800 l/min
Available in stock (400)
Regular price
$463.16
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Festo |
| Model Number | MSB6-1/2:C3J4-WP |
| Product Category | Service Unit Combination |
| Part Number | 542286 |
| Series | MS |
| Pneumatic Connection | G1/2 |
| Grade of Filtration | 5 µm |
| Operating Pressure | 2 to 12 bar |
| Pressure Regulation Range | 0.5 to 12 bar |
| Standard Nominal Flow Rate | 4800 l/min |
| Condensate Drain | Fully Automatic |
| Pressure Gauge | Included |
| Housing Material | Die-Cast Aluminium |
Key Features
5 µm Filtration
The specified filtration grade is 5 µm, providing a key filtration reference when selecting compressed-air preparation equipment for downstream pneumatic components.
4800 l/min Nominal Flow
The standard nominal flow rate is 4800 l/min, making airflow capacity an important consideration when matching the unit to pneumatic system requirements.
0.5 to 12 bar Regulation Range
The specified pressure regulation range is 0.5 to 12 bar, allowing regulated output pressure to be set within the defined range for compatible applications.
Fully Automatic Condensate Drain
The unit is equipped with a fully automatic condensate drain, providing a defined condensate management configuration for compressed-air preparation.
Pressure Gauge Included
The specified configuration includes a pressure gauge for checking regulated pneumatic pressure during setup, operation and maintenance.
Applications
- Compressed-air preparation
- Pneumatic control systems
- Industrial machine automation
- Pneumatic cylinder systems
- Solenoid valve installations
- Factory automation equipment
- Machine maintenance
- Compressed-air distribution systems
Purchase Information
We support online purchase of the Festo MSB6-1/2:C3J4-WP Service Unit Combination. For bulk purchasing or additional product requirements, contact our team with the complete model number and required quantity. We can provide quantity quotations, estimated delivery information and available transportation options.
Frequently Asked Questions
What is Festo MSB6-1/2:C3J4-WP?
It is an MS series service unit combination incorporating compressed-air preparation functions for compatible industrial pneumatic systems.
What is the Festo part number?
The part number for MSB6-1/2:C3J4-WP is 542286.
What pneumatic connection does it use?
The specified pneumatic connection size is G1/2.
What is the filtration grade?
The specified grade of filtration is 5 µm.
What is the operating pressure range?
The specified operating pressure range is 2 to 12 bar.
What is the pressure regulation range?
The specified pressure regulation range is 0.5 to 12 bar.
What is the standard nominal flow rate?
The specified standard nominal flow rate is 4800 l/min.
What type of condensate drain is provided?
MSB6-1/2:C3J4-WP uses a fully automatic condensate drain.
Does MSB6-1/2:C3J4-WP include a pressure gauge?
Yes. The specified configuration includes a pressure gauge.
What is the ambient temperature range?
The specified ambient temperature range is 5°C to +60°C.
What should be checked before ordering?
Verify the complete MSB6-1/2:C3J4-WP model number, part number 542286, G1/2 connection, 5 µm filtration, 4800 l/min nominal flow, operating pressure and pressure regulation requirements before ordering.
