G1/4 Pneumatic Connection
The MSB4-1/4-FRC1:J5M1 uses a G1/4 pneumatic connection, providing a key interface specification when matching the service unit combination to a compressed-air system.

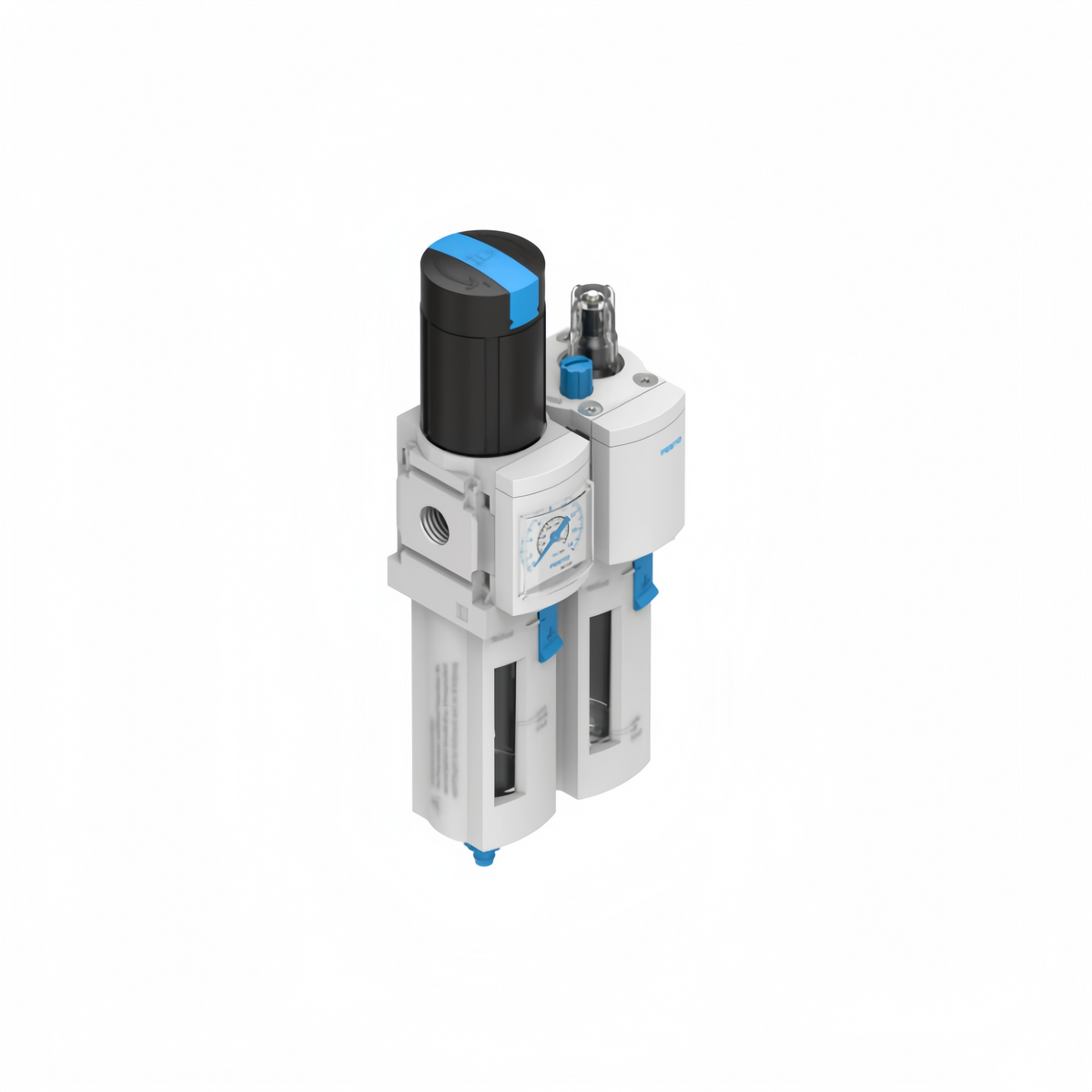

FESTO MSB4-1/4-FRC1:J5M1 Service Unit Combination G1/4 40µm 1400 l/min
Available in stock (400)
Regular price
$208.98
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Festo |
| Model Number | MSB4-1/4-FRC1:J5M1 |
| Product Category | Service Unit Combination |
| Part Number | 531109 |
| Series | MS |
| Pneumatic Connection | G1/4 |
| Grade of Filtration | 40 µm |
| Operating Pressure | 1.5 to 14 bar |
| Pressure Regulation Range | 0.3 to 7 bar |
| Standard Nominal Flow Rate | 1400 l/min |
| Condensate Drain | Manual, Rotary |
| Pressure Gauge | Included |
| Housing Material | Die-Cast Aluminium |
Key Features
40 µm Filtration
The specified filtration grade is 40 µm, providing an important filtration reference for compressed-air preparation and downstream pneumatic components.
1400 l/min Nominal Flow
The standard nominal flow rate is 1400 l/min, an important performance parameter when selecting the unit according to pneumatic system airflow requirements.
0.3 to 7 bar Regulation Range
The pressure regulation range is 0.3 to 7 bar, allowing the required regulated pressure to be selected within the specified operating range.
Manual Rotary Condensate Drain
The unit features a manual rotary condensate drain for condensate management as part of routine compressed-air system maintenance.
Pressure Gauge Included
An included pressure gauge provides a direct reference for checking regulated pressure during setup, operation and maintenance.
Applications
- Compressed-air preparation
- Pneumatic control systems
- Industrial machine automation
- Pneumatic cylinder systems
- Solenoid valve installations
- Factory automation equipment
- Machine maintenance
- Compressed-air distribution systems
Purchase Information
We support online purchase of the Festo MSB4-1/4-FRC1:J5M1 Service Unit Combination. For bulk purchasing or additional product requirements, contact our team with the complete model number and required quantity. We can provide quantity quotations, estimated delivery information and available transportation options.
Frequently Asked Questions
What is Festo MSB4-1/4-FRC1:J5M1?
It is an MS series service unit combination for compatible compressed-air preparation and industrial pneumatic applications.
What is the Festo part number?
The part number for MSB4-1/4-FRC1:J5M1 is 531109.
What pneumatic connection does it use?
The specified pneumatic connection is G1/4.
What is the filtration grade?
The specified grade of filtration is 40 µm.
What is the operating pressure range?
The specified operating pressure range is 1.5 to 14 bar.
What is the pressure regulation range?
The specified pressure regulation range is 0.3 to 7 bar.
What is the standard nominal flow rate?
The specified standard nominal flow rate is 1400 l/min.
What type of condensate drain is provided?
The specified condensate drain is manual and rotary.
Does MSB4-1/4-FRC1:J5M1 include a pressure gauge?
Yes. A pressure gauge is included in the specified configuration.
What is the ambient temperature range?
The specified ambient temperature range is -10°C to +60°C.
What should be checked before ordering?
Verify the complete MSB4-1/4-FRC1:J5M1 model number, part number 531109, G1/4 connection, 40 µm filtration grade, required flow rate, operating pressure and pressure regulation requirements before ordering.
