5/2-Way Monostable Function
The MFH-5-PK-3 uses a 5/2-way monostable valve function for directional control in suitable pneumatic systems.

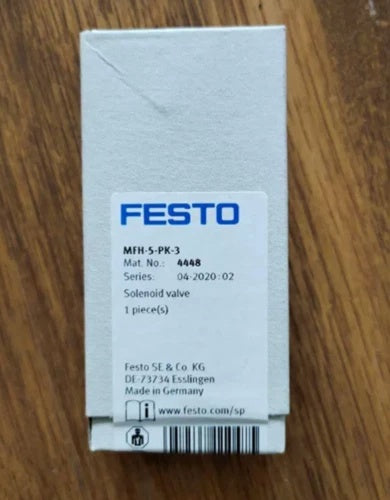

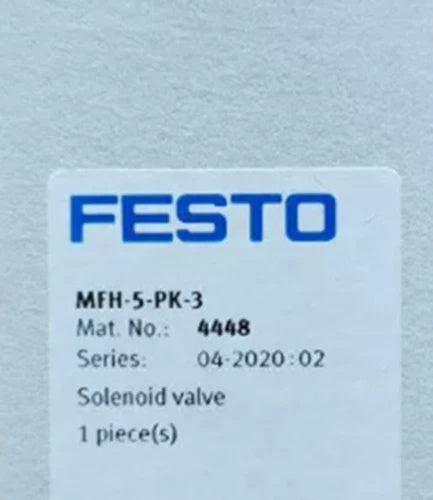

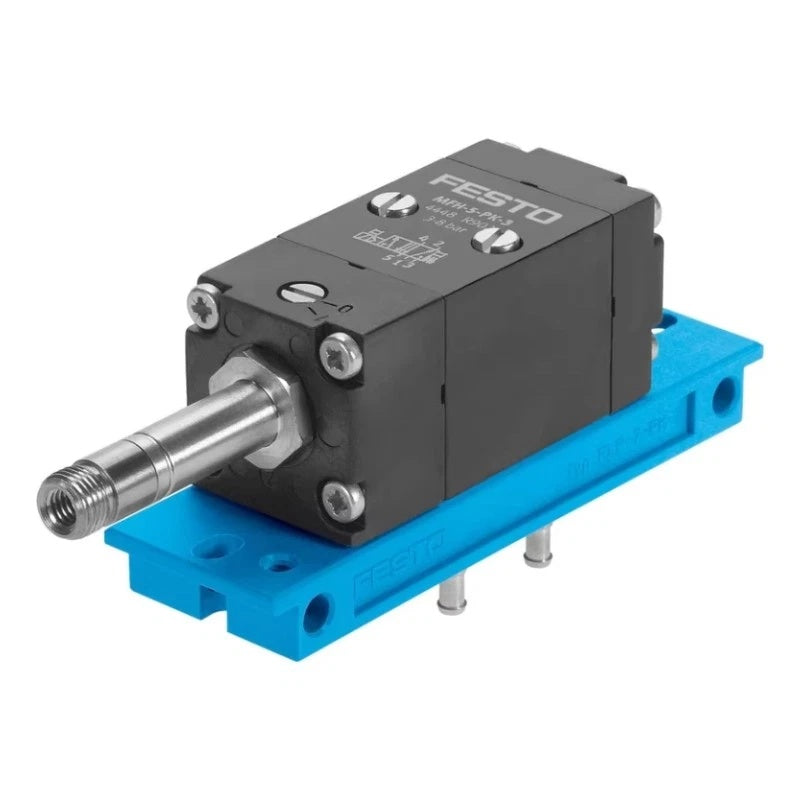

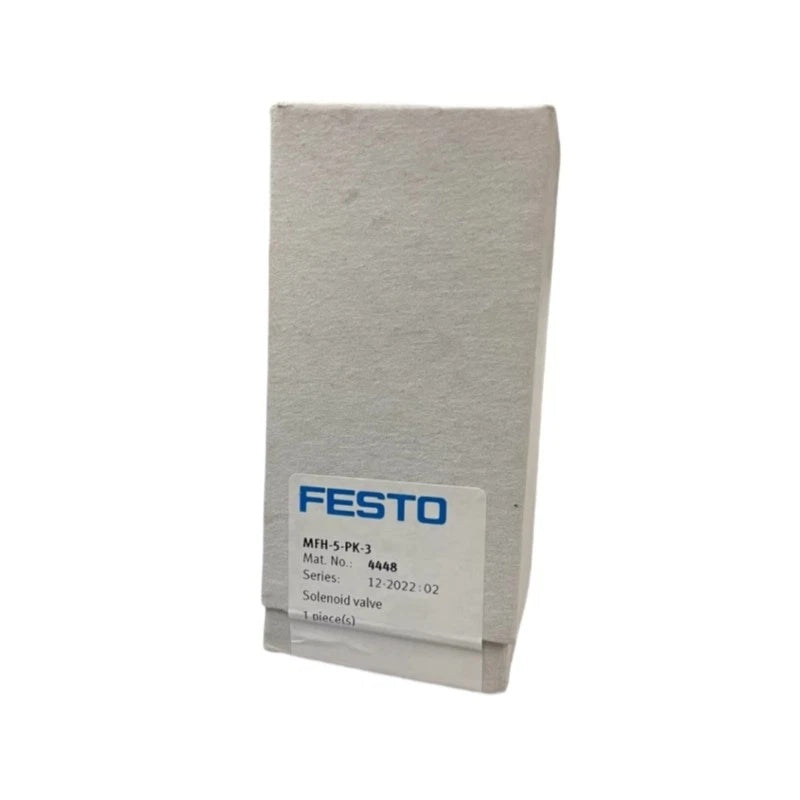

FESTO MFH-5-PK-3 Solenoid Valve 5/2-Way PK-3 105 l/min
Available in stock (400)
Regular price
$86.92
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | MFH-5-PK-3 |
| Product Category | Solenoid Valve |
| Part Number | 4448 |
| Valve Function | 5/2-way, monostable |
| Standard Nominal Flow Rate | 105 l/min |
| Pneumatic Working Port | PK-3 |
| Operating Pressure | 3-8 bar |
| Design | Poppet seat |
| Nominal Size | 2.5 mm |
| Sealing Principle | Soft |
| Switching Time Off | 22 ms |
| Switching Time On | 10 ms |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Mounting Position | Any |
| Mounting Type | On sub-base, on mounting frame, or with through-hole |
| Product Weight | 270 g |
| Housing Material | Anodised aluminium |
| Sub-base Material | Anodised aluminium |
| Seal Material | NBR |
Key Features
105 l/min Nominal Flow
The documented standard nominal flow rate is 105 l/min, standardized according to DIN 1343.
PK-3 Pneumatic Connections
The valve uses PK-3 pneumatic connections for integration into compatible M5 compact pneumatic arrangements.
3-8 Bar Operating Pressure
The documented operating pressure range is 3 to 8 bar for the MFH-5-PK-3 valve configuration.
Poppet Seat Design
The valve uses a poppet seat design with a soft sealing principle and a nominal size of 2.5 mm.
Flexible Mounting Options
The documented mounting options include installation on a sub-base, on a mounting frame, or by means of a through-hole.
Applications
- Pneumatic directional control circuits
- Compact pneumatic control systems
- Automated assembly machinery
- Pneumatic actuator control
- Material handling equipment
- Production automation systems
- Machine compressed-air circuits
- General pneumatic control applications
Purchase Information
We support online purchase of the FESTO MFH-5-PK-3 Solenoid Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO MFH-5-PK-3?
It is a pneumatic solenoid valve with a 5/2-way monostable valve function.
What is the FESTO part number?
The documented part number is 4448.
What valve function does MFH-5-PK-3 use?
The documented valve function is 5/2-way, monostable.
What is the standard nominal flow rate?
The standard nominal flow rate is 105 l/min.
What pneumatic connection does MFH-5-PK-3 use?
The documented pneumatic working connection is PK-3.
What is the operating pressure range?
The documented operating pressure range is 3 to 8 bar.
What is the nominal size?
The documented nominal size is 2.5 mm.
What is the switching time?
The documented switching time is 10 ms for switching on and 22 ms for switching off.
What operating medium is specified?
The valve is specified for compressed air to ISO 8573-1:2010 [7:-:-].
How can MFH-5-PK-3 be mounted?
The documented options include mounting on a sub-base, on a mounting frame, or with a through-hole.
Can MFH-5-PK-3 replace MFH-5-PK-3-L or another valve?
Replacement suitability should be verified against the complete model number and existing system requirements. Operating pressure, valve function, pneumatic connections, mounting arrangement and other technical requirements should be checked before ordering.
What should be checked before ordering?
The electrical, pneumatic, mechanical and installation requirements should be checked before ordering, including the complete model number, 5/2-way function, PK-3 connections, 3-8 bar operating pressure and required mounting arrangement.
