5/2-Way Single-Solenoid Function
The MFH-5-1/4 uses a 5/2-way single-solenoid valve function for directional control in pneumatic systems.
1 / 11
Festo

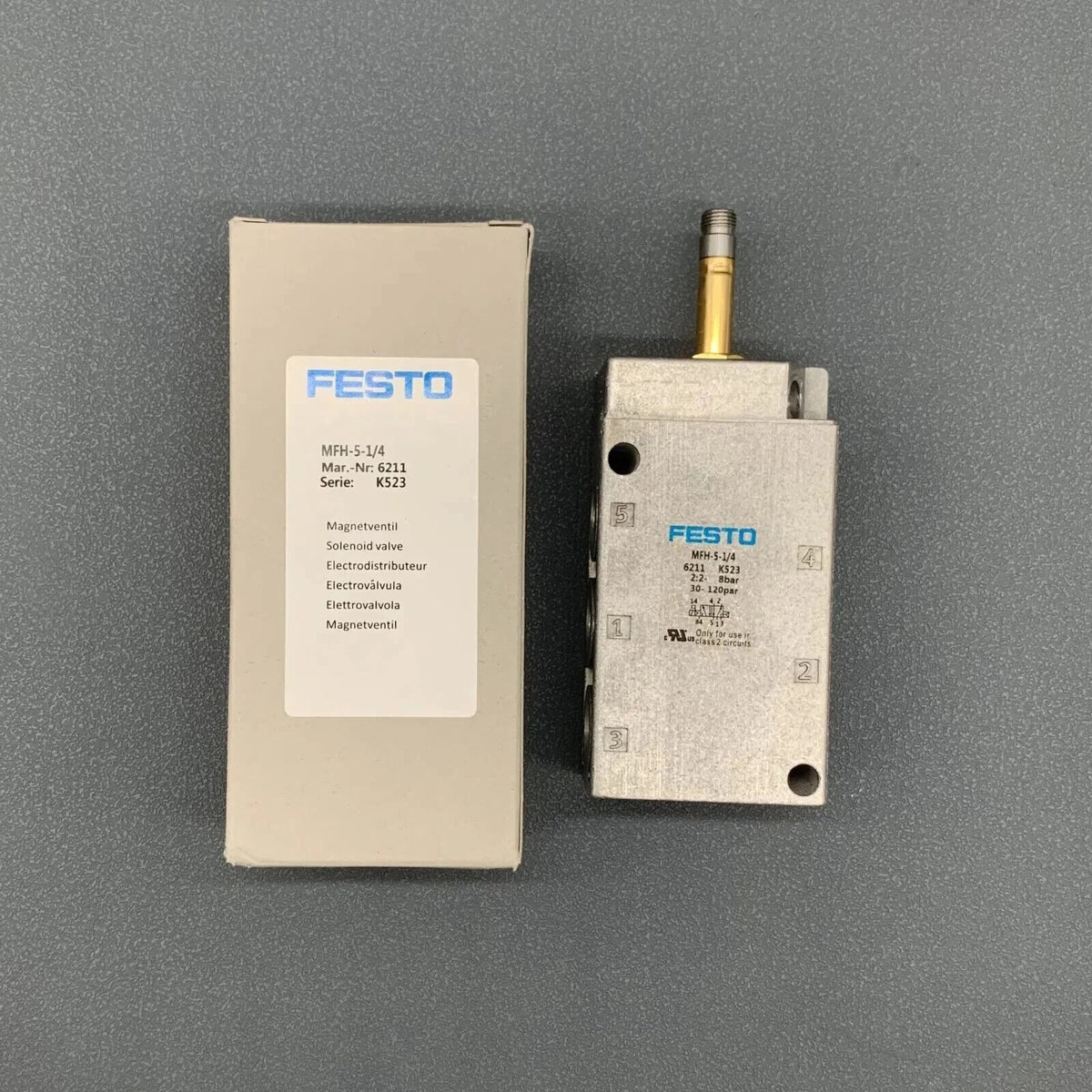

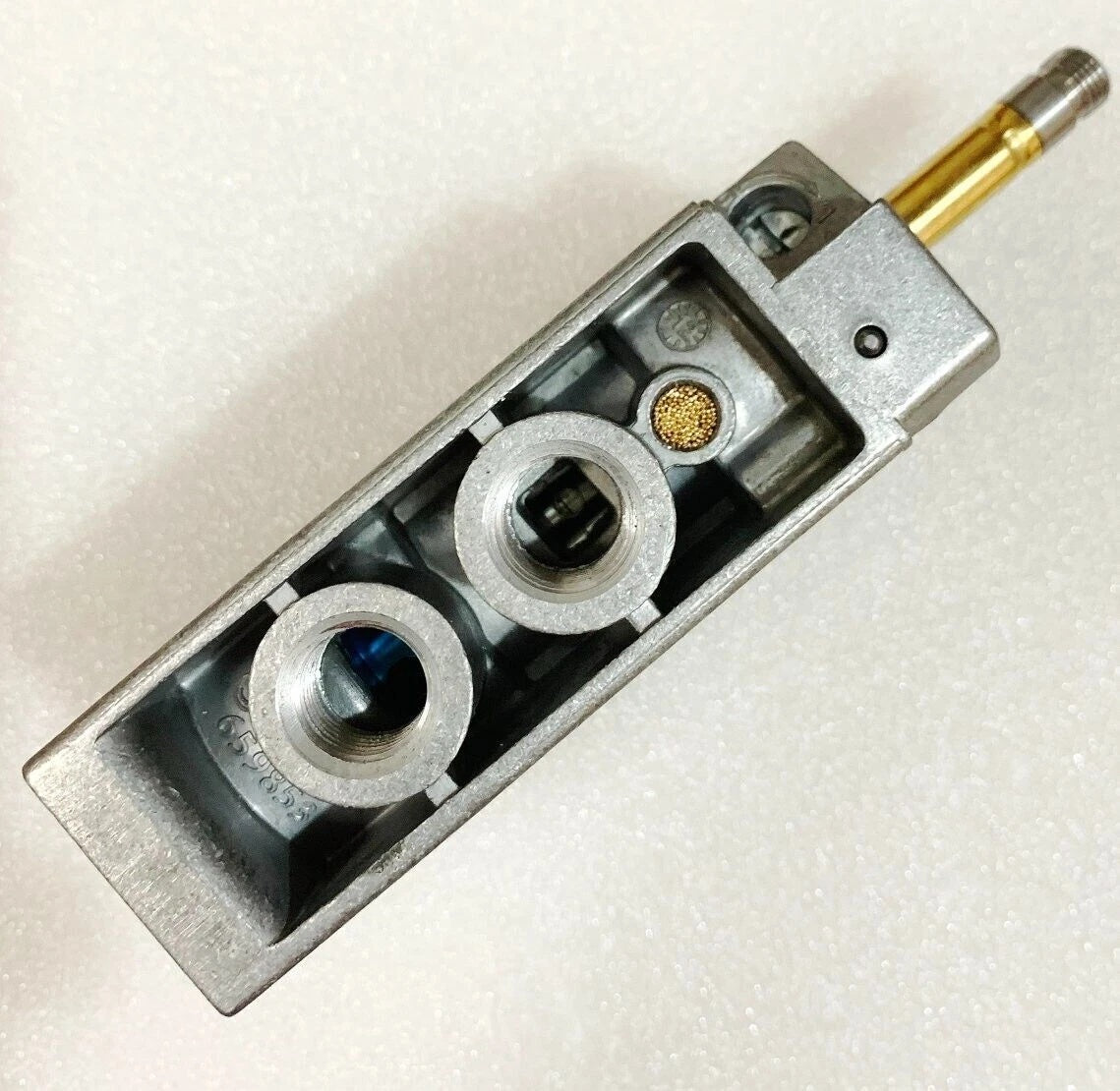

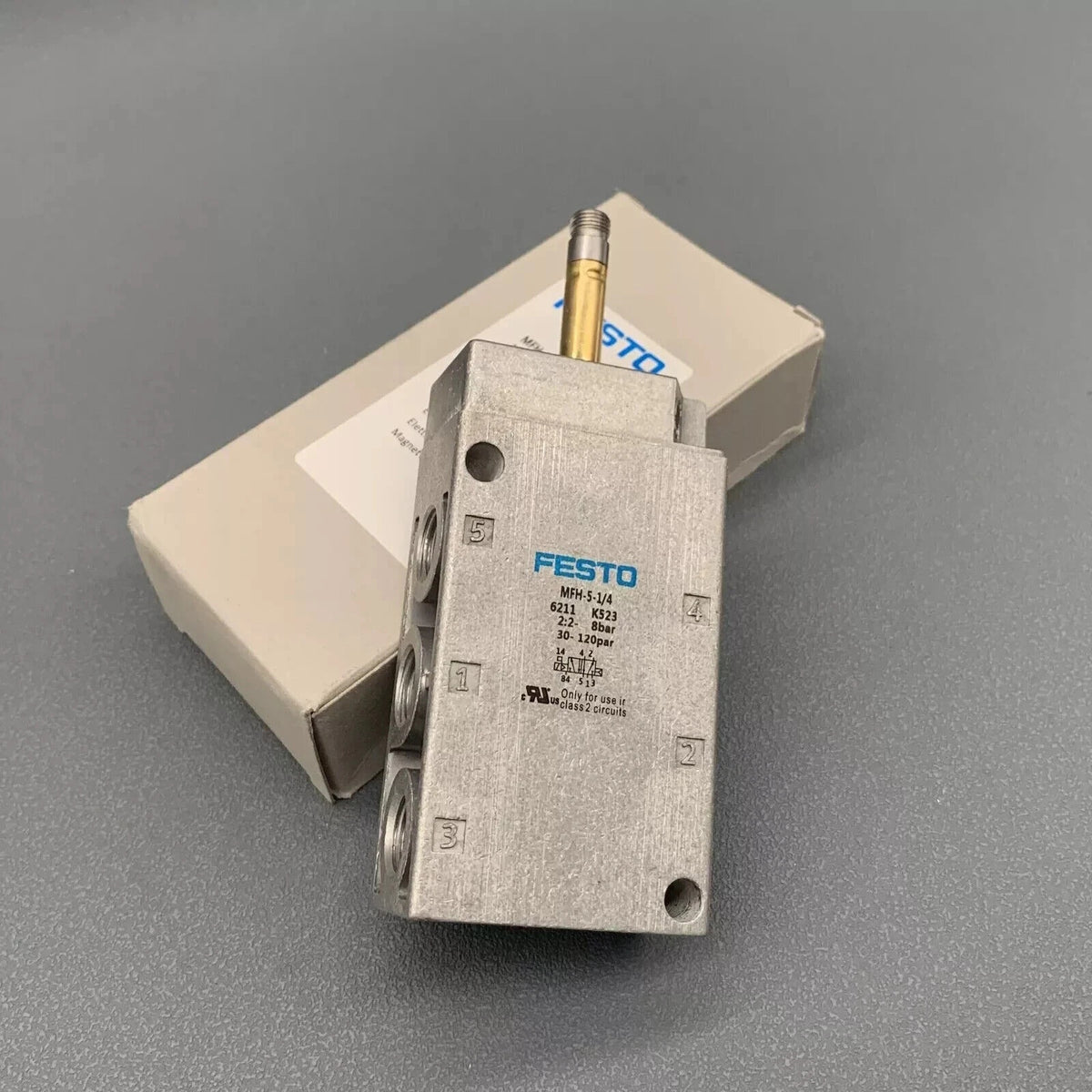

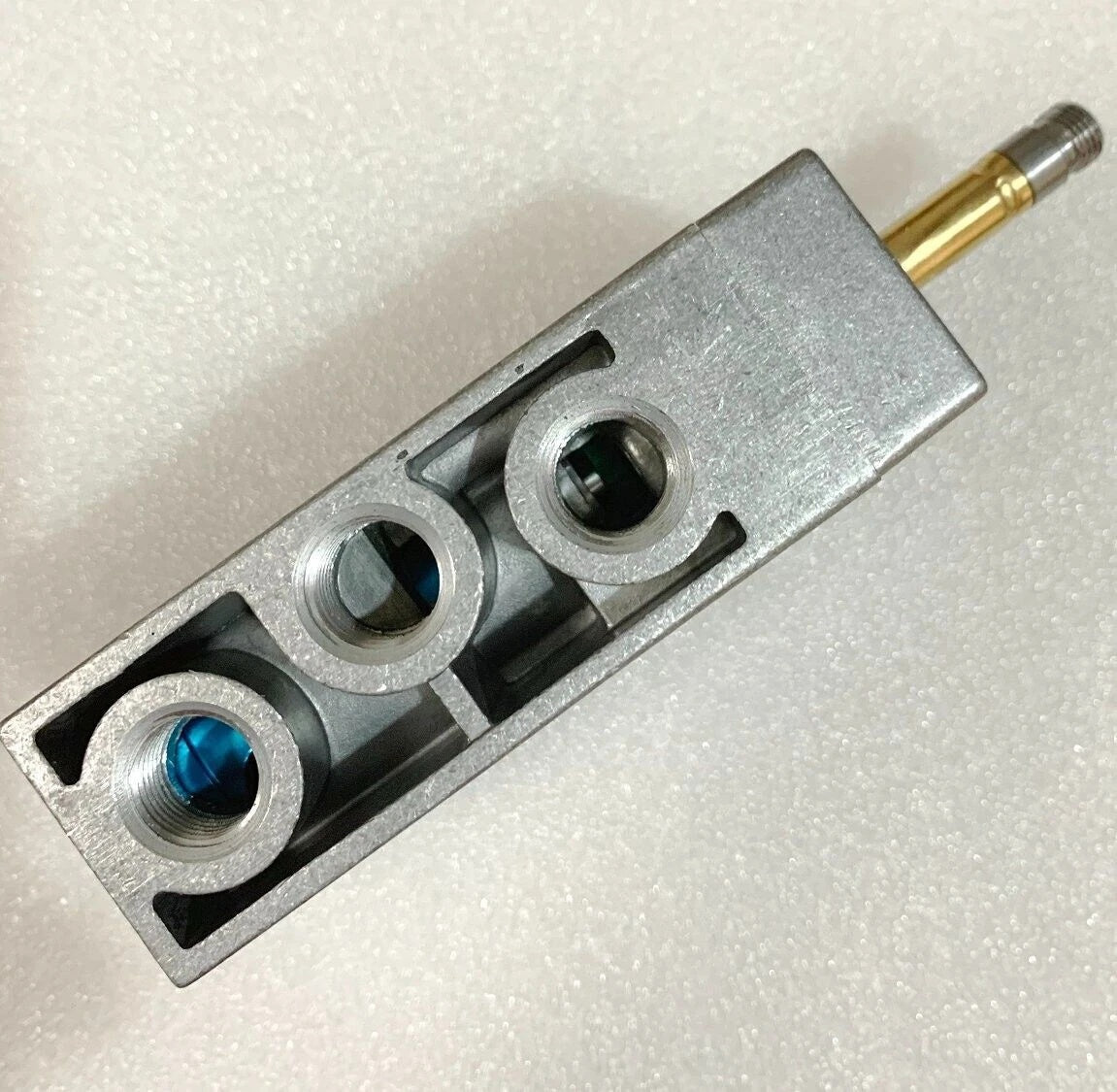

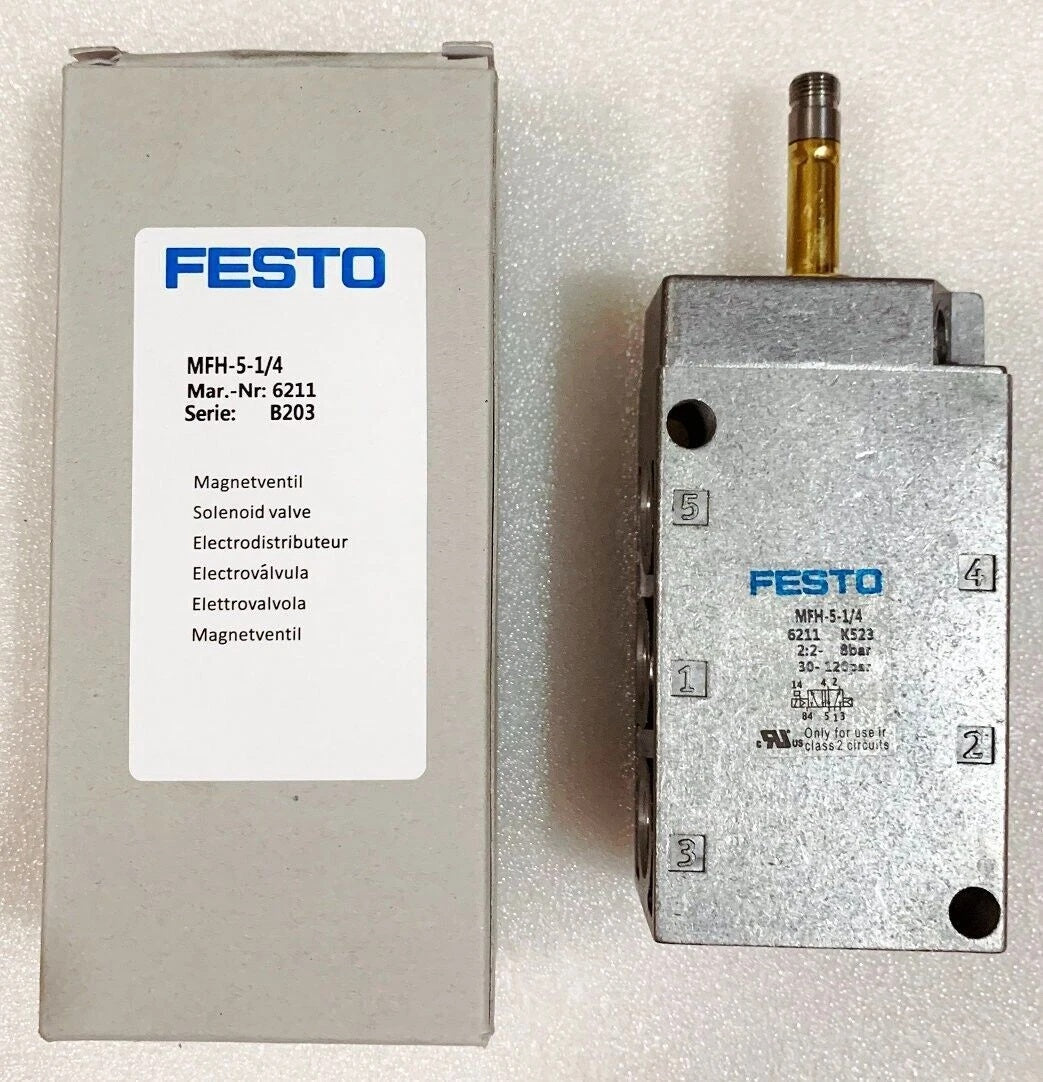

FESTO MFH-5-1/4 Solenoid Valve 5/2-Way G1/4 1000 l/min
PRODUCT PRICE
USD
$25.04
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | FESTO |
| Model Number | MFH-5-1/4 |
| Product Category | Solenoid Valve |
| Part Number | 6211 |
| Valve Function | 5/2-way, single solenoid |
| Type of Actuation | Electrical |
| Construction Width | 30.5 mm |
| Standard Nominal Flow Rate | 1000 l/min |
| Pneumatic Working Port | G1/4 |
| Operating Voltage | Via solenoid coil, ordered separately |
| Operating Pressure | 2.2-8 bar |
| Design | Poppet seat |
| Reset Method | Mechanical spring |
| Degree of Protection | IP65 |
| Nominal Size | 7 mm |
| Exhaust-Air Function | With flow control option |
| Sealing Principle | Soft |
| Mounting Position | Any |
| Manual Override | Detenting |
| Type of Piloting | Pilot-controlled |
| Flow Direction | Non-reversible |
| Switching Time Off | 29 ms |
| Switching Time On | 9 ms |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Product Weight | 290 g |
| Electrical Connection | Via F coil, ordered separately |
| Pilot Exhaust Port 84 | M5 |
| Pneumatic Ports 1-5 | G1/4 |
| Housing Material | Die-cast aluminium |
| Seal Material | NBR |
Key Features
1000 l/min Nominal Flow
The documented standard nominal flow rate is 1000 l/min for this MFH valve configuration.
G1/4 Pneumatic Ports
The pneumatic working connections use G1/4 threads for integration into suitable compressed-air circuits.
Pilot-Controlled Operation
The valve is pilot-controlled and returns by mechanical spring when the electrical actuation signal is removed.
2.2-8 Bar Operating Pressure
The documented operating pressure range is 2.2 to 8 bar for the MFH-5-1/4 configuration.
Separate F Coil Connection
The electrical connection is provided via an F coil, which is specified as a separately ordered component.
Applications
- Pneumatic cylinder directional control
- Pneumatic actuator control circuits
- Industrial automation machinery
- Automated assembly equipment
- Material handling systems
- Machine compressed-air control
- Production equipment pneumatic systems
- General industrial pneumatic applications
Purchase Information
We support online purchase of the FESTO MFH-5-1/4 Solenoid Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO MFH-5-1/4?
It is an electrically actuated 5/2-way single-solenoid pneumatic valve for directional air control.
What is the FESTO part number?
The documented part number is 6211.
What valve function does MFH-5-1/4 use?
The valve uses a 5/2-way single-solenoid configuration.
What is the standard nominal flow rate?
The documented standard nominal flow rate is 1000 l/min.
What pneumatic connection does the valve use?
The pneumatic working ports use G1/4 connections.
What is the operating pressure range?
The documented operating pressure range is 2.2 to 8 bar.
How does the valve reset?
The MFH-5-1/4 uses a mechanical spring reset.
Does MFH-5-1/4 include a manual override?
Yes. The documented manual override is detenting.
What protection rating is specified?
The valve is documented with an IP65 degree of protection.
Is the solenoid coil included in the valve specification?
The electrical connection is specified via an F coil, and the solenoid coil is ordered separately.
Can MFH-5-1/4 replace MFH-5-1/4-B?
The two models have different technical specifications. Replacement suitability should be verified against the complete model number, pressure range, flow rate, manual override, electrical coil configuration and installation requirements before ordering.
What should be checked before ordering MFH-5-1/4?
Check the complete model number, 5/2-way function, G1/4 ports, 1000 l/min nominal flow, 2.2-8 bar operating pressure, required F coil and installation requirements against the existing pneumatic system.
