5/2-Way Monostable Function
The MFH-5-1/2 uses a 5/2-way monostable configuration with mechanical spring reset for pneumatic directional control.

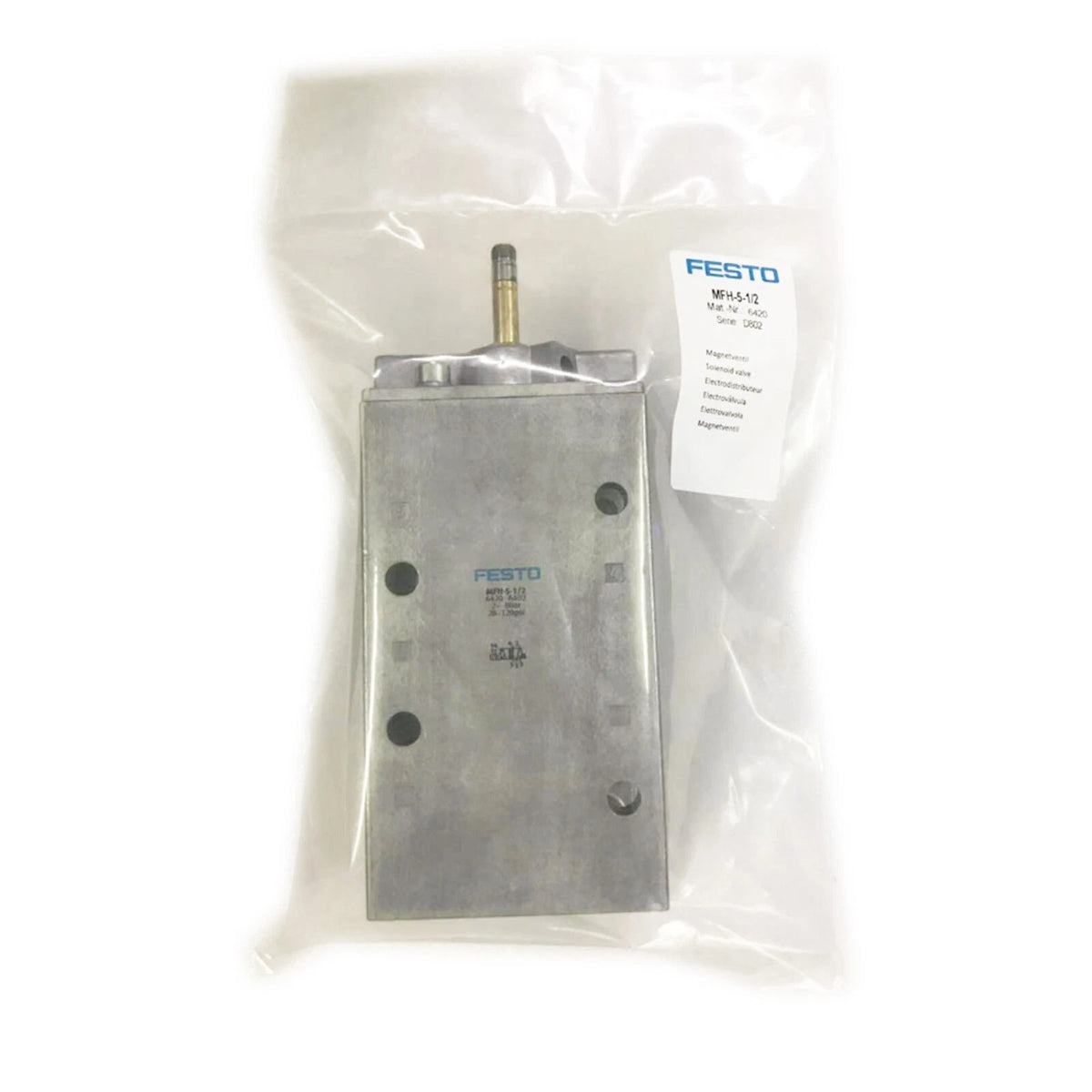

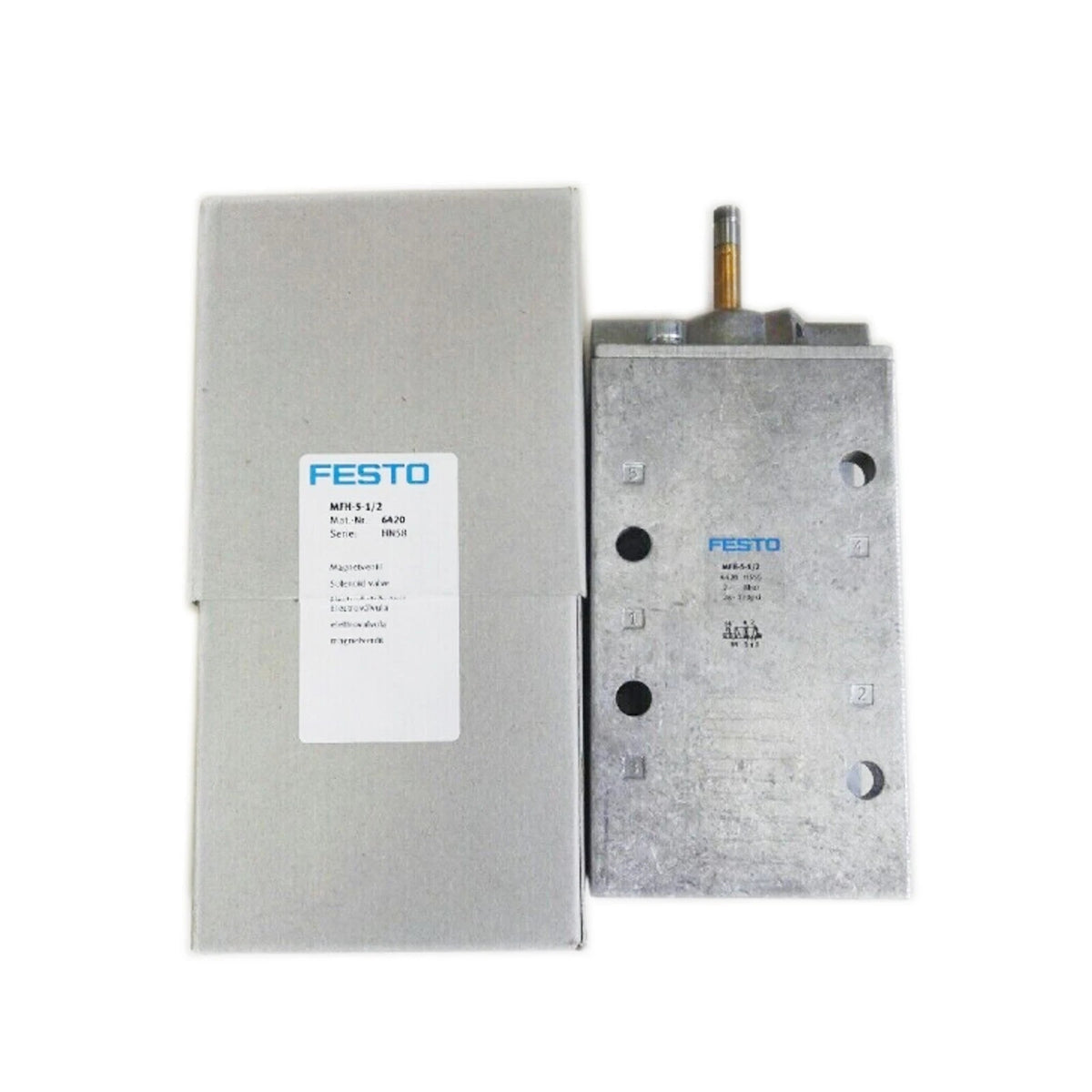

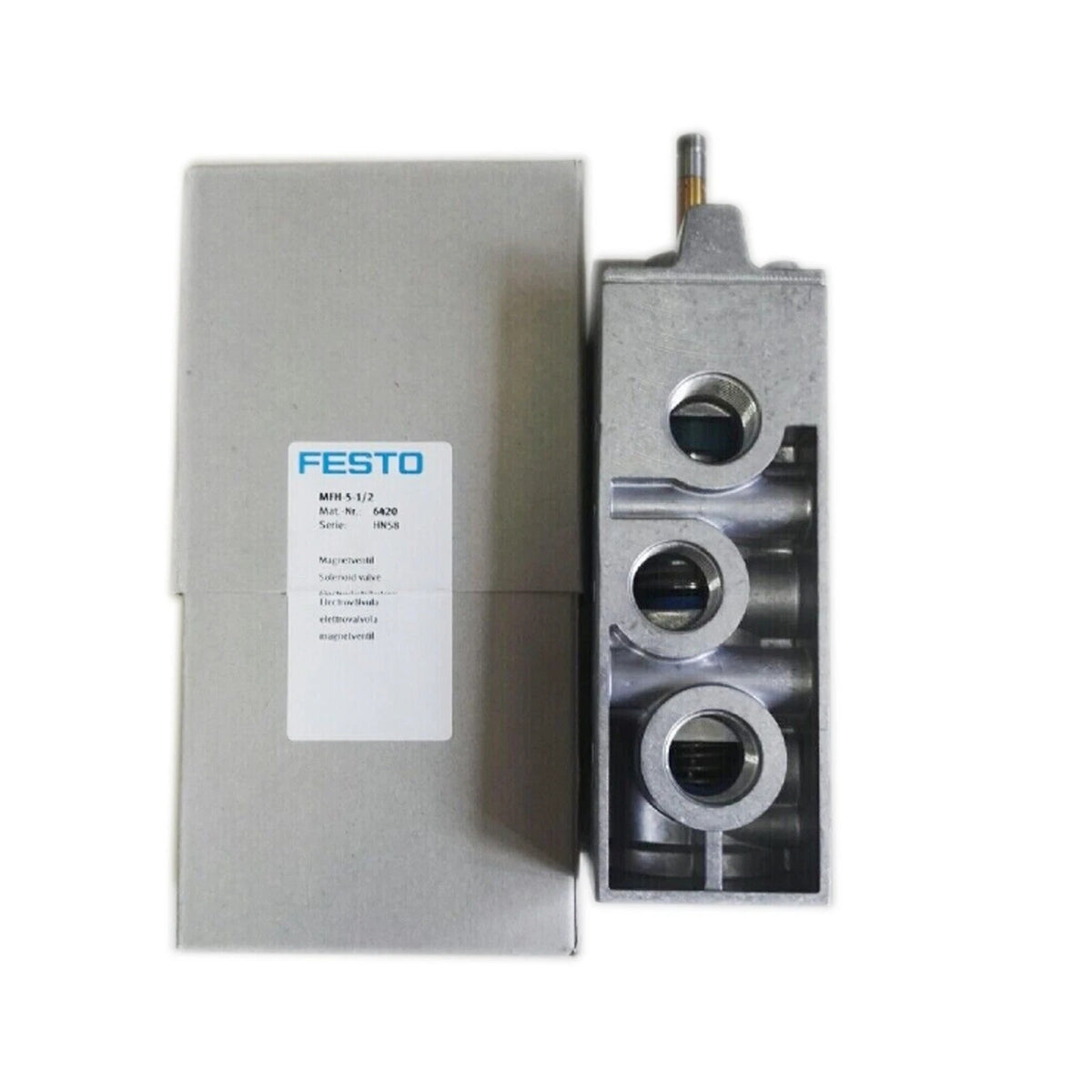

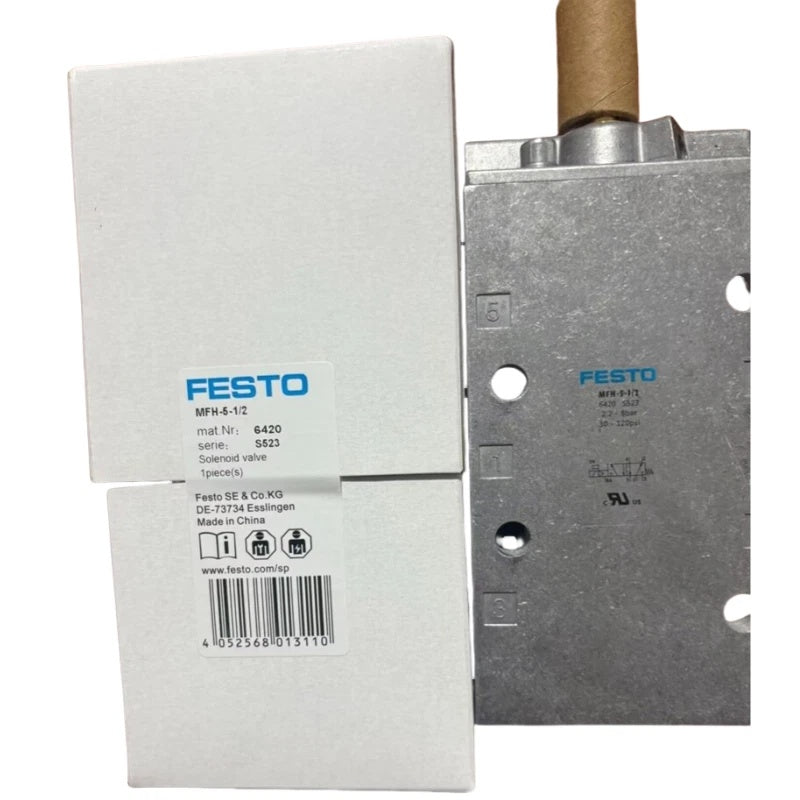

FESTO MFH-5-1/2 Solenoid Valve 5/2-Way G1/2 3700 l/min
Available in stock (400)
Regular price
$82.79
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | MFH-5-1/2 |
| Product Category | Solenoid Valve |
| Part Number | 6420 |
| Valve Function | 5/2-way, monostable |
| Actuation Type | Electrical |
| Construction Width | 52 mm |
| Standard Nominal Flow Rate | 3700 l/min |
| Pneumatic Working Port | G1/2 |
| Operating Voltage | Via solenoid coil, ordered separately |
| Operating Pressure | 2-8 bar |
| Design | Poppet seat |
| Reset Method | Mechanical spring |
| Degree of Protection | IP65 |
| Nominal Size | 14 mm |
| Grid Dimension | 69 mm |
| Exhaust-Air Function | With flow control option |
| Sealing Principle | Soft |
| Mounting Position | Any |
| Manual Override | Detenting |
| Type of Piloting | Pilot actuated |
| Flow Direction | Non-reversible |
| Lap | Underlap |
| Switching Time Off | 150 ms |
| Switching Time On | 21 ms |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Product Weight | 1135 g |
| Electrical Connection | Via F coil, ordered separately |
| Mounting Type | On manifold rail or with through-hole |
| Pilot Exhaust Port 84 | M5 |
| Pneumatic Ports 1-5 | G1/2 |
| Seal Material | NBR, TPE-U(PU) |
| Housing Material | Die-cast aluminium |
Key Features
3700 l/min Nominal Flow
The documented standard nominal flow rate is 3700 l/min, standardized according to DIN 1343.
G1/2 Pneumatic Ports
The main pneumatic ports use G1/2 connections for integration into suitable compressed-air circuits.
2-8 Bar Operating Range
The documented operating pressure range is 2 to 8 bar for this MFH valve configuration.
Pilot-Actuated Design
The valve uses a pilot-actuated poppet-seat design with soft sealing and a mechanical spring return.
Separate Solenoid Coil
The operating voltage is determined by the compatible F solenoid coil, which is specified separately from the valve.
Applications
- Pneumatic directional control circuits
- Pneumatic cylinder and actuator control
- Automated assembly machinery
- Material handling equipment
- Packaging and processing machinery
- Production automation systems
- Compressed-air control installations
- General industrial pneumatic applications
Purchase Information
We support online purchase of the FESTO MFH-5-1/2 Solenoid Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO MFH-5-1/2?
It is an electrically actuated pneumatic solenoid valve with a 5/2-way monostable valve function.
What is the FESTO part number?
The documented part number is 6420.
What is the standard nominal flow rate?
The documented standard nominal flow rate is 3700 l/min.
What pneumatic connection does MFH-5-1/2 use?
The main pneumatic ports use G1/2 connections.
What is the operating pressure range?
The documented operating pressure range is 2 to 8 bar.
What voltage does MFH-5-1/2 use?
The valve is supplied through an F solenoid coil that is specified separately, so the required coil voltage should be checked when selecting the coil.
How is the valve reset?
The MFH-5-1/2 uses a mechanical spring reset.
What is the degree of protection?
The documented degree of protection is IP65.
Does the valve have a manual override?
Yes. The documented manual override is detenting.
What operating medium is specified?
The valve is specified for compressed air to ISO 8573-1:2010 [7:4:4].
Can MFH-5-1/2 replace another MFH valve?
It can be considered after the complete model number and technical requirements have been checked. Valve function, port size, operating pressure, coil requirements, mounting arrangement and pneumatic connections should be verified against the existing system requirements.
What should be checked before ordering?
The electrical, pneumatic, mechanical and installation requirements should be checked before ordering, including the complete model number, 5/2-way function, G1/2 ports, 2-8 bar pressure range and required F solenoid coil.
