20 x 75 mm Clamping Area
The EV-20/75-5 provides a documented 20 x 75 mm clamping area for pneumatic clamping tasks.

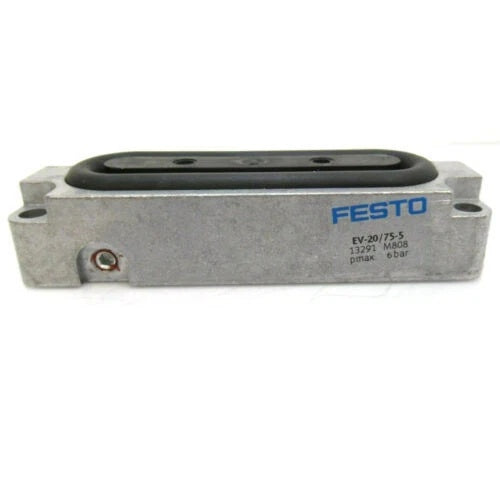

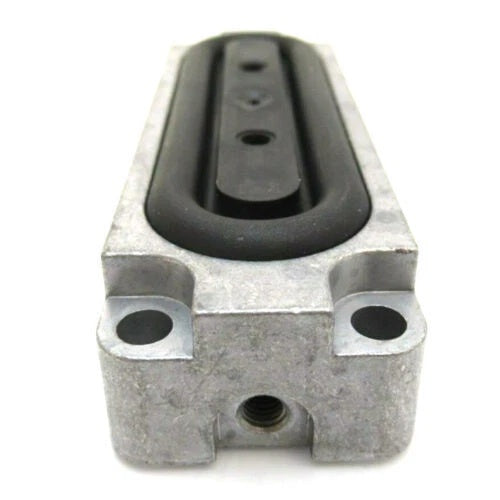

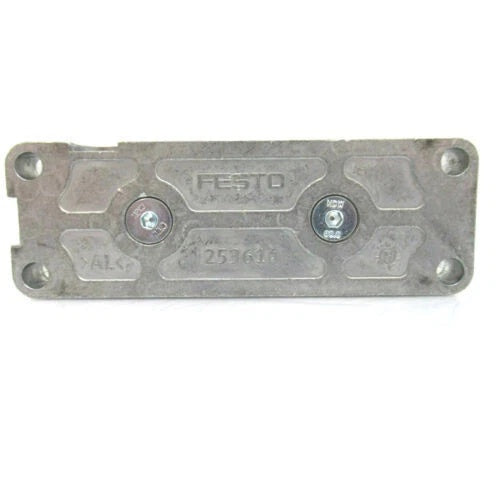

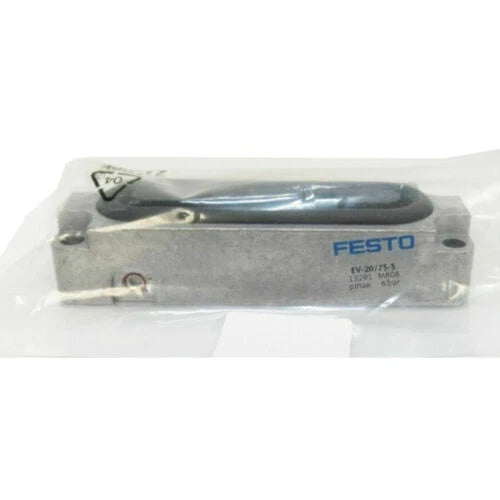

FESTO EV-20/75-5 Clamping Module 5mm Stroke 20x75mm 2-6 Bar
Available in stock (400)
Regular price
$35.11
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | EV-20/75-5 |
| Product Category | Clamping Module |
| Part Number | 13291 |
| Series | EV |
| Stroke | 5 mm |
| Clamping Area | 20 x 75 mm |
| Mode of Operation | Single-acting |
| Operating Pressure | 2-6 bar |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Mounting Position | Any |
| Type of Mounting | With through-hole |
| Pneumatic Connection | M5 |
| Product Weight | 130 g |
| Housing Material | Die-cast aluminum |
| Diaphragm Material | TPE-U (PU) |
| PWIS Conformity | VDMA24364-B1/B2-L |
Key Features
5 mm Stroke
The clamping module provides 5 mm of operating stroke for short-travel clamping and holding applications.
Single-Acting Operation
The EV-20/75-5 uses a single-acting pneumatic operating principle with compressed air as the working medium.
2-6 Bar Operating Pressure
The documented operating pressure range is 2 to 6 bar for suitable pneumatic systems.
M5 Pneumatic Connection
An M5 pneumatic connection is provided for integration into the compressed-air circuit.
Flexible Mounting Position
The clamping module can be installed in any mounting position and is mechanically mounted using through-holes.
Applications
- Pneumatic workpiece clamping
- Automated assembly fixtures
- Production-line holding mechanisms
- Packaging machinery clamping systems
- Material positioning equipment
- Machine-building fixtures
- Industrial handling systems
- Short-stroke pneumatic clamping applications
Purchase Information
We support online purchase of the FESTO EV-20/75-5 Clamping Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO EV-20/75-5?
It is a pneumatic clamping module from the FESTO EV series designed for short-stroke clamping applications.
What is the FESTO part number?
The documented part number is 13291.
What is the stroke of EV-20/75-5?
The documented stroke is 5 mm.
What is the clamping area?
The documented clamping area is 20 x 75 mm.
Is EV-20/75-5 single-acting or double-acting?
The EV-20/75-5 is a single-acting clamping module.
What is the operating pressure range?
The documented operating pressure range is 2 to 6 bar.
What pneumatic connection does it use?
The documented pneumatic connection is M5.
What is the permitted ambient temperature?
The documented ambient temperature range is -20°C to +40°C.
How is the clamping module mounted?
It is mounted using through-holes, and the documented mounting position is any.
What materials are documented for EV-20/75-5?
The housing is made from die-cast aluminum and the diaphragm material is TPE-U (PU).
Can EV-20/75-5 replace another clamping module?
It can be considered after the complete model number and technical requirements have been checked. Stroke, clamping area, operating pressure, pneumatic connection and installation requirements should be verified against existing system requirements.
What should be checked before ordering?
The complete model number, 5 mm stroke, 20 x 75 mm clamping area, 2-6 bar operating pressure, M5 pneumatic connection and mechanical installation requirements should be checked before ordering.
