Adjustable 180° Rotary Motion
The Festo DSR-25-180-P provides pneumatic rotary movement with an adjustable swivel angle from 0° to 180°, allowing the motion range to be configured for compatible industrial machinery and automation applications.
1 / 8
Festo

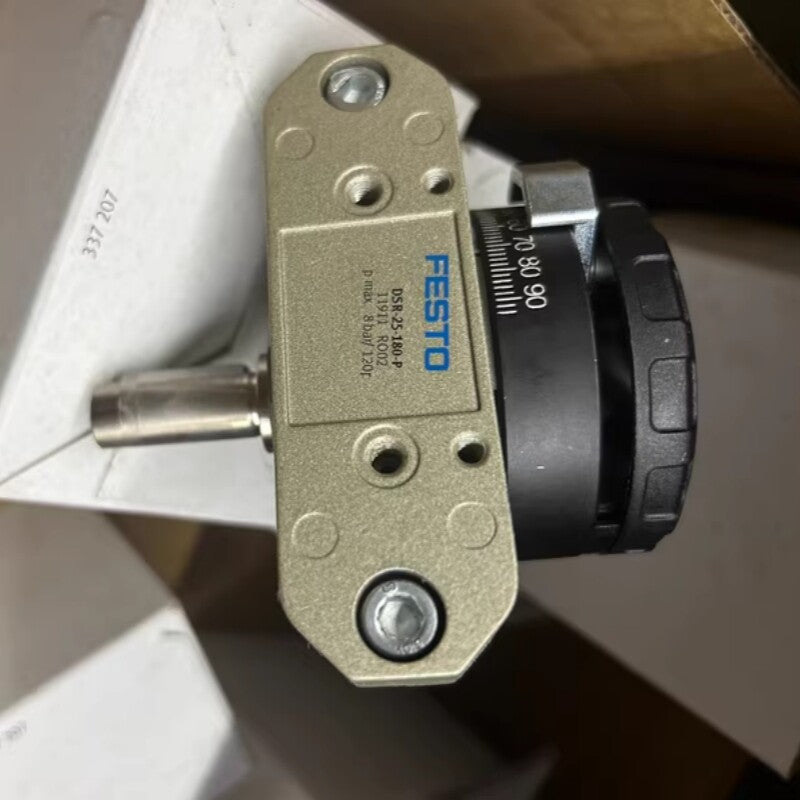

Festo DSR-25-180-P Pneumatic Rotary Actuator 11911
PRODUCT PRICE
USD
$102.00
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Festo |
| Model Number | DSR-25-180-P |
| Product Category | Pneumatic Rotary Actuator |
| Manufacturer Part Number | 11911 |
| Product Series | DSR |
| Product Designation | Semi-Rotary Drive / Rotary Vane Actuator |
| Actuator Size | 25 |
| Operating Principle | Rotary Vane |
| Mode of Operation | Double-Acting |
| Swivel Angle | 0° to 180° |
| Swivel Angle Adjustment Range | 0° to 180° |
| Cushioning Type | Elastic Cushioning Rings / Pads at Both Ends |
| Cushioning Angle | 1.8° |
| Operating Pressure | 1.5 to 8 bar (0.15 to 0.8 MPa) |
| Theoretical Torque at 6 bar | 5 Nm |
| Maximum Swivel Frequency at 6 bar | 3 Hz |
| Maximum Axial Force | 50 N |
| Maximum Radial Force | 120 N |
| Operating Medium | Compressed Air According to ISO 8573-1:2010 [7:-:-] |
| Pneumatic Connection | M5 |
| Output Shaft Type | Spigot Shaft |
| Position Sensing | Not Integrated |
| Mounting Type | Through-Hole Mounting |
| Mounting Position | Any |
| Ambient Operating Temperature | -10 to +60°C |
| Product Weight | Approximately 500 g |
| Housing Material | Die-Cast Zinc |
| Drive Shaft Material | Nickel-Plated Steel |
| Cover Material | Reinforced Polyamide (PA) |
| Seal Material | Nitrile Butadiene Rubber (NBR) |
| LABS / PWIS Conformity | VDMA 24364-B2-L |
| Related Product Family | Festo DRVS Modern Rotary Actuator Family; Compatibility Must Be Verified |
| Manufacturer Technical Reference | Festo DSR-25-180-P Datasheet, Article 11911, May 2026 |
Key Features
Double-Acting Rotary Vane Design
The actuator uses a double-acting rotary vane mechanism to convert compressed air pressure into controlled rotational movement in both directions. A suitable pneumatic directional control circuit is required.
5 Nm Theoretical Torque at 6 bar
Festo specifies a theoretical output torque of 5 Nm at 6 bar. Actual available torque depends on operating pressure, load conditions, friction and system configuration.
Elastic End-Position Cushioning
Elastic cushioning rings or pads at both ends help absorb motion at the travel limits. The specified cushioning angle is 1.8°, supporting appropriate mechanical motion control within the actuator's operating limits.
1.5–8 bar Pneumatic Operation
The actuator operates with compressed air at pressures from 1.5 to 8 bar and features M5 pneumatic connections, allowing integration into appropriately designed industrial air-control systems.
Compact Industrial Construction
The DSR-25-180-P combines a die-cast zinc housing, nickel-plated steel drive shaft and NBR seals. Through-hole mounting and unrestricted mounting orientation provide flexibility for suitable equipment installations.
Applications
- Industrial pneumatic rotary motion systems
- Automated assembly equipment positioning
- Packaging machinery rotary mechanisms
- Workpiece rotation and orientation equipment
- Material handling and transfer systems
- Industrial machine indexing mechanisms
- Compressed-air-operated mechanical actuators
- Maintenance and replacement of compatible Festo DSR rotary drives
Purchase Information
We support online purchase of the Festo DSR-25-180-P Pneumatic Rotary Actuator. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Festo DSR-25-180-P?
It is a Festo DSR series double-acting pneumatic rotary vane actuator with an adjustable swivel range of 0° to 180°, M5 pneumatic connections and a theoretical torque of 5 Nm at 6 bar.
What is the manufacturer part number?
The official Festo article number for DSR-25-180-P is 11911.
What is the maximum rotation angle?
The actuator has a maximum swivel angle of 180°. The travel can be adjusted within the specified 0° to 180° range.
Is DSR-25-180-P single-acting or double-acting?
It is a double-acting rotary actuator. Compressed air is used to drive rotational movement in both directions.
What is its operating pressure range?
Festo specifies an operating pressure of 1.5 to 8 bar, equivalent to 0.15 to 0.8 MPa.
How much torque does the actuator produce?
Its theoretical torque is 5 Nm at 6 bar. This is a reference operating value, not a guarantee of the same output torque at every pressure or load condition.
Does the actuator include end-position cushioning?
Yes. The P version has elastic cushioning rings or pads at both ends, with a specified cushioning angle of 1.8°.
What pneumatic port size is required?
The DSR-25-180-P uses M5 pneumatic connections. Check the fitting thread, tubing dimensions and air-supply arrangement before installation.
What is the maximum swivel frequency?
The manufacturer specifies a maximum swivel frequency of 3 Hz at an operating pressure of 6 bar. The permissible application frequency also depends on the load and mechanical installation.
Does the DSR-25-180-P include an integrated position sensor?
No. The manufacturer specifies this model without integrated position sensing. Any external monitoring solution must be selected and validated separately.
Can the Festo DRVS series replace the DSR-25-180-P?
Festo identifies the DRVS series as a modern alternative to the DSR rotary actuator family. However, direct interchangeability is not guaranteed. Verify shaft dimensions, mounting, torque, pneumatic connections, swivel angle and load requirements.
What should be checked before ordering?
Confirm the exact model DSR-25-180-P, Festo part number 11911, size 25, double-acting rotary vane design, adjustable 0° to 180° rotation, 5 Nm theoretical torque at 6 bar, 1.5 to 8 bar operating pressure, M5 pneumatic connections, spigot shaft, through-hole mounting and the installation dimensions of the existing equipment.
