16 mm Piston Diameter
The DSNU-16-20-P-A has a documented piston diameter of 16 mm.
1 / 7
Festo

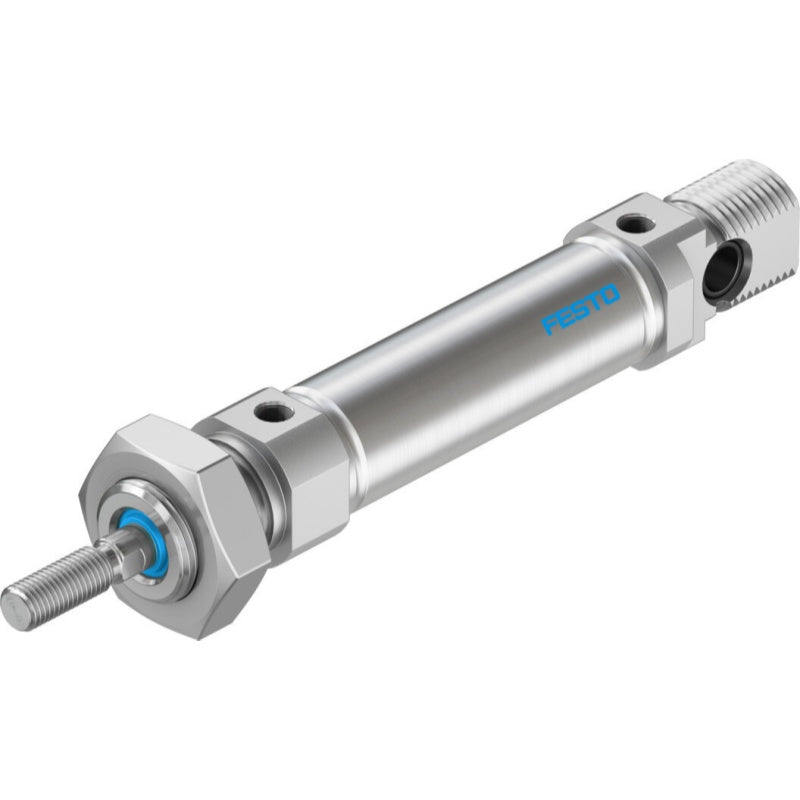

FESTO DSNU-16-20-P-A ISO Cylinder 16mm Bore 20mm Stroke 1-10bar
PRODUCT PRICE
USD
$28.76
0 pcs / pack
Available to order
Request a QuoteBulk Orders, Part Number Assistance, or Alternative Payment Options? Contact Our Team!
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
💳 Need a Different Payment Method?Add your items to cart and contact our team before checkout. We'll help you explore available payment arrangements.
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Festo |
| Model Number | DSNU-16-20-P-A |
| Product Category | ISO Cylinder |
| Part Number | 1908260 |
| Stroke | 20 mm |
| Piston Diameter | 16 mm |
| Piston Rod Thread | M6 |
| Conforms to Standard | CETOP RP 52 P, ISO 6432 |
| Mode of Operation | Double-Acting |
| Cushioning | Elastic Cushioning Rings/Plates at Both Ends |
| Mounting Position | Any |
| Design | Piston, Piston Rod, Cylinder Barrel |
| Position Detection | Via Proximity Switch |
| Operating Pressure | 1-10 bar |
| Operating Medium | Compressed Air to ISO 8573-1:2010 [7:4:4] |
| Impact Energy in End Positions | 0.15 J |
| Theoretical Force at 6 bar, Advance Stroke | 120.6 N |
| Theoretical Force at 6 bar, Return Stroke | 103.7 N |
| Pneumatic Connection | M5 |
Key Features
20 mm Stroke
The documented cylinder stroke for this configuration is 20 mm.
Double-Acting Operation
The documented mode of operation is double acting.
1-10 bar Operating Pressure
The documented operating pressure range is 1 to 10 bar.
ISO 6432 Standard
The documented cylinder configuration conforms to ISO 6432 and CETOP RP 52 P.
Proximity Switch Position Detection
The documented configuration supports position detection via a proximity switch.
Applications
- Pneumatic linear motion
- Industrial machine automation
- Workpiece positioning
- Clamping mechanisms
- Material handling equipment
- Assembly automation
- Pneumatic actuator systems
- Machine positioning mechanisms
Purchase Information
We support online purchase of the Festo DSNU-16-20-P-A ISO Cylinder. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Festo DSNU-16-20-P-A?
Festo DSNU-16-20-P-A is an ISO cylinder with a documented 16 mm piston diameter and 20 mm stroke.
What is the part number for DSNU-16-20-P-A?
The documented Festo part number is 1908260.
What stroke does DSNU-16-20-P-A have?
The documented stroke is 20 mm.
What piston diameter does DSNU-16-20-P-A use?
The documented piston diameter is 16 mm.
What standards does DSNU-16-20-P-A conform to?
The documented standards are ISO 6432 and CETOP RP 52 P.
What operating mode does DSNU-16-20-P-A use?
The documented mode of operation is double acting.
What operating pressure is specified?
The documented operating pressure range is 1 to 10 bar.
What pneumatic connection does DSNU-16-20-P-A use?
The documented pneumatic connection is M5.
What piston rod thread is specified?
The documented piston rod thread is M6 with a male-thread piston rod end.
Can DSNU-16-20-P-A support position detection?
Yes. The documented configuration supports position detection via a proximity switch.
What theoretical force is specified at 6 bar?
The documented theoretical force is 120.6 N on the advance stroke and 103.7 N on the return stroke.
What should be checked before ordering DSNU-16-20-P-A?
Check the complete model number, 16 mm piston diameter, 20 mm stroke, double-acting operation, 1-10 bar operating pressure, M5 pneumatic connection, M6 piston rod thread and installation requirements before purchasing.
