80 mm Bore
The DSBC-80-100-PPVA-N3 has a documented piston diameter of 80 mm for pneumatic linear-motion applications.

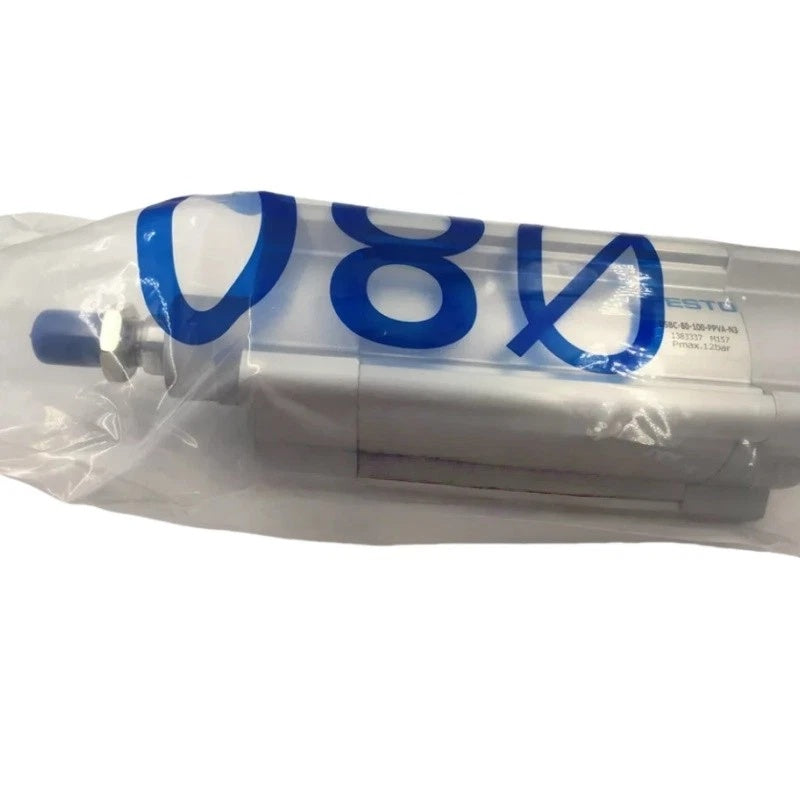

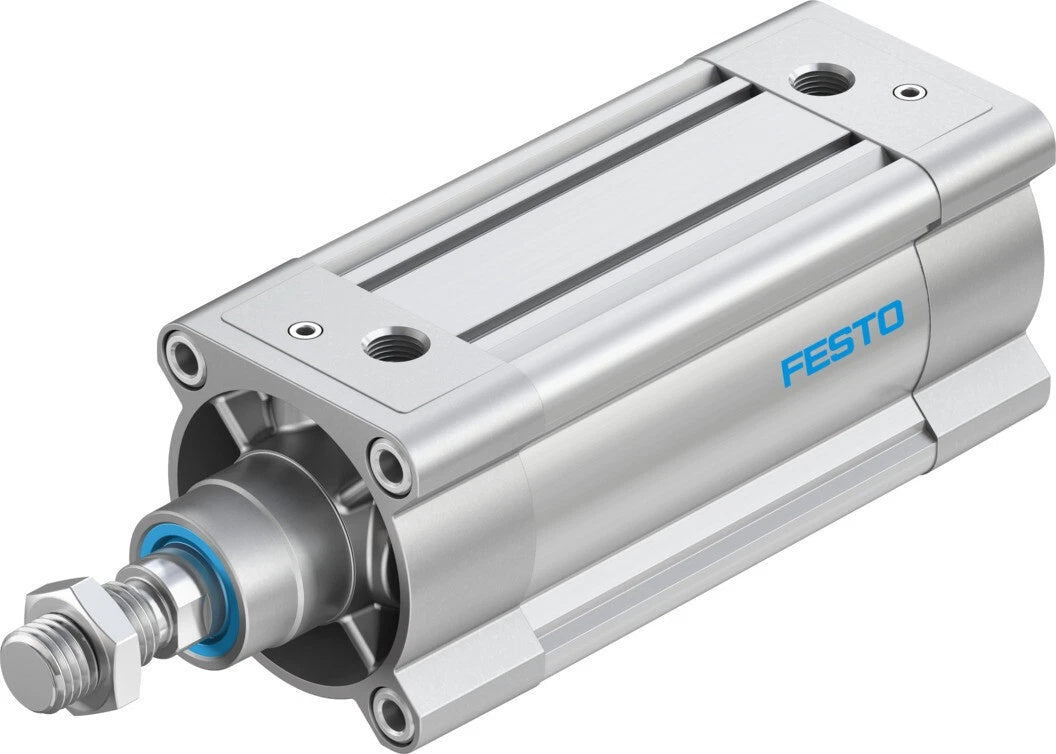

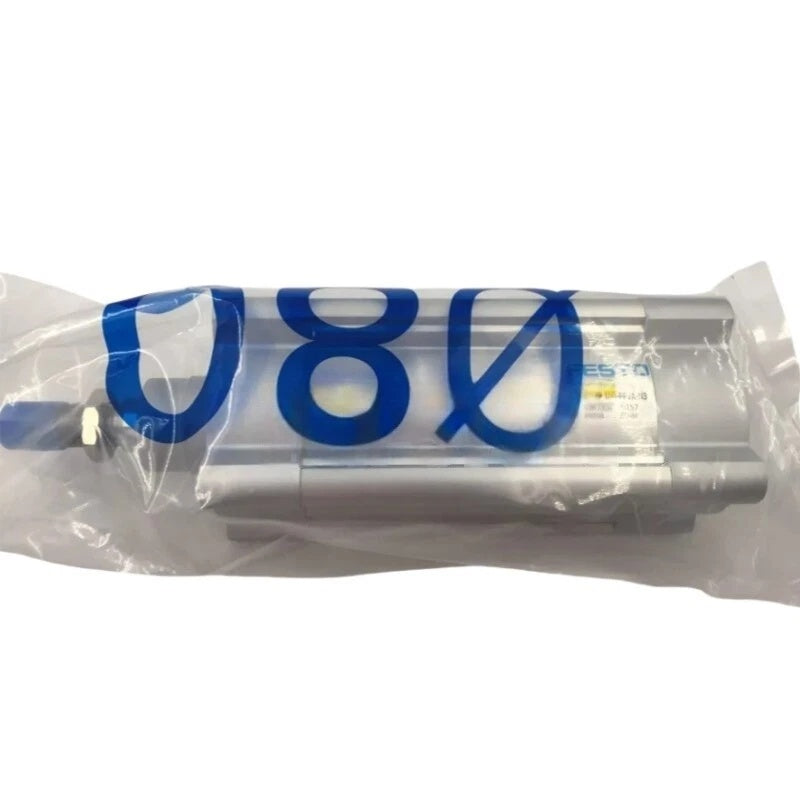

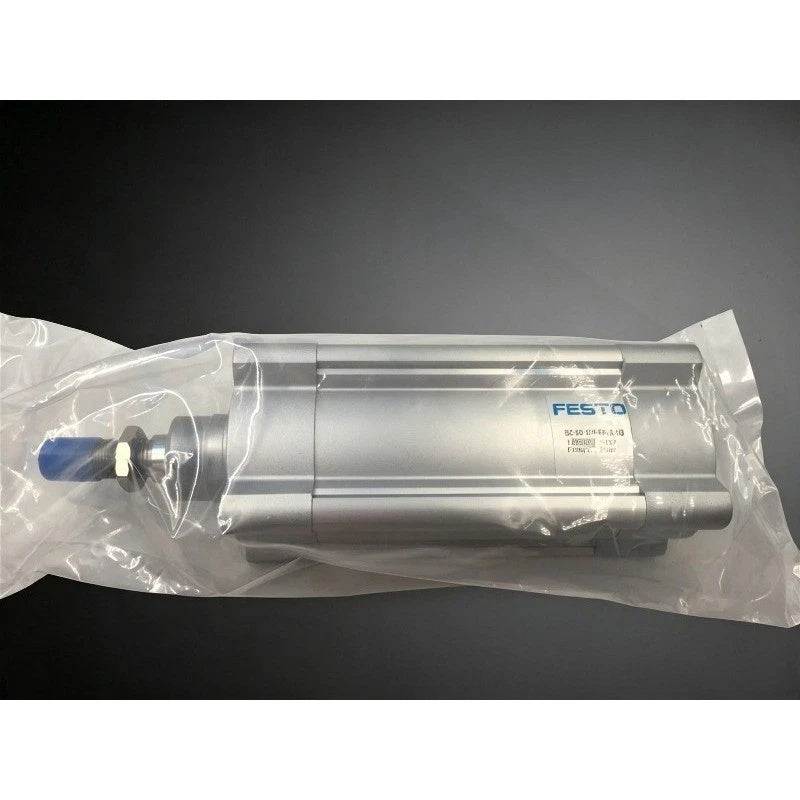

FESTO DSBC-80-100-PPVA-N3 ISO Cylinder 80mm Bore 100mm Stroke
Available in stock (400)
Regular price
$118.45
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | DSBC-80-100-PPVA-N3 |
| Product Category | ISO Cylinder |
| Part Number | 1383337 |
| Series | DSBC |
| Stroke | 100 mm |
| Piston Diameter | 80 mm |
| Piston Rod Thread | M20x1.5 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Standard | ISO 15552 |
| Piston Rod End | Male thread |
| Design | Piston, piston rod, profile barrel |
| Position Detection | Via proximity switch |
| Variant | Piston rod at one end |
| Operating Pressure | 0.4-12 bar |
| Mode of Operation | Double-acting |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Impact Energy at End Positions | 1.8 J |
| Cushioning Length | 31 mm |
| Theoretical Force at 6 Bar, Retracting | 2721 N |
| Theoretical Force at 6 Bar, Advancing | 3016 N |
| Product Weight | 3580 g |
| Pneumatic Connection | G3/8 |
| Corrosion Resistance Class | CRC 2 |
| PWIS Conformity | VDMA24364-B1/B2-L |
| Cylinder Barrel Material | Wrought aluminum alloy, smooth-anodized |
| Piston Rod Material | High-alloy steel |
Key Features
100 mm Stroke
The cylinder provides a documented 100 mm stroke for controlled linear extension and retraction.
ISO 15552 Design
The DSBC cylinder conforms to ISO 15552 and uses a piston, piston rod and profile-barrel construction.
Adjustable Pneumatic Cushioning
Pneumatic cushioning is adjustable at both ends, with a documented cushioning length of 31 mm.
Double-Acting Operation
The cylinder uses compressed air for powered movement in both the advancing and retracting directions.
Position Detection
The DSBC-80-100-PPVA-N3 is designed for position detection via a suitable proximity switch.
Applications
- Industrial pneumatic motion systems
- Automated assembly machinery
- Material handling equipment
- Packaging and processing machinery
- Production-line automation
- Pneumatic clamping and positioning systems
- Machine pushing and transfer mechanisms
- General industrial linear-motion applications
Purchase Information
We support online purchase of the FESTO DSBC-80-100-PPVA-N3 ISO Cylinder. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO DSBC-80-100-PPVA-N3?
It is a double-acting ISO cylinder from the FESTO DSBC series with an 80 mm piston diameter and 100 mm stroke.
What is the FESTO part number?
The documented part number is 1383337.
What is the cylinder bore?
The documented piston diameter is 80 mm.
What is the stroke length?
The documented stroke is 100 mm.
Which standard does this cylinder conform to?
The DSBC-80-100-PPVA-N3 conforms to ISO 15552.
What type of cushioning does it use?
It uses pneumatic cushioning that is adjustable at both ends.
What is the operating pressure range?
The documented operating pressure range is 0.4 to 12 bar.
What is the pneumatic connection?
The documented pneumatic connection is G3/8.
What theoretical force does it provide at 6 bar?
The documented theoretical force is 3016 N when advancing and 2721 N when retracting.
Does it support position detection?
Yes. The cylinder is designed for position detection via a suitable proximity switch.
Can DSBC-80-100-PPVA-N3 replace another pneumatic cylinder?
It can be considered after the complete model number and technical requirements have been checked. Bore, stroke, cushioning, operating pressure, piston rod thread, pneumatic connection, mounting and installation dimensions should be verified against existing system requirements.
What should be checked before ordering?
The pneumatic, mechanical and installation requirements should be checked before ordering, including the complete model number, 80 mm bore, 100 mm stroke, ISO 15552 requirements, M20x1.5 piston rod thread, G3/8 pneumatic connection and required mounting arrangement.
