40 mm Bore
The DSBC-40-150-PPVA-N3 uses a 40 mm piston diameter for linear pneumatic actuation in suitable machine applications.

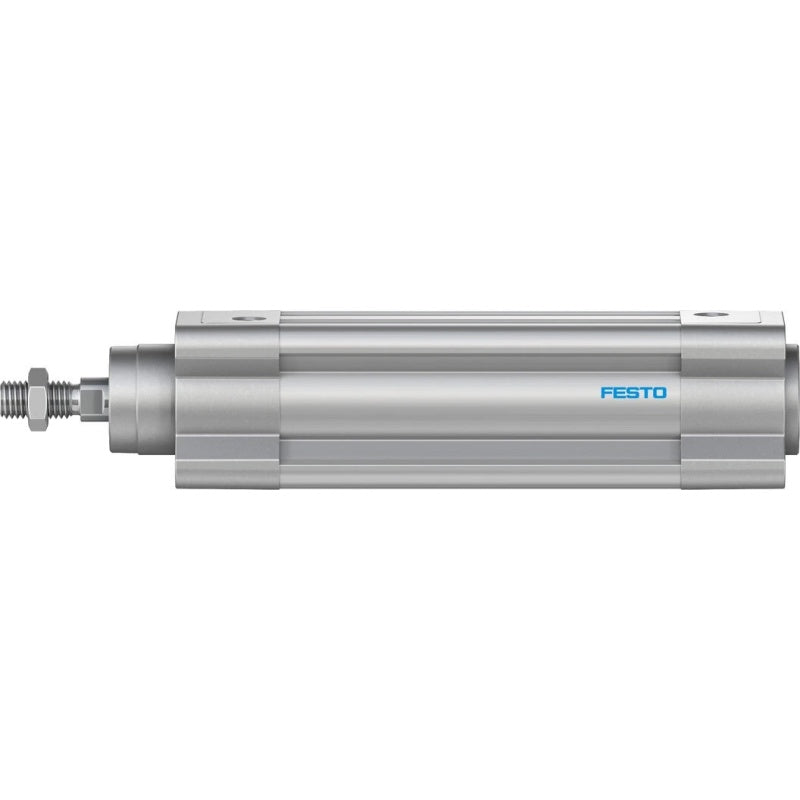

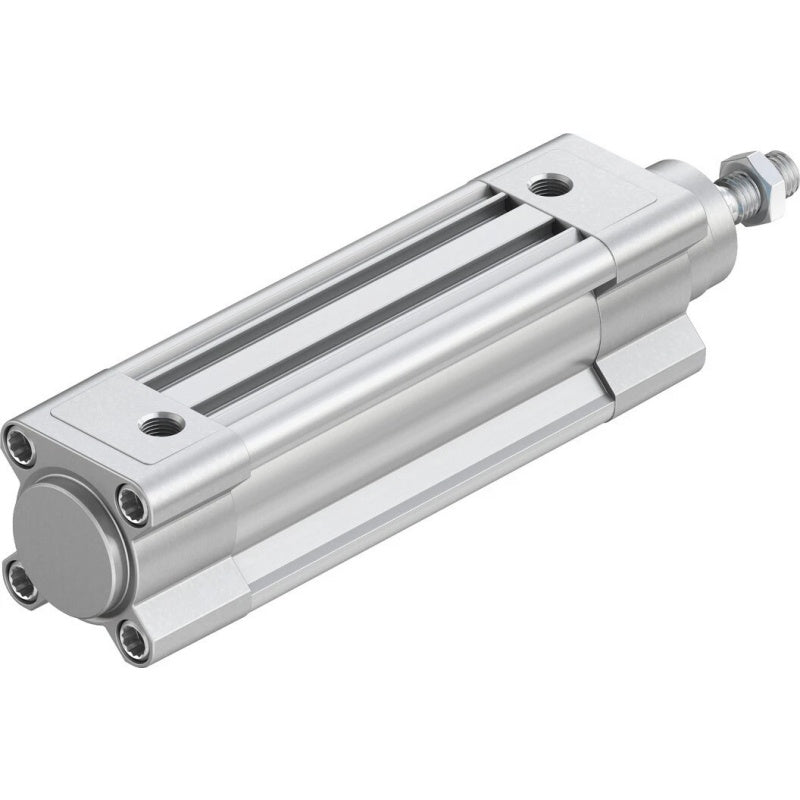

FESTO DSBC-40-150-PPVA-N3 ISO Cylinder 40mm Bore 150mm Stroke
Available in stock (400)
Regular price
$64.51
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | DSBC-40-150-PPVA-N3 |
| Product Category | ISO Cylinder |
| Series | DSBC |
| Stroke | 150 mm |
| Piston Diameter | 40 mm |
| Standard | ISO 15552 |
| Mode of Operation | Double-acting |
| Cushioning | Pneumatic cushioning, adjustable at both ends |

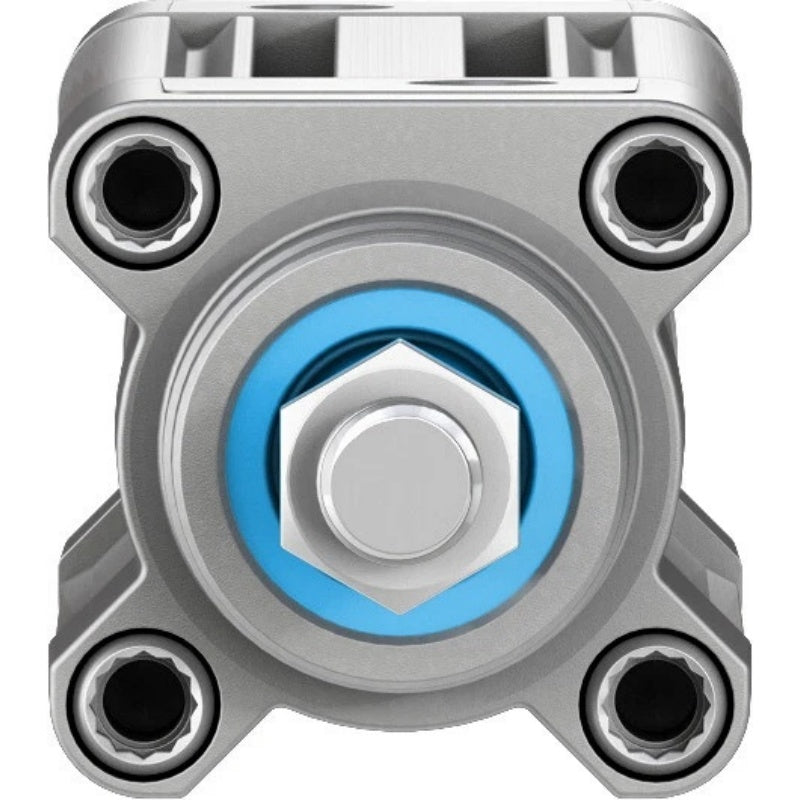

| Piston Rod End | External thread |
| Piston Rod Thread | M12x1.25 |
| Structural Design | Piston, piston rod, profile barrel |
| Position Sensing | For proximity sensor |
| Variant | Piston rod at one end |
| Mounting Position | Any |
| Operating Pressure | 0.6-12 bar |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Cushioning Length | 19 mm |
| Theoretical Force at 6 Bar, Advancing | 754 N |
| Theoretical Force at 6 Bar, Retracting | 633 N |
| Pneumatic Connection | G1/4 |
Key Features
150 mm Stroke
The cylinder provides a documented 150 mm working stroke for linear positioning and movement tasks.
ISO 15552 Design
The DSBC cylinder is designed according to ISO 15552 dimensional standards for standards-based pneumatic cylinder applications.
Adjustable Pneumatic Cushioning
Pneumatic cushioning can be adjusted at both end positions to control deceleration near the end of the cylinder stroke.
Double-Acting Operation
Compressed air is applied for both advancing and retracting movement, providing controlled bidirectional linear motion.
Position Sensing Provision
The cylinder is designed for position sensing with suitable proximity sensors when required by the machine control system.
Applications
- Industrial linear motion systems
- Automated assembly machinery
- Material handling equipment
- Workpiece clamping and positioning
- Packaging and processing machinery
- Pneumatic pushing and transferring mechanisms
- Production automation equipment
- Machine actuator applications
Purchase Information
We support online purchase of the FESTO DSBC-40-150-PPVA-N3 ISO Cylinder. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO DSBC-40-150-PPVA-N3?
It is a DSBC series double-acting ISO cylinder designed for linear pneumatic motion.
What is the piston diameter?
The piston diameter is 40 mm.
What is the stroke length?
The documented stroke is 150 mm.
Which cylinder standard does this model follow?
The DSBC-40-150-PPVA-N3 is designed according to ISO 15552.
What type of cushioning does the cylinder use?
It uses pneumatic cushioning that is adjustable at both ends.
What is the operating pressure range?
The documented operating pressure range is 0.6 to 12 bar.
What pneumatic connection does the cylinder use?
The specified pneumatic connection is G1/4.
What piston rod thread is used?
The piston rod has an M12x1.25 external thread.
Can the piston position be detected?
The cylinder is designed for position sensing using suitable proximity sensors.
What is the theoretical advancing force at 6 bar?
The documented theoretical advancing force at 6 bar is 754 N.
Can DSBC-40-150-PPVA-N3 replace another pneumatic cylinder?
It can be considered after the complete model number and technical requirements have been checked, including bore, stroke, mounting dimensions, pneumatic connections, cushioning and operating pressure.
What should be checked before ordering?
The electrical, mechanical and installation requirements should be checked before ordering, together with the complete model number, 40 mm bore, 150 mm stroke, G1/4 connection and required mounting arrangement.
