32 mm Bore
The DSBC-32-50-PPVA-N3 has a documented piston diameter of 32 mm for pneumatic linear-motion applications.
1 / 11
Festo

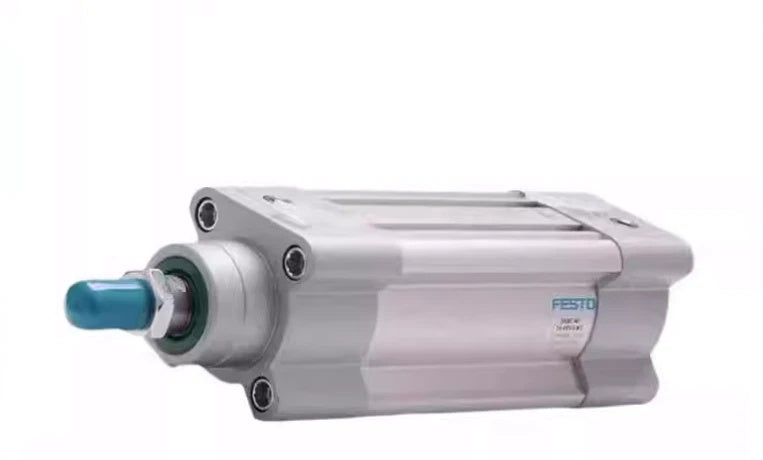

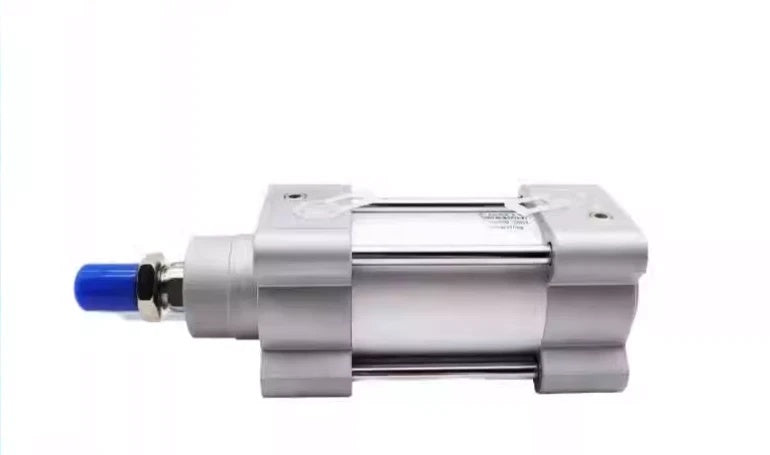

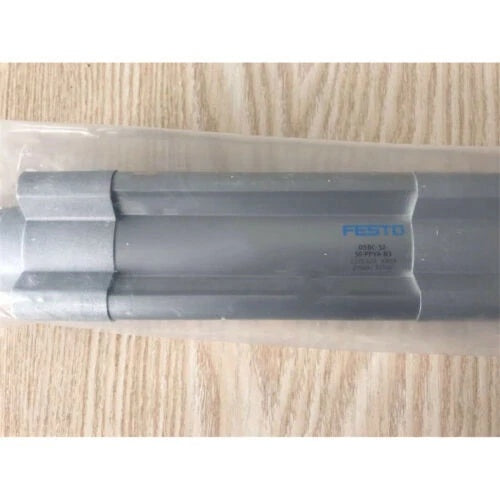

FESTO DSBC-32-50-PPVA-N3 ISO Cylinder 32mm Bore 50mm Stroke
PRODUCT PRICE
USD
$43.47
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with confidence. If for any reason you are not satisfied, you can take advantage of our hassle-free return and exchange service within 30 days. The seller covers all shipping costs for returns or exchanges—there are no extra shipping fees for you to pay, ensuring a worry-free shopping experience.
Payments
Available payment methods
Service Guarantee
Estimated delivery
Ships from 4 U.S. Warehouses – Contact Us for Estimated Delivery Times.
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | FESTO |
| Model Number | DSBC-32-50-PPVA-N3 |
| Product Category | ISO Cylinder |
| Part Number | 1376424 |
| Series | DSBC |
| Stroke | 50 mm |
| Piston Diameter | 32 mm |
| Piston Rod Thread | M10x1.25 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting Position | Any |
| Standard | ISO 15552 |
| Piston Rod End | External thread |
| Design | Piston, piston rod, profile barrel |
| Position Sensing | Via proximity switch |
| Variant | Piston rod at one end |
| Operating Pressure | 0.6-12 bar |
| Mode of Operation | Double-acting |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Lubricated Operation | Possible; continued lubrication required once used |
| Ambient Temperature | -20°C to +80°C |
| Impact Energy at End Positions | 0.4 J |
| Cushioning Length | 17 mm |
| Theoretical Force at 6 Bar, Retracting | 415 N |
| Theoretical Force at 6 Bar, Advancing | 483 N |
| Moving Mass | 155 g |
| Product Weight | 600 g |
| Pneumatic Connection | G1/8 |
| Corrosion Resistance Class | CRC 2 |
| PWIS Conformity | VDMA24364-B1/B2-L |
| Cleanroom Suitability | Class 5 according to ISO 14644-1 |
| Seal Material | TPE-U (PU) |
| Piston Rod Material | High-alloy steel |
| Cylinder Barrel Material | Wrought aluminum alloy, smooth-anodized |
Key Features
50 mm Stroke
The cylinder provides a documented 50 mm stroke for controlled linear extension and retraction.
ISO 15552 Design
The DSBC cylinder conforms to ISO 15552 and uses a piston, piston rod and profile-barrel construction.
Adjustable Pneumatic Cushioning
Pneumatic cushioning is adjustable at both ends, with a documented cushioning length of 17 mm.
Double-Acting Operation
The cylinder uses compressed air for powered movement in both the advancing and retracting directions.
Position Sensing
The DSBC-32-50-PPVA-N3 is designed for position sensing via a suitable proximity switch.
Applications
- Industrial pneumatic motion systems
- Automated assembly machinery
- Material handling equipment
- Packaging and processing machinery
- Production-line automation
- Pneumatic clamping and positioning systems
- Machine transfer and pushing mechanisms
- General industrial linear-motion applications
Purchase Information
We support online purchase of the FESTO DSBC-32-50-PPVA-N3 ISO Cylinder. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO DSBC-32-50-PPVA-N3?
It is a double-acting ISO cylinder from the FESTO DSBC series with a 32 mm piston diameter and 50 mm stroke.
What is the FESTO part number?
The documented part number is 1376424.
What is the cylinder bore?
The documented piston diameter is 32 mm.
What is the stroke length?
The documented stroke is 50 mm.
Which standard does this cylinder conform to?
The DSBC-32-50-PPVA-N3 conforms to ISO 15552.
What type of cushioning does it use?
It uses pneumatic cushioning that is adjustable at both ends.
What is the operating pressure range?
The documented operating pressure range is 0.6 to 12 bar.
What pneumatic connection does it use?
The documented pneumatic connection is G1/8.
What theoretical force does it provide at 6 bar?
The documented theoretical force is 483 N when advancing and 415 N when retracting.
Does it support position sensing?
Yes. The cylinder is designed for position sensing via a suitable proximity switch.
Can DSBC-32-50-PPVA-N3 replace another pneumatic cylinder?
It can be considered after the complete model number and technical requirements have been checked. Bore, stroke, cushioning, operating pressure, piston rod thread, pneumatic connection, mounting and installation dimensions should be verified against existing system requirements.
What should be checked before ordering?
The pneumatic, mechanical and installation requirements should be checked before ordering, including the complete model number, 32 mm bore, 50 mm stroke, ISO 15552 requirements, M10x1.25 piston rod thread, G1/8 pneumatic connection and required mounting arrangement.
Need help confirming a model?
Send us your part number and technical requirements.
