The DSBC-100-250-PPVA-N3 has a documented piston diameter of 100 mm for pneumatic linear-motion applications.

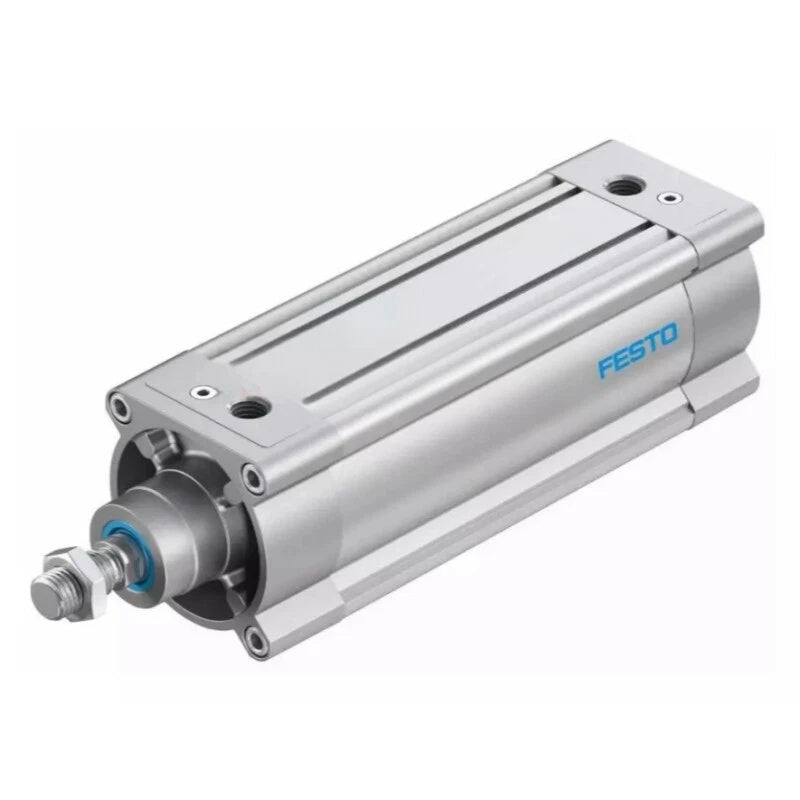

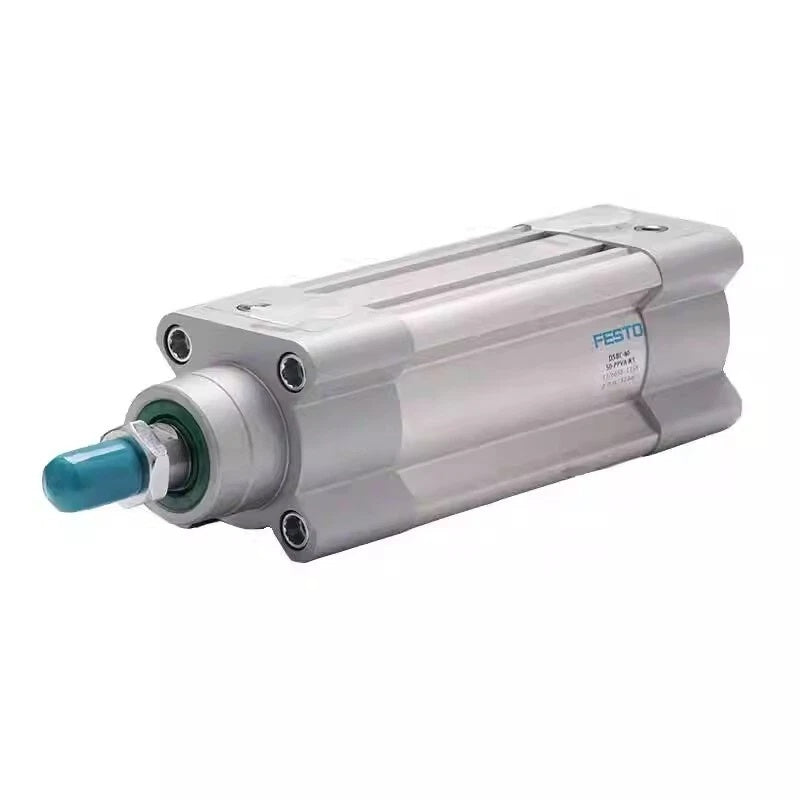

FESTO DSBC-100-250-PPVA-N3 ISO Cylinder 100mm Bore 250mm Stroke
Available in stock (400)
Regular price
$267.75
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | DSBC-100-250-PPVA-N3 |
| Product Category | ISO Cylinder |
| Part Number | 1384812 |
| Series | DSBC |
| Stroke | 250 mm |
| Piston Diameter | 100 mm |
| Piston Rod Thread | M20x1.5 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Standard | ISO 15552 |
| Piston Rod End | External thread |
| Design | Piston, piston rod, profile barrel |
| Position Sensing | For proximity sensor |
| Variant | Piston rod at one end |
| Operating Pressure | 0.4-12 bar |
| Mode of Operation | Double-acting |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -20°C to +80°C |
| Impact Energy at End Positions | 2.5 J |
| Cushioning Length | 31 mm |
| Theoretical Force at 6 Bar, Retracting | 4418 N |
| Theoretical Force at 6 Bar, Advancing | 4712 N |
| Product Weight | 6190 g |
| Pneumatic Connection | G1/2 |
| Corrosion Resistance Class | CRC 2 |
| PWIS Conformity | VDMA24364-B1/B2-L |
Key Features
250 mm Stroke
The cylinder provides a documented 250 mm stroke for controlled linear extension and retraction.
ISO 15552 Design
The DSBC cylinder conforms to ISO 15552, with a profile-barrel construction and external piston-rod thread.
Adjustable Pneumatic Cushioning
Pneumatic cushioning is adjustable at both ends, with a documented cushioning length of 31 mm.
Double-Acting Operation
The cylinder uses compressed air for powered movement in both the advancing and retracting directions.
Position Sensing Provision
The DSBC-100-250-PPVA-N3 is designed for position sensing using a suitable proximity sensor.
Applications
- Industrial pneumatic motion systems
- Automated assembly machinery
- Material handling equipment
- Packaging and processing machinery
- Production-line automation
- Pneumatic clamping and positioning systems
- Machine pushing and transfer mechanisms
- General industrial linear-motion applications
Purchase Information
We support online purchase of the FESTO DSBC-100-250-PPVA-N3 ISO Cylinder. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO DSBC-100-250-PPVA-N3?
It is a double-acting ISO cylinder from the FESTO DSBC series with a 100 mm piston diameter and 250 mm stroke.
What is the FESTO part number?
The documented part number is 1384812.
What is the cylinder bore?
The documented piston diameter is 100 mm.
What is the stroke length?
The documented stroke is 250 mm.
Which standard does this cylinder conform to?
The DSBC-100-250-PPVA-N3 conforms to ISO 15552.
What type of cushioning does it use?
It uses pneumatic cushioning that is adjustable at both ends.
What is the operating pressure range?
The documented operating pressure range is 0.4 to 12 bar.
What is the piston rod thread?
The documented piston rod thread is M20x1.5 with an external-thread rod end.
What theoretical force does it provide at 6 bar?
The documented theoretical force is 4712 N when advancing and 4418 N when retracting.
Does it support position sensing?
Yes. The cylinder is designed for position sensing using a suitable proximity sensor.
Can DSBC-100-250-PPVA-N3 replace another pneumatic cylinder?
It can be considered after the complete model number and technical requirements have been checked. Bore, stroke, cushioning, operating pressure, piston rod thread, pneumatic connection, mounting and installation dimensions should be verified against existing system requirements.
What should be checked before ordering?
The pneumatic, mechanical and installation requirements should be checked before ordering, including the complete model number, 100 mm bore, 250 mm stroke, ISO 15552 requirements, M20x1.5 piston rod thread, G1/2 pneumatic connection and required mounting arrangement.
