80 mm Bore
The DNC-80-PPV-A configuration is based on an 80 mm piston diameter for pneumatic linear-motion applications.

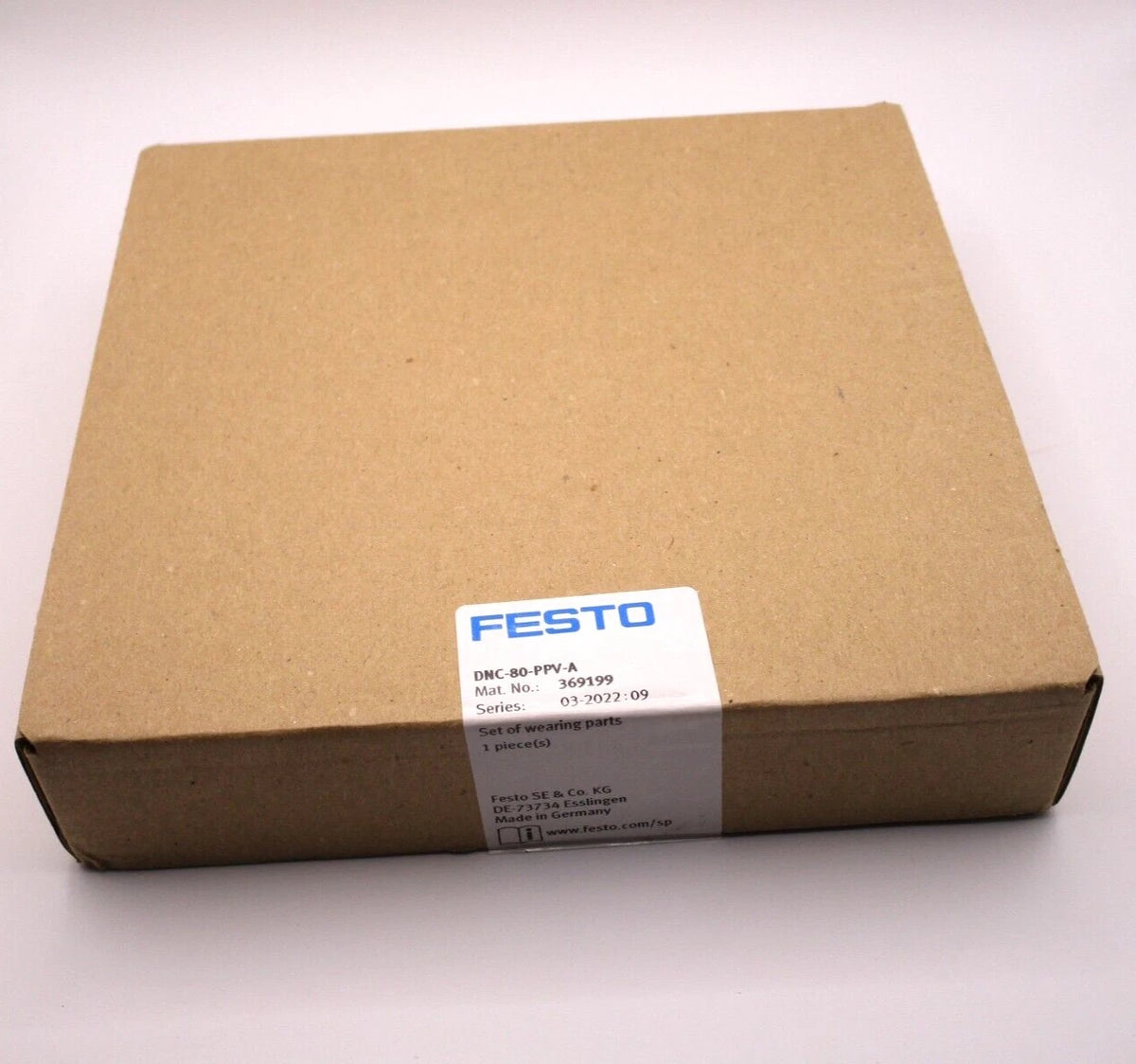

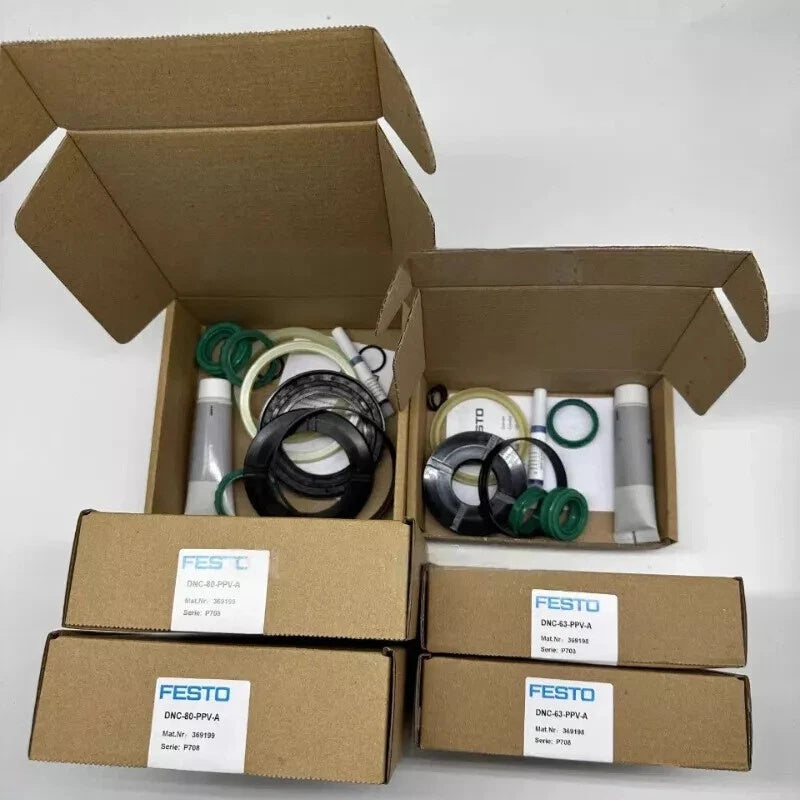

FESTO DNC-80-PPV-A ISO Cylinder 80mm Bore 0.6-12 Bar G3/8
Available in stock (400)
Regular price
$20.09
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | FESTO |
| Model Number | DNC-80-PPV-A |
| Product Category | ISO Cylinder |
| Series | DNC |
| Piston Diameter | 80 mm |
| Stroke Range | 3-2000 mm, configuration dependent |
| Piston Rod Thread | M20x1.5 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting Position | Any |
| Standard | ISO 15552 |
| Piston Rod End | External thread |
| Design | Piston, piston rod, profile barrel |
| Position Sensing | For proximity sensor |
| Variant | Piston rod at one end |
| Operating Pressure | 0.6-12 bar |
| Mode of Operation | Double-acting |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Lubricated Operation | Possible; continued lubrication required once used |
| Impact Energy at End Positions | 0.9 J |
| Cushioning Length | 32 mm |
| Theoretical Force at 6 Bar, Retracting | 2721 N |
| Theoretical Force at 6 Bar, Advancing | 3016 N |
| Pneumatic Connection | G3/8 |
| Corrosion Resistance Class | CRC 2 |
| PWIS Conformity | VDMA24364-B1/B2-L |
| Seal Material | TPE-U (PU) |
| Piston Rod Material | High-alloy steel |
| Cylinder Barrel Material | Wrought aluminum alloy, smooth-anodized |
Key Features
ISO 15552 Design
The DNC series cylinder conforms to ISO 15552 and uses a piston, piston rod and profile-barrel construction.
Adjustable Pneumatic Cushioning
Pneumatic cushioning is adjustable at both ends, with a documented cushioning length of 32 mm.
Double-Acting Operation
The cylinder uses compressed air for powered movement in both the advancing and retracting directions.
Position Sensing Provision
The DNC-80-PPV-A configuration is designed for position sensing using a suitable proximity sensor.
G3/8 Pneumatic Connection
The documented pneumatic connection for the 80 mm bore configuration is G3/8.
Applications
- Industrial pneumatic motion systems
- Automated assembly machinery
- Material handling equipment
- Packaging and processing machinery
- Production-line automation
- Pneumatic clamping and positioning systems
- Machine transfer and pushing mechanisms
- General industrial linear-motion applications
Purchase Information
We support online purchase of the FESTO DNC-80-PPV-A ISO Cylinder. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is FESTO DNC-80-PPV-A?
It is an ISO 15552 double-acting pneumatic cylinder configuration from the FESTO DNC series with an 80 mm piston diameter.
What is the cylinder bore?
The documented piston diameter is 80 mm.
What is the exact stroke of DNC-80-PPV-A?
The supplied model designation does not identify one specific stroke. FESTO documents the configurable DNC-80-PPV-A with a stroke range of 3 to 2000 mm, while standard ordering variants include the stroke value in the complete type designation.
Which standard does the cylinder conform to?
The DNC-80-PPV-A conforms to ISO 15552.
What type of cushioning does it use?
It uses pneumatic cushioning that is adjustable at both ends.
What is the operating pressure range?
The documented operating pressure range is 0.6 to 12 bar.
What is the pneumatic connection?
The documented pneumatic connection for the 80 mm bore configuration is G3/8.
What theoretical force does it provide at 6 bar?
The documented theoretical force is 3016 N when advancing and 2721 N when retracting.
Does DNC-80-PPV-A support position sensing?
Yes. This configuration is designed for position sensing using a suitable proximity sensor.
What is the piston rod thread?
The documented piston rod thread is M20x1.5.
Can DNC-80-PPV-A replace another pneumatic cylinder?
It can be considered after the complete model number and technical requirements have been checked. Bore, exact stroke, cushioning, pressure range, piston rod thread, pneumatic connection, mounting and installation dimensions should be verified against existing system requirements.
What should be checked before ordering?
The complete cylinder designation and required stroke should be confirmed first. The 80 mm bore, ISO 15552 requirements, M20x1.5 piston rod thread, G3/8 pneumatic connection, operating pressure and mounting requirements should also be checked before ordering.
